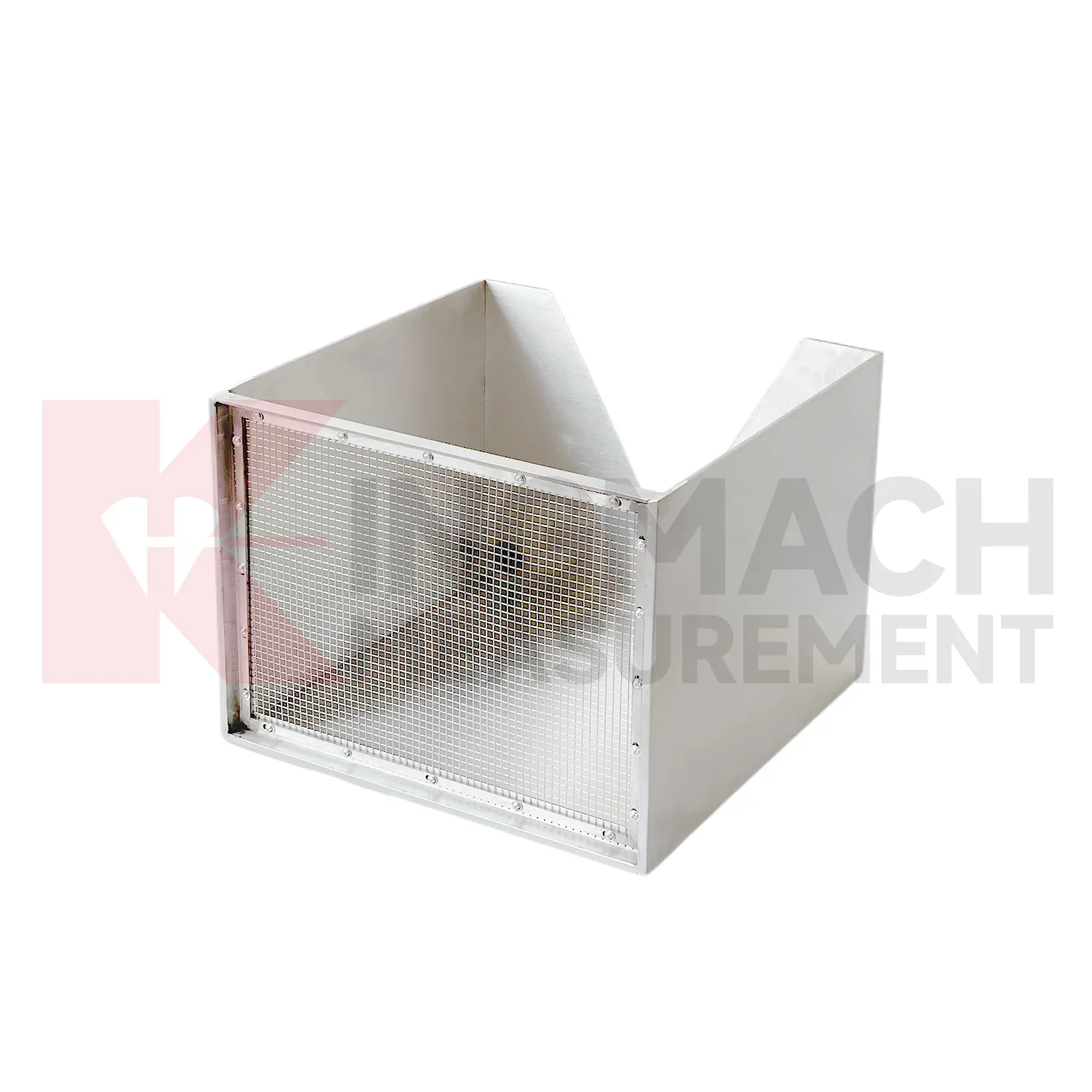

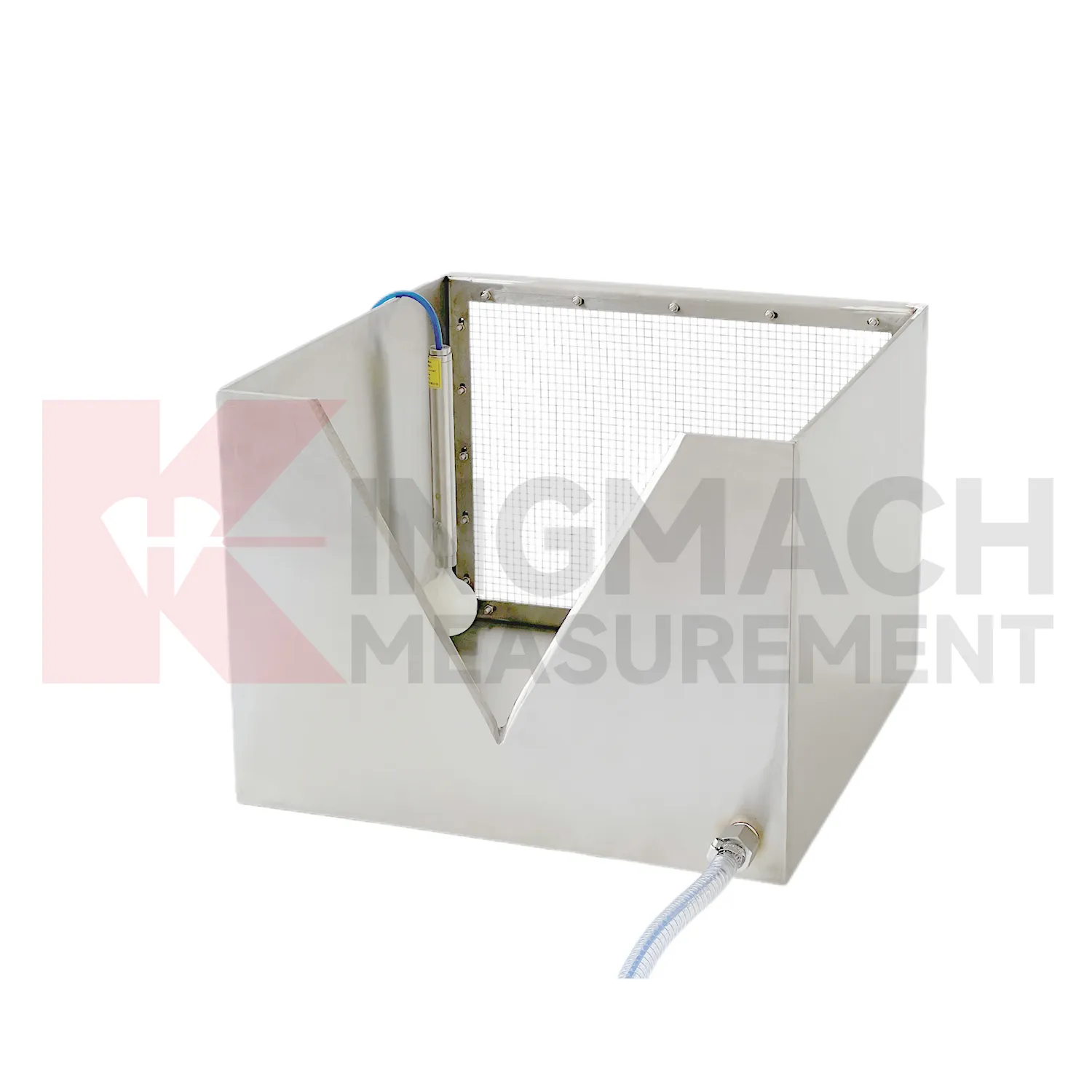

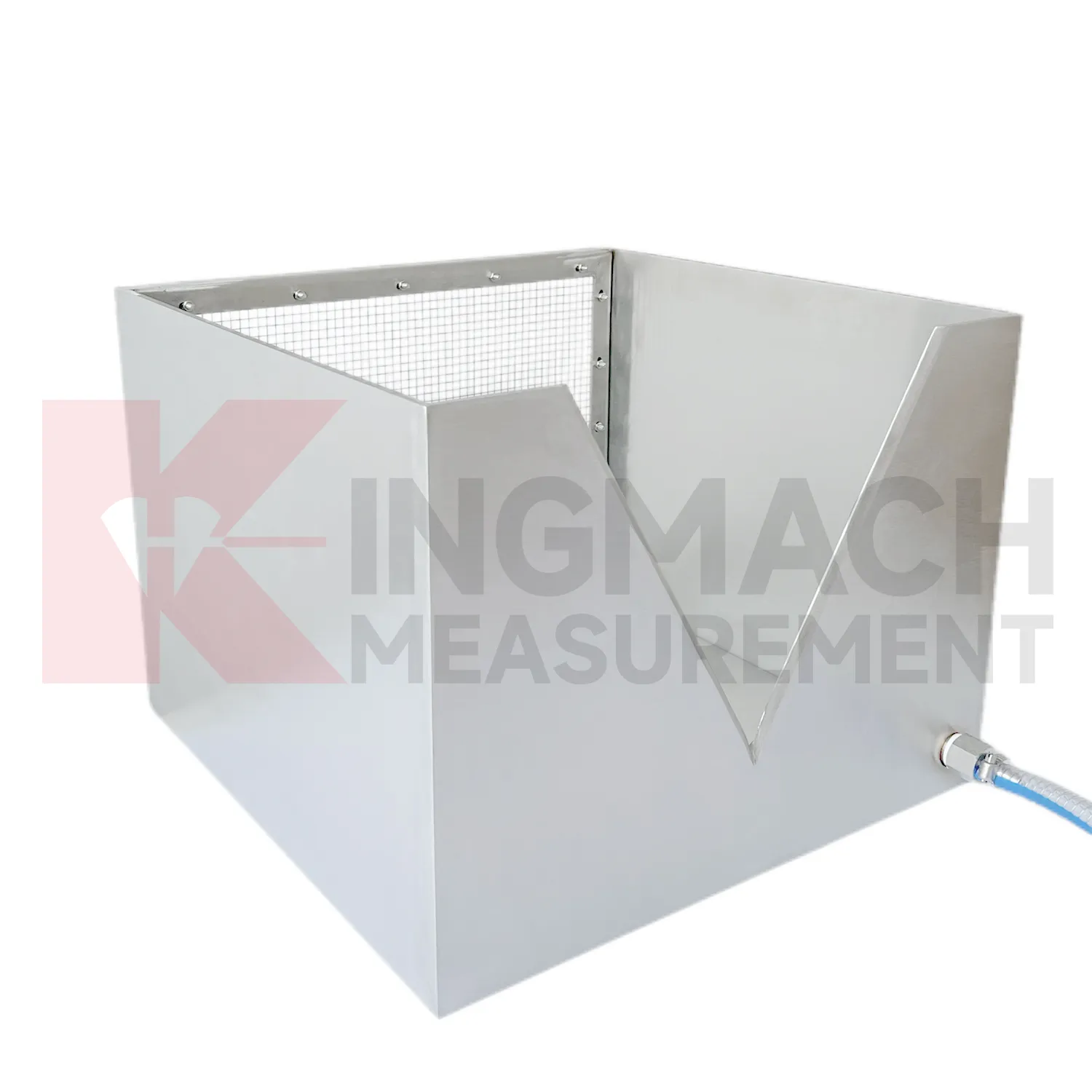

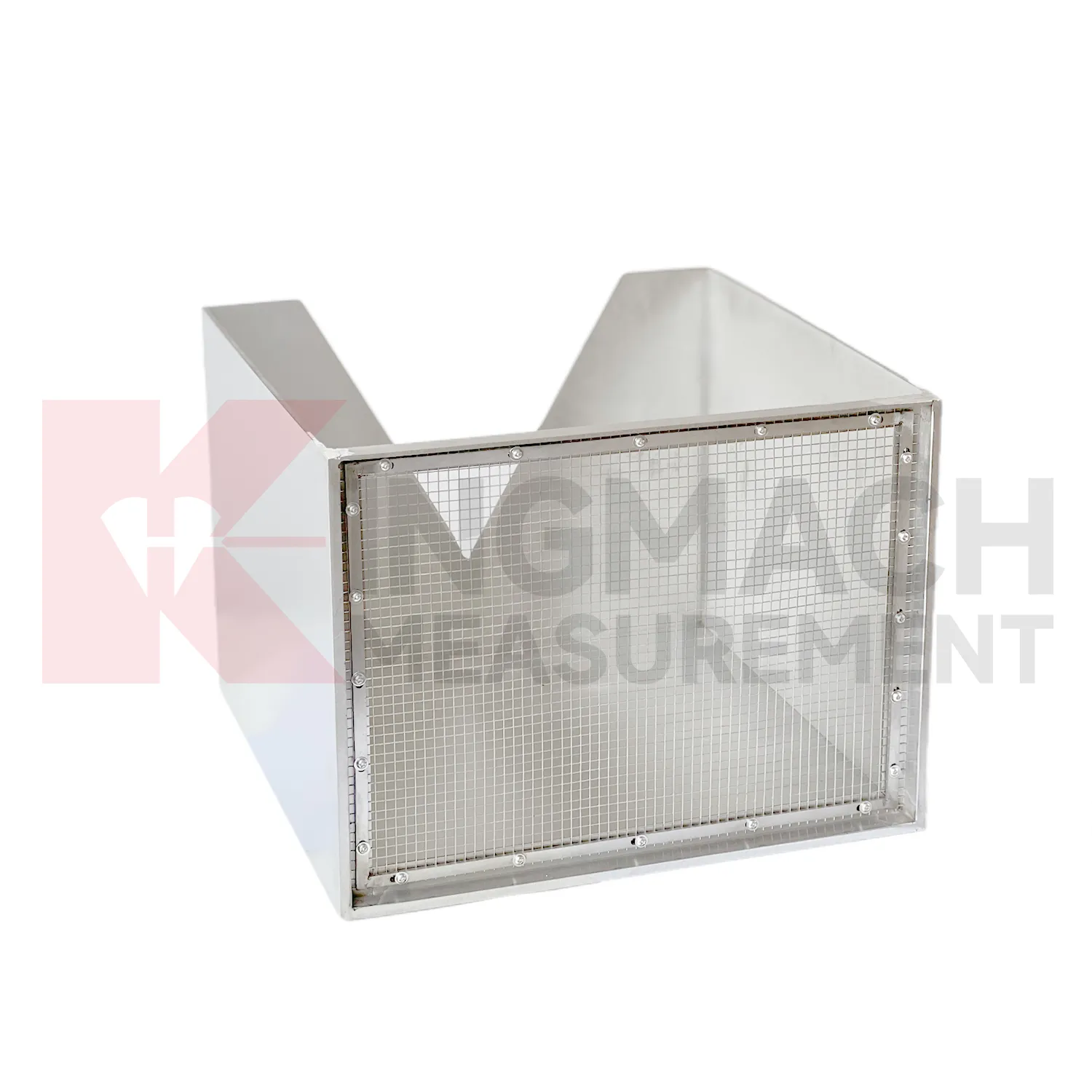

The Smart Weir Flow Meter can be used for accurately measuring extremely small water level changes. The system mainly consists of a weir body and a differential pressure precision water level gauge, and is widely applied in the measurement and monitoring of liquid flow.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMDL-64XXADT |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:
The JMYC-64XX Series Smart Weir Flow Meter is designed to precisely measure minute water level changes. The system primarily consists of a weir body and a differential pressure-type precision water level gauge, widely used in liquid flow measurement and monitoring.
Product Features：
1. The weir crest can be designed as triangular, trapezoidal, etc., with weir body and crest dimensions customizable per requirements.
2. A differential pressure-type precision water level gauge measures water head height, integrating advanced pressure-sensitive elements, CPU, precision voltage stabilization circuits, 16-bit AD converters, and large-scale ICs. It delivers high stability, performance, and accuracy for long-term observation.
3. The sensor features an air-ventilated structure, with internal tubing connecting the sensor to ambient air for enhanced precision and rapid response.
4. Built-in smart detection circuitry outputs digital readings via RS-485 bus, enabling long-distance, distortion-free transmission for sustained monitoring and automation.
5. Excellent insulation, waterproof durability, and reliable safety.
6. The smart sensor directly displays liquid level values, offering intuitive, simple, and fast measurement.
7. Compatible with our proprietary automatic integrated testing system for unattended operation or remote monitoring.
This product is widely used for the measurement and monitoring of liquid flow. When paired with the automatic comprehensive test system produced by our company, it can realize unmanned on-site measurement or remote monitoring.
|
Range |
500mm |
|
Accuracy |
0.2% F.S |
|
Resolution |
0.01mm |
|
Supply Voltage |
DC9V~24V |
|
Signal Output |
RS485 digital signal output |
|
Operating Temperature |
-30℃ ~ +80℃ |
|
Mechanical Dimensions |
Weir body size of the water measuring weir 400mm×400mm×300mm(Customizable) |
