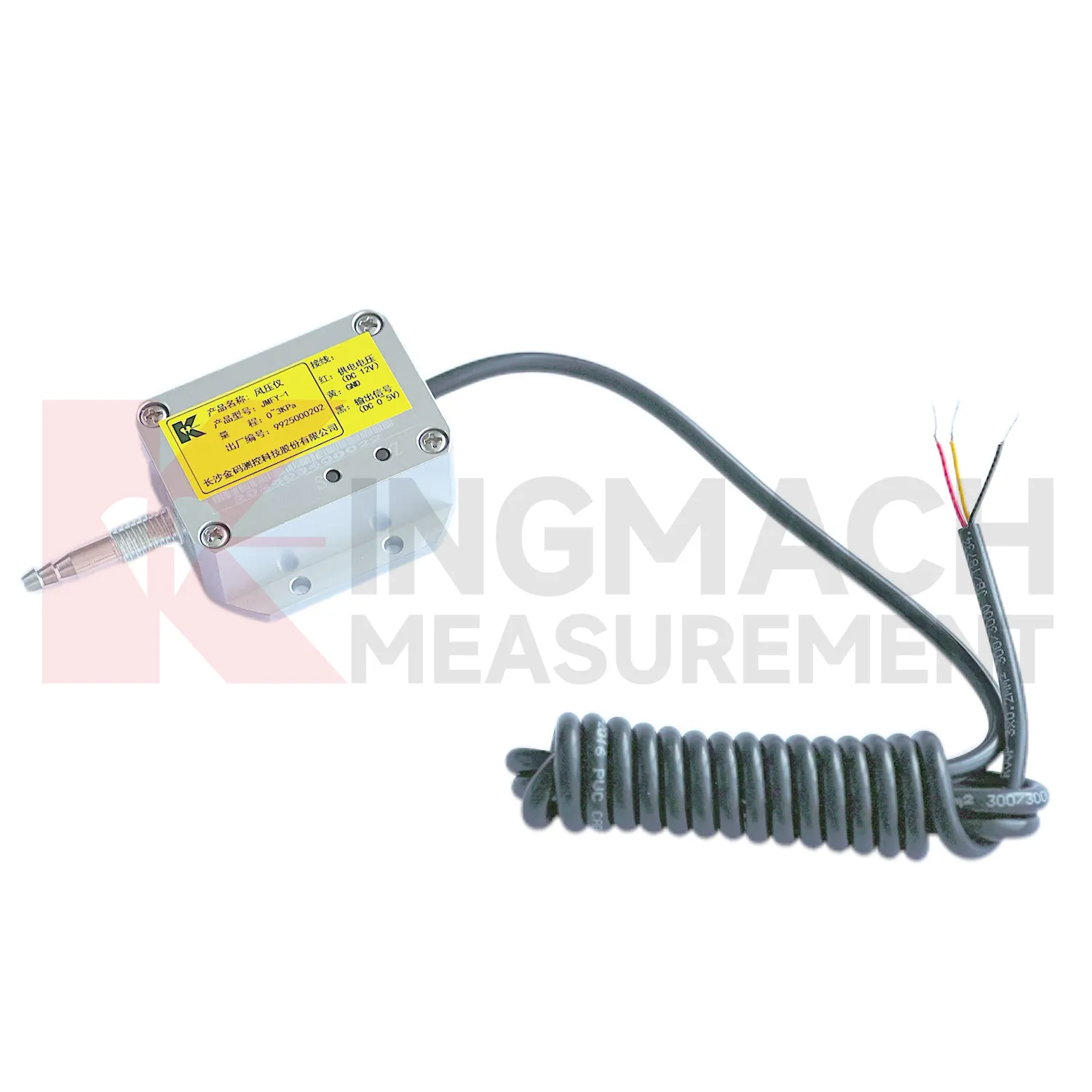

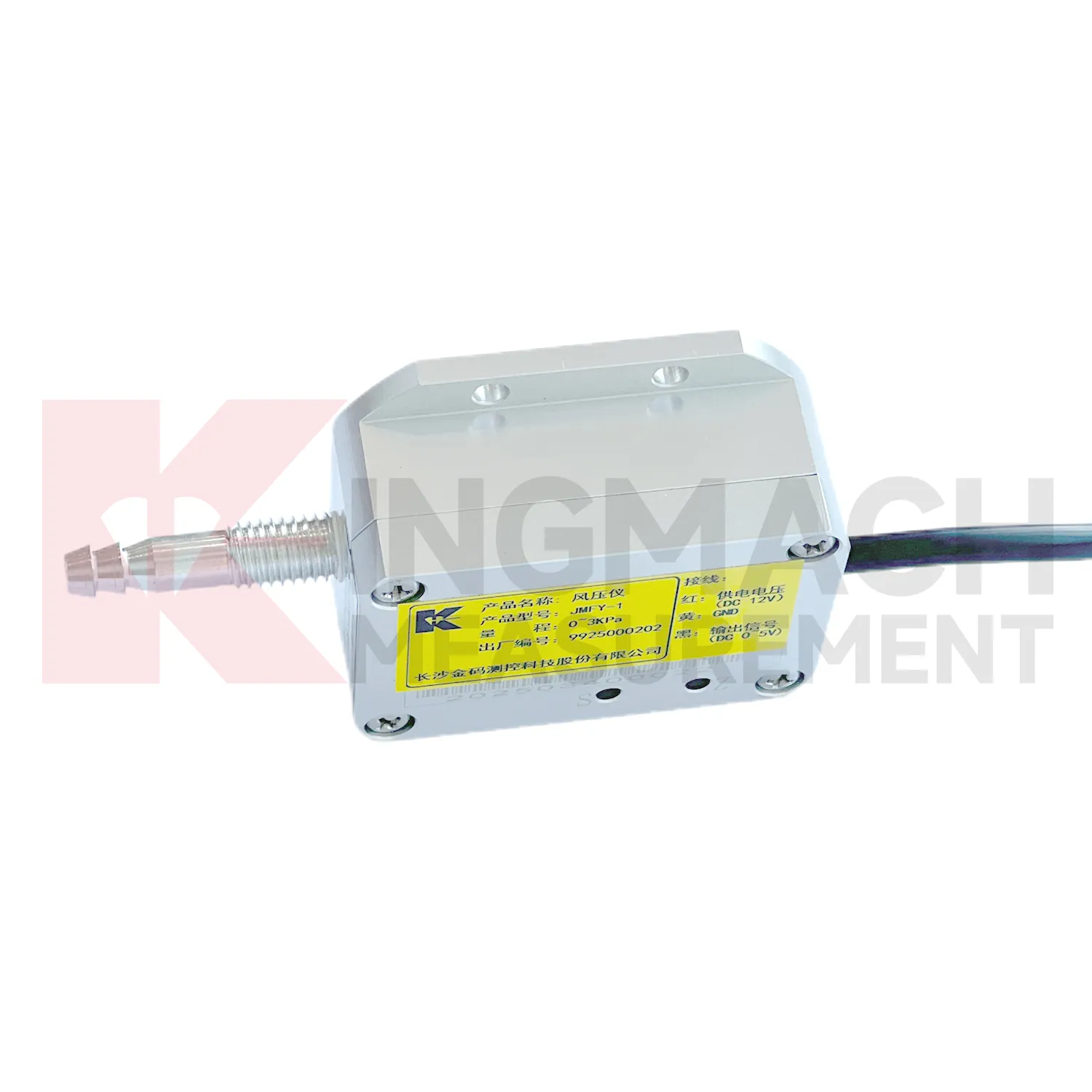

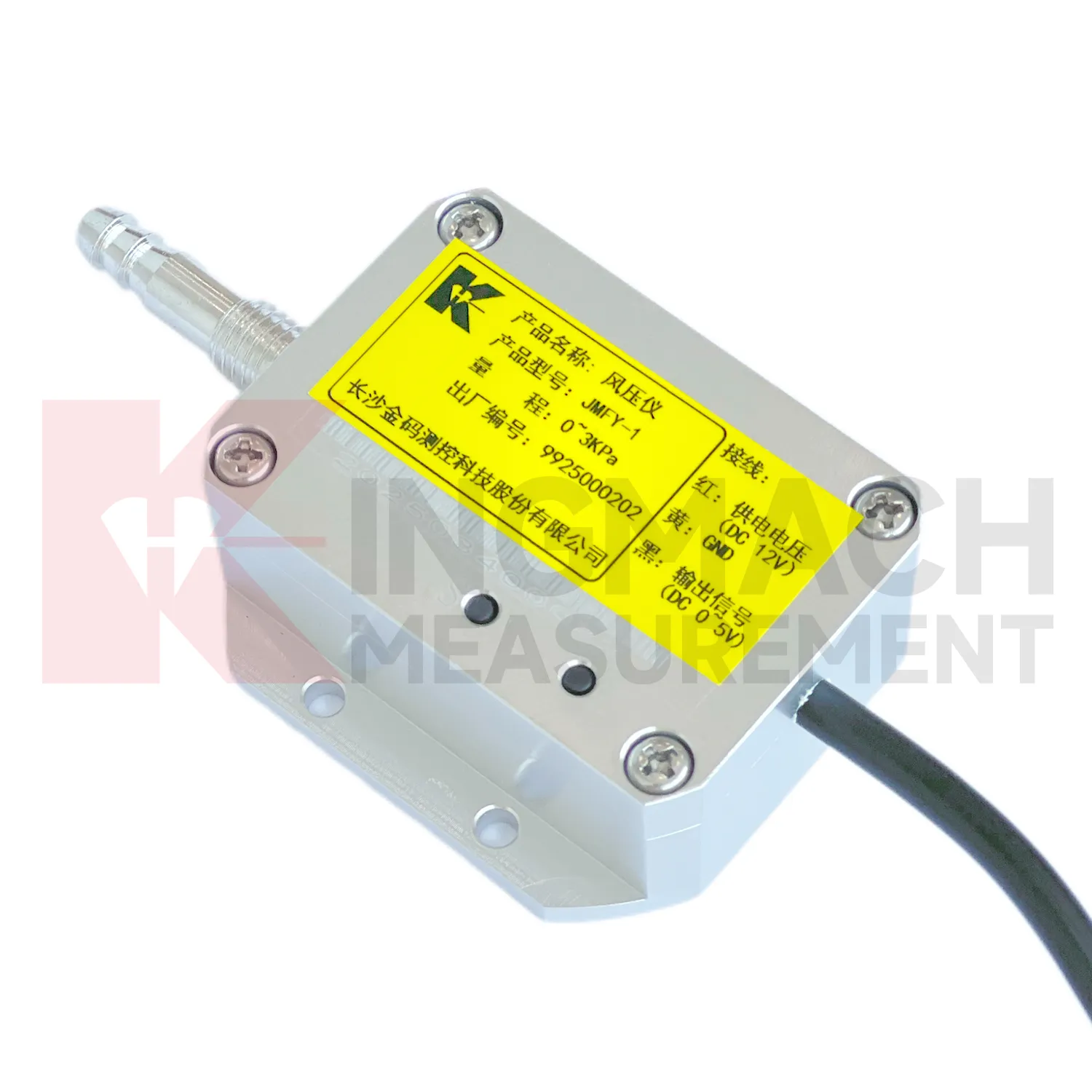

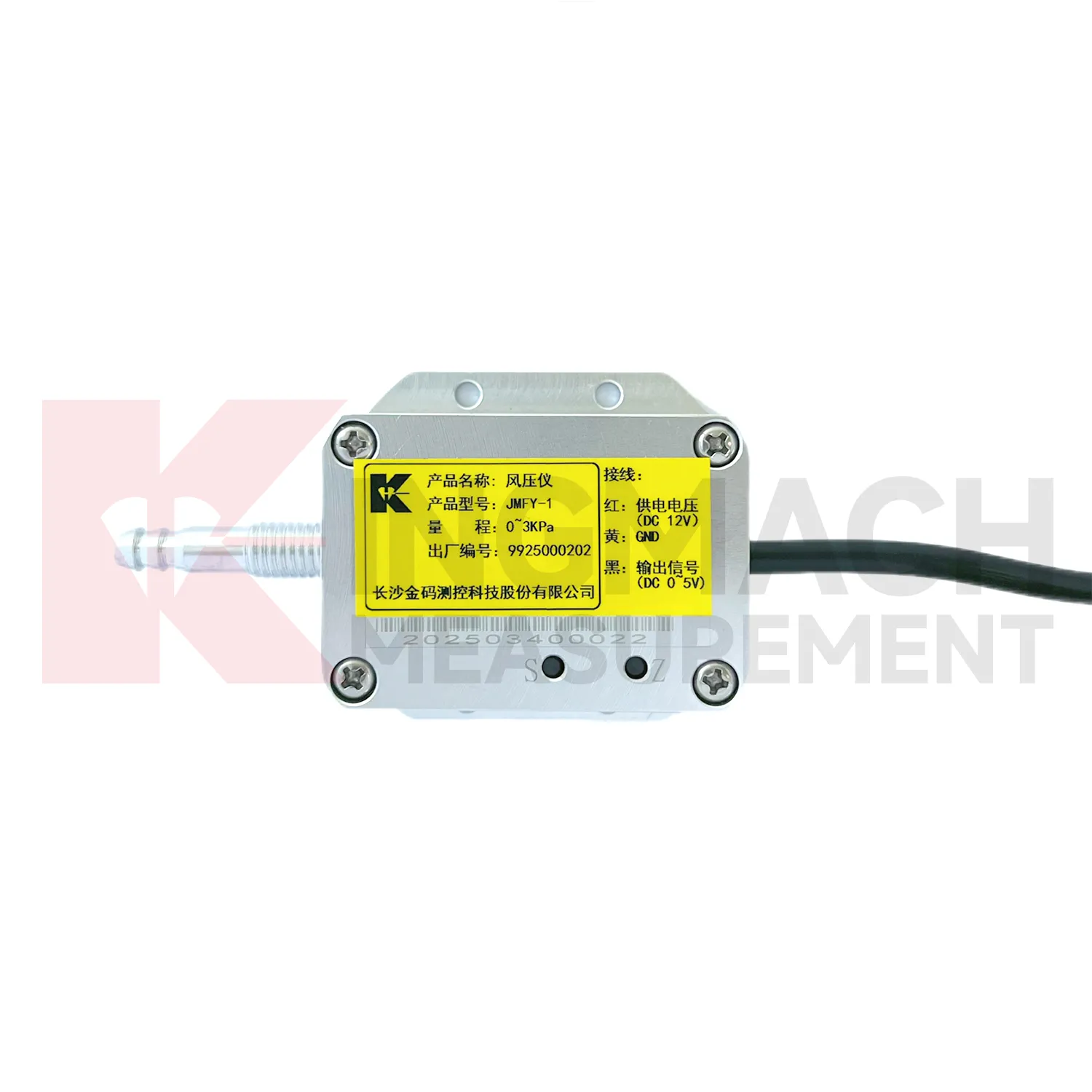

Wind Pressure Sensor JMFY-1

Wind Pressure Sensor JMFY-1

The Wind Pressure Sensor uses an imported high-precision pressure core and ASIC amplification circuit. It has an aluminum alloy housing, IP65 rating, and 8mm stepped pipe. It is widely used in gas pressure measurement, wind pressure monitoring and more.

Download

Free consultation

General product information

Place of Origin:	Changsha，China
Brand Name:	Kingmach
Model Number:	JMFY-1
Certification:	ISO9001、ISO14001、ISO45001

Product Business Terms

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Cartons or wooden cases. Customized packaging solutions are also available.
Delivery Time:	Shipped within 30 days after full payment receipt.
Payment Terms:	T/T in advance.

Description

Product Features：

The JMFY-1 Wind pressure sensor utilizes a high-precision, high-stability imported American pressure sensor core, paired with an ASIC high-performance amplification circuit. It undergoes rigorous fatigue impact testing, high/low-temperature cyclic aging tests, and precise digital temperature compensation processes. The aluminum alloy housing ensures excellent moisture resistance and superior media compatibility, while the front end features an 8mm diameter compression-type stepped pipe for convenient and reliable connections, guaranteeing exceptional sealing and an IP65 protection rating.

High-quality sensor components, precision amplification circuitry, strict manufacturing processes, and comprehensive inspection and aging test equipment ensure outstanding product performance.

Applications

This sensor is widely used in gas pressure measurement, antechamber pressure monitoring and control systems, wind pressure monitoring, and dry gas pressure control systems.

specifications

Range	0~3 kPa positive/negative pressure
Output	Analog output 0~5 VDC (3-wire system)
Accuracy	±1% FS
Power Supply	12 VDC (9~24 VDC)
Operating Temperature	-20~85°C
Relative Humidity	0~95% RH
Protection Rating	IP65
Stability	≤±0.15% FS/year
