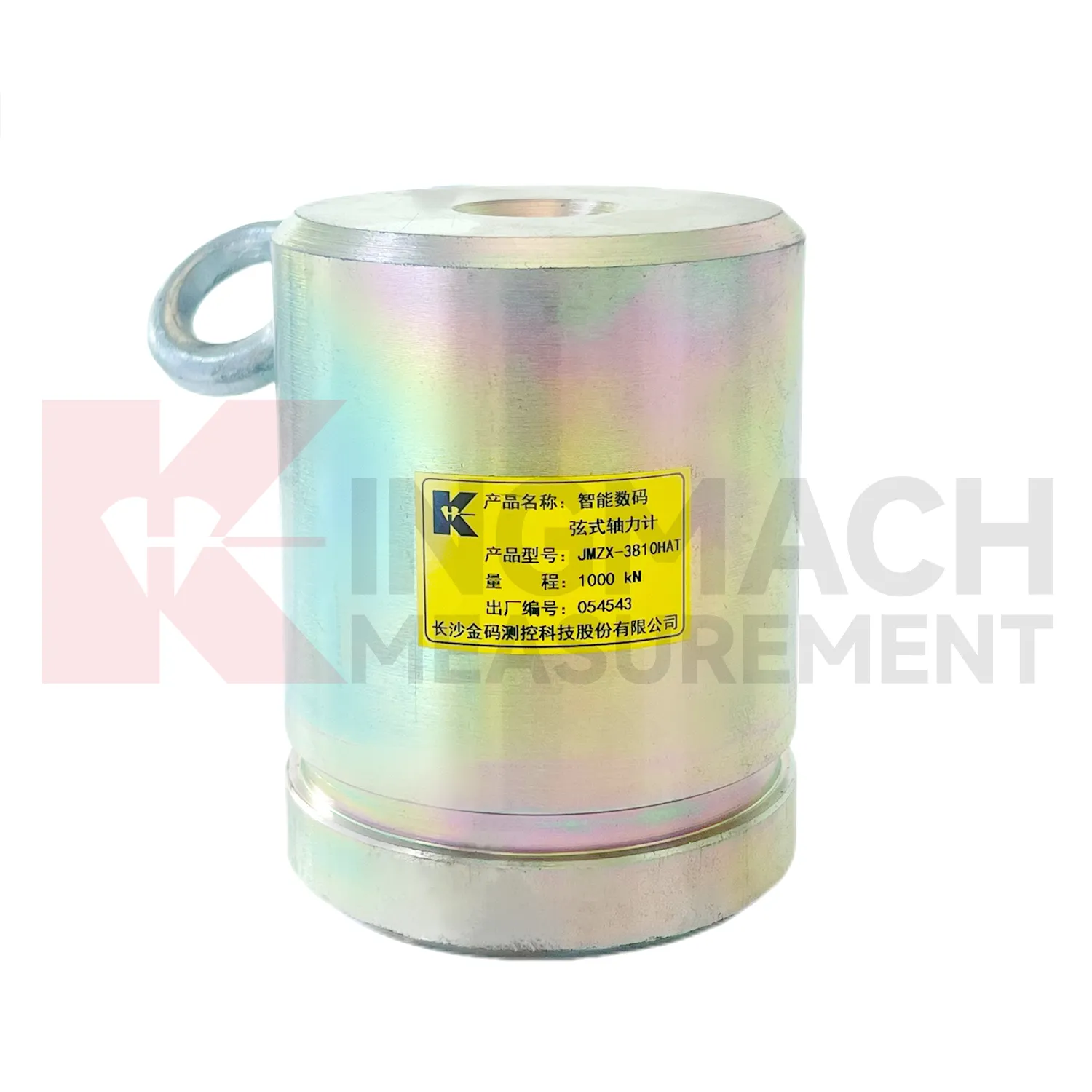

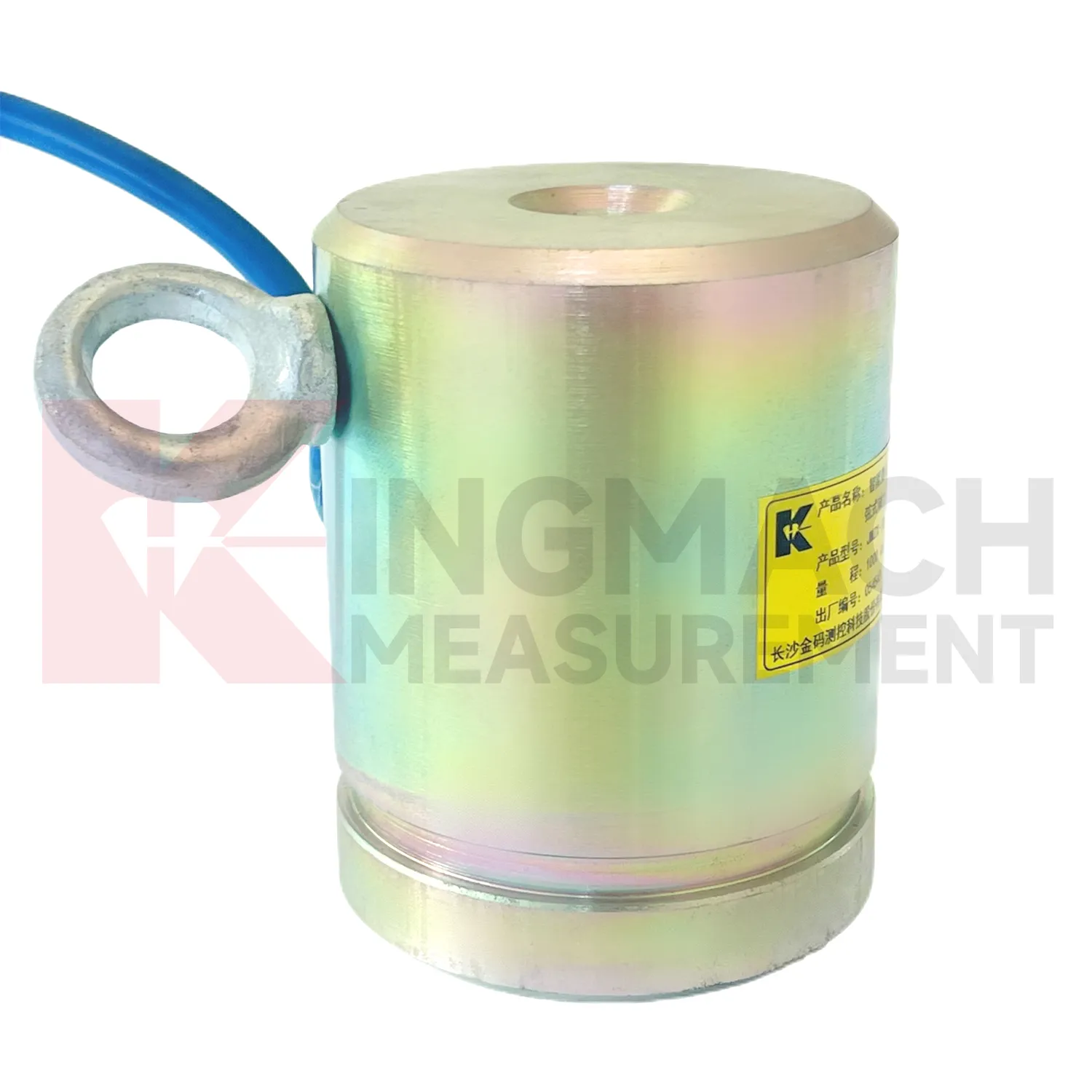

The Axial Force / Load Meter ( VW & Smart Type) is widely used for measuring the axial force of steel supports in deep foundation pits, tunnels, tailings ponds, etc., within engineering fields such as bridges, buildings, railways, transportation, hydropower, and dams.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
（VW）JMZX-39XXHAT |
|
Certification: |
GB/T 13606-2007 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Product Features：
1. The product strings adopt special super-strong steel wires (imported) and are anchored by international standard anchor welding technology; the product has characteristics such as high stability, high performance, and high precision;
2. The structure and waterproof material ensure ultra-high waterproof performance, with a waterproof rating of 1MPa;
3. A built-in semiconductor temperature sensor performs automatic temperature correction;
4. Intelligent sensor, directly displays the axial force value (KN) instead of only displaying the vibrating wire frequency.

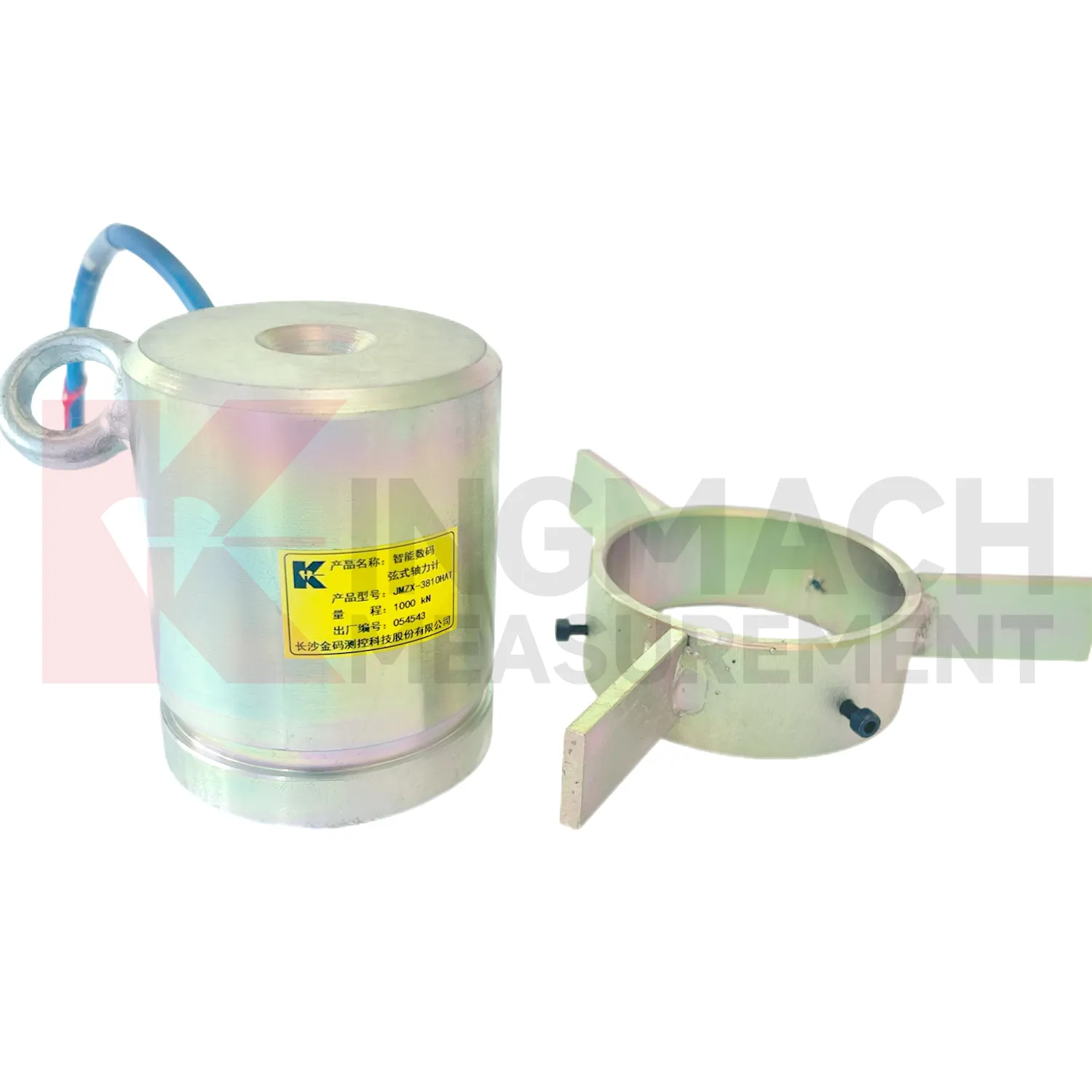

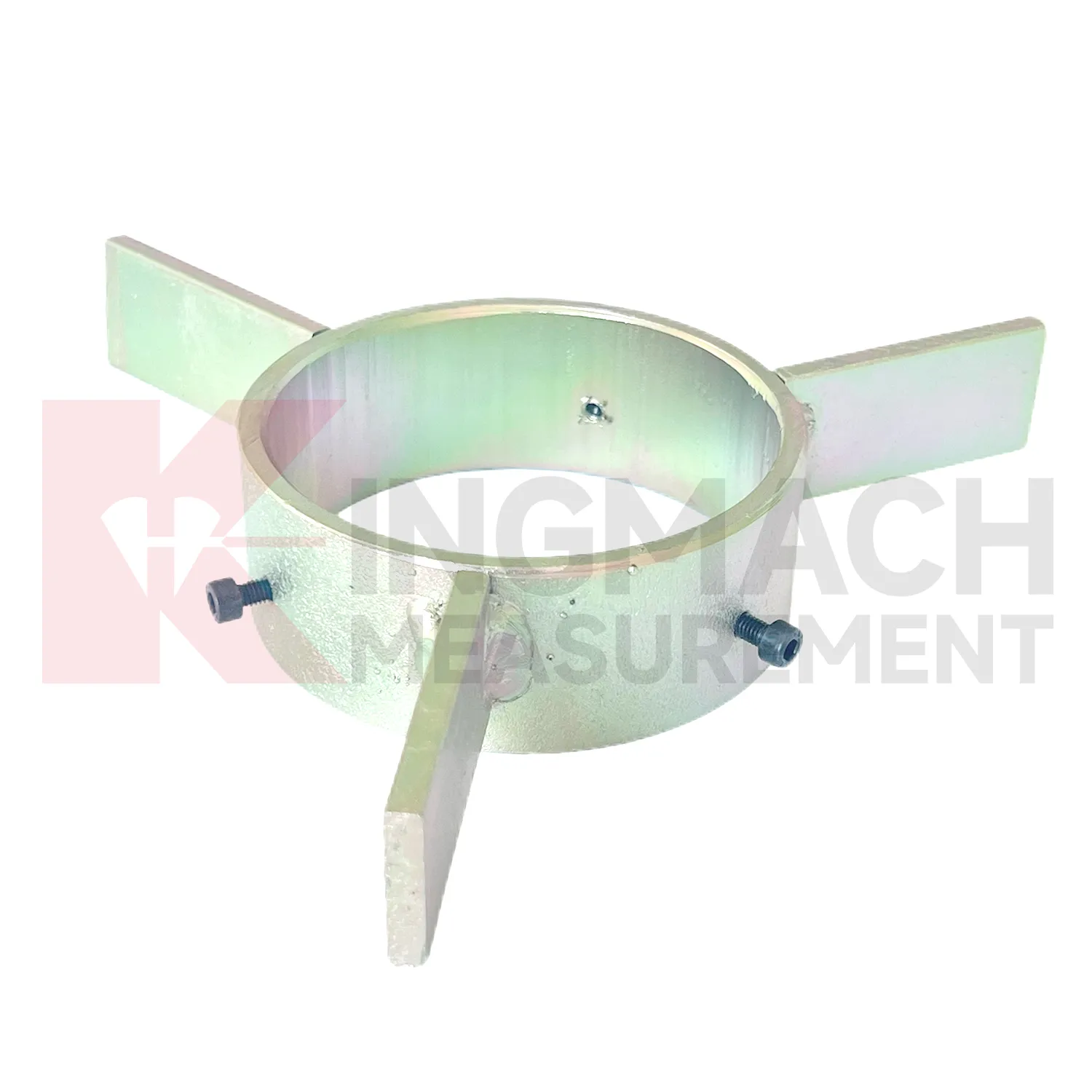

The Axial Force Load Meter (VW & Smart Type) JMZX-38XXHAT is mainly used for measuring the axial force of steel supports in deep foundations, tunnels, tailings, etc. The unique claw-type installation accessories facilitate product installation.

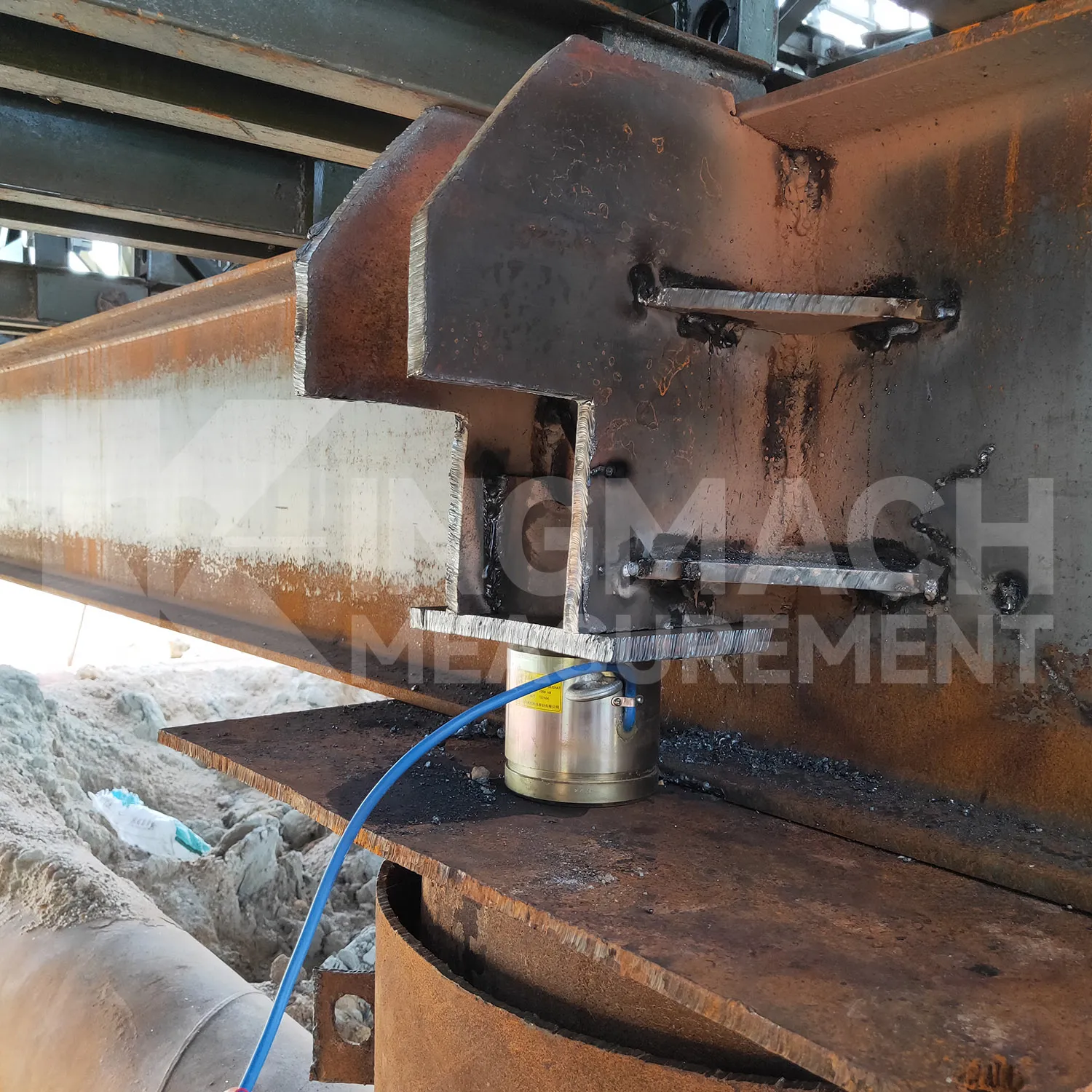

When installing and using, try to meet the following conditions as much as possible:
The steel plate and the steel support force-bearing surface steel plate need to have sufficient thickness and strength to eliminate the damage to the structure and steel support caused by stress concentration. Otherwise, force buffer plates should be added at both ends of the product to ensure structural and construction safety. The Axial Force Load Meter (VW & Smart Type) JMZX_38xxHAT can also be used as a load meter in places with low requirements.
|
Model |
Range |
Sensitivity |
Accuracy |
Reference Dimension |
|
JMZX3802HAT |
200KN |
0.1KN |
0.5%FS |
|
|
JMZX3805HAT |
500KN |
0.1KN |
0.5%FS |
|
|
JMZX3810HAT |
1000KN |
1KN |
0.5%FS |
φ78mm×100mm |
|
JMZX3820HAT |
2000KN |
1KN |
0.5%FS |
φ105mm×100mm |
|
JMZX3830HAT |
3000KN |
1KN |
0.5%FS |
φ128mm×120mm |
• The models, ranges, dimensions, etc. in the above table are all reference values. The axial force meter is mostly a customized product. Please refer to the parameters determined at the time of order. The lead time is 20-30 days.
• The product is calibrated by the manufacturer before leaving the factory. If a calibration certificate issued by a national statutory authority is required, an additional product calibration fee is required. Customers can choose to send it for calibration by themselves. Due to possible differences in regional force source standards, customers should choose the calibration method and calibration coefficient by themselves. The measurement differences arising from this do not affect the evaluation of product accuracy.
