The Integrated Wide-Range Differential Pressure Water Level Meter is widely used in hydrological monitoring, reservoir and dam water level management, and similar applications. The sensor can be installed in embedded water level tubes to monitor long-term water level changes with millimeter-level accuracy.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMYC-67XXAWL |
|
Certification: |
GB/T 11828.2—2022 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Product Overview:
The JMYC-67XXAWL integrated low-power water level sensor is a high-precision differential pressure water level measuring device. It features pressure-sensitive elements and industrial-grade design, offering a compact size, fast response, and long-term stability. It is widely used in hydrological monitoring, reservoir and dam water level management, and similar applications. The sensor can be installed in embedded water level tubes to monitor long-term water level changes with millimeter-level accuracy.
Product Features:
1. Uses internationally advanced pressure-sensing elements. Based on the principle of liquid pressure detection, it integrates a built-in 4G wireless DTU, high-capacity lithium battery, precision voltage regulation, 16-bit AD, and other integrated circuits. It provides high stability, accuracy, and performance.
2. Precision-designed and lightweight, easy to install and maintain.

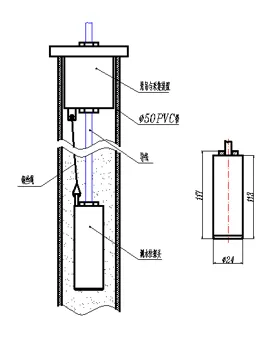

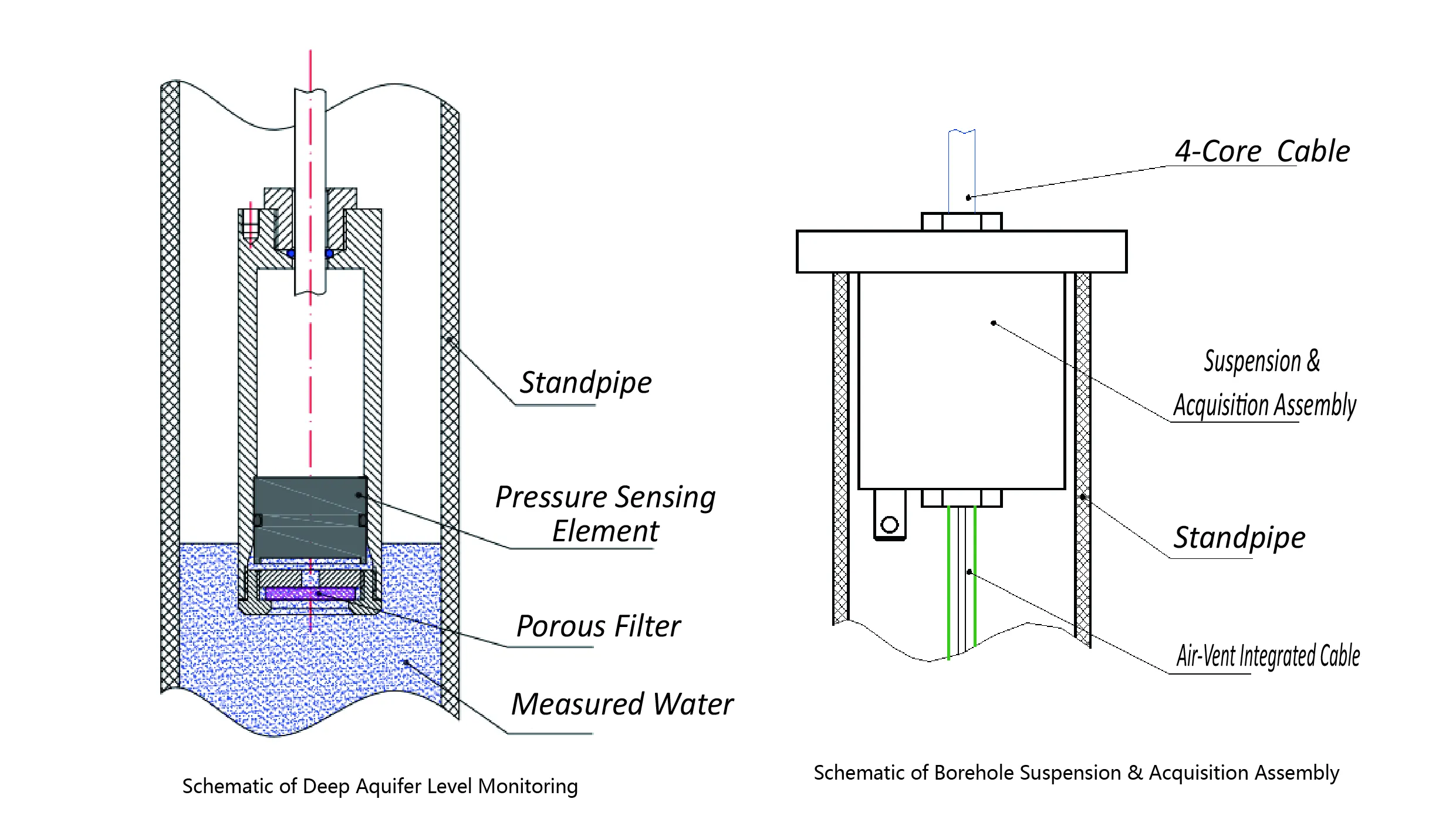

3. Equipped with a hanging and acquisition assembly for easy installation at the top of standard water level pipes.
4. Features a vented cable internally connected to the atmosphere to eliminate barometric interference, improving accuracy and response time.
5. Outputs digital signals via 4G for long-range transmission and seamless integration with outdoor monitoring systems.
6. Smart sensor supports real-time water level display via mobile App.
- Groundwater hydrological monitoring
- Reservoir and dam water level monitoring
- On-site liquid level monitoring for industrial control
- Surface water level observation
- Unattended hydrological monitoring stations
|
Product Models |
JMYC-6710AWL (10m), JMYC-6720AWL (20m), JMYC-6730AWL (30m) |
|
Dimensions |
85mm × 85mm × 106mm |
|
Operating Current |
50 mA – 200 mA |
|
Battery |
3.6V / 38Ah (non-rechargeable) |
|
Water Level Resolution |
1 mm |
|
Water Level Accuracy |
±0.1% FS |
|
Temperature Resolution |
0.1 ℃ |
|
Temperature Accuracy |
±0.5 ℃ |
|
Communication |
4G (built-in DTU) |
|
Power Supply |
Internal lithium battery |
|
Waterproof Rating |
IP68 |
Sampling Interval 20 minutes |
≥ 5 months |
Sampling Interval 1 hour |
≥ 1 year |
Sampling Interval 3 hours |
≥ 2 years |
Sampling Interval 6 hours |
≥ 3 years |
