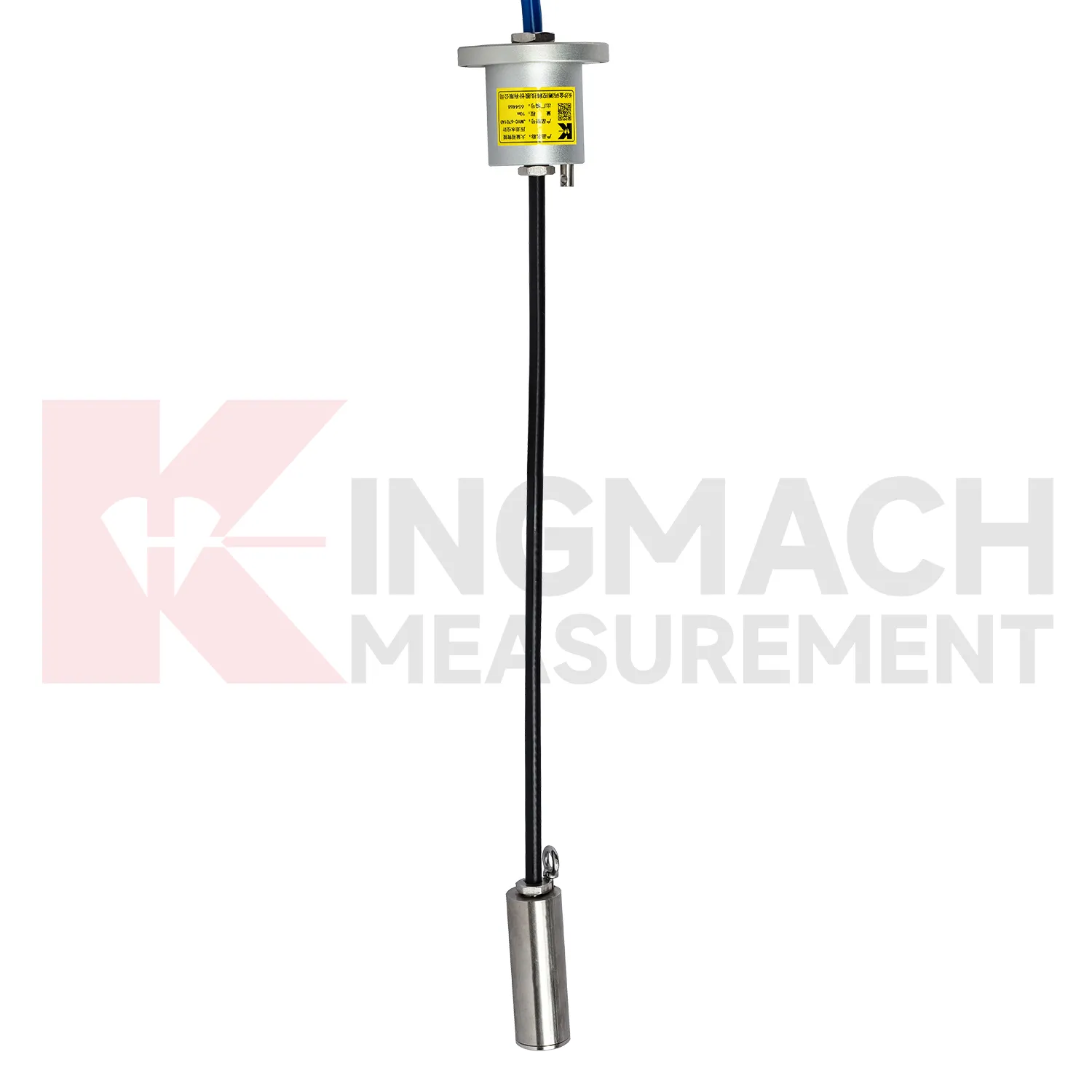

The Wide-Range Smart Differential Pressure Water Level Meter is a sensor designed for measuring deep water pressure, specifically used to monitor deep seepage pressure in various geological environments (e.g., slopes, dams). When installed via drilling in soft soil foundations, it can measure the pore water pressure inside deep soil masses. When mounted at the pressure relief pipe outlet of hydraulic dams, it is capable of measuring the water pressure within the pressure relief pipe. Additionally, if a piezometer tube is embedded in the foundation, the product can be placed and fixed inside the tube to measure changes in water level. Owing to its small-range characteristic, this product can also be applied to water level measurement in hydrology, reservoirs, dams, etc., with a water level accuracy reaching the millimeter level.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMYC-67XXAD |
|
Certification: |
GB/T 11828.2—2022 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:
The Wide-Range Smart Differential Pressure Water Level Meter is a high-accuracy sensor for deep water level measurement utilizing differential pressure technology. Equipped with advanced pressure-sensitive components and industrial-grade precision design, it features compact size, rapid response, and excellent long-term stability. Suitable for diverse applications including hydrological monitoring, reservoir/dam water level observation, and long-term embedded installations in pre-buried water pipes, achieving millimeter-level measurement accuracy.
Product Features：
1. Utilizes internationally advanced imported pressure-sensitive components to measure liquid pressure, integrated with a built-in CPU, precision voltage stabilization circuit, 16-bit AD, and large-scale ICs for high stability, superior performance, and exceptional accuracy.
2. Precision-engineered with full stainless steel materials for small size and lightweight portability.

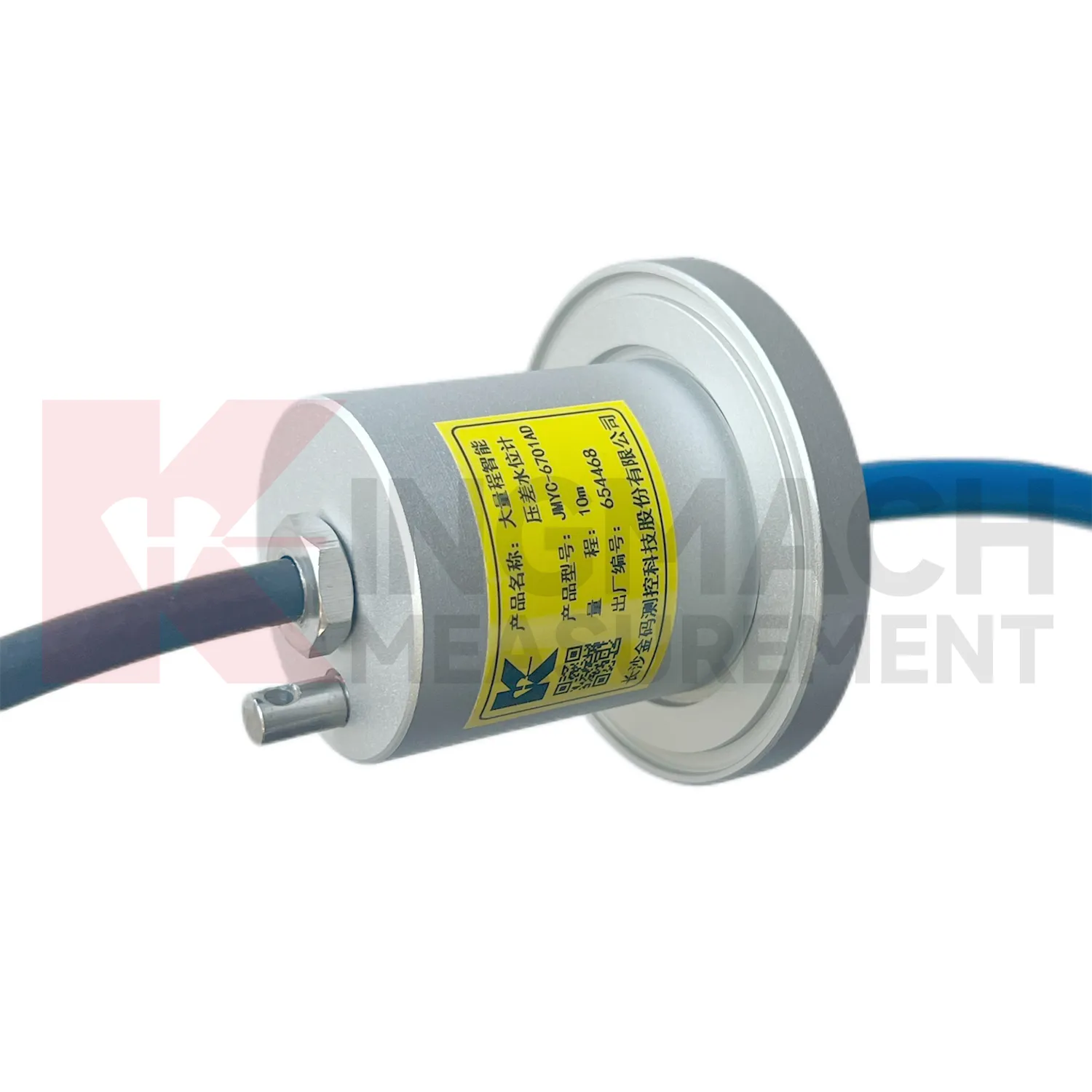

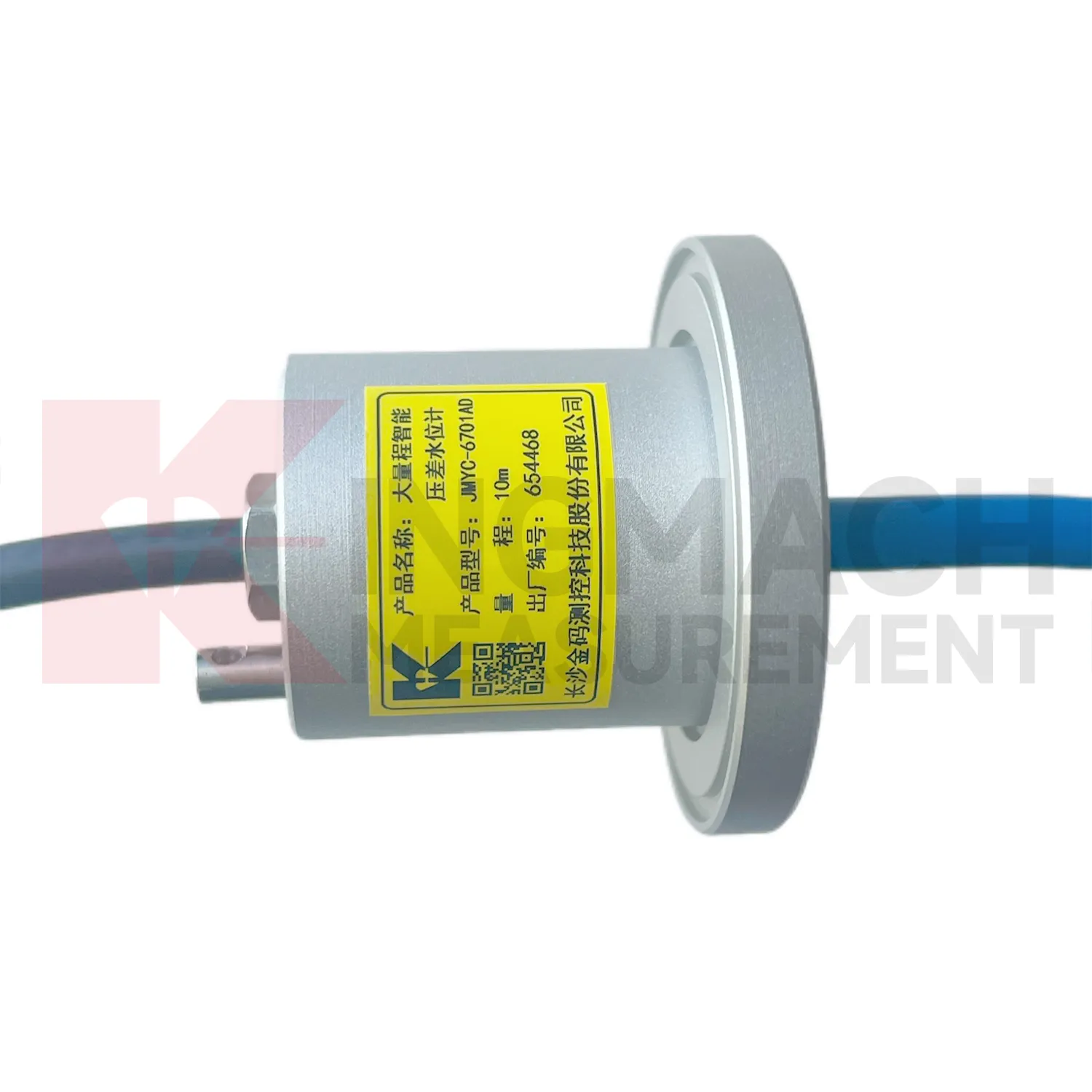

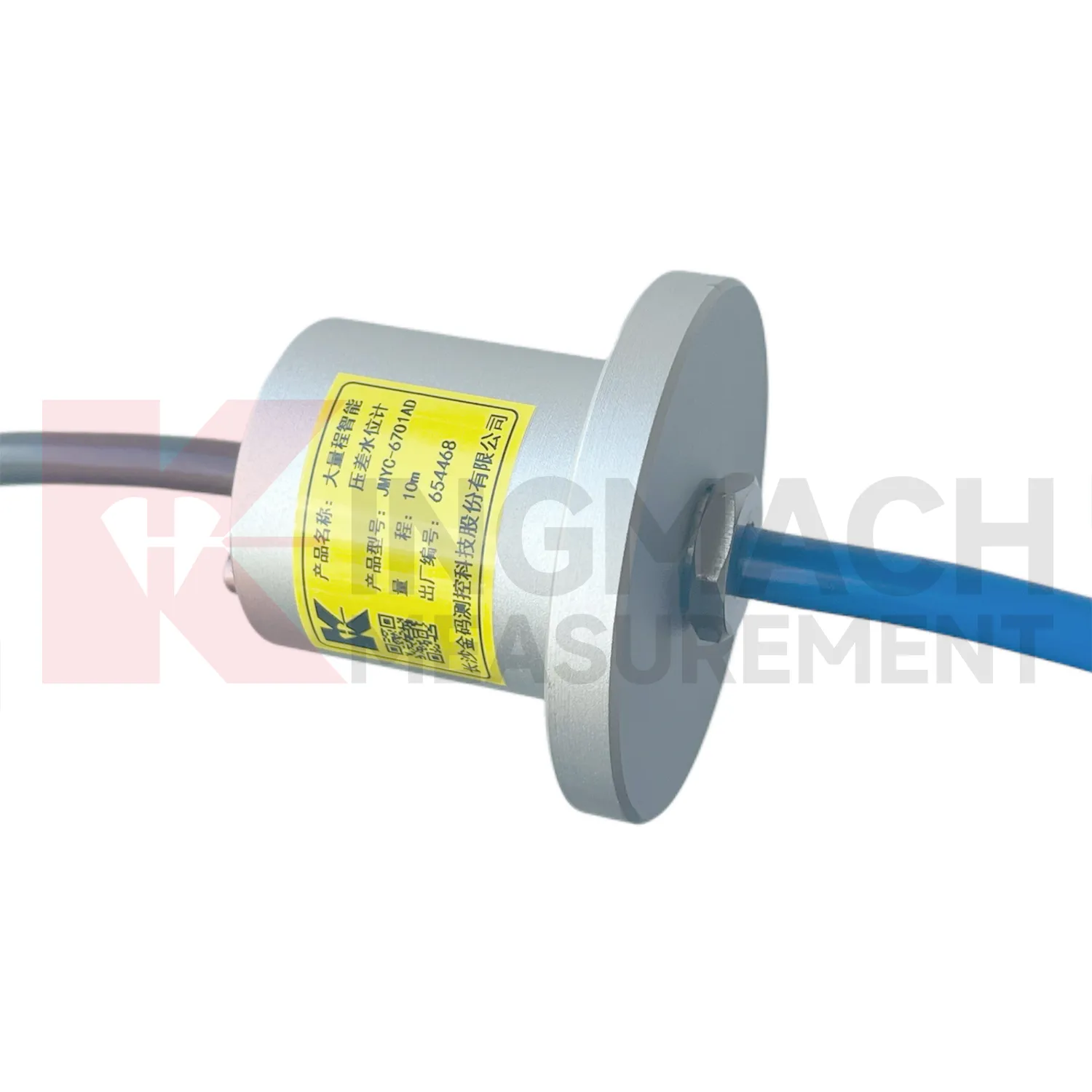

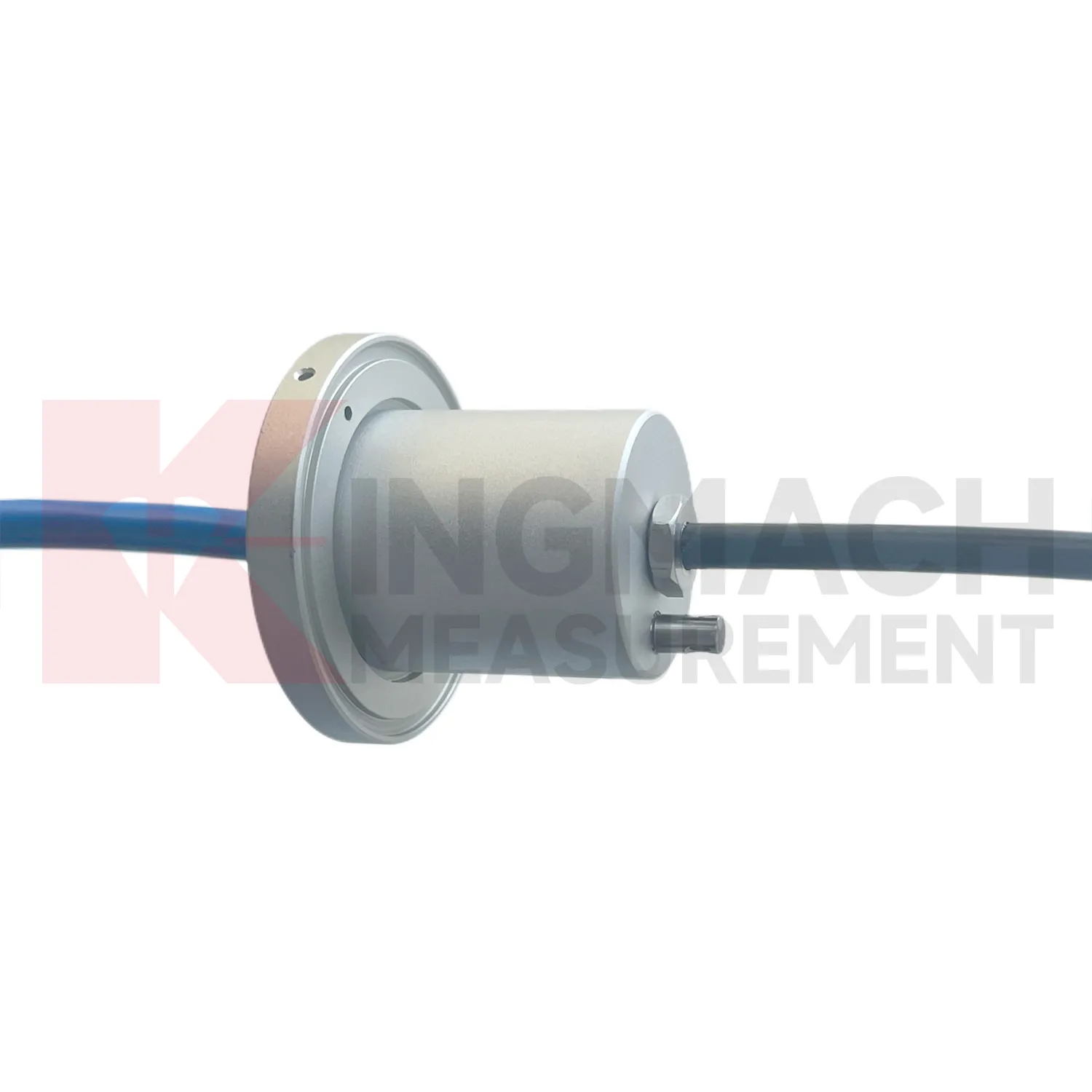

3. Equipped with an orifice suspension and data collection device for easy installation by placing the sensor directly at the mouth of the water level pipe.
4. Features a vented cable design with an internal air tube connecting the sensor to the atmosphere, ensuring higher measurement accuracy and faster response.
5. RS485 bus digital signal output enables extended transmission distances and seamless integration with automated measurement systems.
6. Smart sensor design with direct liquid level value display
· Groundwater hydrological data monitoring
· Real-time reservoir and dam water level monitoring
· On-site liquid level monitoring in industrial control systems
· Surface flow water level monitoring
· Unmanned hydrological monitoring stations
|
Product Model |
Range |
|
JMYC6701AD |
10m |
|
JMYC6702AD |
20m |
|
JMYC6703AD |
30m |
|
Parameter Type |
Dimensions |
|
Dimensions |
φ24mmX71.5mm |
|
Water Level Resolution |
0.1mm |
|
Water Level Overload Capacity |
200%FS |
|
Water Level Accuracy |
0.2%FS |
|
Temperature Resolution |
0.1℃ |
|
Temperature Accuracy |
±0.5℃ |
|
Operating Temperature |
-20℃—+80℃ |
|
Communication Interface |
RS485 |
|
Power Supply Voltage |
DC 9-24V |
|
Ingress Protection Rating |
IP68 |
