Introduction:

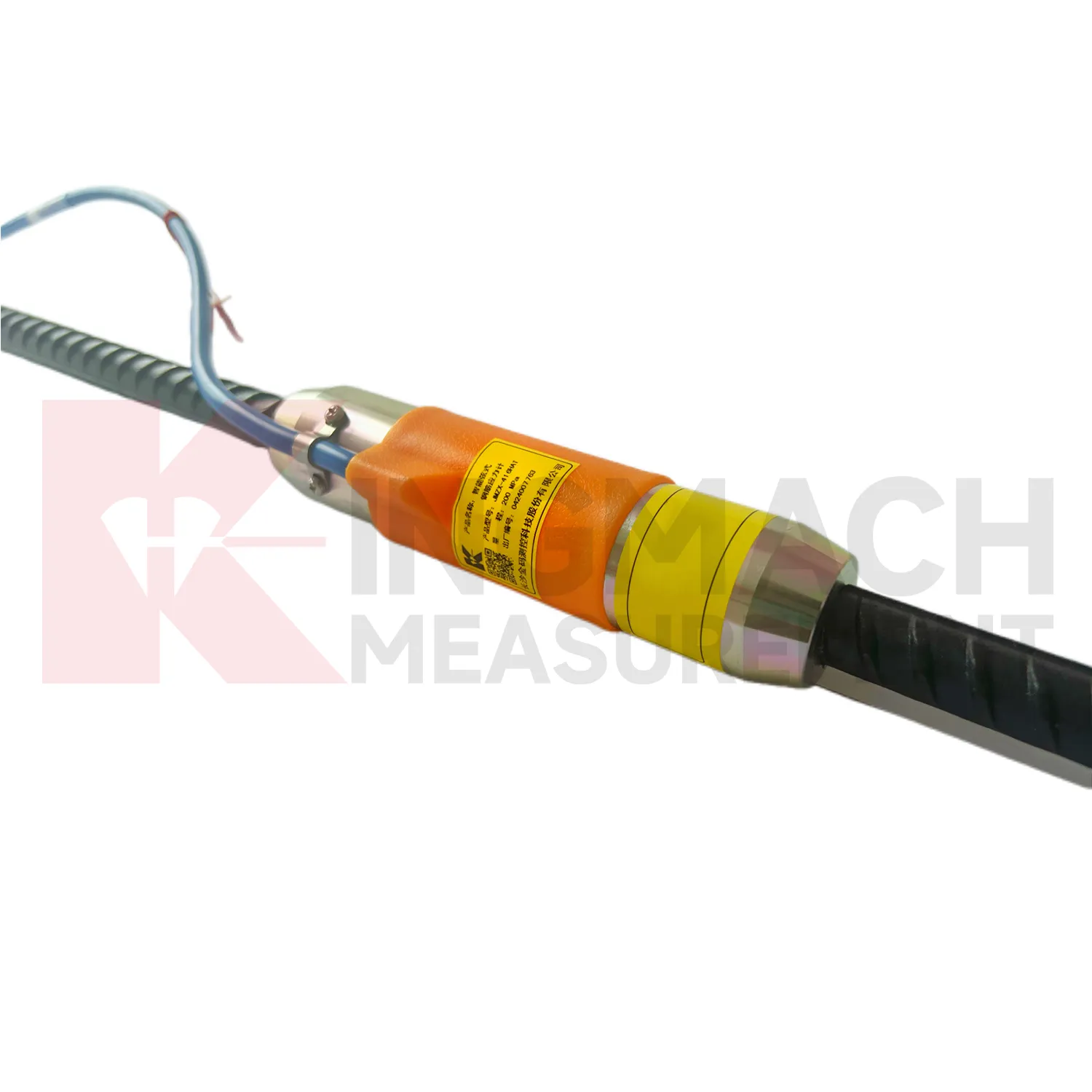

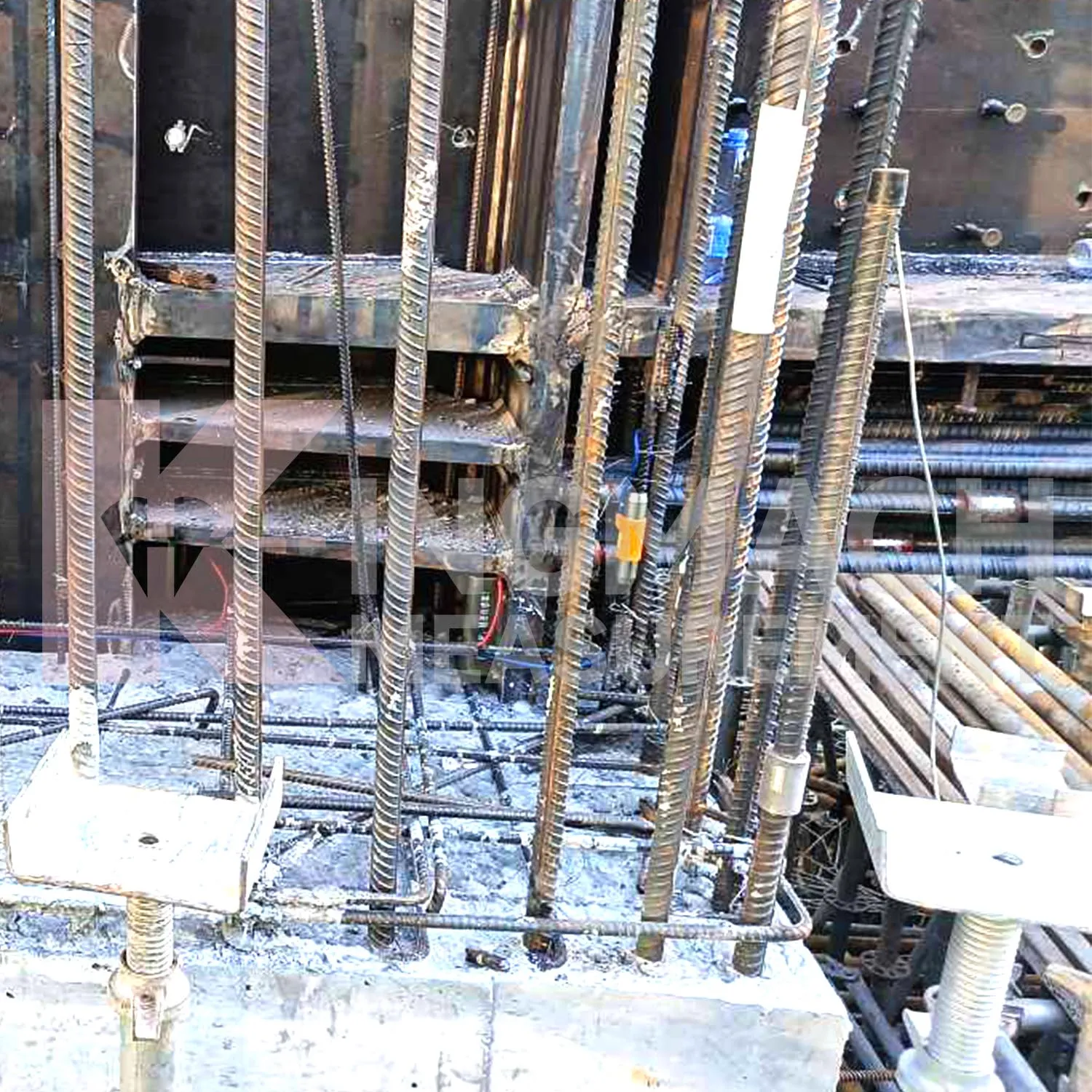

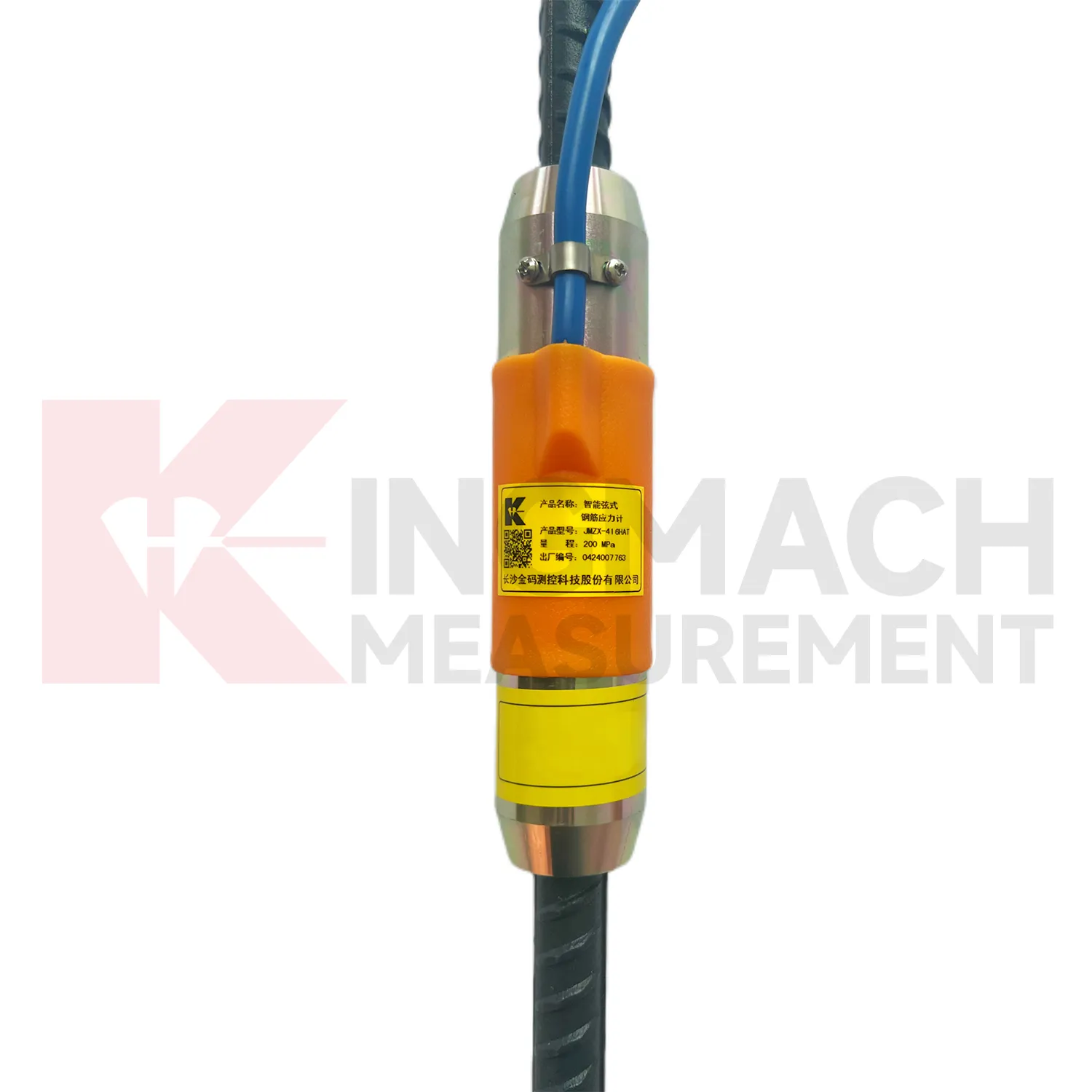

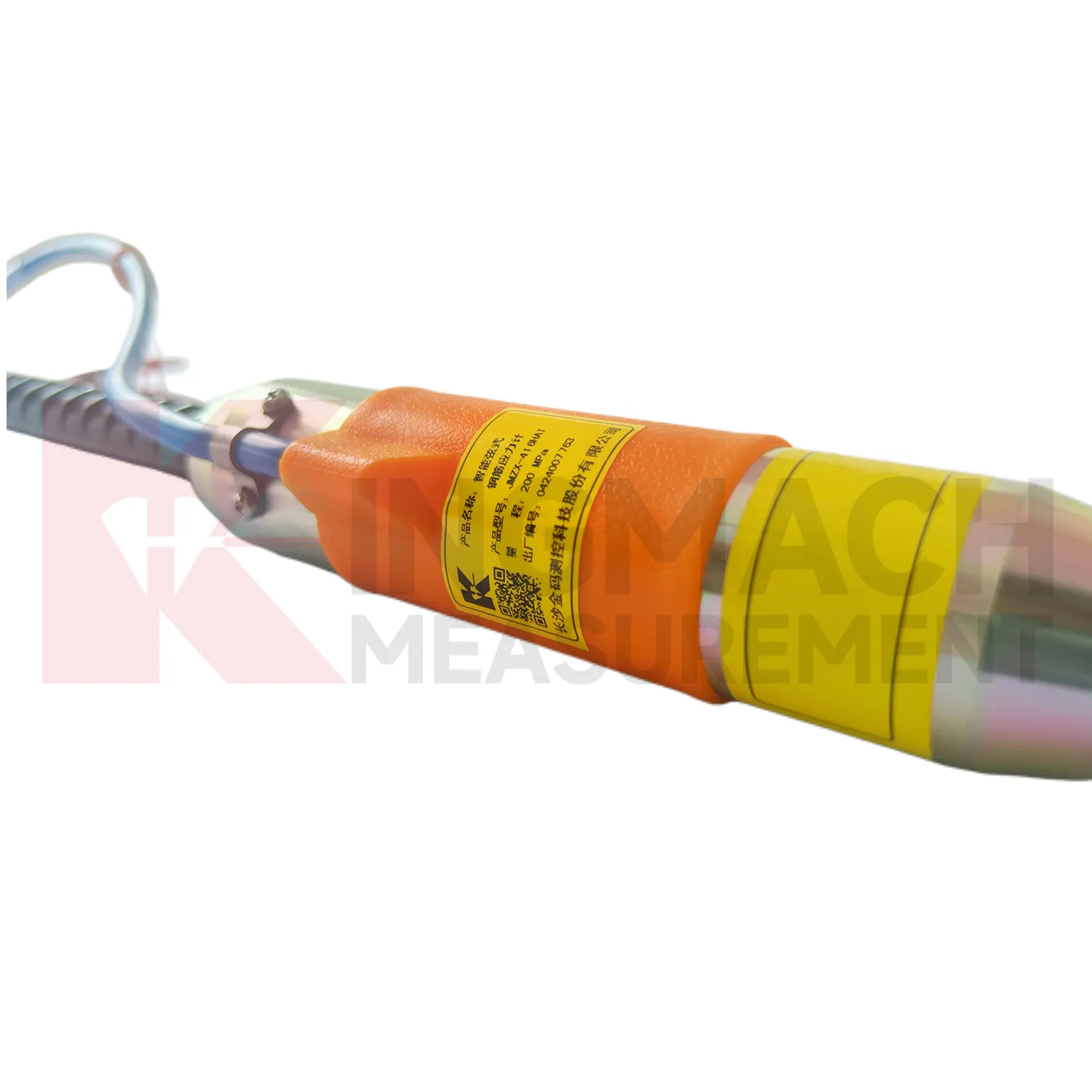

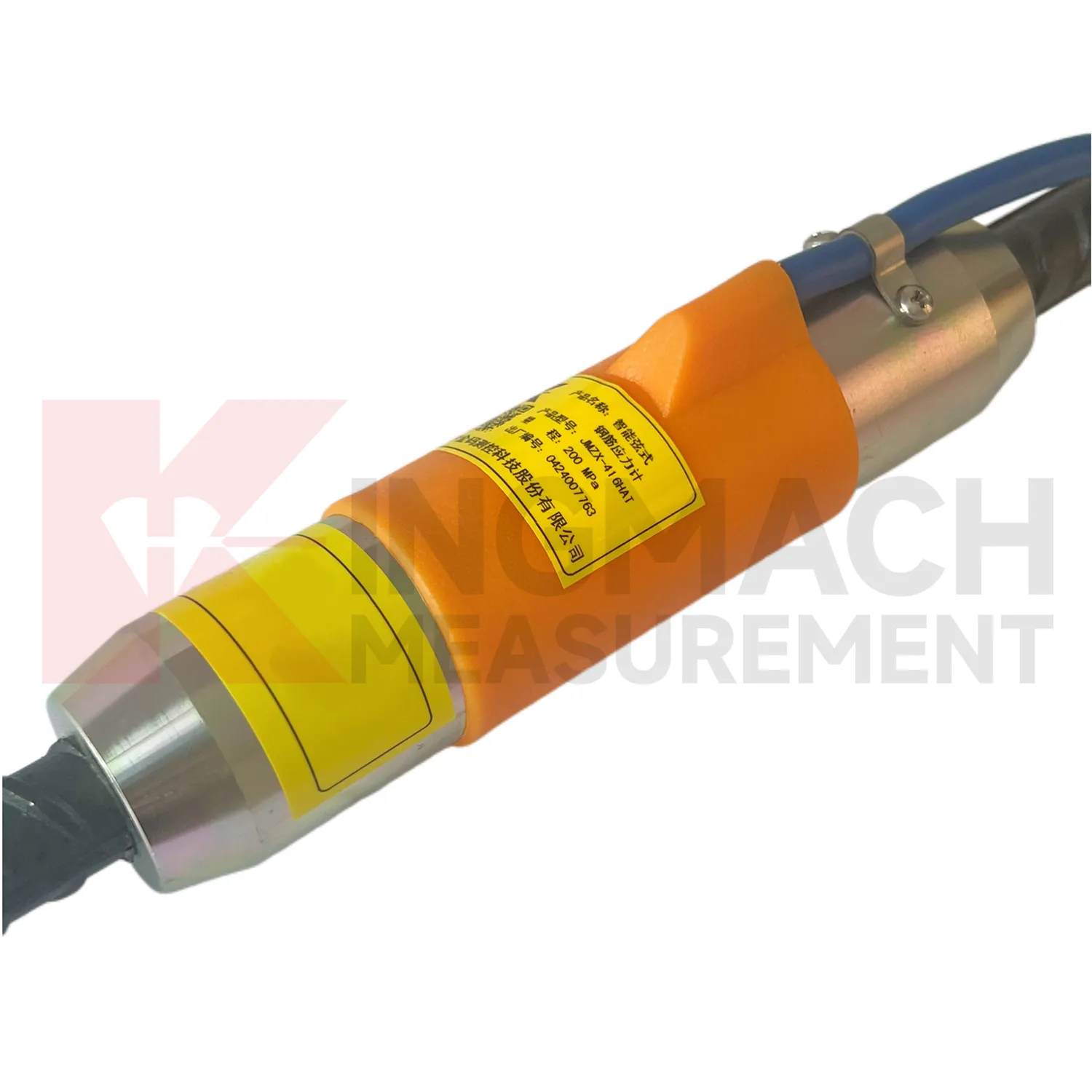

The JMZX-4XXHAT Rebar Strainmeters is utilized for monitoring the stress in reinforcing steel bars within reinforced concrete structures. Understand the stress state of the measured components through the reinforcement stress and environmental temperature in all concrete structures (including dams, bridges, precast and cast - in - place concrete pile foundations, cut - off walls, large and medium - sized buildings, etc.). The rebar strainmeters is also employed to measure the stress in anchor bolts.

Product Features:

1. The strength of the induction part of the product (steel string position) is designed with the same strength as the corresponding measured steel bar, replacing the original steel bars with the tested steel bars and installing them will not change the strength of the tested structure. High-tensile steel wire for vibrating wire collection, anchored by international standard anchor welding process, the product has the characteristics of high stability, high performance and high precision.

2. The structure and waterproof material ensure ultra-high waterproof performance, and the waterproof is 2MPa.

Applications

The Intelligent VW Rebar Strain Gauge is used to measure the strain of rebar in the concrete structure.

Specifications
