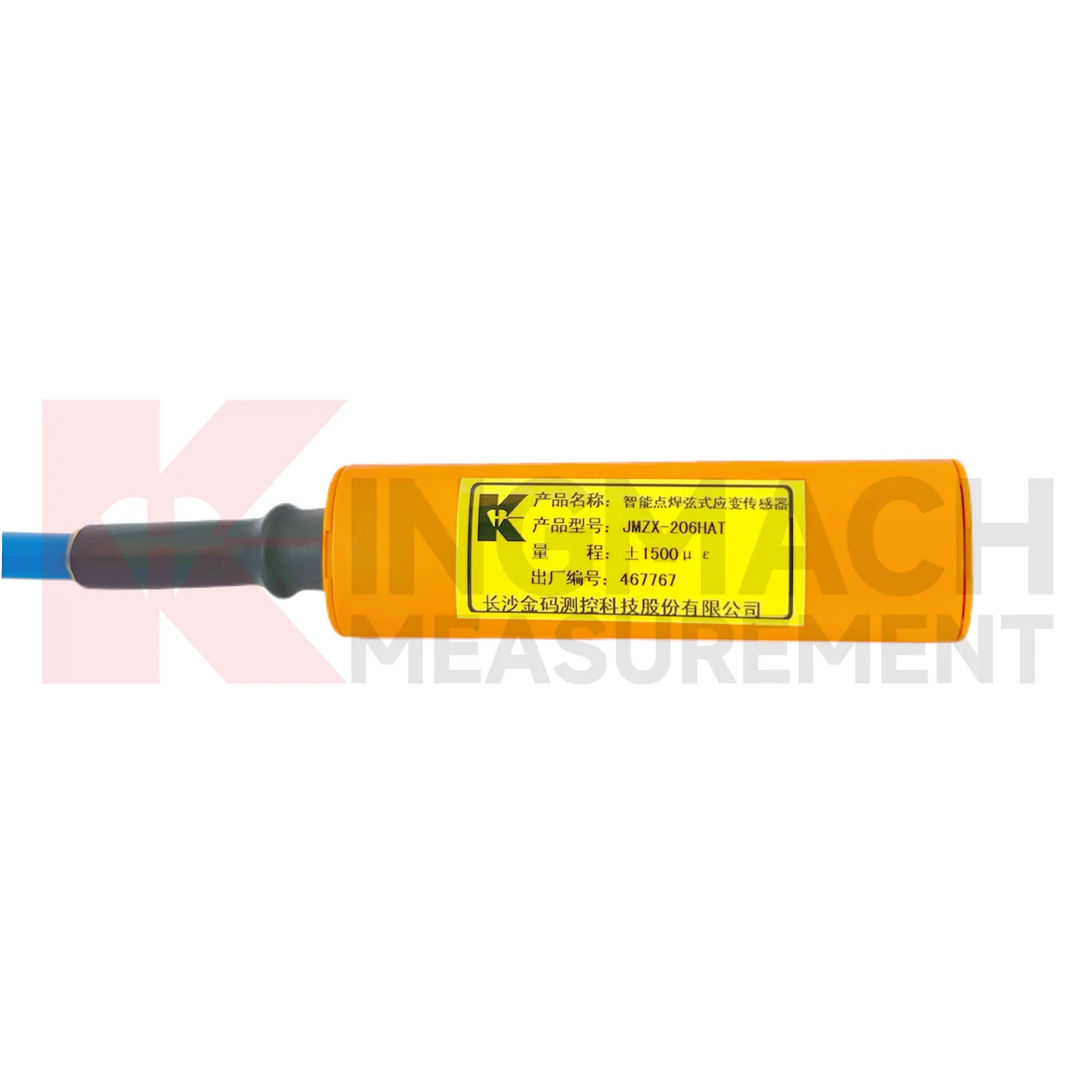

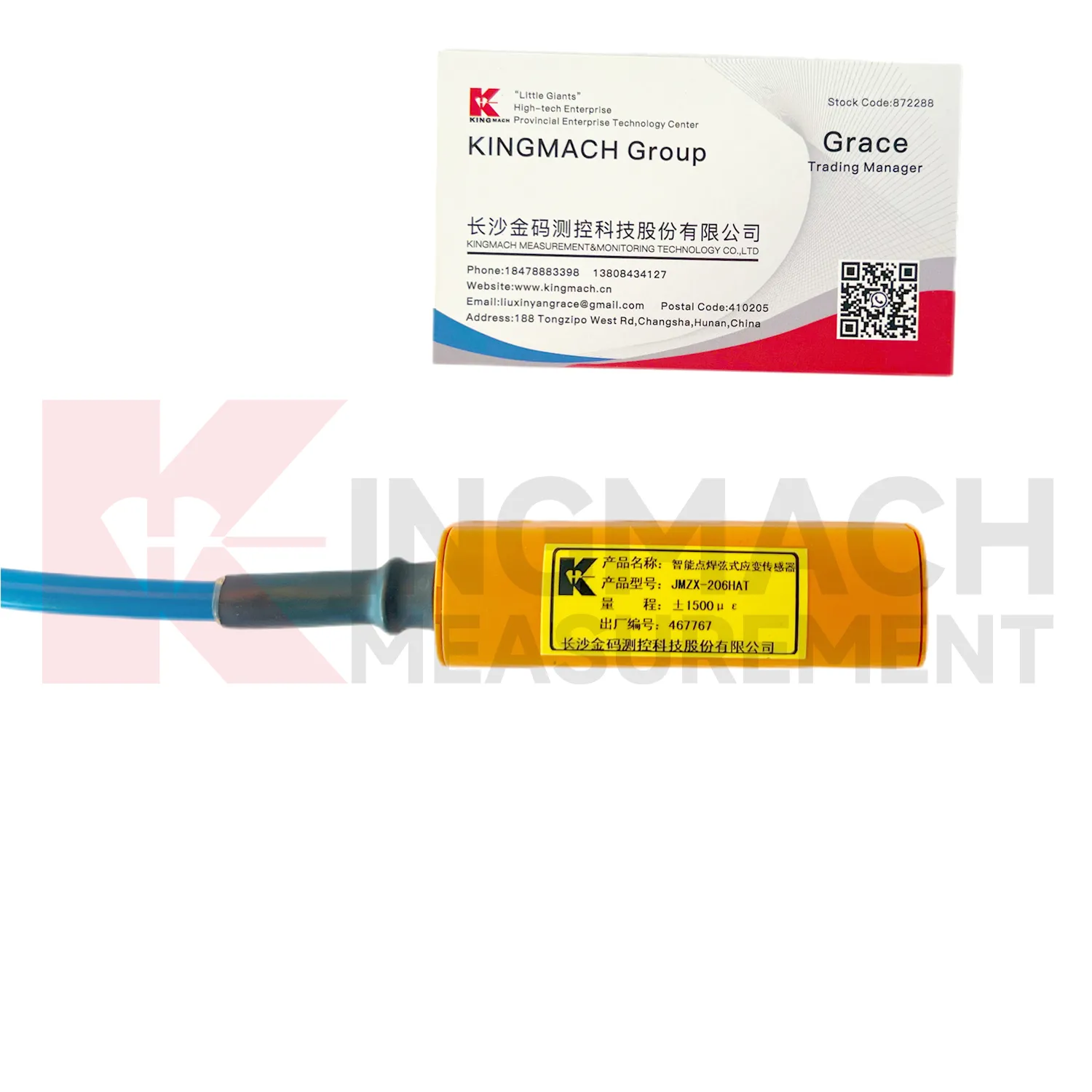

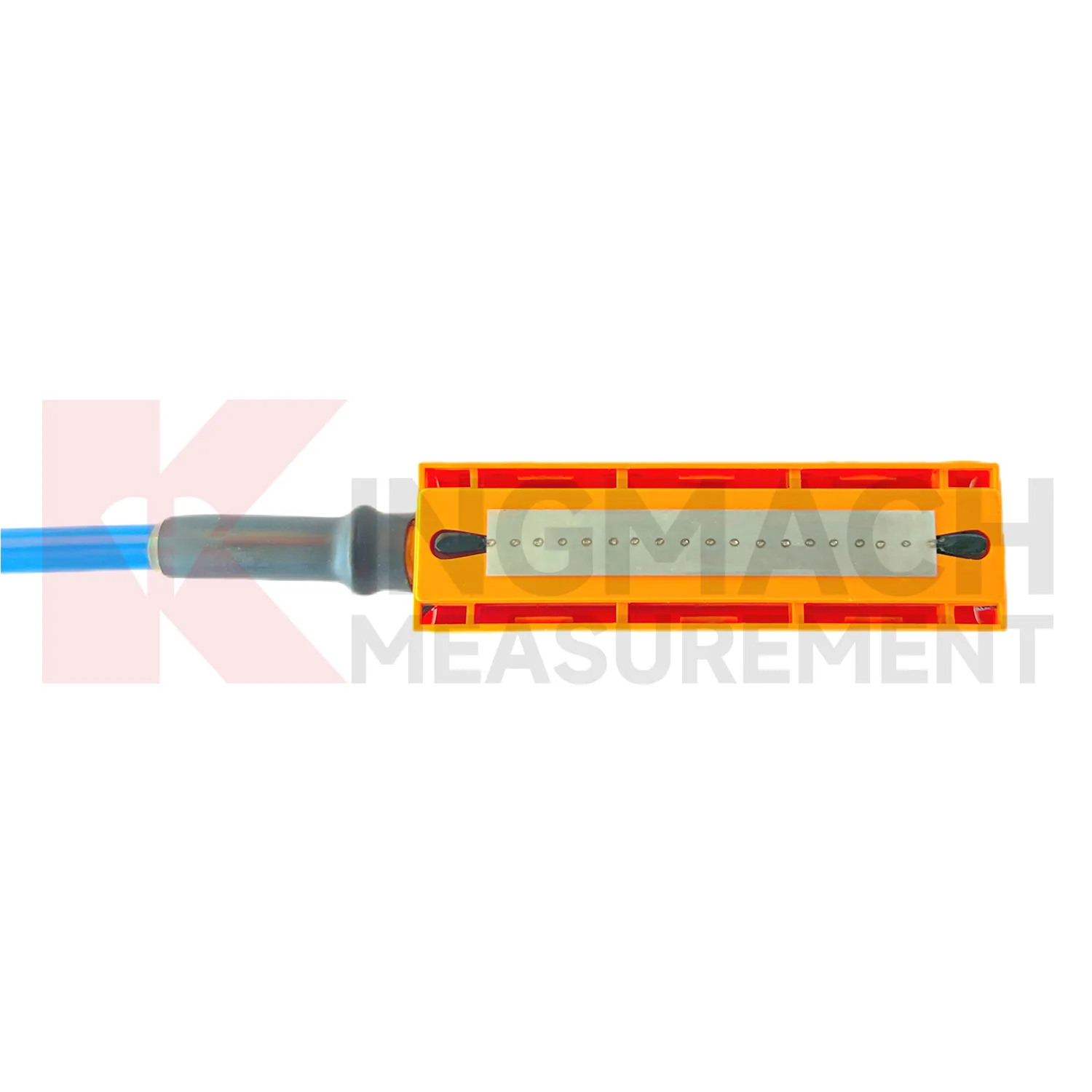

Smart vibrating wire strain gauge (surface welded model) JMZX-206HAT

The surface-welded Smart vibrating wire strain gauge is widely used in engineering structures such as bridges, buildings, railways, and dams to measure stress and strain in concrete and steel, enabling a full assessment of their stress state.

Download

Free consultation

General product information

Place of Origin:	Changsha，China
Brand Name:	Kingmach
Model Number:	JMZX-206HAT
Certification:	GB/T 13606-2007、GBT 3408.2-2008 、DL/T 1044-2022

Product Business Terms

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Cartons or wooden cases. Customized packaging solutions are also available.
Delivery Time:	Shipped within 30 days after full payment receipt.
Payment Terms:	T/T in advance.

Product Features：

1.The core design utilizes imported vibrating wire sensors with high sensitivity, precision, and stability, suitable for long-term monitoring.

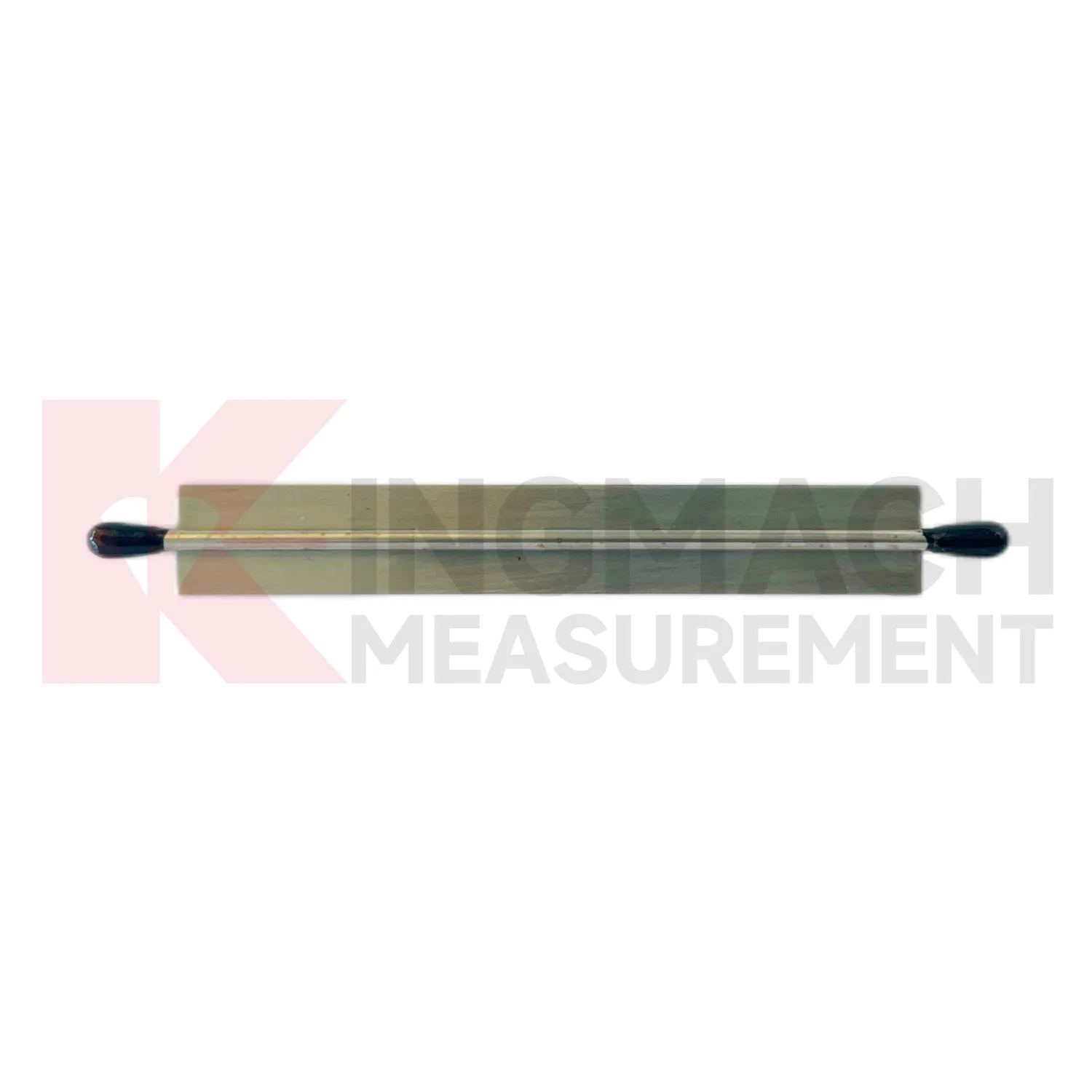

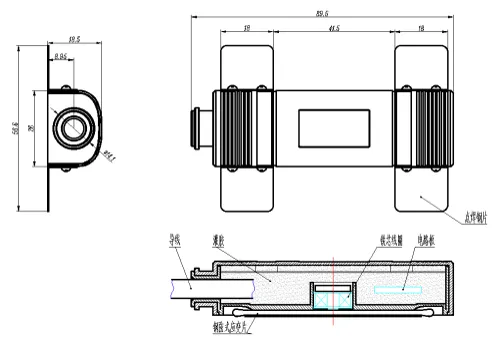

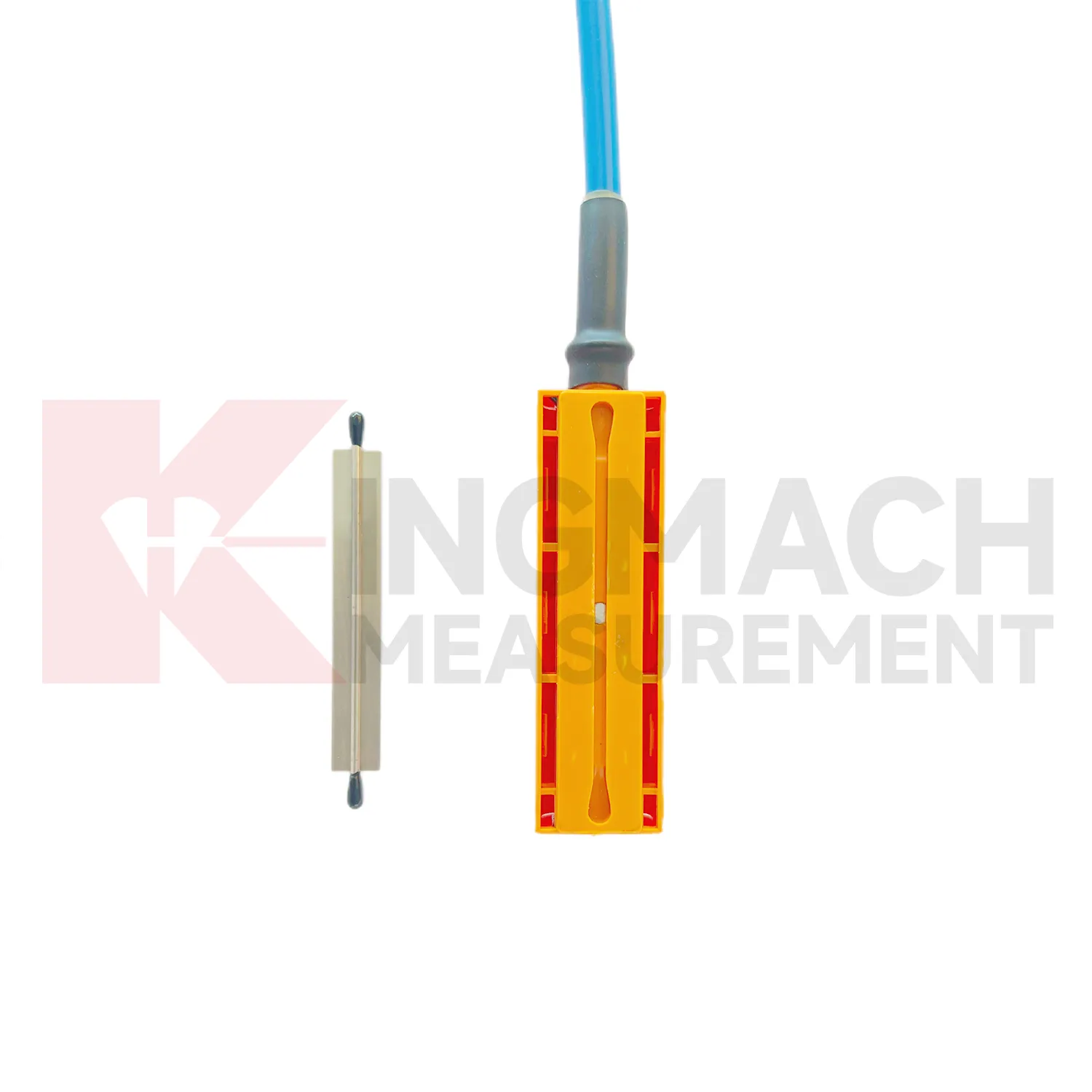

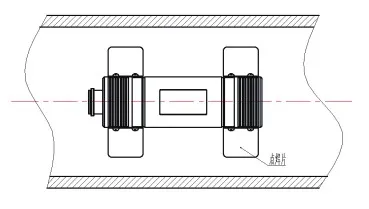

2. Installation preserves the structural integrity of steel components: a 10×80 mm² flat surface is polished, the sensor is welded using a spot welder, and the sealed smart digital acquisition box is fixed to the sensor for simplified assembly.

3. The low-height sensor design avoids stress errors caused by bending deformation.

4. Equipped with an intelligent chip for full digital detection, enabling distortion-free signal transmission over long distances and strong anti-interference capability.

5. An embedded memory chip permanently stores sensor model, serial number, calibration coefficients, and up to 800 measurement records.

6. Compatible with automated acquisition units for unattended operation. Integrated temperature elements (optional) enable direct thermal monitoring and strain value temperature compensation.

Applications

The Smart vibrating wire strain gauge (surface welded model) JMZX-206HAT is widely used for steel structure strain measurement in buildings, bridges, railways, transportation systems, hydropower station and dams. It can be utilized to monitor stresses during construction or post-construction operational phases, anchor rod stress, support forces in deep excavations, stress distribution in tunnel linings or piles, and stresses in steel beams or pipes.
