Description

Features:

1．The vibrating wire of the product is made of special high-strength steel wire and anchored using internationally standardized anchor welding technology, ensuring high stability, superior performance, and precision with a designed service life of 50 years.

2．The structural design and waterproof materials guarantee exceptional waterproof performance.

3． An embedded semiconductor temperature sensor enables automatic temperature compensation.

4．The pressure sensor integrates a smart chip for digital signal processing, ensuring distortion-free signal transmission over long distances and robust anti-interference capability.

5．The pressure sensor is equipped with an intelligent memory chip that permanently stores the sensor model, serial number, and calibration coefficients during production. It automatically saves up to 600 measurement parameters, including acquisition time, monitoring point temperature, pressure values, zero-point parameters, and temperature compensation values. This unique functionality is exclusive to our products (Invention Patent No.: 01131544.X; Structural Utility Model Patent No.: 01257348.5).

6．When paired with our company’s instrument, it enables direct pressure measurement while simultaneously displaying the vibrating wire frequency.

7．Based on the sensor’s calibration parameters and zero-point value, it directly displays the average pressure applied to the sensor, with a measurement speed of 1 reading per second, ensuring intuitive, simple, and fast operation.

Applications

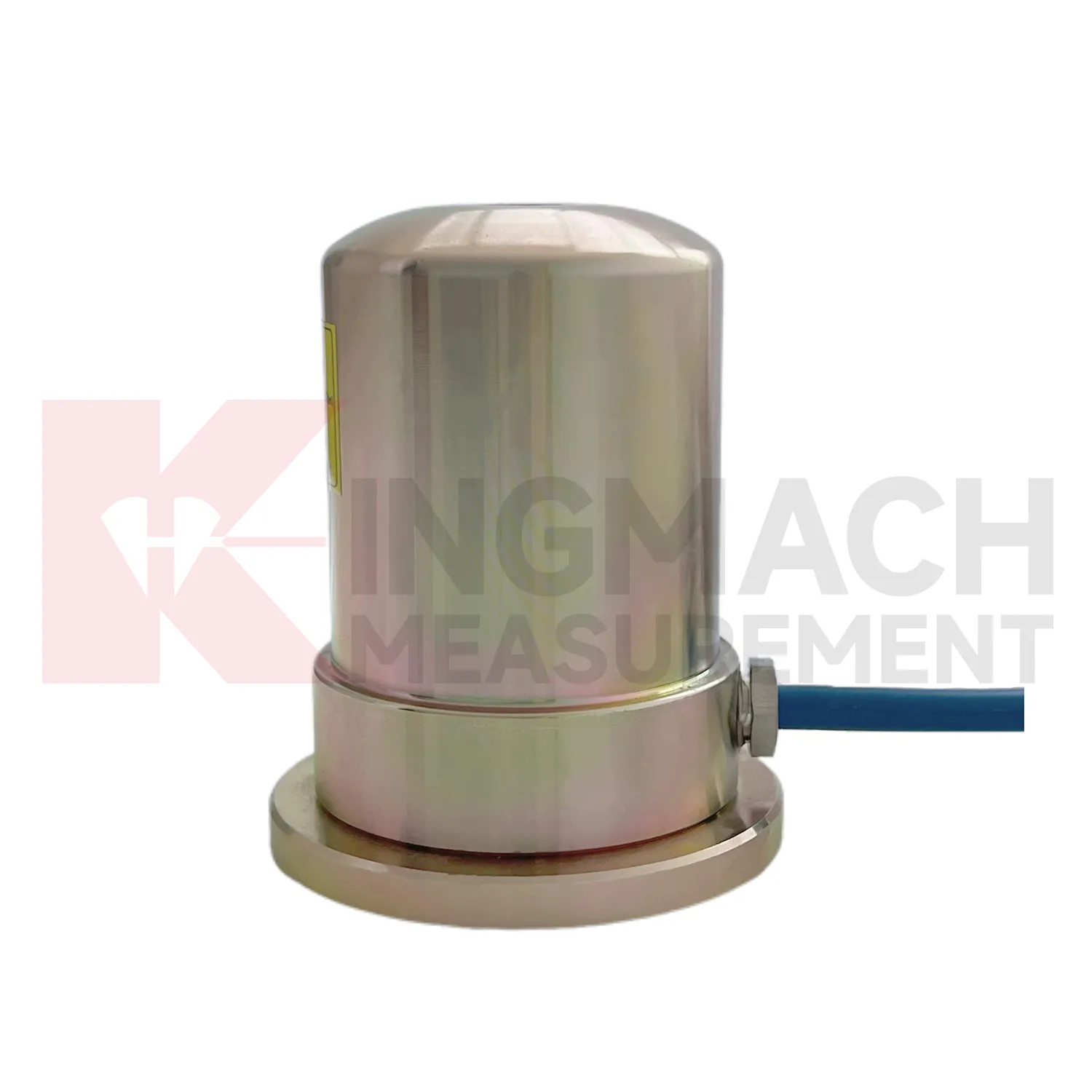

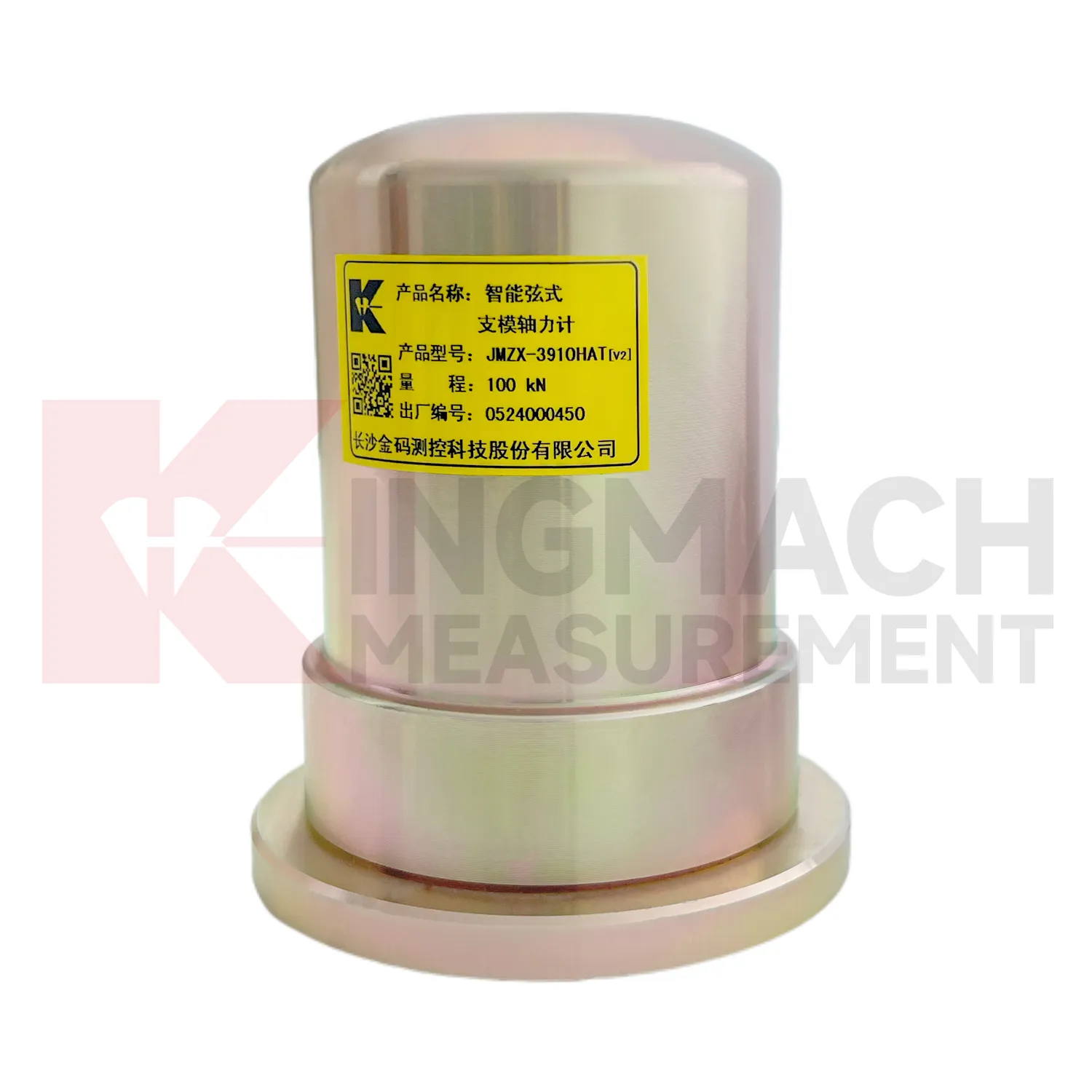

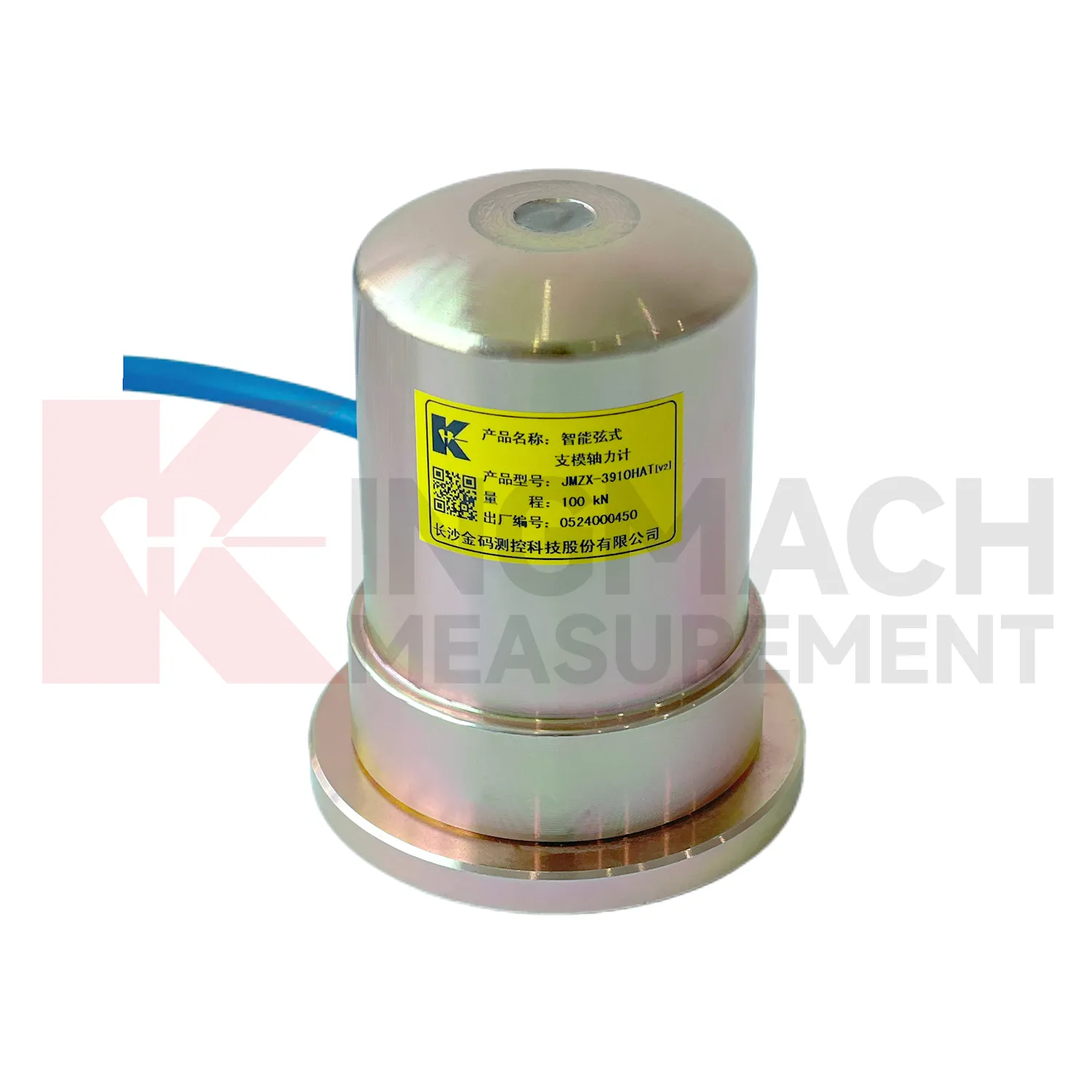

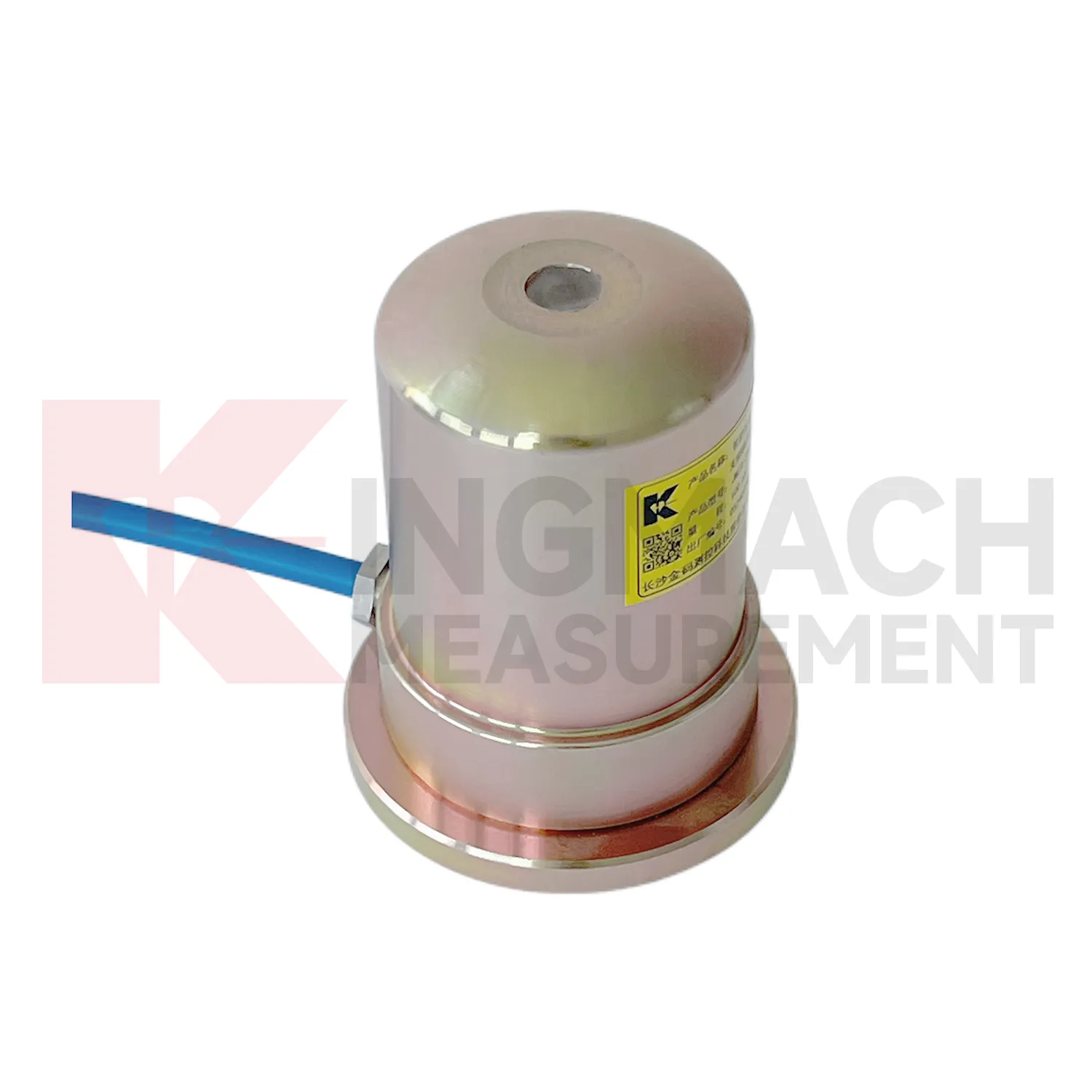

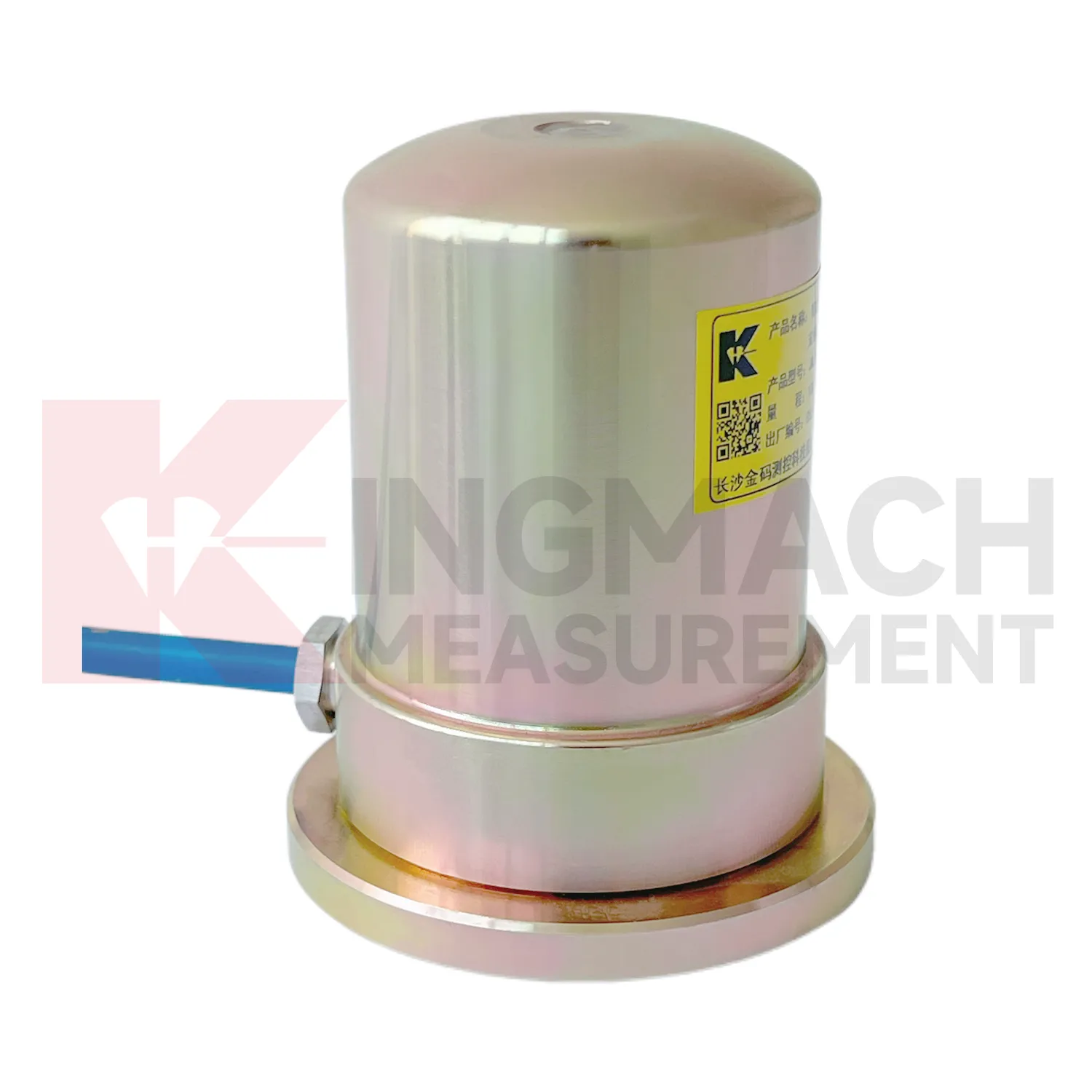

JMZX-39XXHAT Formwork Axial Force Gauge（VW ＆Smart type） is designed for pressure measurement in formwork support structures across engineering fields such as bridges, buildings, railways, transportation, hydropower, and dams, enabling comprehensive monitoring of the load conditions on formwork during concrete pouring processes.
