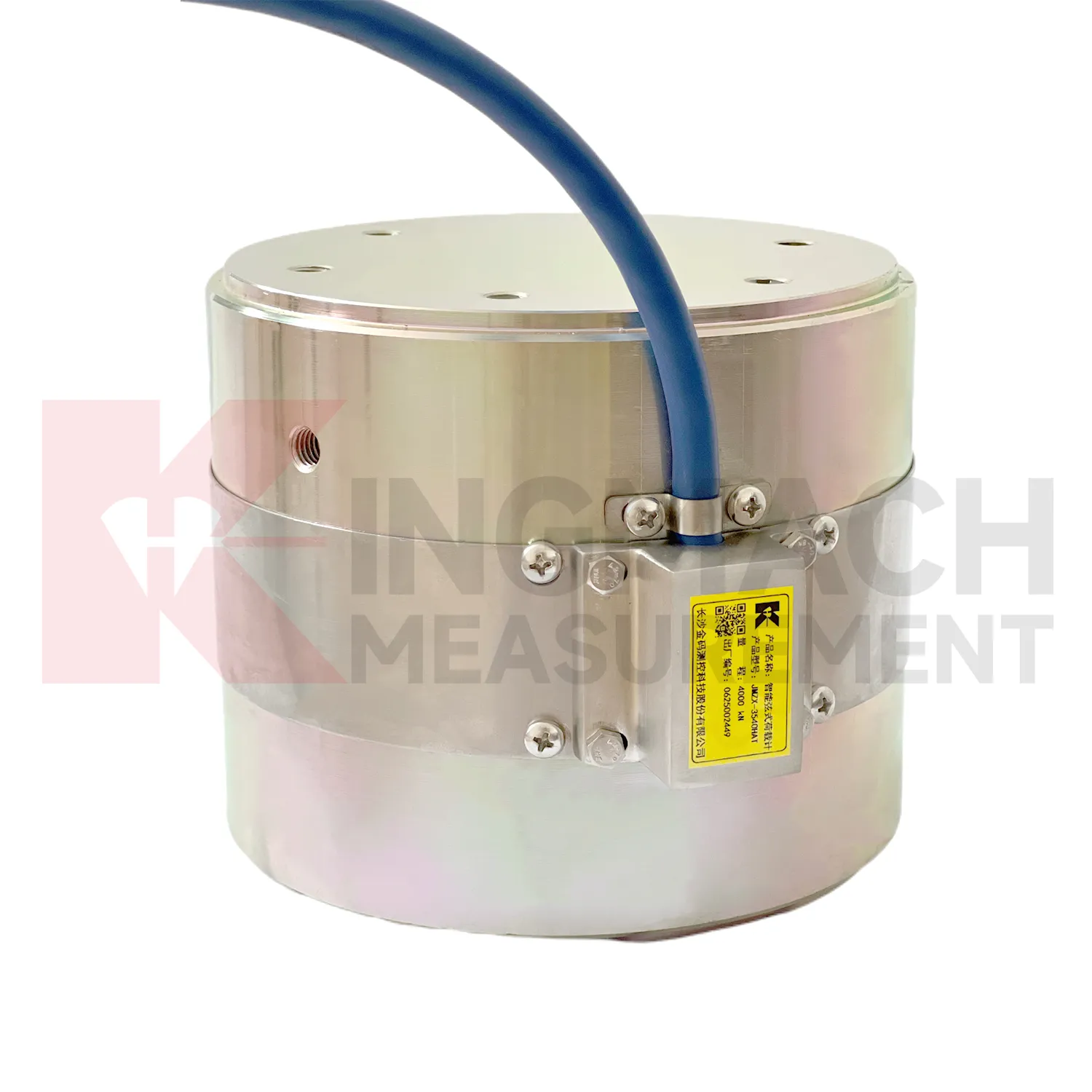

Solid load cell JMZX-34XXHAT、35XXHAT、36XXHAT image 2

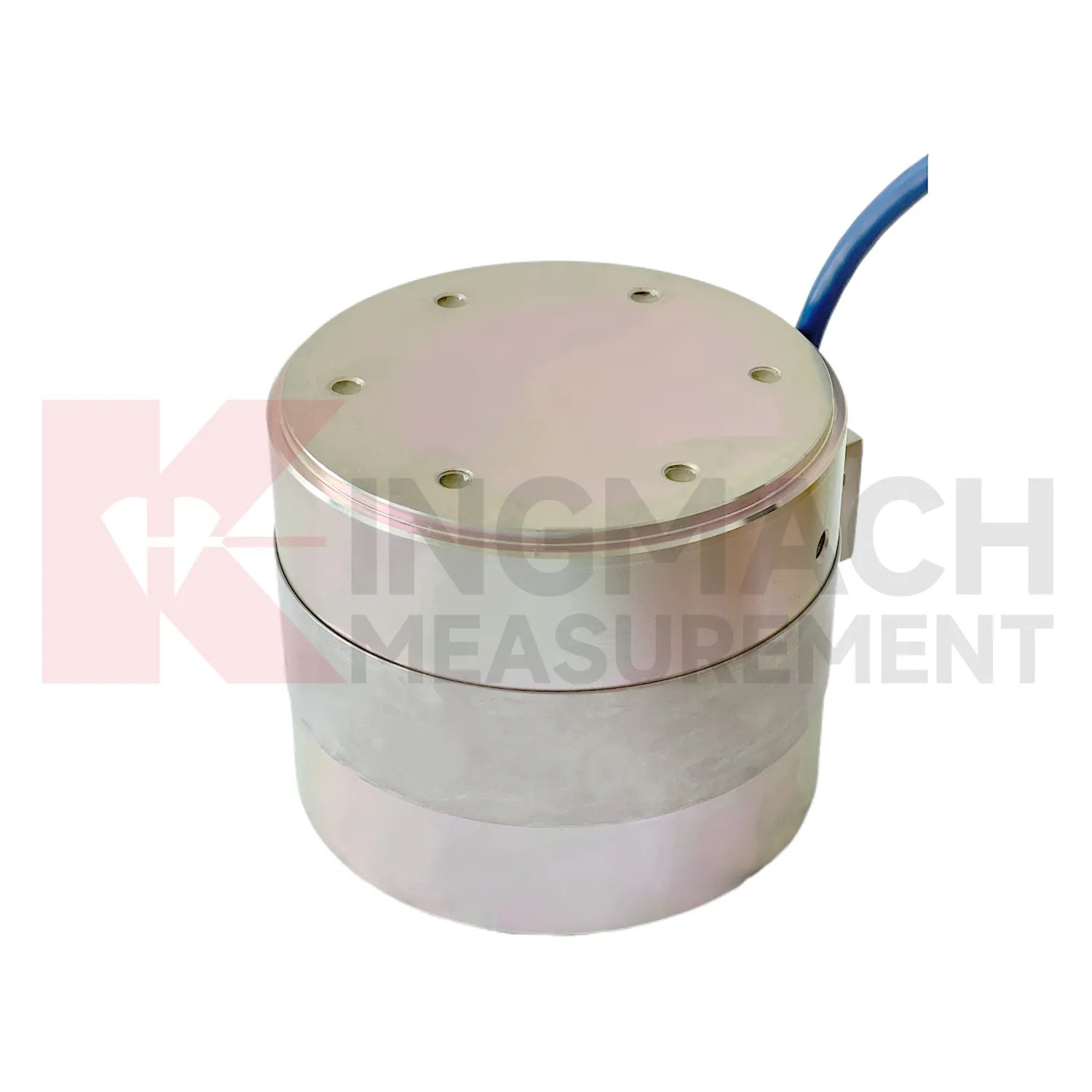

Solid load cell JMZX-34XXHAT、35XXHAT、36XXHAT image 3

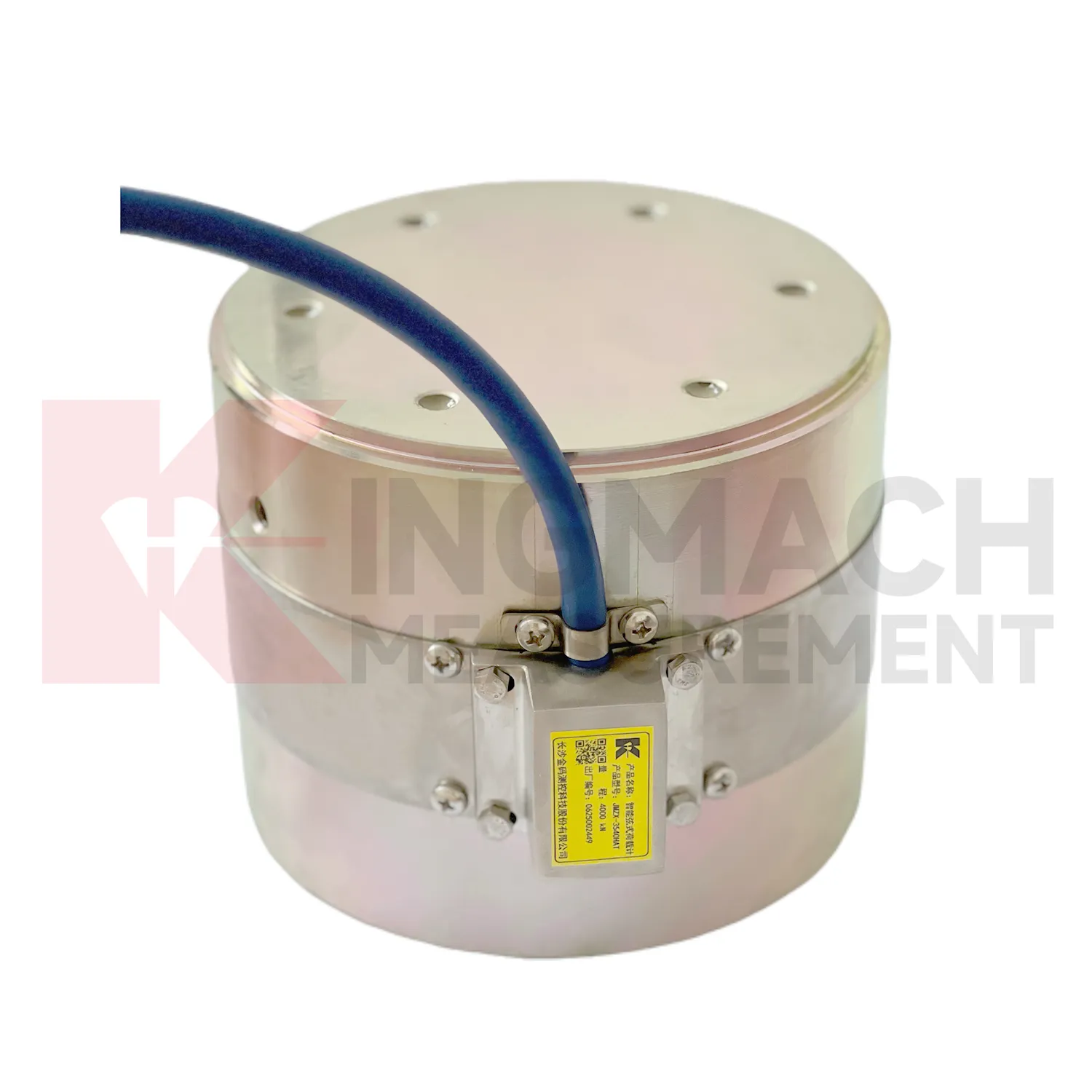

Solid load cell JMZX-34XXHAT、35XXHAT、36XXHAT image 4

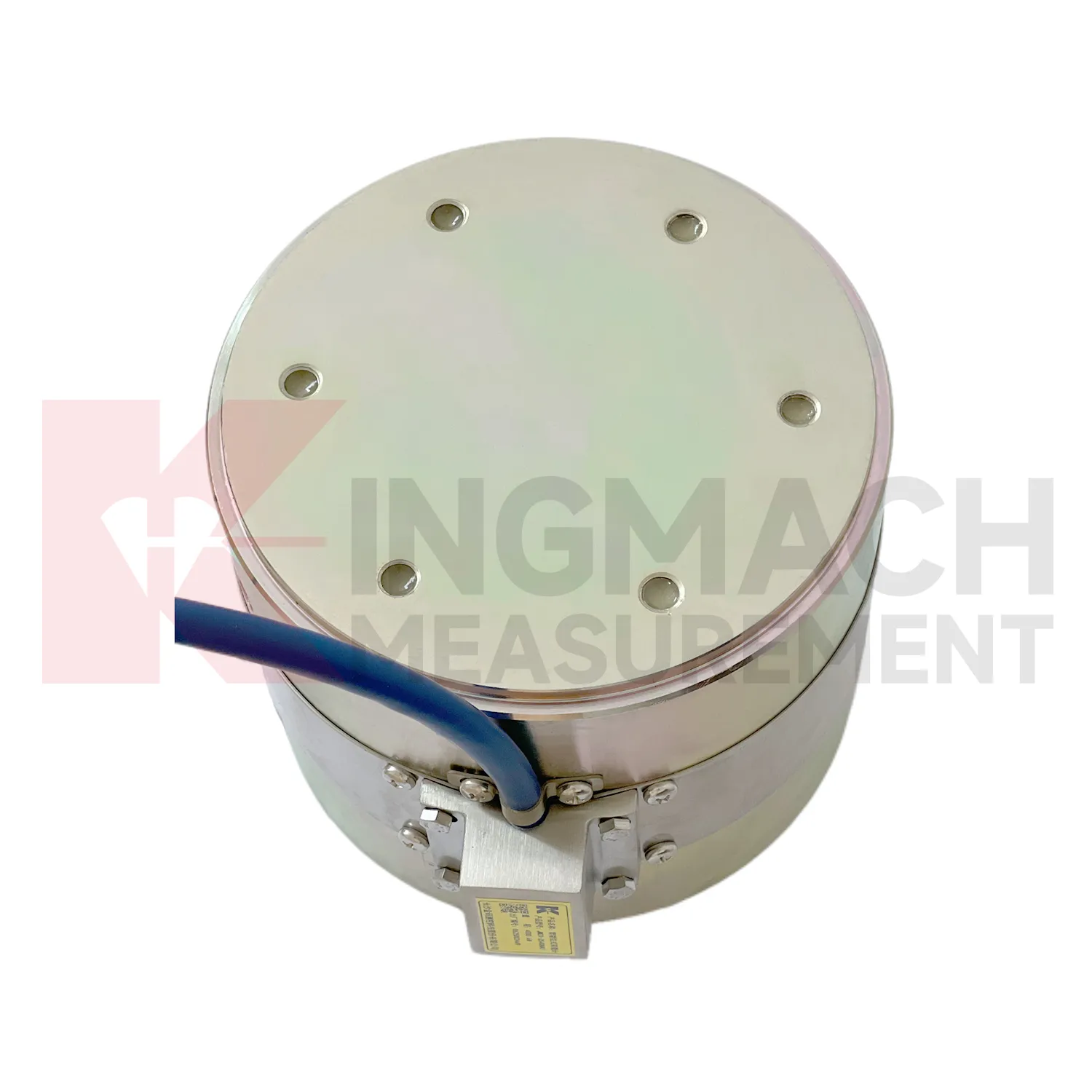

Solid load cell JMZX-34XXHAT、35XXHAT、36XXHAT image 5

Solid load cell JMZX-34XXHAT、35XXHAT、36XXHAT image 6

Solid load cell JMZX-34XXHAT、35XXHAT、36XXHAT

The Solid load cell is widely used for bearing capacity measurement in engineering fields such as bridges, buildings, railways, transportation, hydropower, and dams, including the bearing capacity measurement of bridge pier supports and pile load tests.

Download

Free consultation

General product information

Place of Origin:	Changsha，China
Brand Name:	Kingmach
Model Number:	JMZX-35XXHAT
Certification:	GB/T 13606-2007

Product Business Terms

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Cartons or wooden cases. Customized packaging solutions are also available.
Delivery Time:	Shipped within 30 days after full payment receipt.
Payment Terms:	T/T in advance.

Description

1. Designed and manufactured by vibrating string theory, it has the advantages of high sensitivity, high precision and high stability, and is suitable for long-term observation.

2. Pressure sensor built-in intelligent chip, digital detection, signal long-distance transmission without distortion, anti-interference ability.

3. Pressure sensor built-in memory chip, with intelligent memory function, the sensor model, number, calibration coefficient has been permanently stored in the sensor. During the measurement, the Pressure sensor can automatically save the measurement parameters you need 600 times, such as the measurement time, the temperature of the measurement point, the pressure value, the zero parameter and the temperature correction value.

4. Good insulation, waterproof and durable.

5. There are a variety of specifications, users can choose or customize according to different requirements.

6. Equipped with our instrument, you can directly test the pressure value and display the vibrating string frequency.

7. According to the sensor calibration parameters and zero value, the average pressure acting on the sensor is directly displayed, the measurement speed is 1 time/second, the measurement is intuitive, simple and fast.

8. Pressure sensor built-in temperature sensor, automatic temperature correction during the measurement process, eliminate the influence of temperature on the measured value. This series of sensors can be used with the company's three to six string Comprehensive Readout

Applications

Widely used in bridge, construction, railway, transportation, hydropower, dam and other engineering fields of cable force and pressure measurement, to understand the stress state of the measured component.

specifications

A.Model number and specification.

Model number	Specification	Standard Range	Resolution for force value	Precision	Reference dimension
JMZX-3510HAT	3 string	1000kN	0.1kN	0.5%FS
JMZX-3520HAT	3 string	2000kN	0.1kN	0.5%FS	Φ137mm×100mm
JMZX-3530HAT	3 string	3000kN	0.1kN	0.5%FS	Φ167mm×100mm
JMZX-3540HAT	6 string	4000kN	0.1kN	0.5%FS	Φ193mm×100mm
JMZX-3560HAT	6 string	6000kN	0.1kN	0.5%FS	Φ237mm×100mm
JMZX-3580HAT	6 string	8000kN	0.1kN	0.5%FS	Φ288mm×100mm
JMZX-35100HAT	6 string	10000kN	0.1kN	0.5%FS	Φ318mm×100mm
