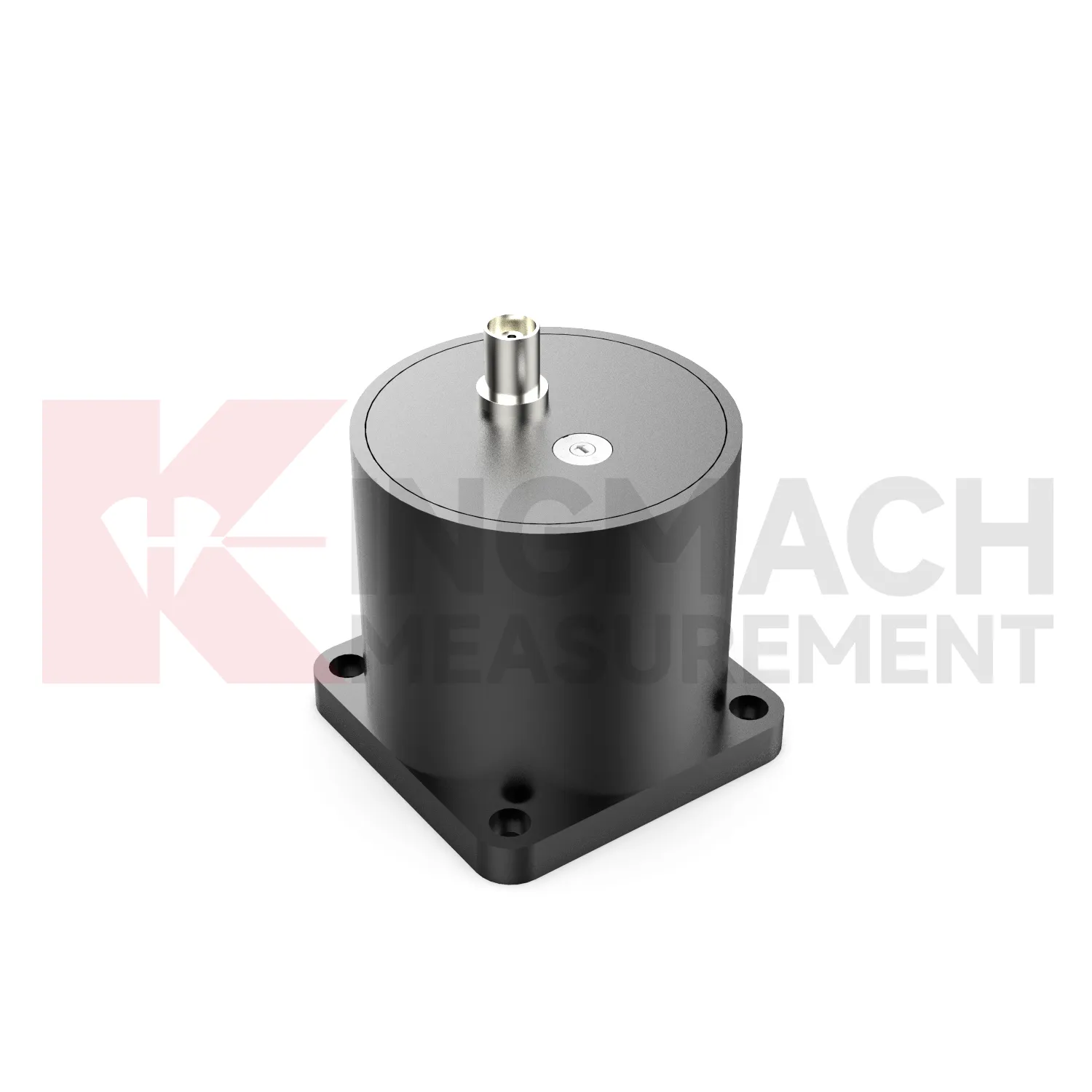

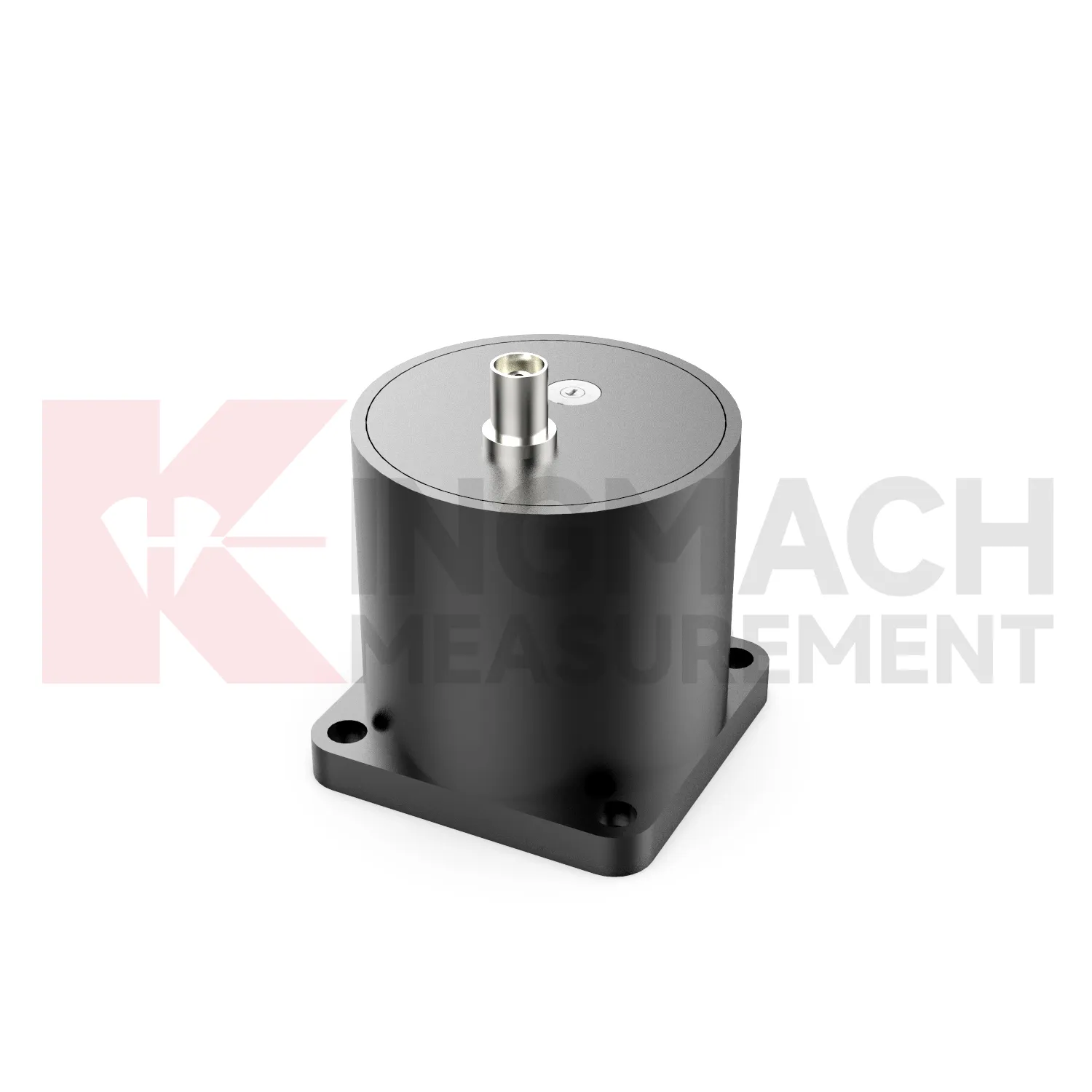

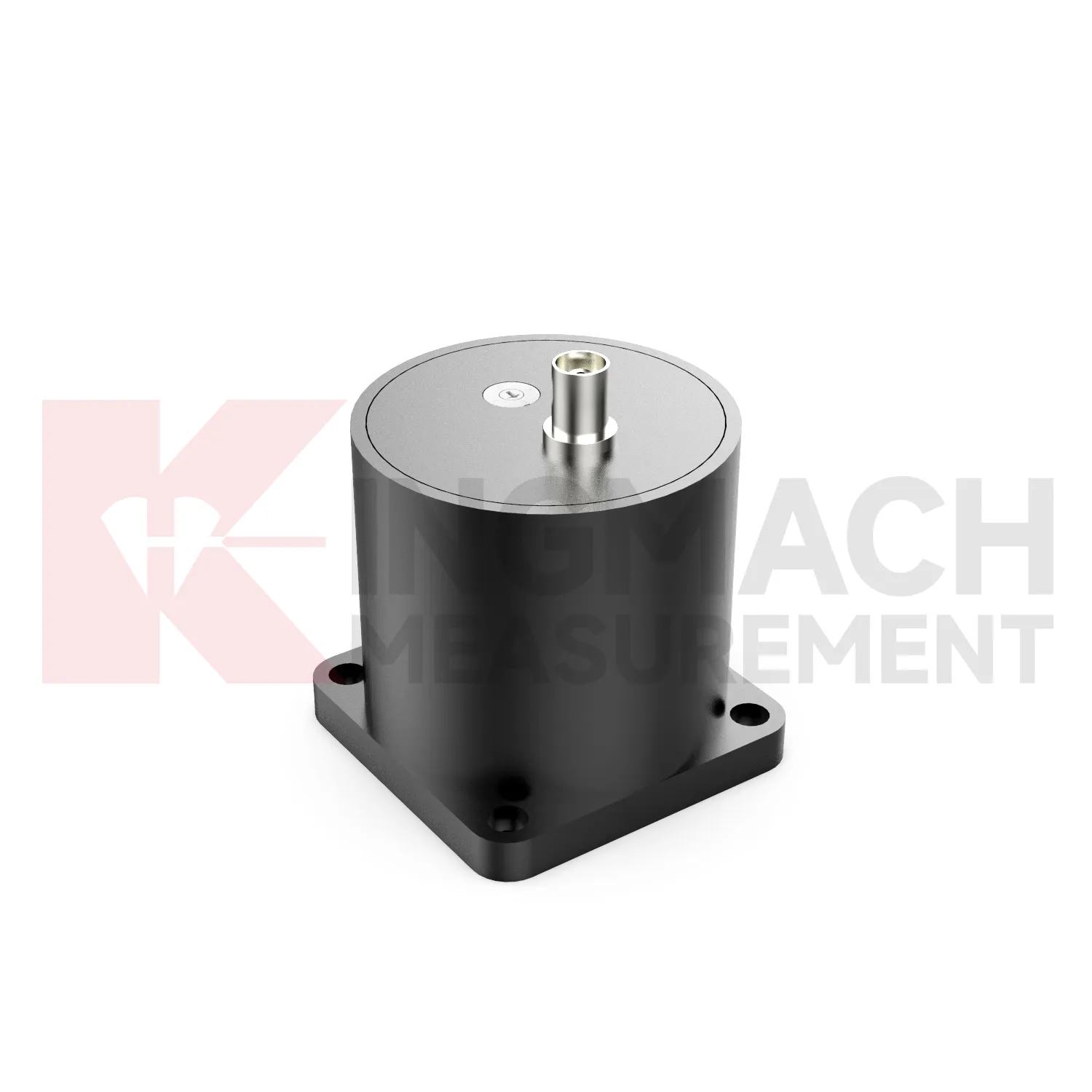

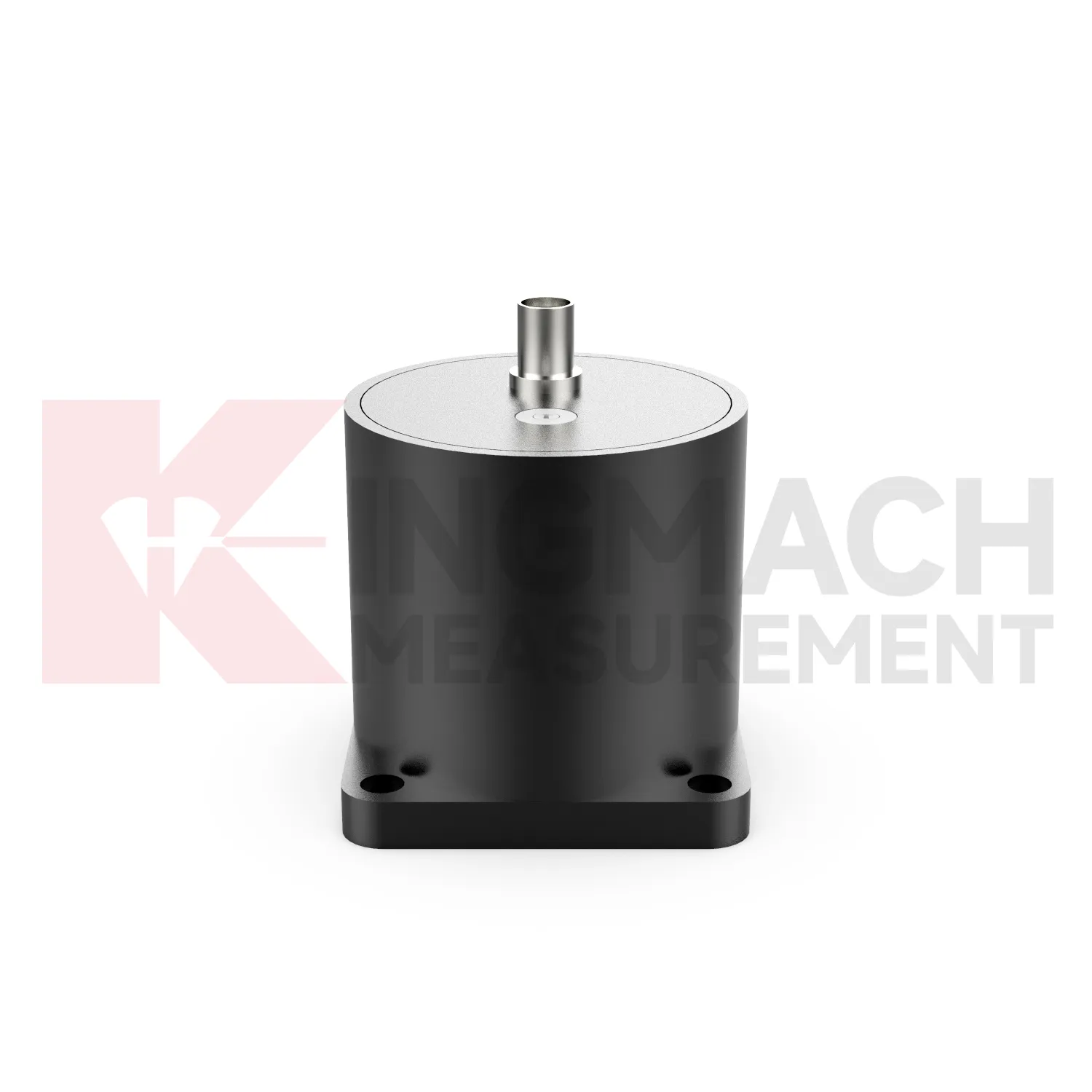

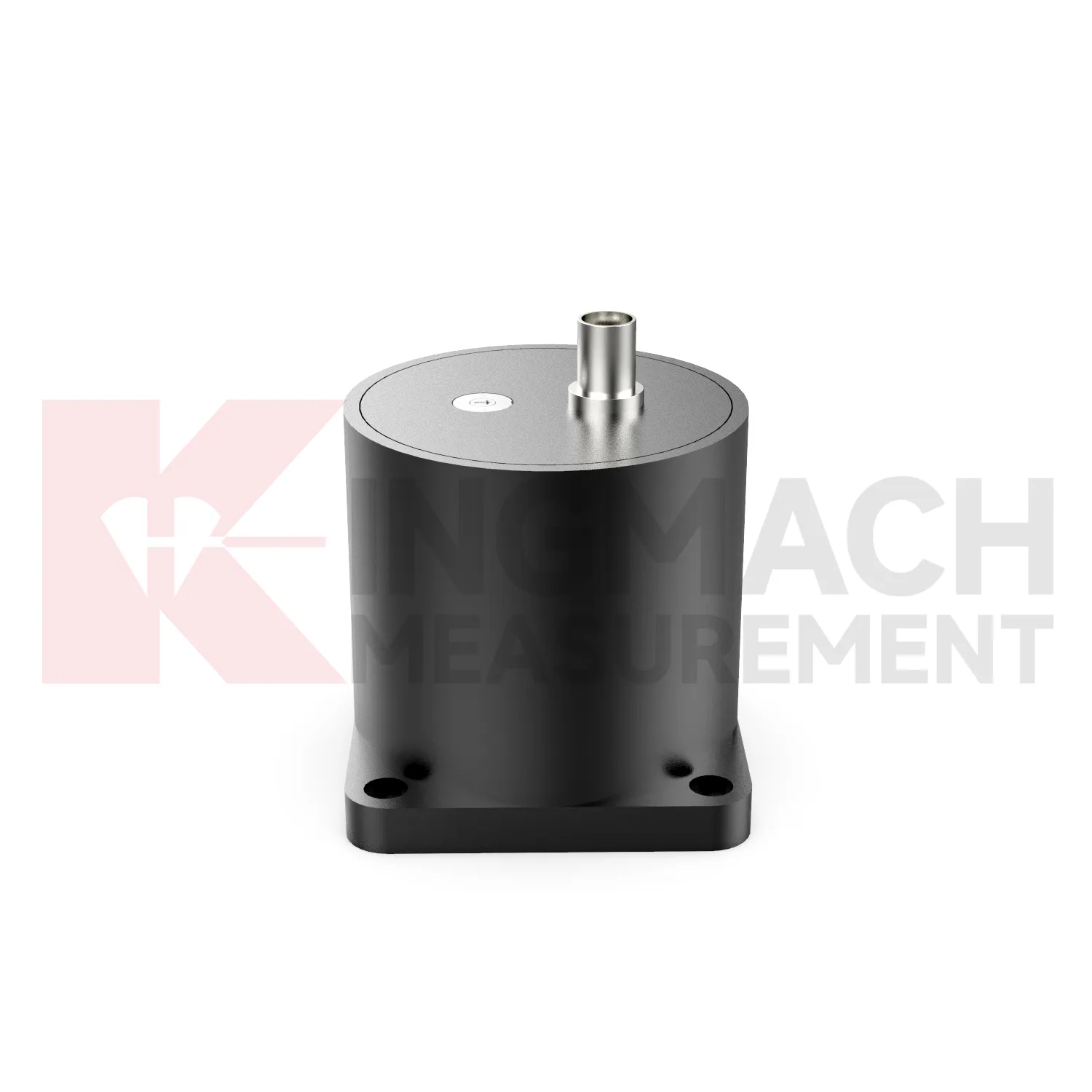

The Accelerometer（single-axis） is a sensor designed for ultra-low frequency or low-frequency vibration measurement. It is mainly used for pulsation measurement of the ground and structures, industrial vibration measurement of general structures, ultra-low frequency and large-amplitude measurement of highly flexible structures, and weak vibration measurement.This sensor adopts passive closed-loop servo technology to achieve excellent ultra-low frequency characteristics. It is equipped with four gears: angular velocity, small velocity, medium velocity, and large velocity, allowing users to select the corresponding gear according to their needs.The sensor features small size, light weight, convenient use, high resolution, and a large dynamic range.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMCZ-2081 |
|
Certification: |
GB/T 30242-2013 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
1. Ultra-low frequency
2. Wide dynamic range
3. Good sealing performance and high protection level
4. It has significant effects in bridge safety test and earth pulse test.
5. No need to adjust the zero position, no power supply, easy installation, high reliability.
JMCZ-2081 Accelerometer (single-axis) is designed for ultra-low-frequency or low-frequency vibration measurement, primarily used in pulsation monitoring of ground and structures, industrial vibration analysis of general structures, ultra-low-frequency large-amplitude measurements in highly flexible structures, and weak vibration detection. The sensor offers acceleration, low-speed, medium-speed, and high-speed for user-defined requirements, featuring a compact size, lightweight design, ease of use, high resolution, and broad dynamic range.
|
Gear |
0 |
1 |
2 |
3 |
|
Parameter |
Acceleration |
Low velocity |
Medium velocity |
High velocity |
|
Sensitivity V/（m/s）or V/（m/s2） |
0.3 |
20 |
5 |
0.3 |
|
Measuring range |
20 m/s2 |
0.125m/s2 |
0.3m/s2 |
0.6m/s2 |
|
Frequency range（Hz）（+1dB～-3dB） |
0.25～100 |
1～100 |
0.5～100 |
0.17～80 |
|
Output load resistance（MΩ） |
10 |
10 |
10 |
10 |
|
Weight（kg） |
1.1 |
|||
|

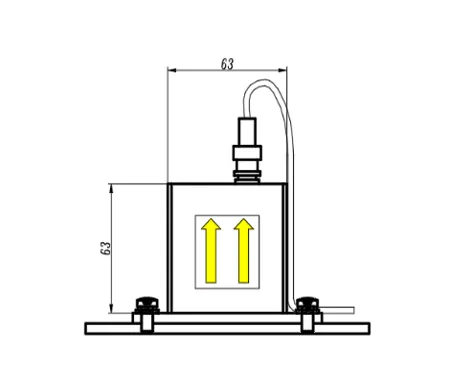

Dimensions（mm） |
100×100×68 |
|||
|
Operating temperature（℃） |
-10～+50 |
|||
|

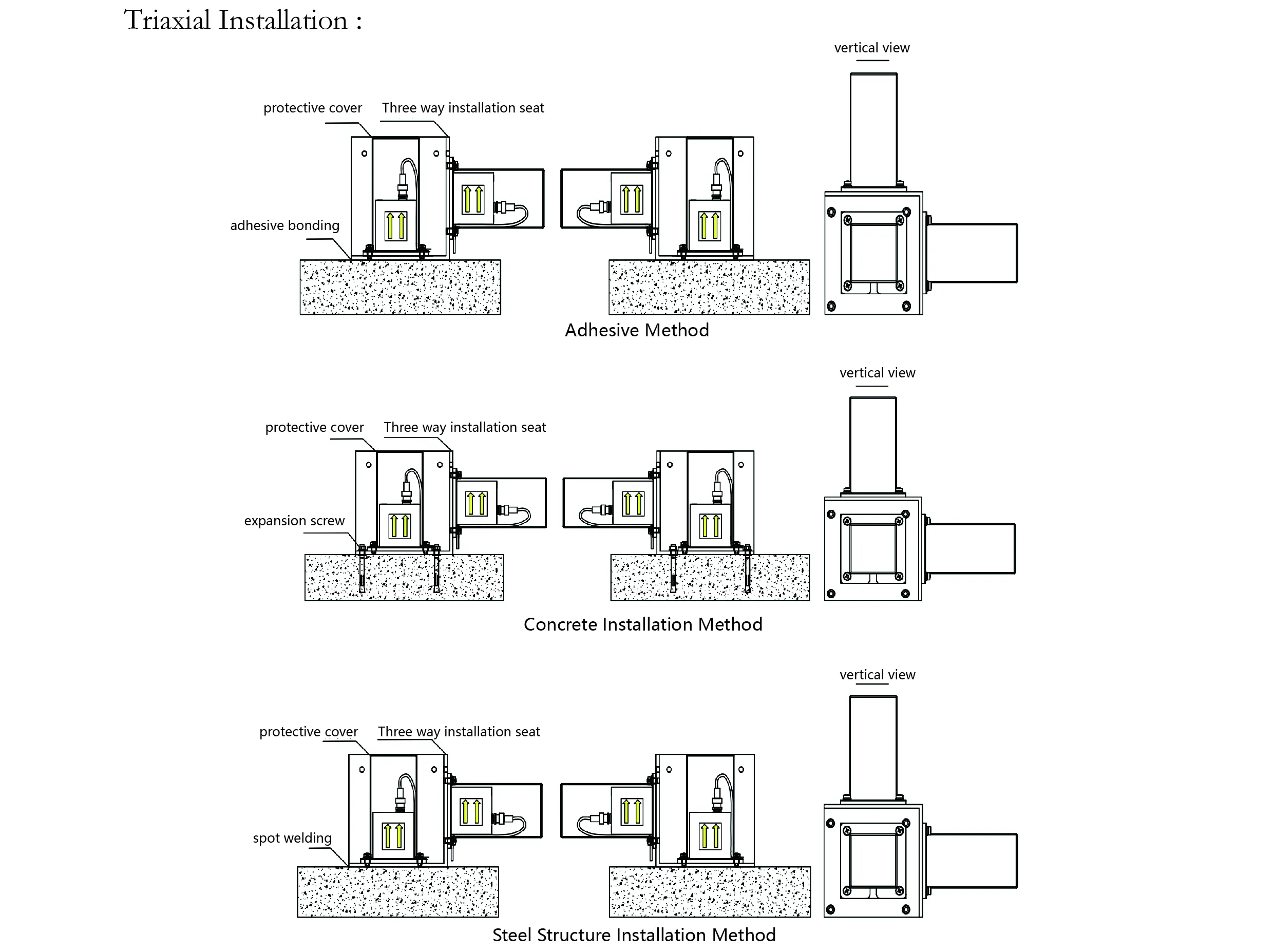

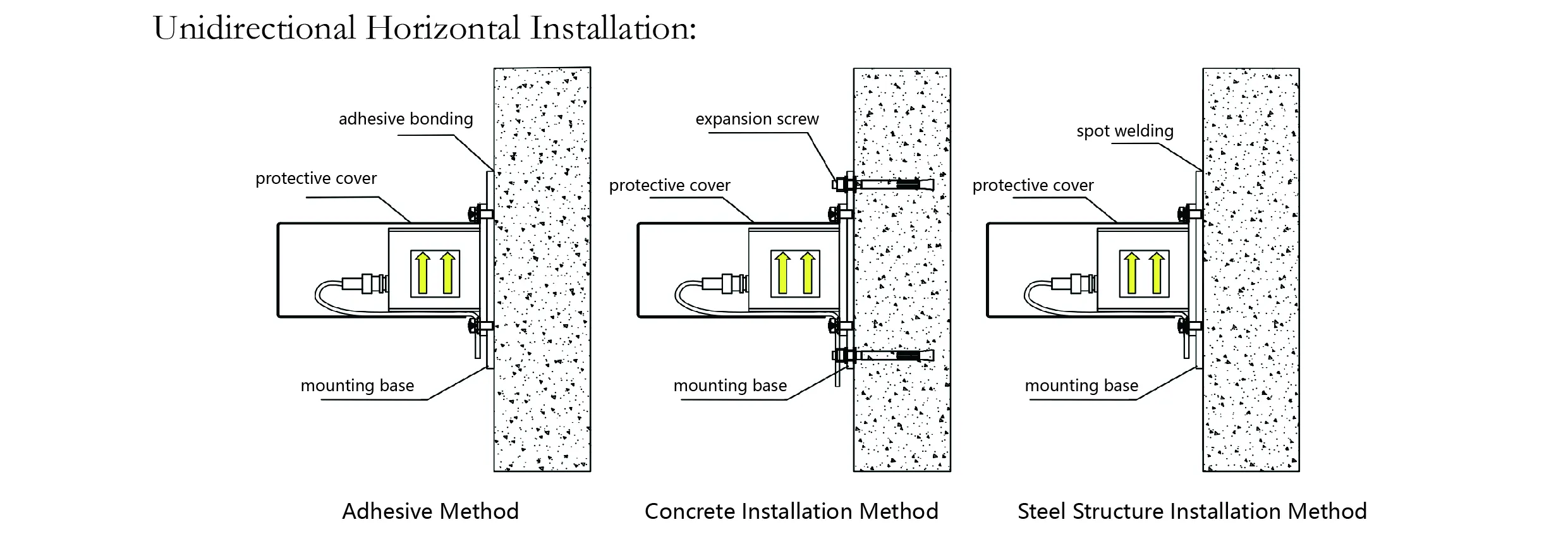

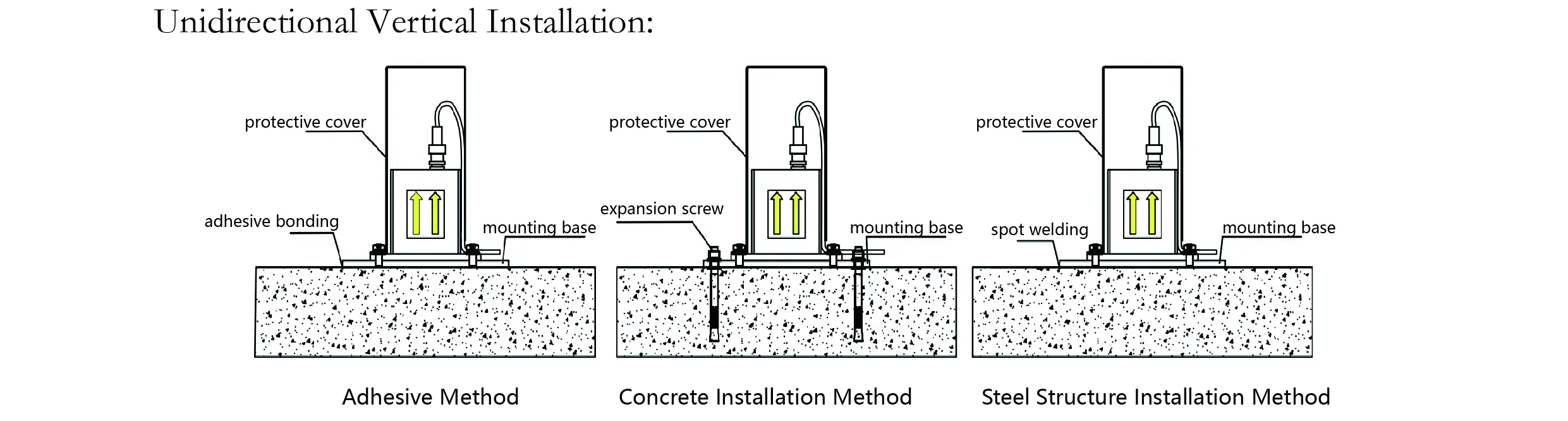

Installation method |
4 - φ7 through - holes |
|||
