The Vibration Sensor is widely suitable for bridge cable force measurement and building vibration measurement.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMM-268-A |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:

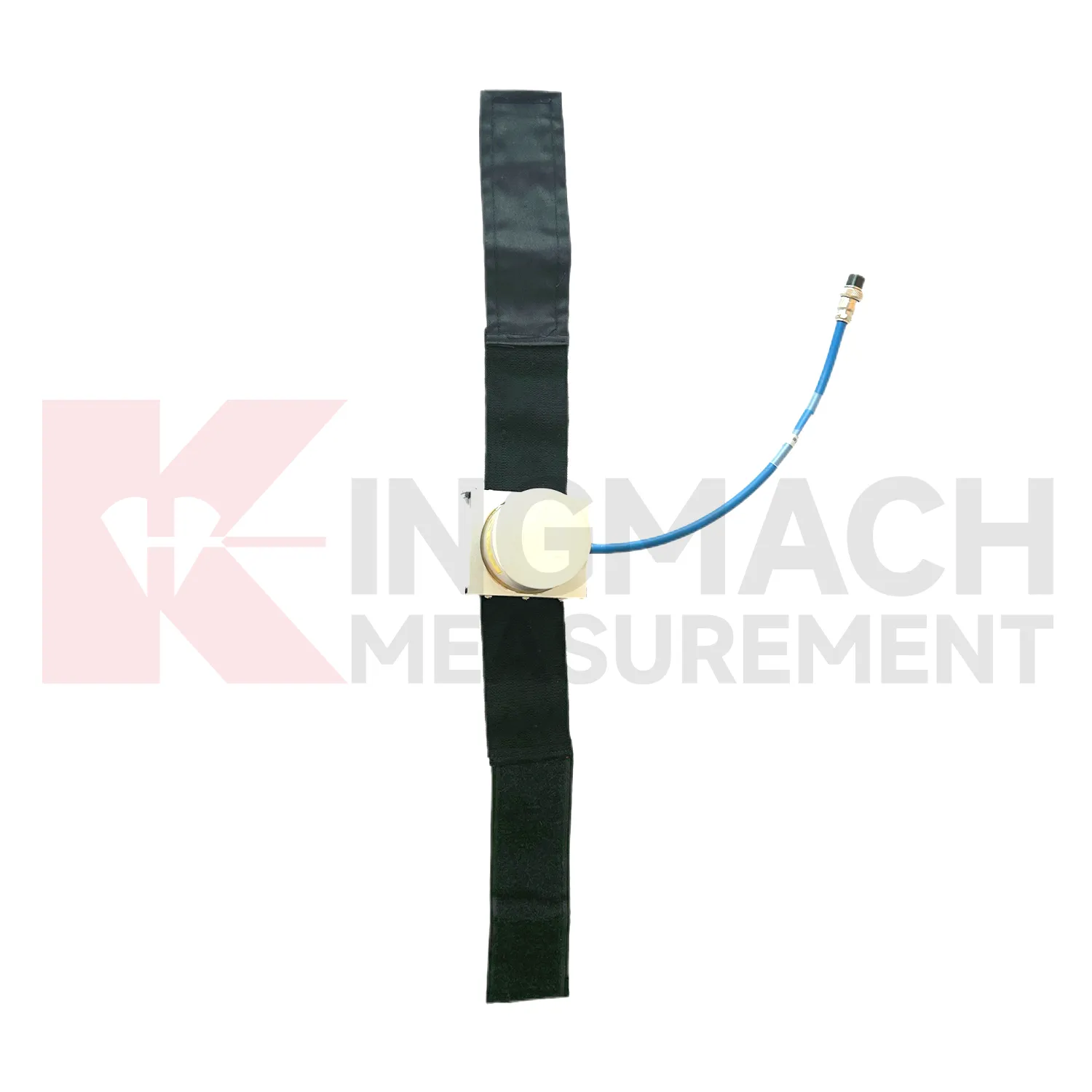

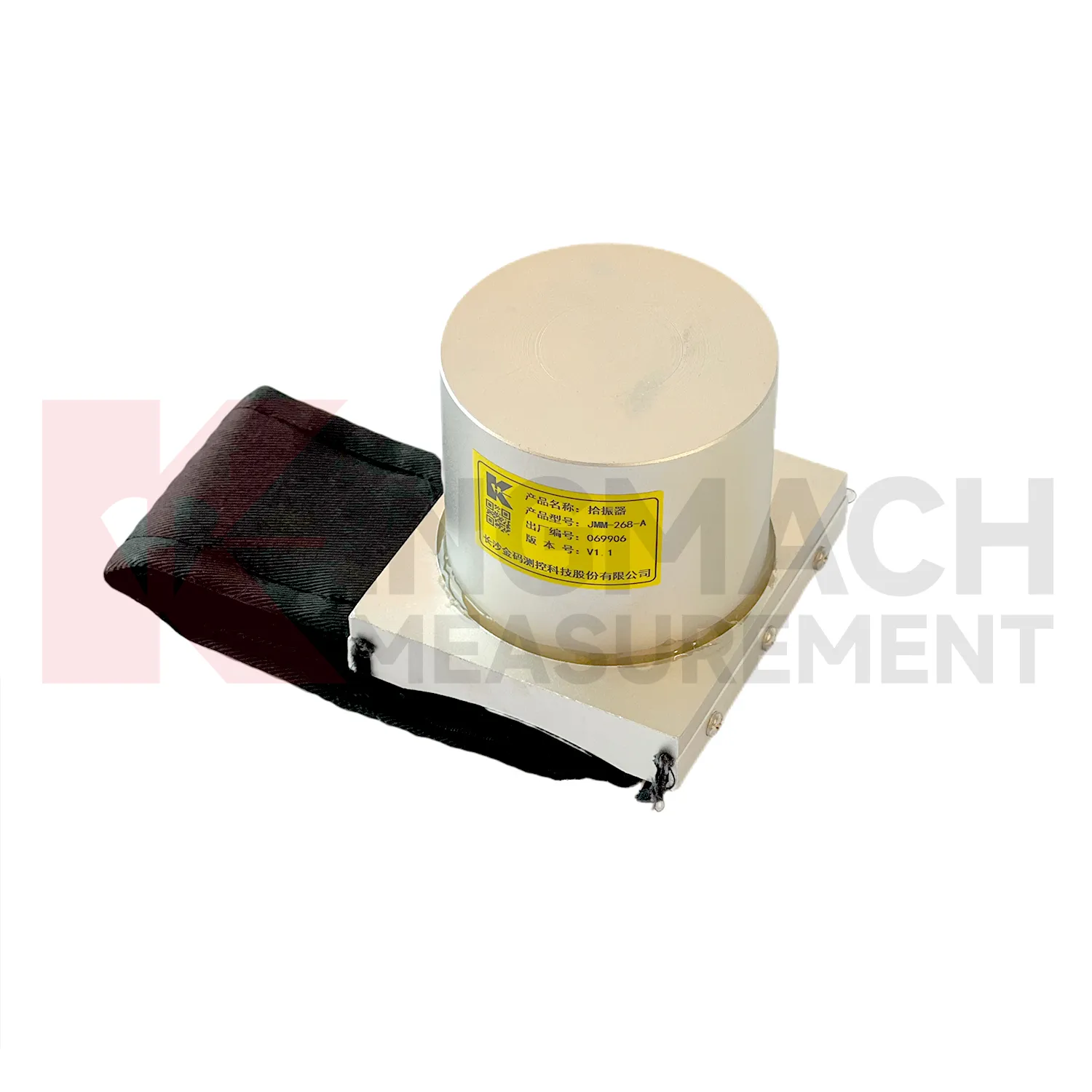

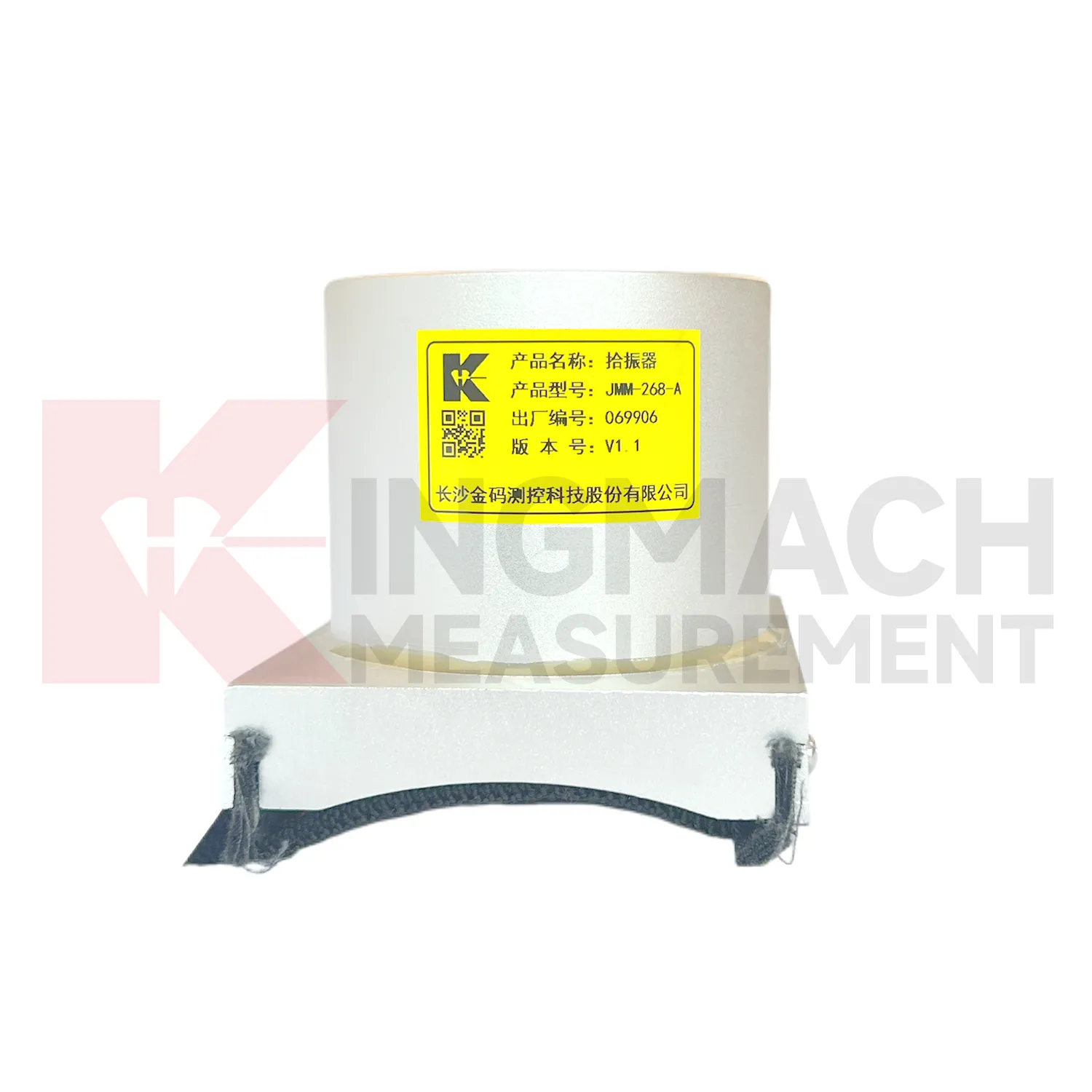

The Vibration Sensor JMM-268-A is a weak vibration signal acquisition module with high integration, high sensitivity, ultra-low power consumption and fully sealed structure. It consists of a low-frequency, high-sensitivity piezoelectric accelerometer and a charge amplifier to transmit vibration signals through wires. Through our company's dynamic testing system, data such as fundamental frequency, vibration curve, spectrum analysis diagram and cable force value can be obtained.
Product Features：
A low-frequency, high-sensitivity piezoelectric accelerometer with silicon crystals fabricated by micro-electromechanical system (MEMS) technology;
Mechanically designed product structure, featuring fast response speed and good long-term stability.

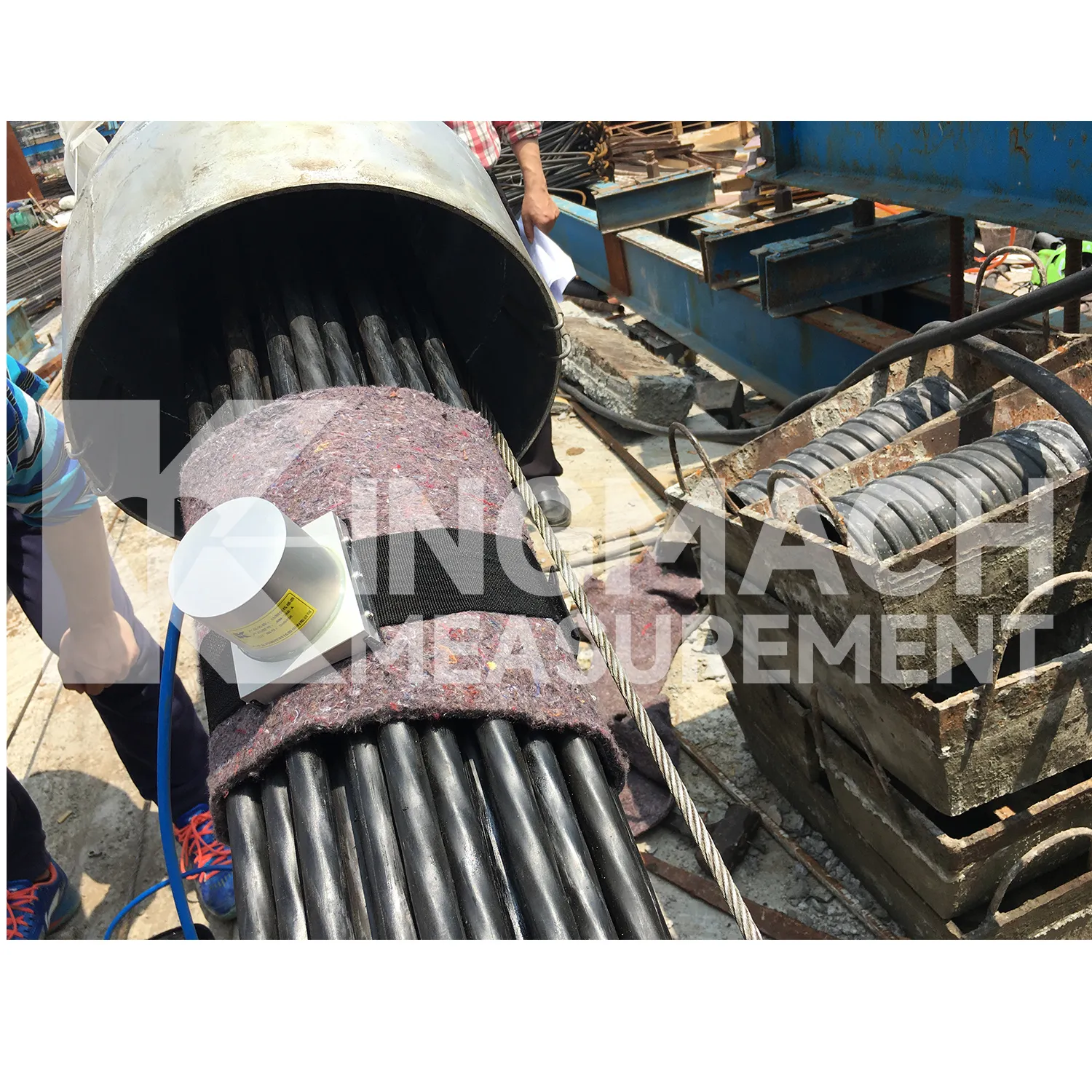

This product is suitable for cable force measurement of bridges and vibration measurement of buildings.
|
Range |
Frequency: 1Hz~1.4KHz Acceleration: 100g |
|
Supply Voltage |
±DC5V |
|
Signal Output |
Voltage Output DC-4.5V~+4.5V |
|
Operating Temperature |
-30℃~+80℃ |
|
Mechanical Dimensions |
70mm×80mm×65mm |
|
Waterproof Grade |
IP68 |
