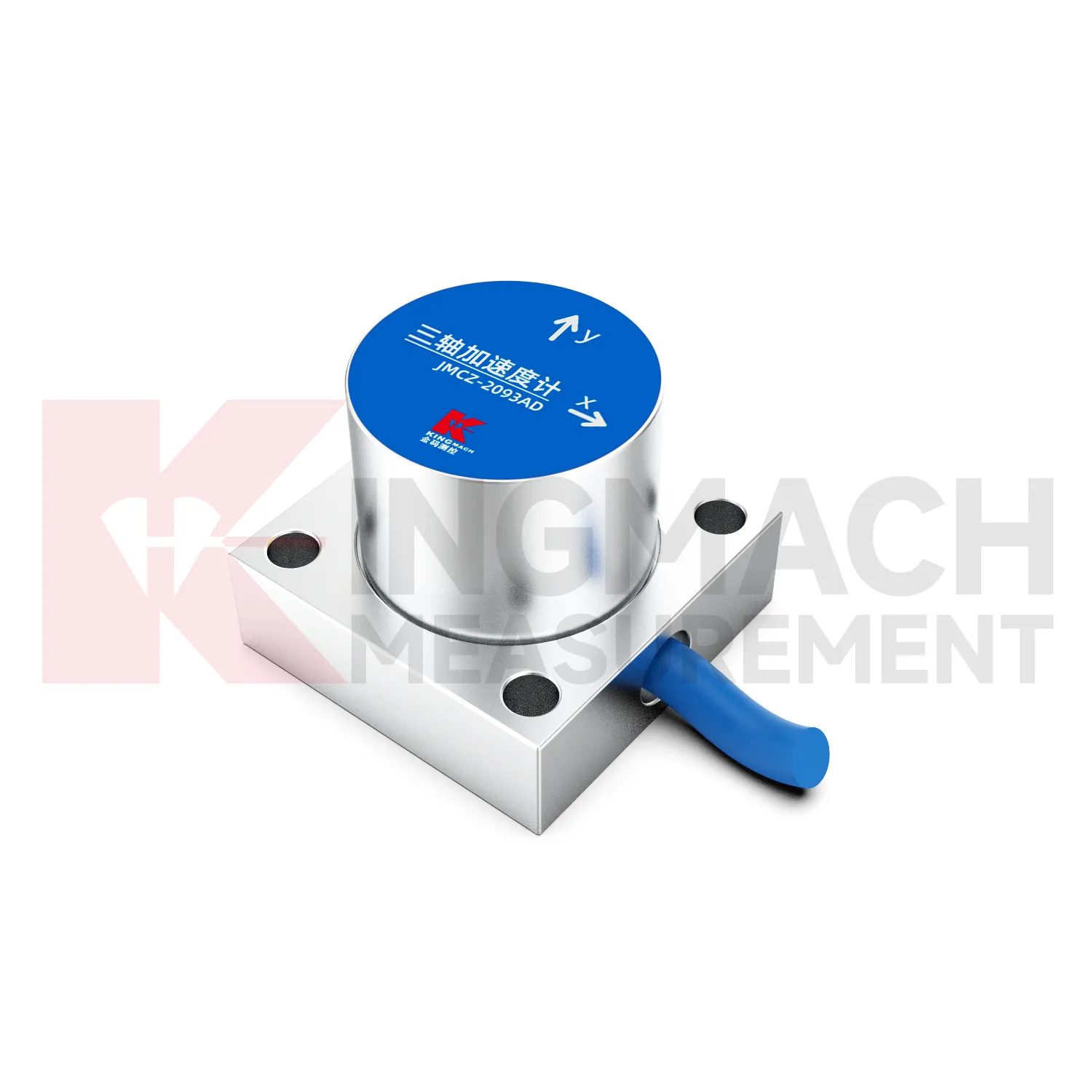

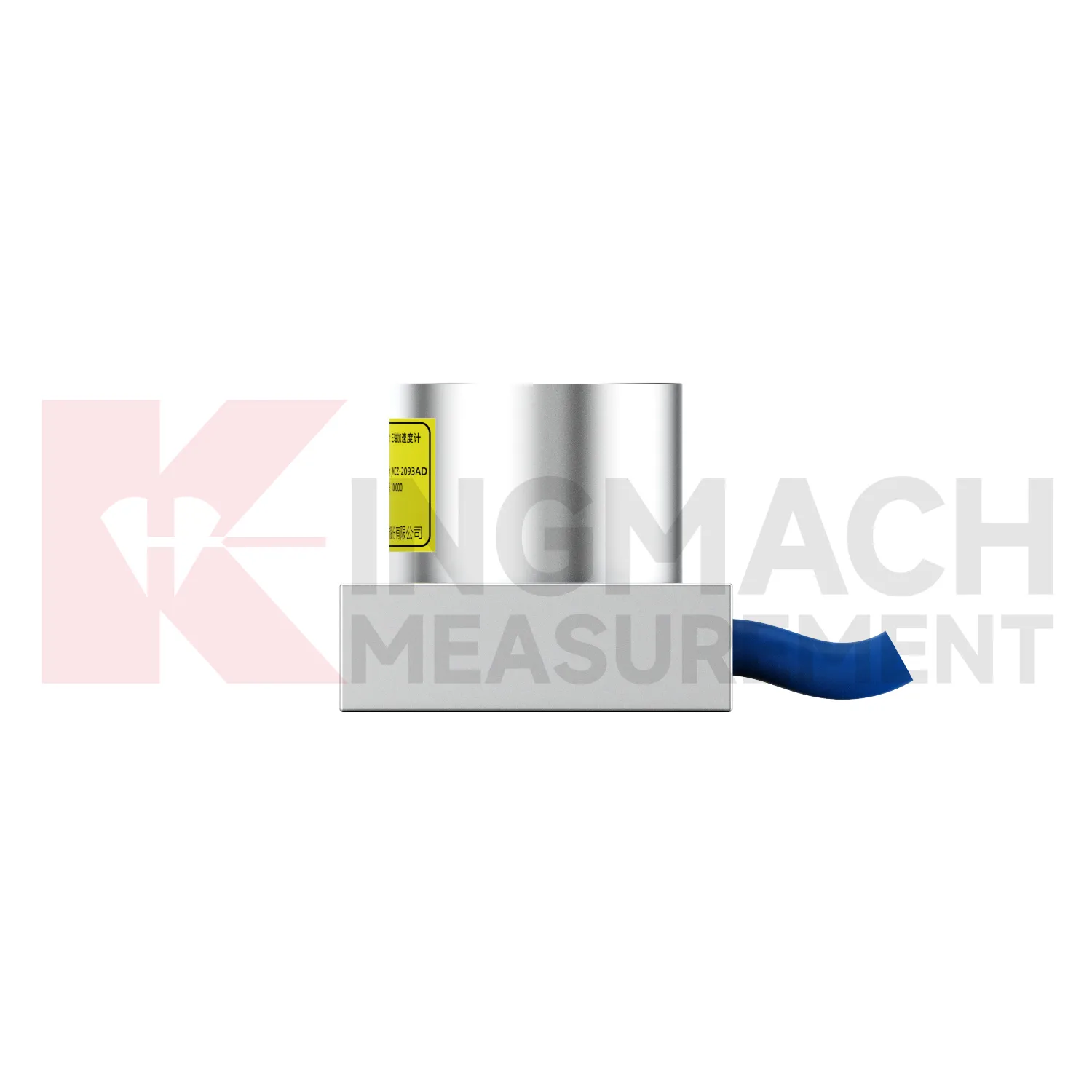

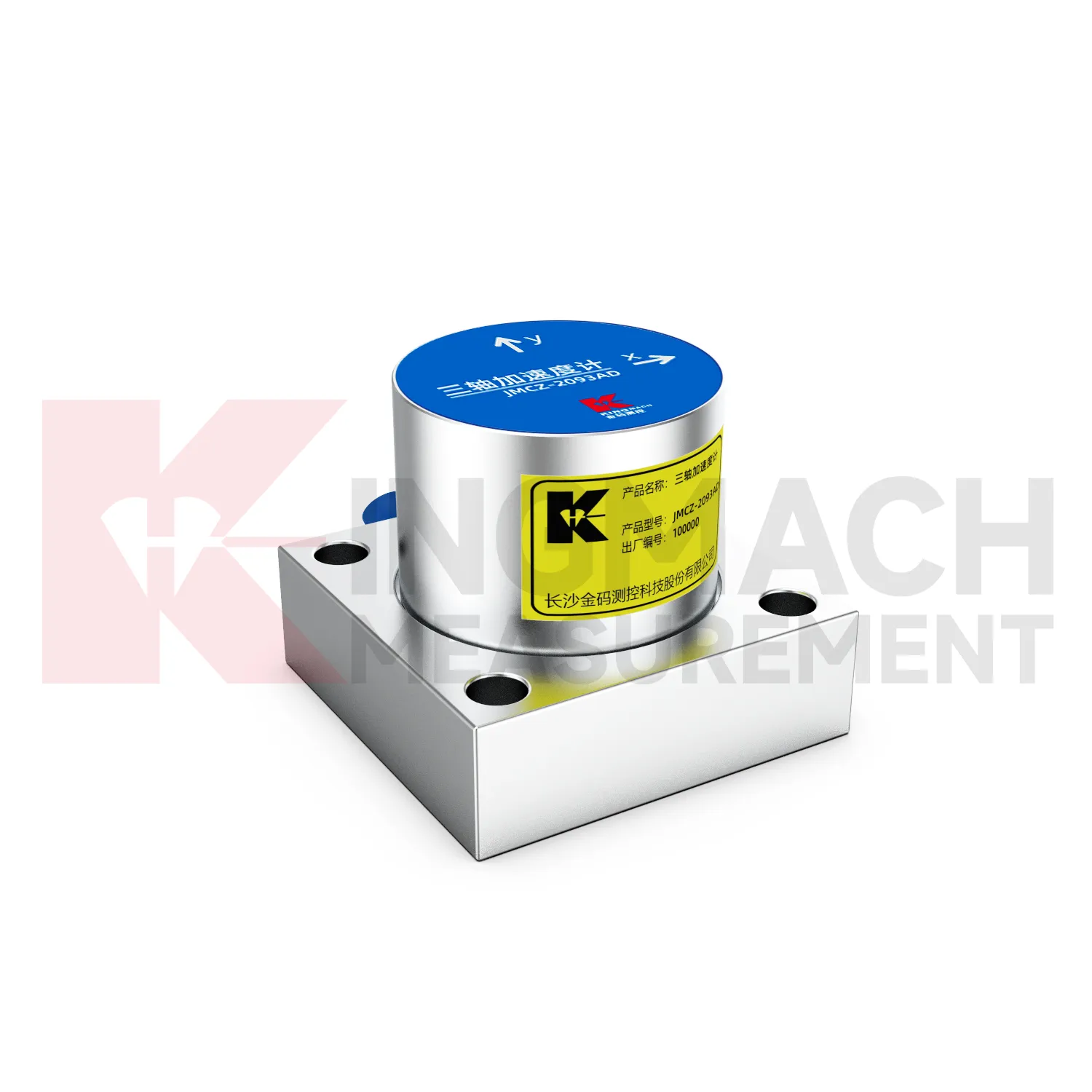

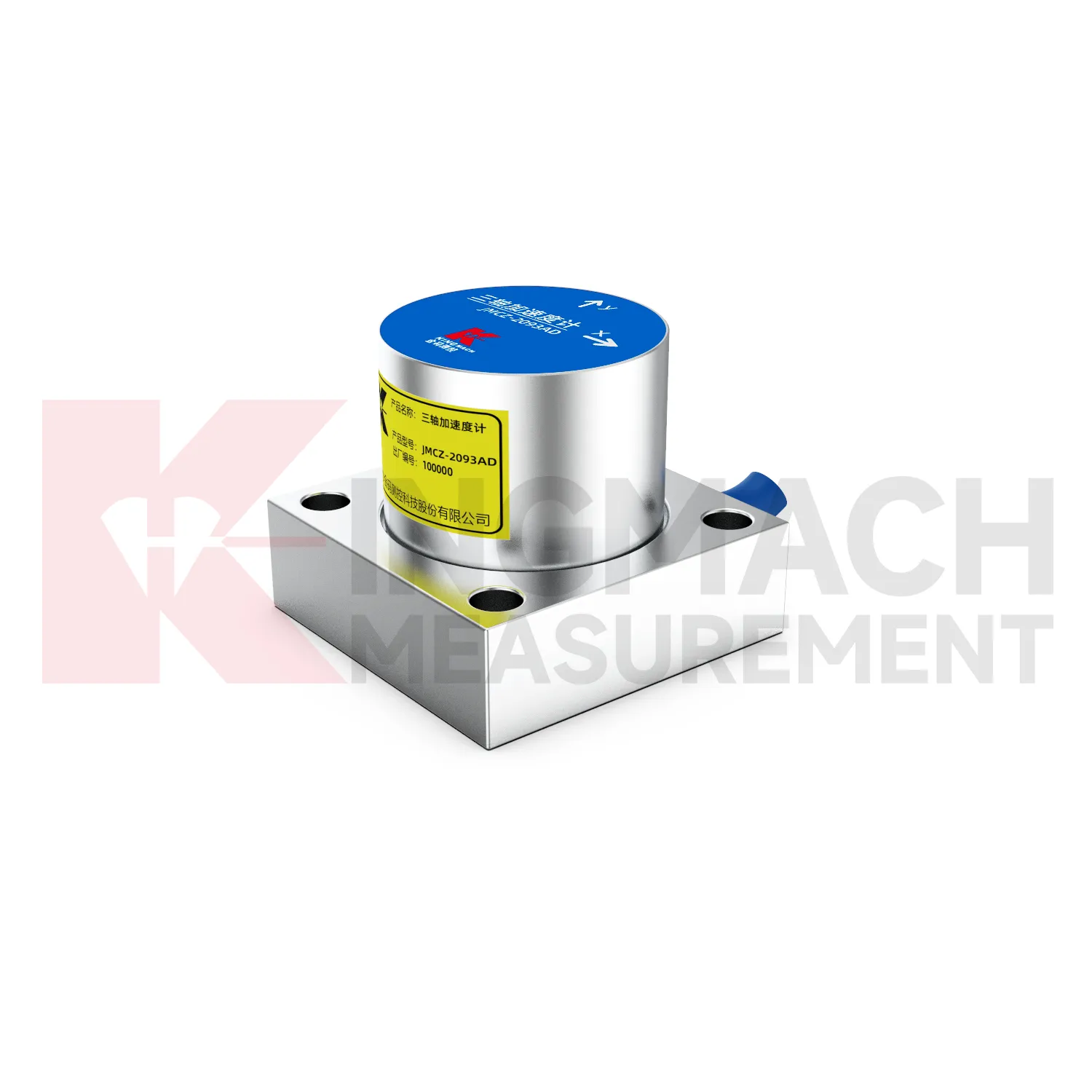

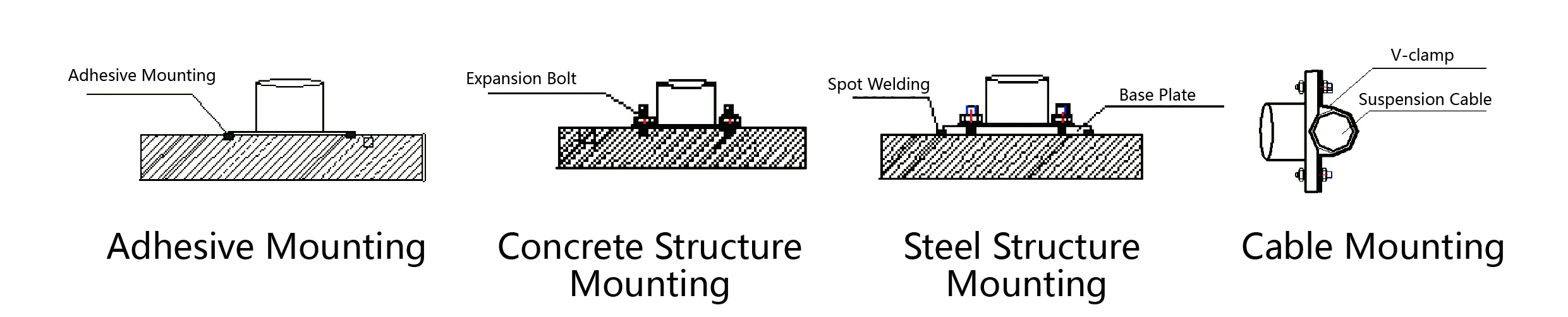

The Accelerometer（triaxial -axis） is a capacitive 3D-MEMS sensor with MCU. It measures triaxial acceleration and vibration frequency, is easy to install, and applies to railways, bridges. It suits structural vibration and cable tension monitoring.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMCZ-2093AD、W |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Application:
The JMCZ-2093AD/AW triaxial accelerometer is a capacitive 3D-MEMS technology-based sensor integrating an MCU and data
processing circuitry, capable of measuring triaxial acceleration, vibration frequency, and other parameters. Featuring a simple structure and easy installation, it is widely applicable for vibration frequency, acceleration, and cable force fundamental frequency measurements of structural bodies in railway, bridge, construction, vehicle/ship, machinery, metallurgy, and transportation industries.
Working Principle:
Based on capacitive 3D-MEMS technology, this triaxial accelerometer integrates XYZ-axis acceleration measurement and an RS485 digital interface. The sensor incorporates sensing/measurement components and mixed-signal ASIC application circuitry internally, with processed signals flexibly output through the digital interface. Its design, production, and testing processes adhere to high-stability, high-reliability, and high-quality standards, delivering relatively stable outputs across broad temperature and vibration ranges.
- Structural vibration monitoring
- Impact and blasting monitoring
- Cable tension measurement
- Earthquake and collapse monitoring
|
Acceleration Measurement |
JMCZ-2093AD(dynamic) |
JMCZ-2093AW(dynamic) |
|
Frequency Range |
0.2~25Hz (triaxial)/0.2~50Hz (single-axis) |
|
|
Acceleration Range |
±2g |
|
|
Acceleration Resolution |
0.817mm/s² |
|
|
Accuracy |
1mg |
|
|
Sampling/Upload Rate |
50Hz (triaxial) / 100Hz (single-axis) |
|
|
Power Supply |
DC 9V-24V |
|
|
Output Signal |
RS485 signal |
Built-in 4G DTU, TCP protocol |
|
Baud Rate |
9600 |
|
|
Power Consumption |
<0.5W |
<2W |
|
Operating Temperature |
-40℃~+85℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Cable Force Measurement |
JMCZ-2093AD (Static) | JMCZ-2093AW (Static) | |
| Natural Frequency | 0.3–50 Hz | ||
| Force Range |
10–10,000 kN |
||
| Cable Parameters | Length: 2–500 m Diameter: 6–150 mm |
||
|
Frequency Accuracy |
0.5% ± 0.001 Hz | ||
|
Force Accuracy |
Determined by the accuracy of coefficient K. Example: If K accuracy is 1%, force accuracy is 2% |
||
| Supply Voltage | DC 9V–24V | ||
|
Output Signal |
RS485 signal |
Built-in 4G DTU, TCP Protocol | |
|
Baud Rate |
9600 |
||
|
Power Consumption |
<0.5W |
||
|
Operating Temperature |
-40℃~+85℃ |
||
|
Waterproof Rating |
IP68 |
||
