The Tiltmeter is widely used for measuring the biaxial tilt angle relative to the horizontal plane of structures such as bridges, buildings, and railways, and is suitable for detecting deep internal deformation that is difficult to observe with conventional geodetic survey methods.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMQJ-7315ADS |
|
Certification: |
GB/T 38204-2019、SL 362-2006、DL/T 2163-2022 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:

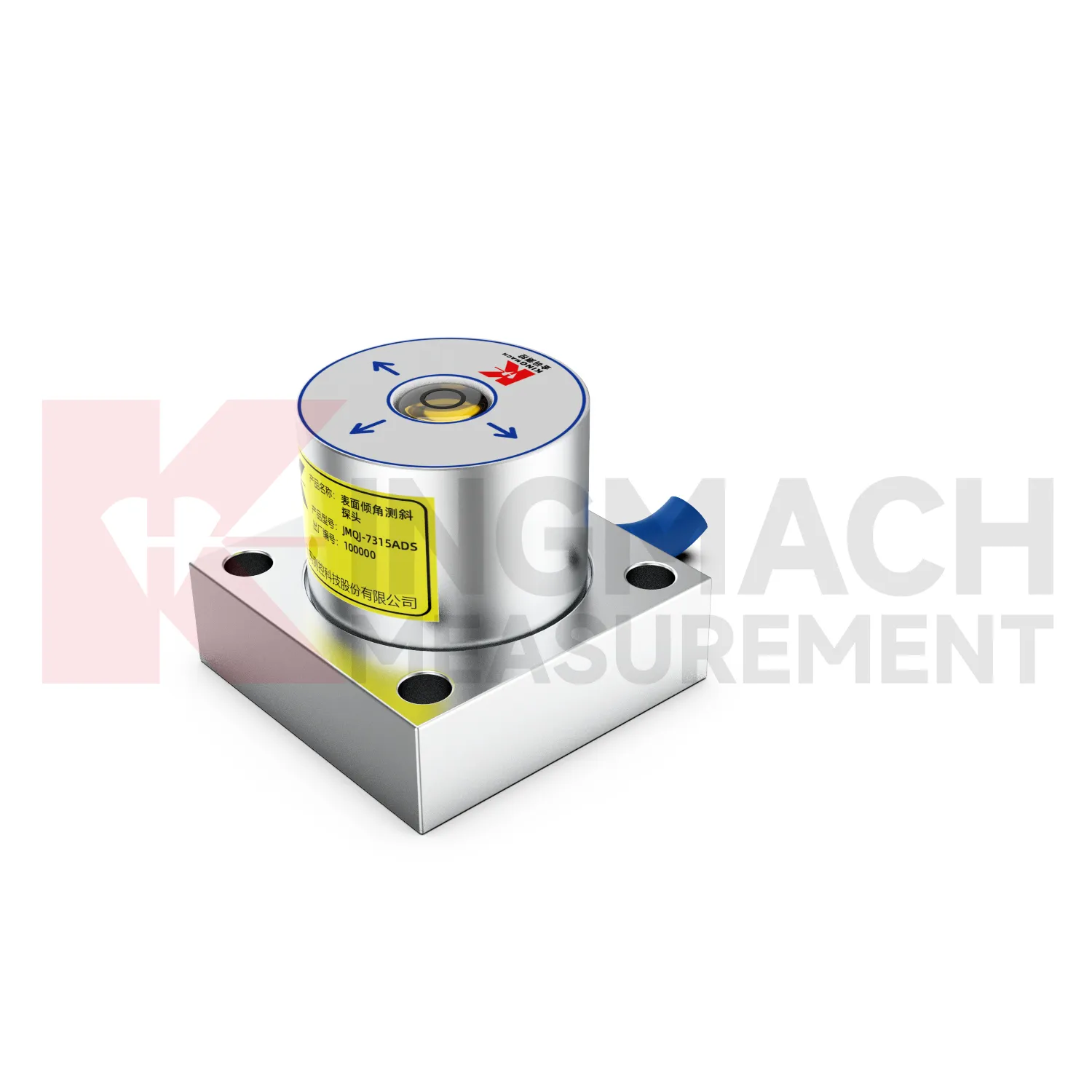

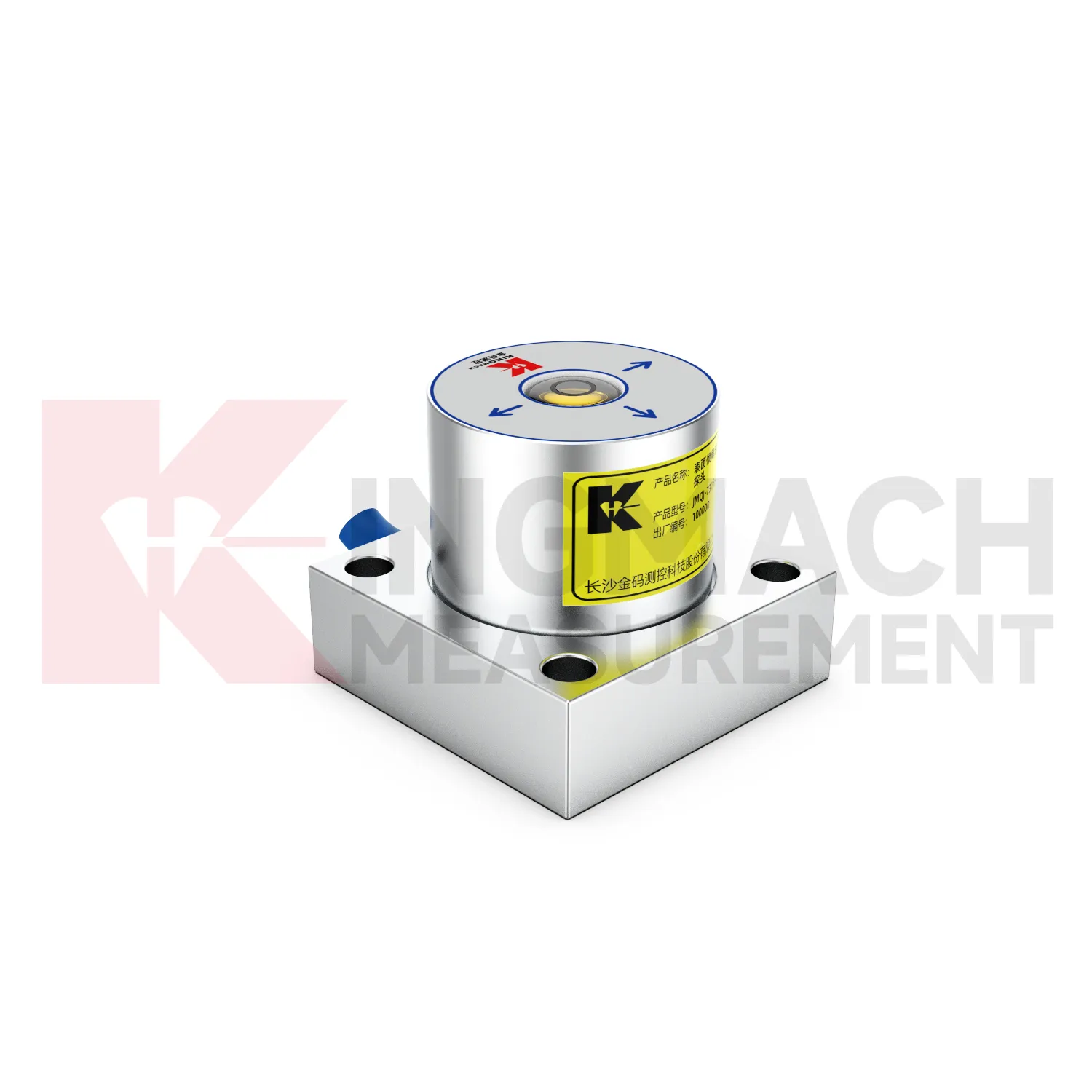

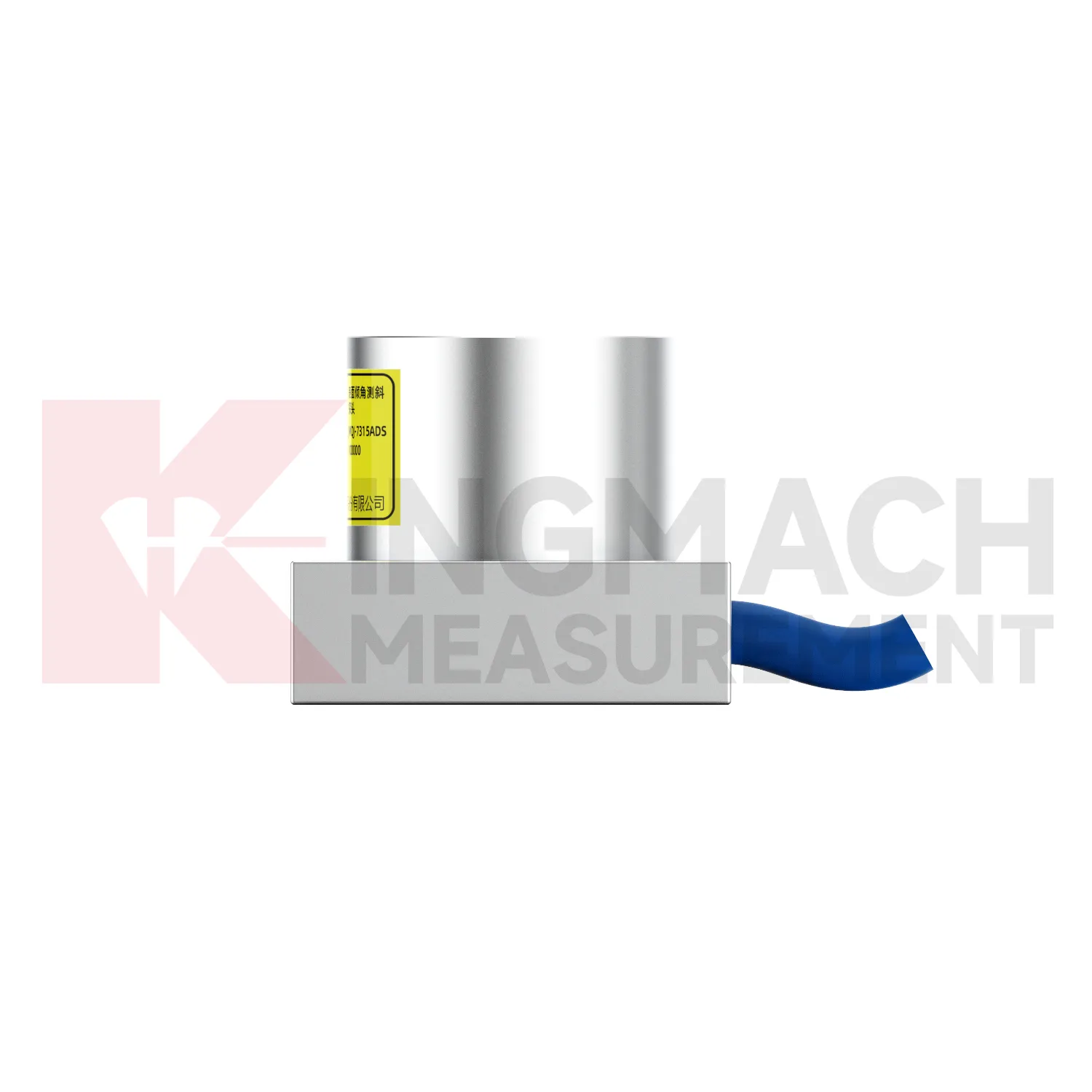

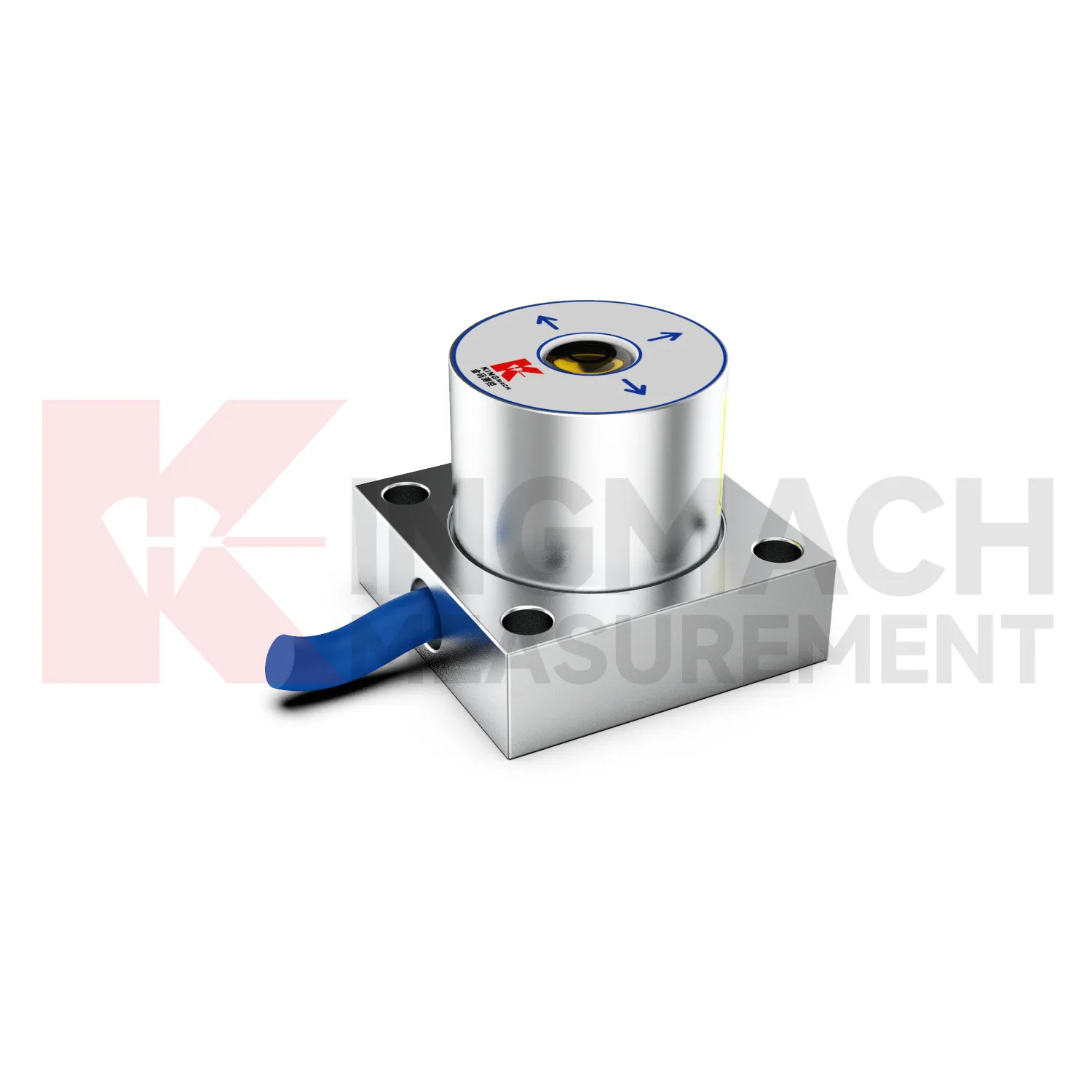

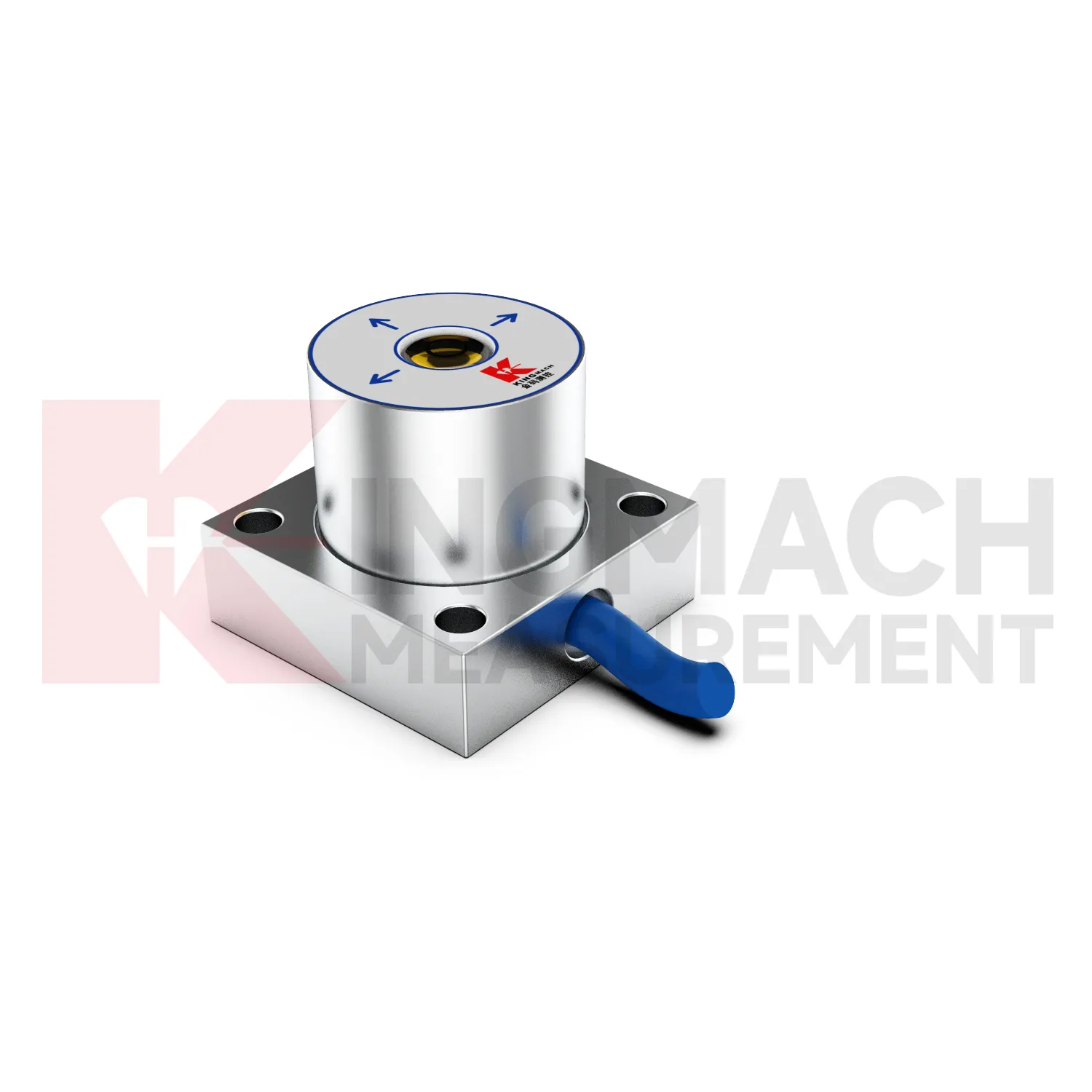

JMQJ-7315ADS tiltmeter is an inclination sensor developed and produced by the company using a micro-electronic mechanical system, and the sensor uses a high-precision advanced acceleration integrated chip as a sensitive element, combined with intelligent chip technology to produce a fixed sensor for measuring inclination angle. It is used to observe the inclination angle change and deformation of bridges, buildings, railways, and other structures relative to the horizontal plane, and is suitable for conventional measurement methods and the deformation of hidden parts that are difficult to observe and can be tested for a long time with the automation system.
Product features:
1. Based on the 3D-MEMS accelerometer technology and differential measurement principle, it can effectively reduce the temperature drift and the influence of power supply waves.
2. Fully sealed waterproof and dustproof design, suitable for various construction environments.
3. RS485 bus-type sensor, which is convenient for users to apply and configure flexibly.
4. Using 16-bit AD sampling and RS485 digital communication, built-in unique electronic code, and lightning protection design.
5. Convenient access to the company's automated test system, easy-to-achieve remote unattended automatic measurement
It is used to observe the inclination angle change and deformation of bridges, buildings, railways, and other structures relative to the horizontal plane, and is suitable for conventional measurement methods and the deformation of hidden parts that are difficult to observe and can be tested for a long time with the automation system.
|
Measuring Range |
±15°(Double shaft) |
|
Resolution |
0.001° |
|
Accuracy |
0.01° |
|
Supply Voltage |
DC 9V~24V |
|
Power Consumption |
<0.5W |
|
Output Signal |
RS485 Digital Signal Output |
|
Operating Environment Temperature |
-30ºC~+80ºC |
|

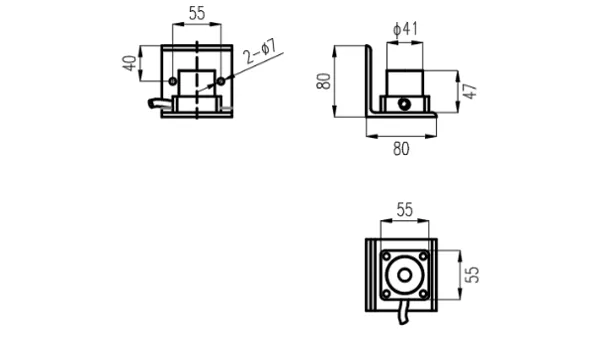

Mechanical Dimensions |
55mmx55mmx46mm |
|
Waterproof Rating |
IP68 |
|
Weight |
0.6kg |
