The Inductive Frequency-Modulated Hydrostatic Level Sensor is widely applied in the precision measurement of various engineering scenarios in the engineering field, such as dam settlement, bridge deflection, slope stability, and building settlement.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMDL-62XXAT、ADT |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
1. Designed based on inductive frequency modulation principle, offering high sensitivity, high accuracy, excellent stability, and minimal temperature influence—ideal for long-term monitoring.

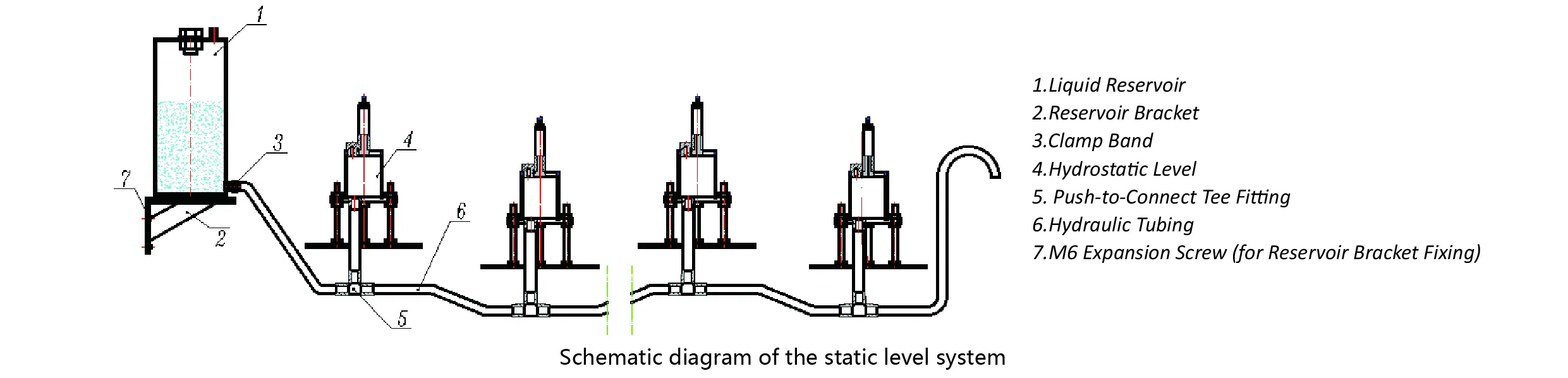

2. The hydrostatic leveling system consists of multiple sensors connected by tubes, forming a communicating liquid column. The system measures vertical deformation relative to a reference point.
3. Each unit includes built-in intelligent circuitry and outputs digital values via RS485 for long-distance, distortion-free data transmission.
4. Excellent insulation, waterproof and durable, powered by DC 12V—safe and reliable.
5. When paired with our data acquisition system (bus modules and software), it enables unmanned monitoring or remote data collection.
The JMDL-62XXADT Inductive Hydrostatic Level is widely used for monitoring vertical displacement (settlement) in bridges, high-speed rail foundations, dams, and buildings.
|
Model |
JMDL-62XXADT |
|
Measuring Range |
50mm / 100mm / 200mm |
|
Resolution |
0.01mm |
|
Accuracy |
0.5%FS |
|
Power Supply Voltage |
DC 9–24V |
|
Power Consumption |
≤0.5W |
|
Output Signal |
RS485 digital output |
|
Operating Temperature |
-30°C ~ +80°C |
|
Dimensions |
Ø60mm×200mm/300mm/500mm |
