The Magnetic Ring Settlement Water Level Gauge is suitable for measuring the settlement of each underground layer and groundwater level in foundations, subgrades, foundation pits, dikes, and other structures.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMCJ-1003、1005 |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:
The JMCJ-100X Magnetic Ring Settlement Water Level Gauge is a comprehensive detection instrument used for measuring soil settlement and groundwater level. It applies to monitoring layered settlement amounts and underground water levels in foundations, subgrades, foundation pits, embankments, and other underground structures. Based on test data, settlement trends and water level variations can be calculated to analyze the stability of measured structures and construction safety.
Product Features：
The Magnetic Ring Settlement Water Level Gauge consists of two primary functions: magnetic ring settlement detection and water level detection. The magnetic ring settlement detection component is designed based on the principle of electromagnetic induction, with magnetic rings pre-installed underground at designated measurement points via drilling. When the probe senses a magnetic ring, the instrument emits audible and visual alerts. The depth of the settlement ring is determined by reading the corresponding steel tape measure markings at the borehole orifice. The settlement amount at each measurement point is calculated by subtracting the previous measurement from the current one. The water level detection component operates on the principle of water conductivity, triggering audible and visual alerts when the probe contacts water. The water surface position is identified by reading the corresponding steel tape measure markings at the borehole orifice.

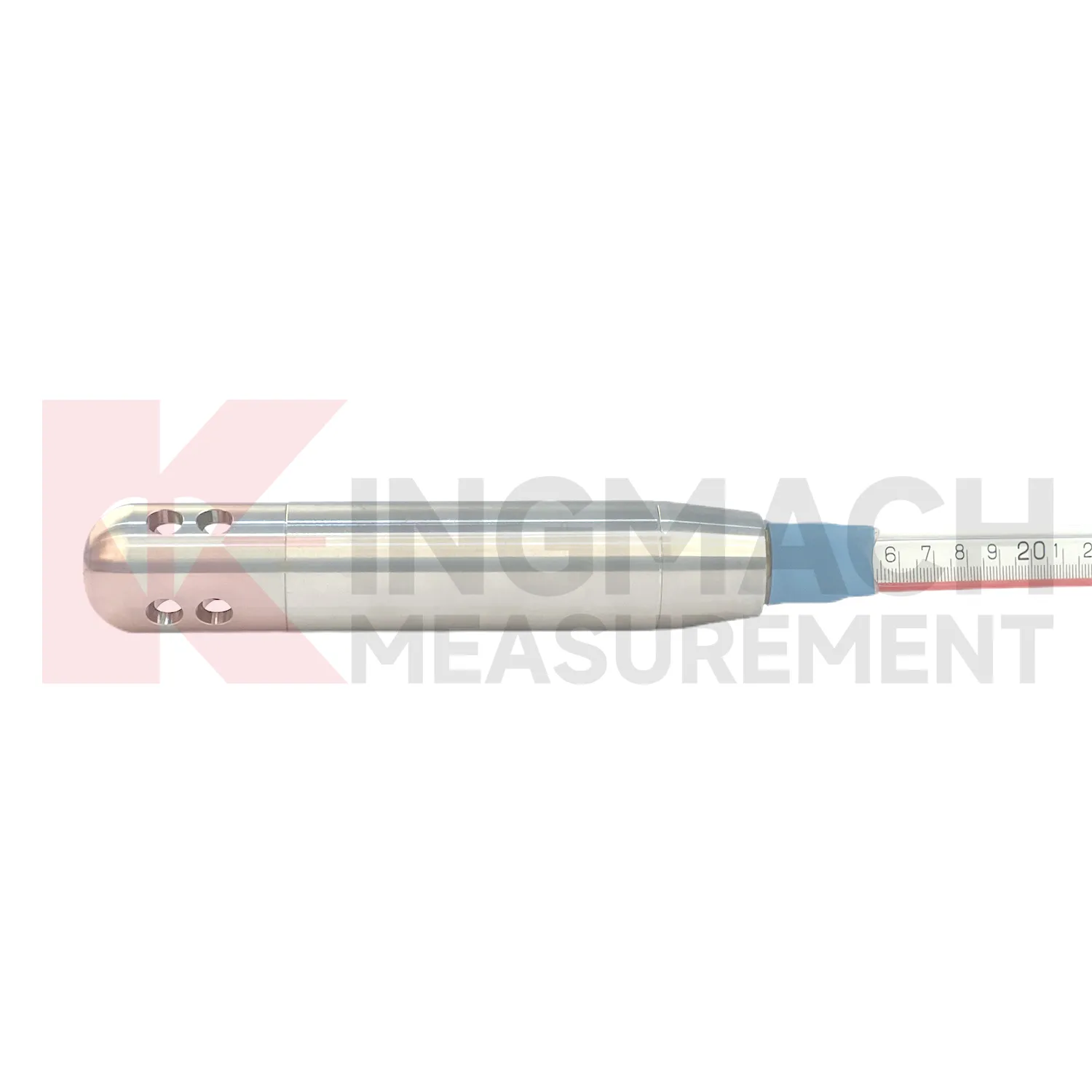

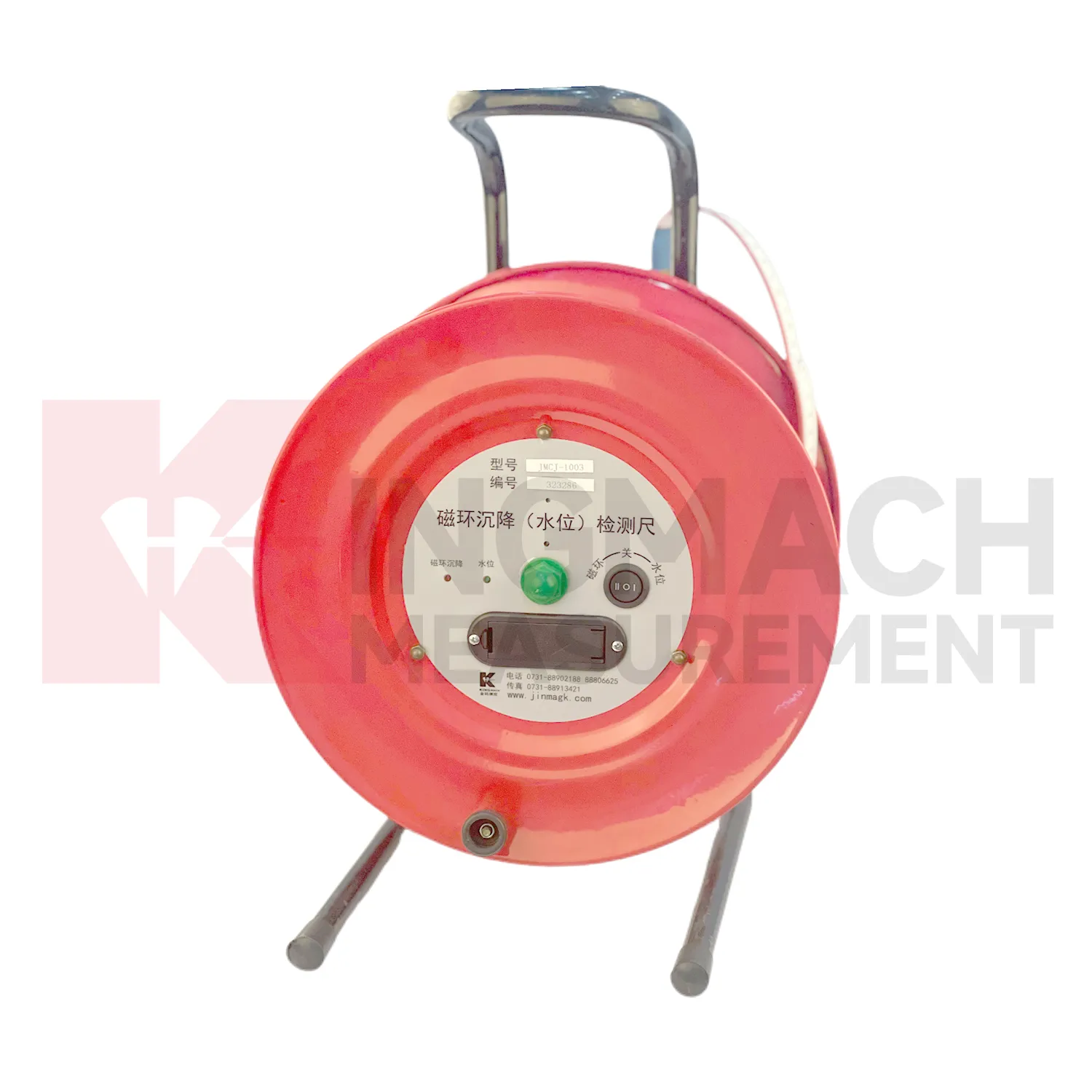

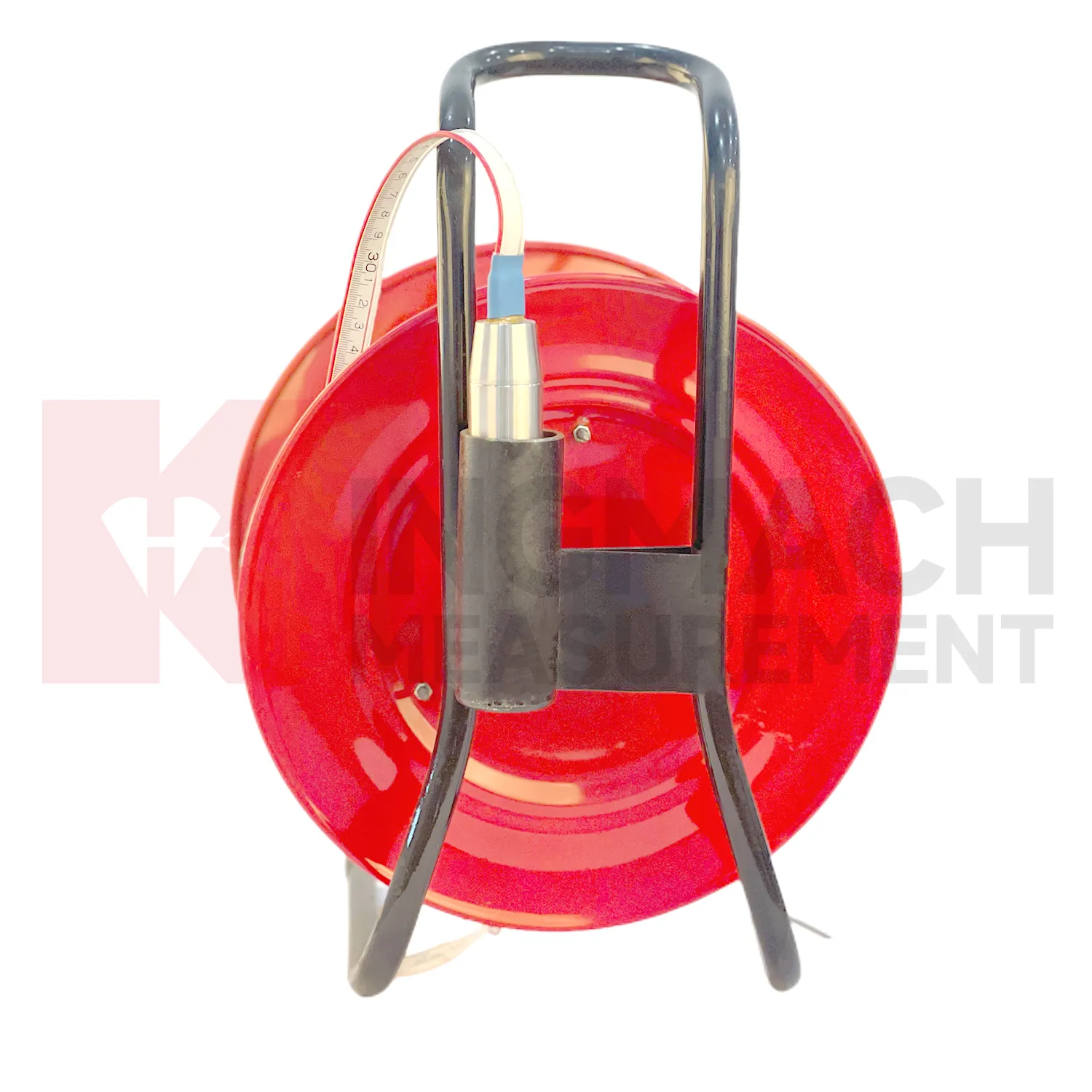

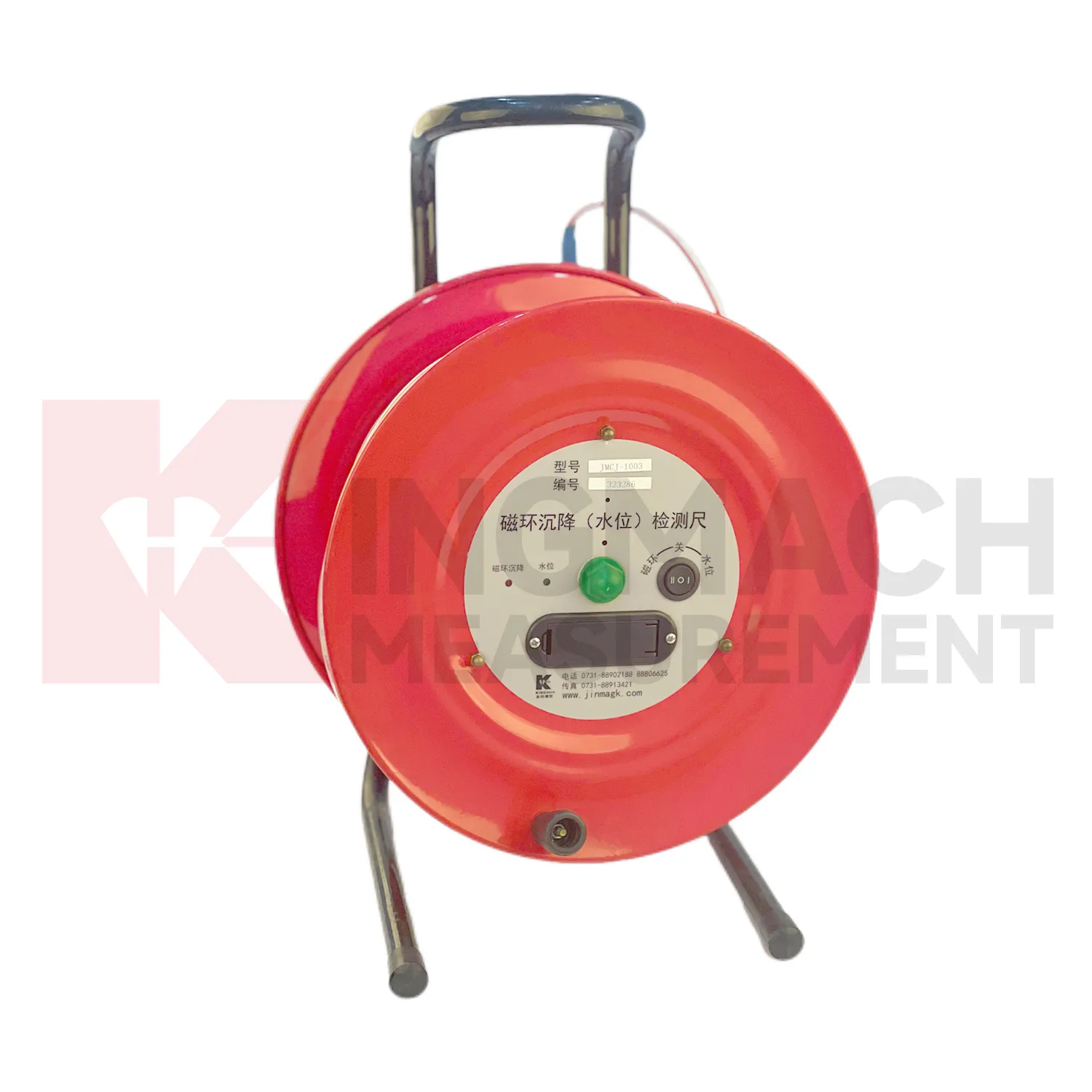

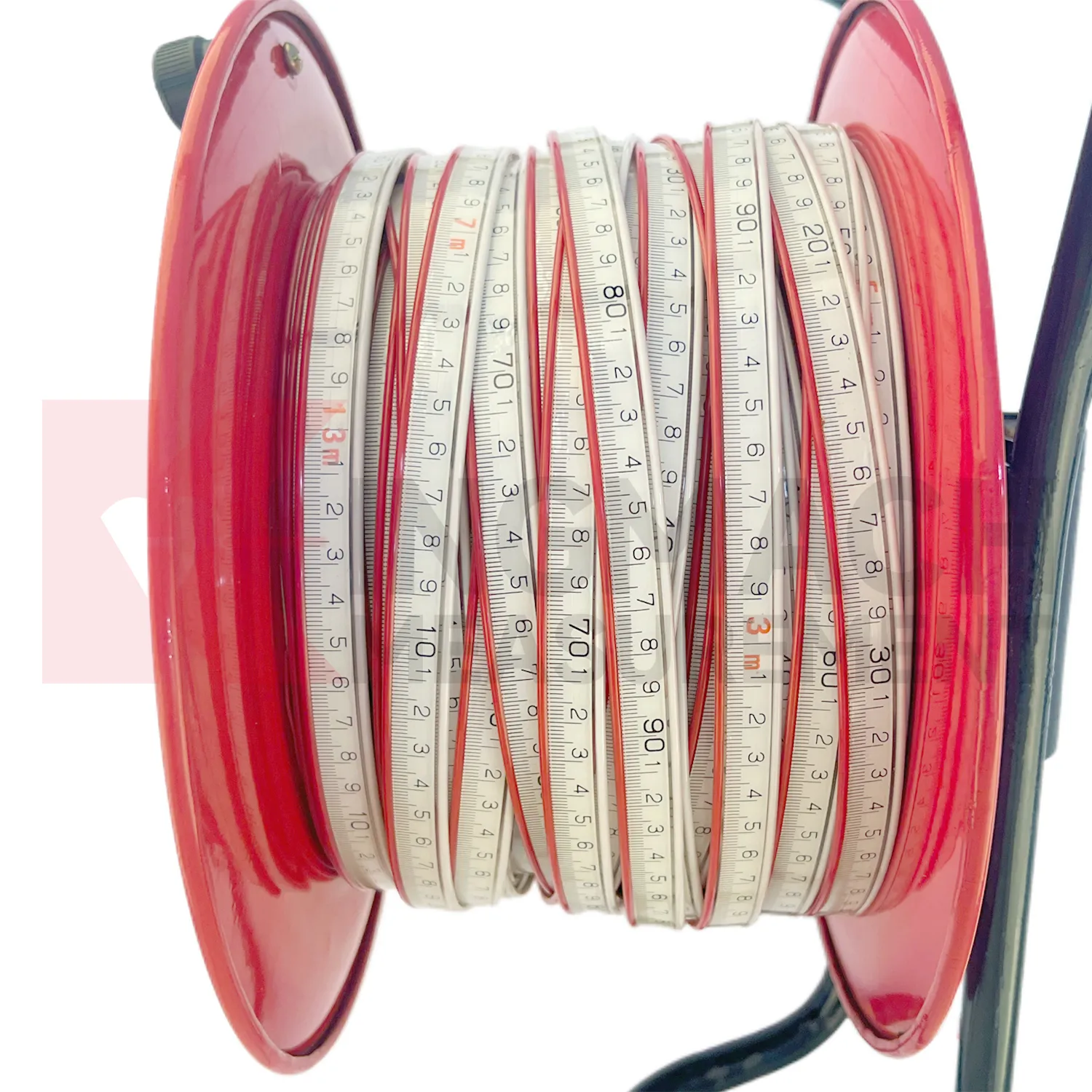

The Magnetic Ring Settlement Water Level Gauge comprises three components: a reel, a tape measure cable, and a probe. The probe integrates two modules: water level sensing electrodes and a magnetic ring detection sensor.
It applies to monitoring layered settlement amounts and underground water levels in foundations, subgrades, foundation pits, embankments, and other underground structures. Based on test data, settlement trends and water level variations can be calculated to analyze the stability of measured structures and construction safety.
|
Measurement Accuracy |
±1mm |
|
Measurement Depth |
30m，40m，50m |
|
Power Supply |
9V Battery |
|
Maximum Operating Current |
50mA |
|

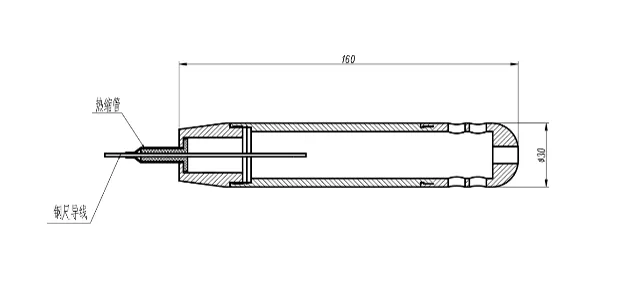

Probe Dimensions |
Length 17cm, Diameter Φ3cm |
|
Operating Environment |
Temperature -20°C to 60°C |
