The differential pressure hydrostatic level gauge testing system consists of multiple differential pressure hydrostatic level sensors installed at different measuring points, with one of them mounted at a fixed point serving as the reference point. The components at each measuring point are connected in series and can be positioned at different elevations and in different directions within the measuring range. By measuring the liquid level values of the sensors at the measuring points and the reference point respectively, the settlement change relative to the reference point is calculated. This system is widely applicable for precision measurement in various engineering scenarios, such as uneven pavement settlement, cross-sectional nonlinear settlement, dam settlement, bridge deflection, slope stability, and building settlement.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMYC-62XXAD |
|
Certification: |
GB/T 11828.2—2022 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Features
1.Designed and manufactured based on the interconnected liquid tube principle, it offers high sensitivity, precision, stability, and minimal temperature influence, making it suitable for long-term monitoring.
2.The hydrostatic leveling system comprises multiple leveling instruments interconnected via hydraulic tubes, enabling measurement of vertical deformation at each instrument relative to a reference point. Equipped with built-in intelligent circuitry, it outputs digital measurements directly via a 485 bus, supports distortion-free long-distance transmission, and is ideal for prolonged observation and automated measurement.
3.Excellent insulation performance, waterproof and durable design, DC 12V power supply, ensuring safety and reliability.
4.When paired with our company’s automated acquisition system (equipped with bus modules and host computer software), it enables unattended measurement or remote monitoring.

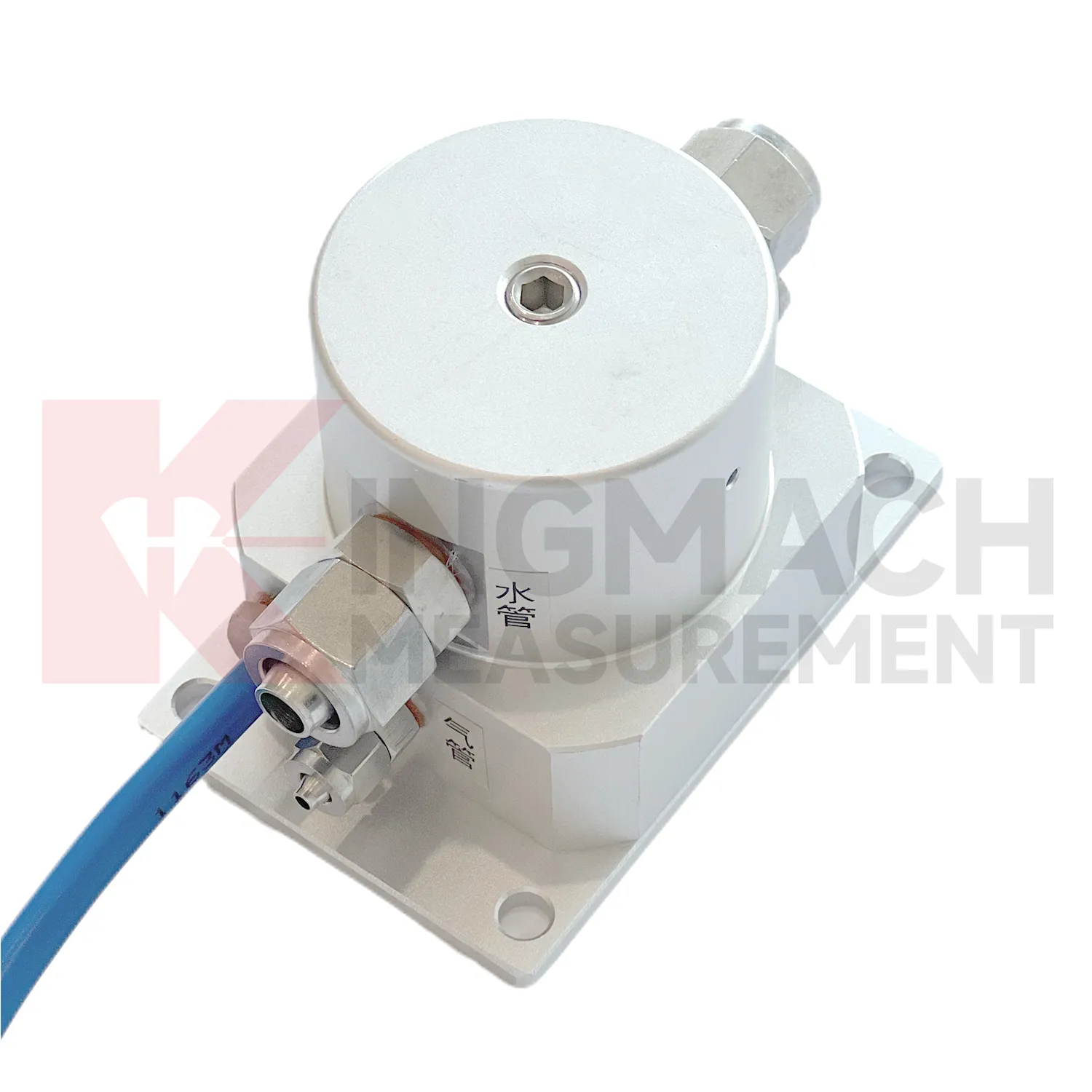

The JMYC-62XXAD Series Wide-Range Differential Pressure Hydrostatic Level Sensor is widely used for precise measurement of linear settlement in road surfaces, bridge deflection, soft foundation treatment, land reclamation foundations, dam subgrades, slope stability, and building settlement.
|
Range |
500mm、1000mm、3000mm、5000mm |
|
Resolution |
0.1mm |
|
Accuracy |
0.2%FS |
|
Supply Voltage |
DC 9V～24V |
|
Power Consumption |
<0.5W |
|
Output Signal |
RS485 Digital Signal |
|
Operation Temperature |
-30℃~+80℃ |
|

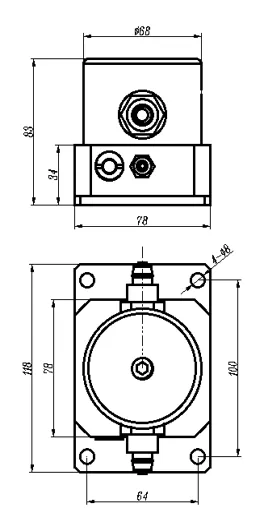

Dimensions |
118mm×78mm×83mm |
