Smart Flexible Displacement Meter JMDL-24XXAT

The Smart Flexible Displacement Meter is widely used for measuring the deformation or strain of geogrid materials in reinforced soil and pile-net subgrade foundations within engineering fields such as bridges, buildings, railways, transportation, hydropower, and dams.

Download

Free consultation

General product information

Place of Origin:	Changsha，China
Brand Name:	Kingmach
Model Number:	JMDL-24XXAT
Certification:	GBT 37367-2019、SL 361-2006

Product Business Terms

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Cartons or wooden cases. Customized packaging solutions are also available.
Delivery Time:	Shipped within 30 days after full payment receipt.
Payment Terms:	T/T in advance.

Description

Product Features:

1.Patented Inductive Flux Frequency Modulation Technology: Offers superior stability, reliability, and durability. Designed for a service life of up to 30 years.

2.Non-Contact Measurement: The measuring rod and the internal coil operate independently without physical contact, minimizing the risk of damage during installation or use.

3.High Precision Calibration: 20-point curve fitting ensures precise nonlinear correction and accurate displacement measurement.

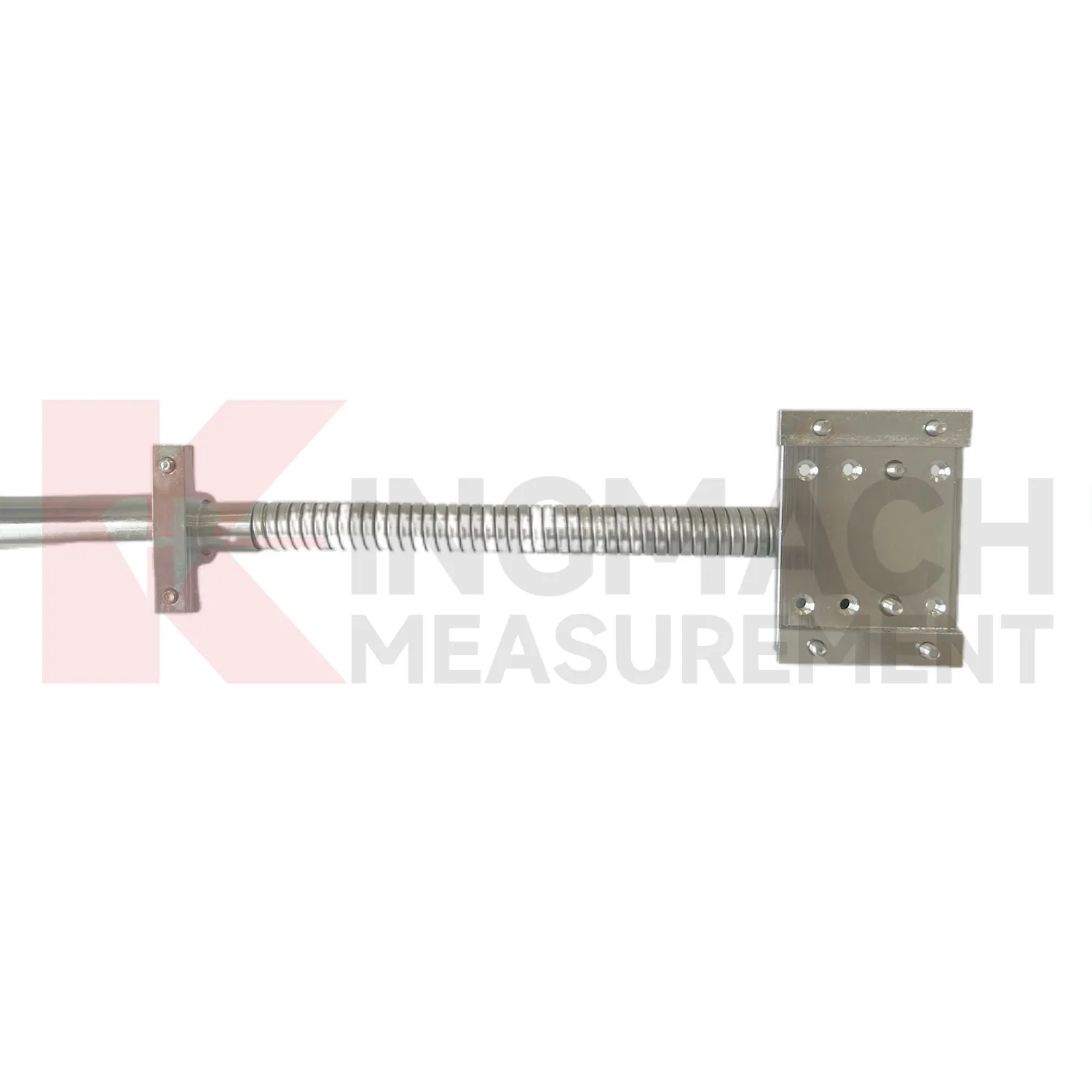

4.Flexible Measuring Rod Extension: The extended portion of the rod is flexible and can deform along with geogrid materials, enabling synchronized strain measurement.

5.Smart Output: Intelligent sensor directly displays displacement values in millimeters (mm).

Applications

The JMDL-24XX Smart Flexible Displacement Meter is specially designed for monitoring deformation or strain in geogrid materials used in reinforced soil pile-network embankment foundations.

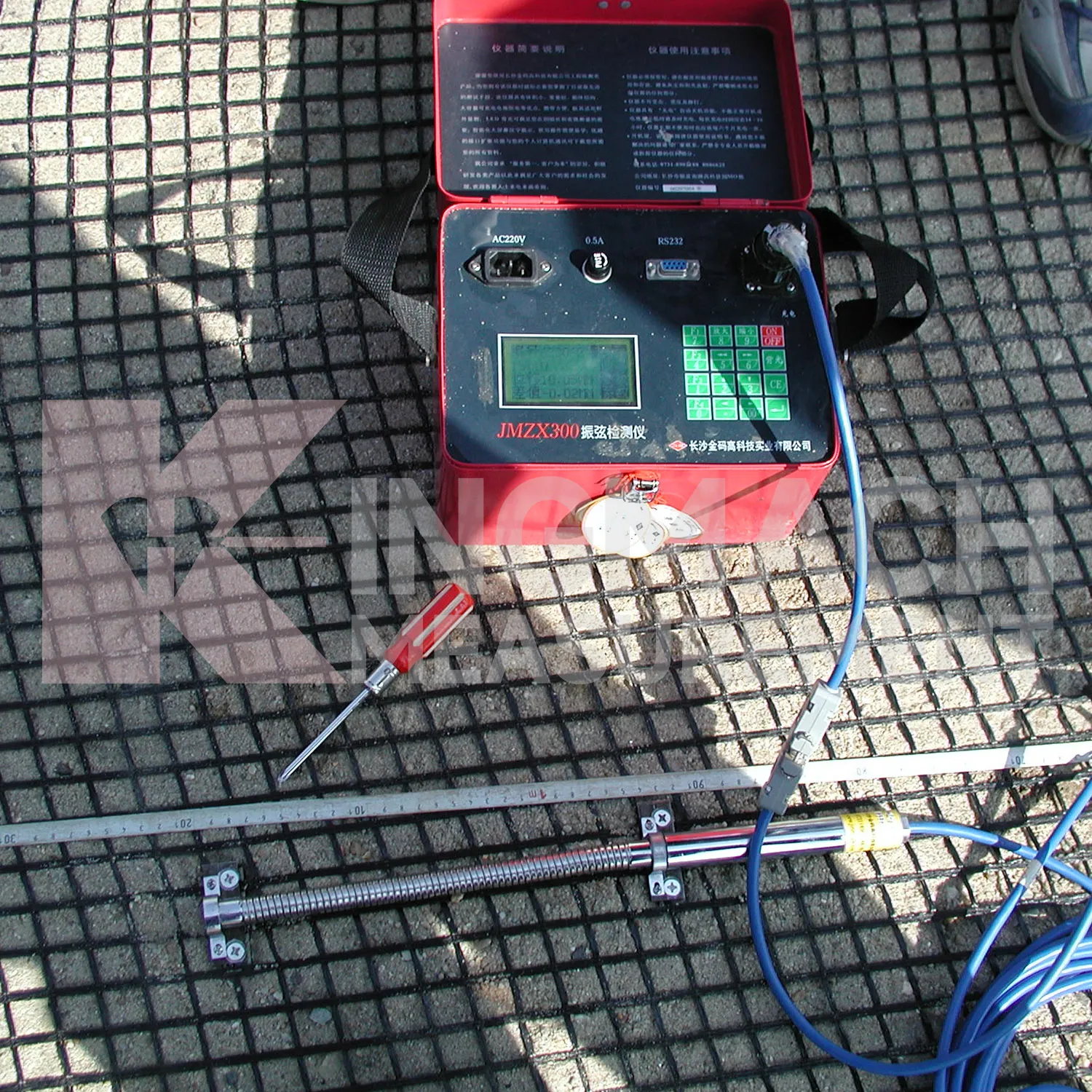

Installation involves clamping both ends of the geogrid with the flexible sections of the sensor using mounting brackets to ensure reliable strain transmission.
