Description

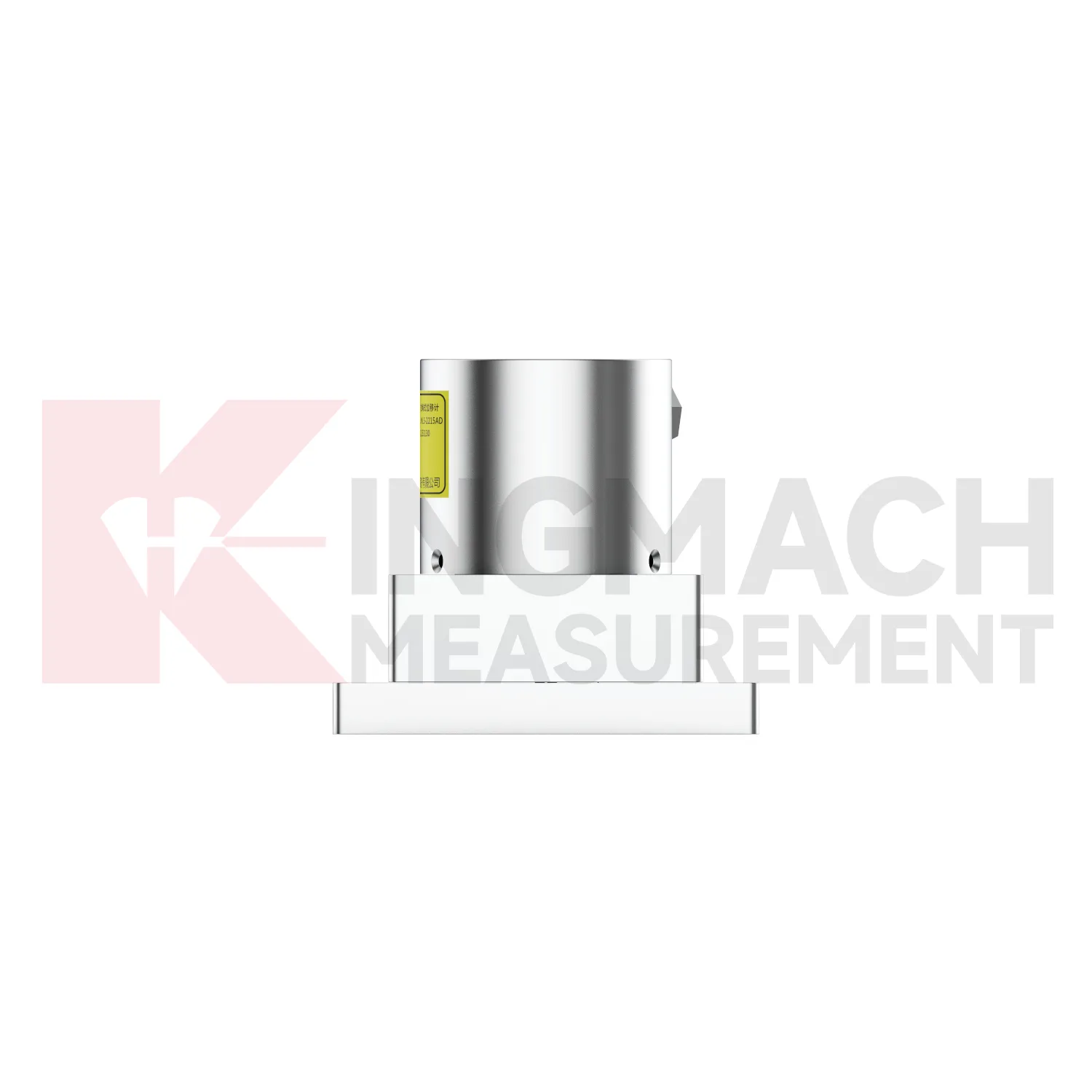

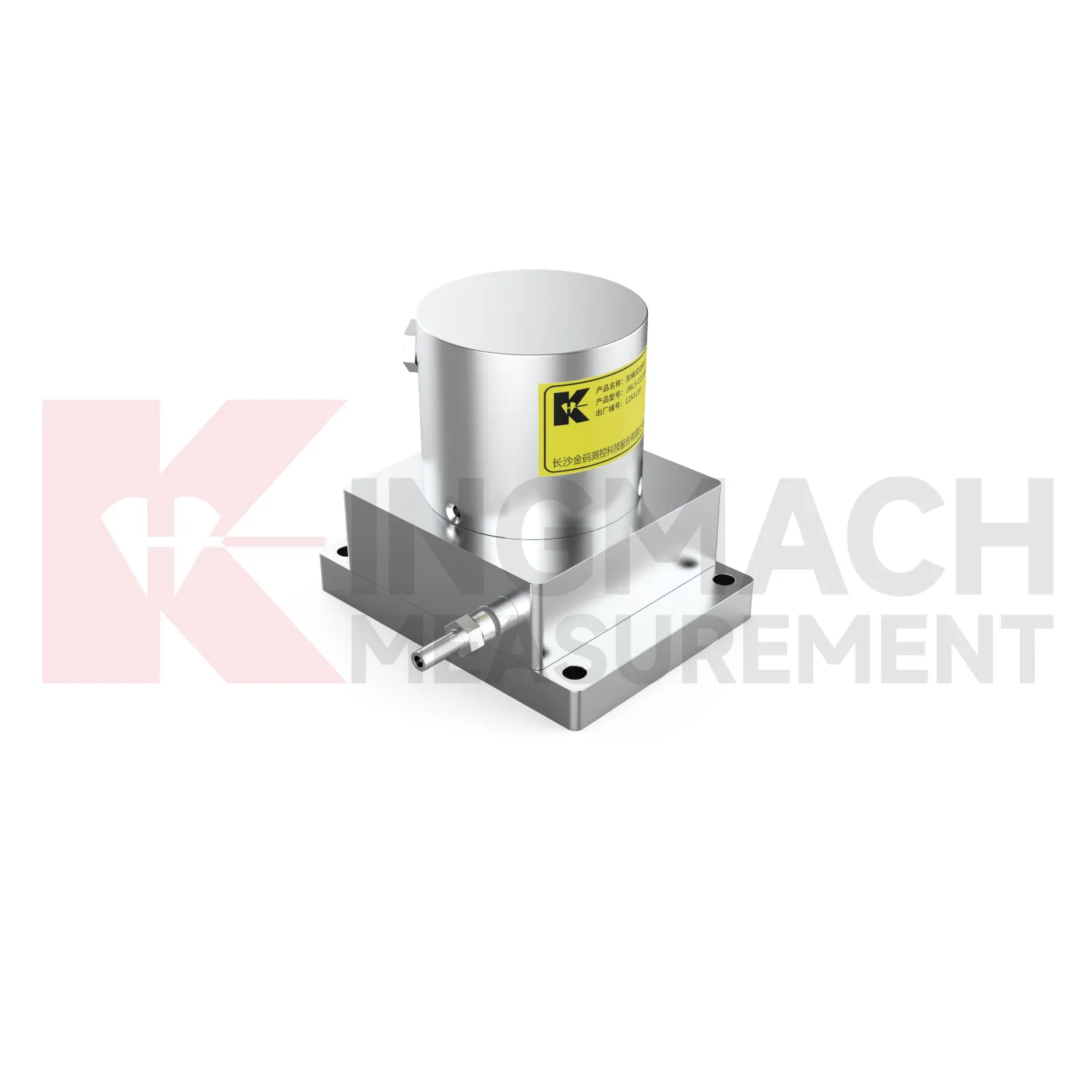

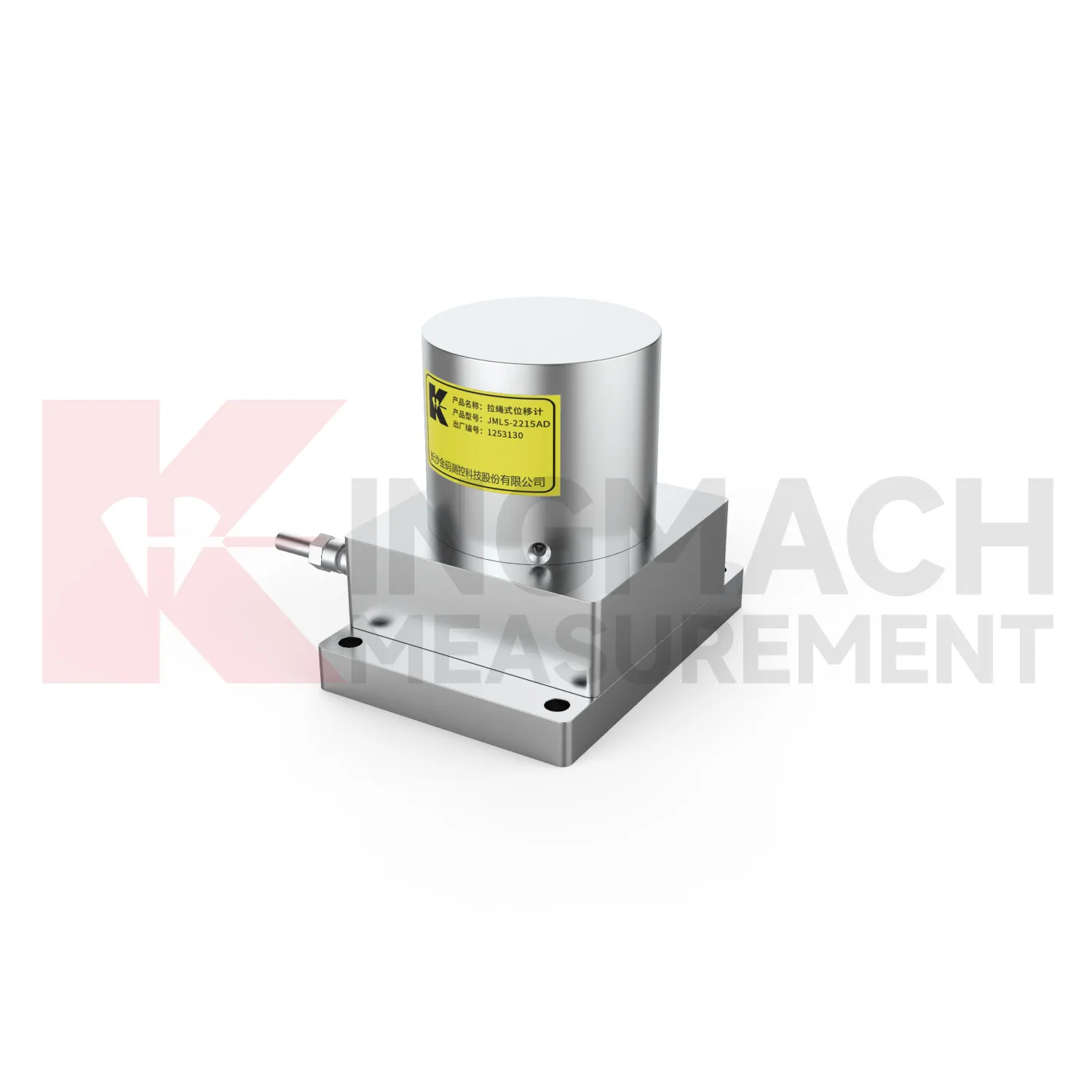

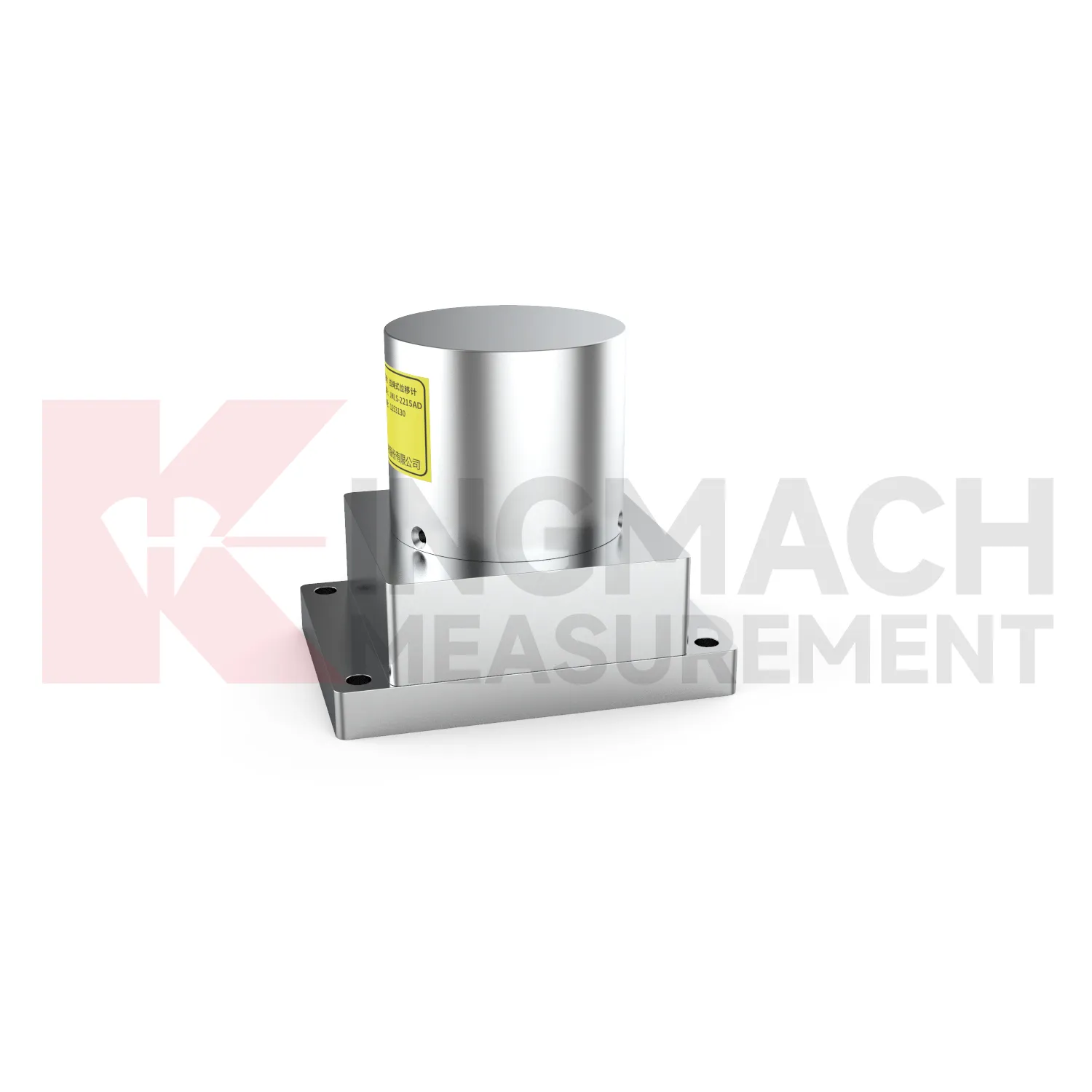

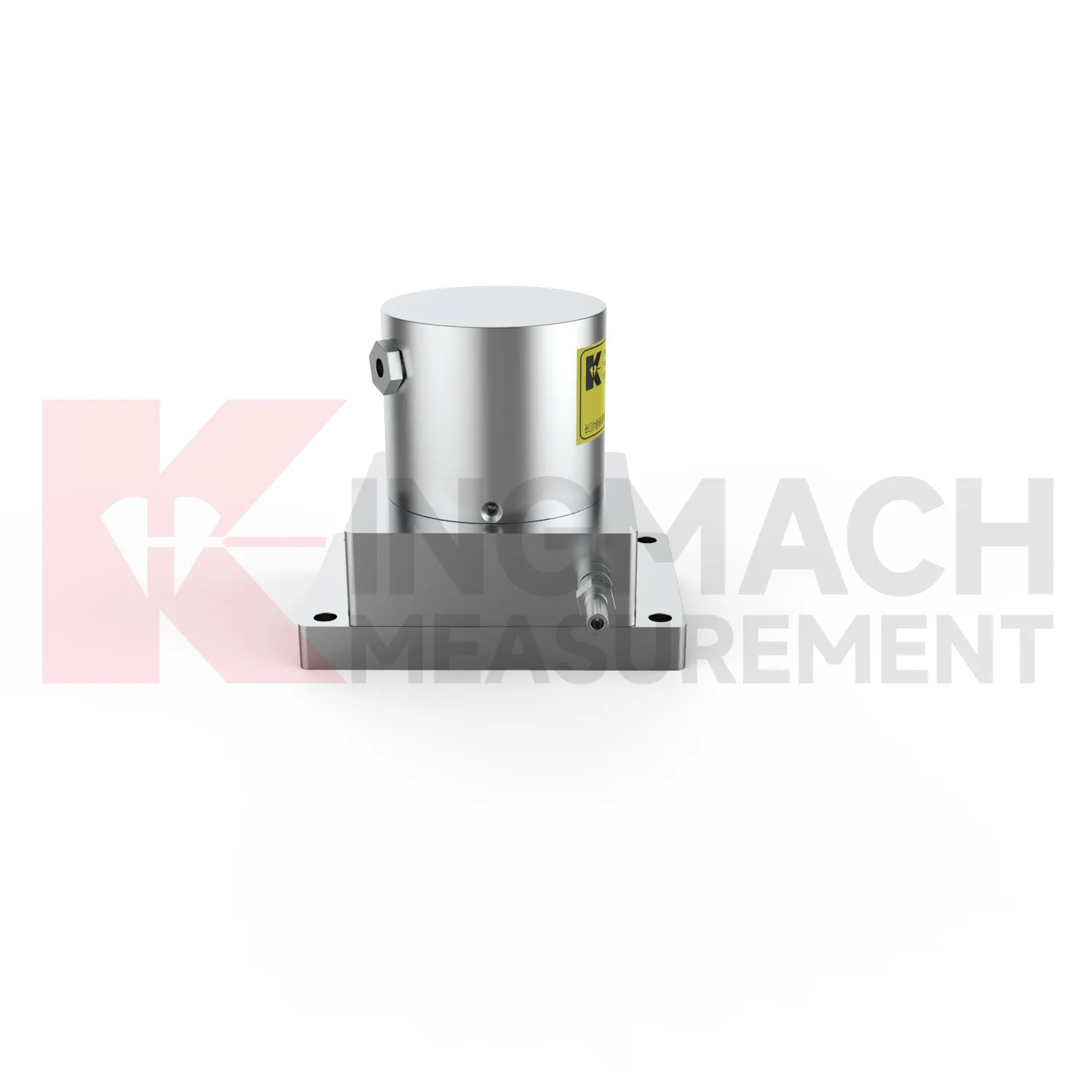

The JMLS-22xxADT Wire Rope Displacement Sensor is a high-precision device that converts mechanical movement into quantifiable electrical signals. It features a retractable plastic-coated stainless steel cable wound around a spool, integrated with a precision rotary sensor. When the cable extends or retracts, it induces resistance changes, altering the output signal to enable accurate displacement measurement. Designed with compact dimensions (115mm×85mm×100mm) and a user-friendly structure, this sensor offers excellent sealing (IP67) and minimal temperature-induced error, ensuring reliability in harsh environments. It supports both linear and complex curvilinear (non-linear) displacement monitoring, making it versatile for diverse engineering scenarios. Equipped with 16-bit AD sampling and RS485 digital communication (baud rate: 2400bps), it includes a unique electronic code and lightning protection design for stable data transmission. Compatible with the company's automated test systems, it enables seamless remote unattended monitoring, ideal for long-term projects like dam monitoring and geohazard prevention.

Applications

Displacement measurement in construction machinery and engineering equipment

Monitoring minute gaps in tunnel walls or ceiling clearances

Geotechnical and geological survey projects for soil and rock movement tracking

Dam and hydropower station structural displacement monitoring

Position control in woodworking machinery and industrial linear motion systems

Geohazard prevention (landslide, subsidence) and structural safety assessment
