The Smart General-Purpose Displacement Meter is widely used for measuring the relative displacement change between different structural components in engineering fields such as bridges, buildings, railways, transportation, hydropower, and dams.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMDL-21XXAT |
|
Certification: |
GBT 37367-2019、SL 361-2006 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Intriduction

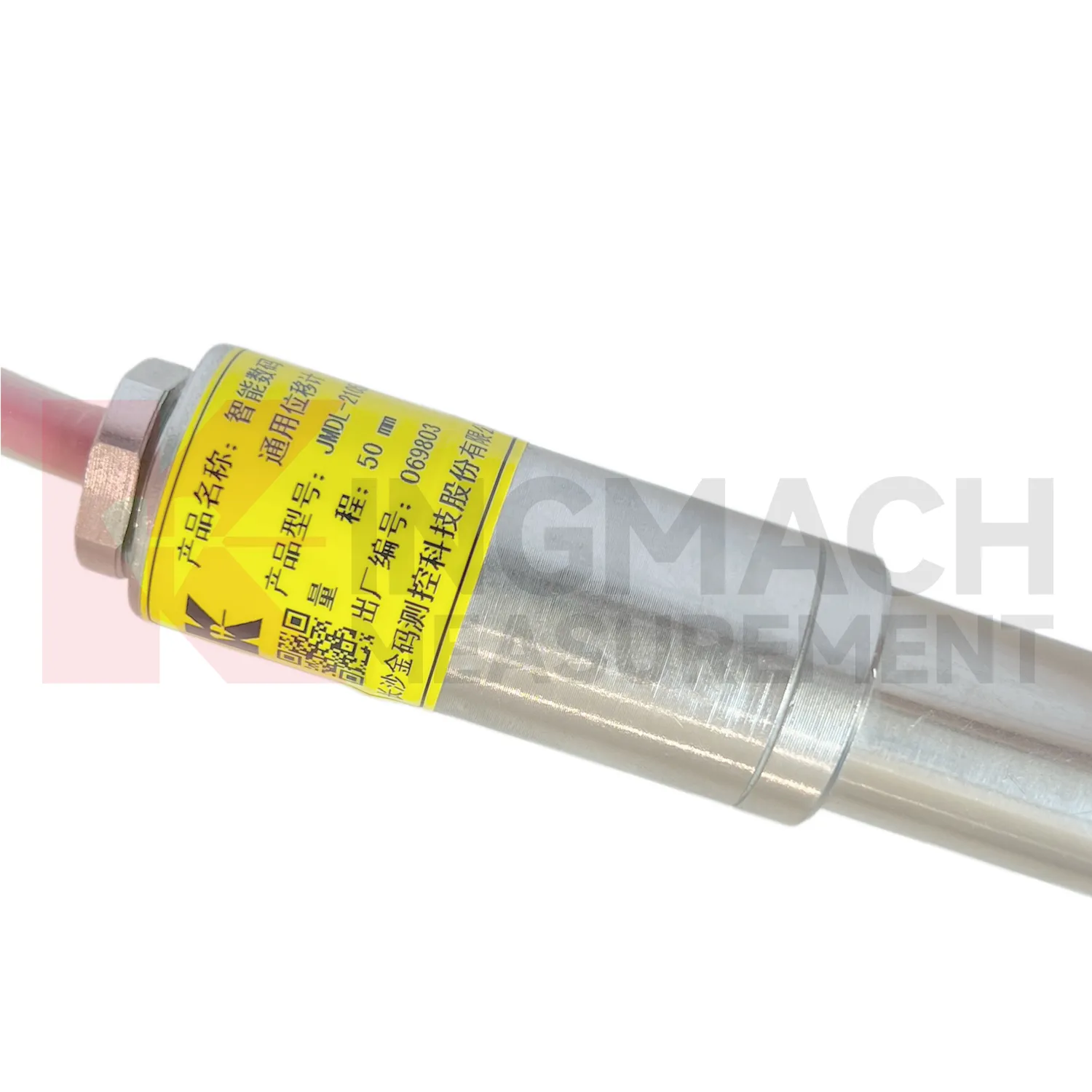

JMDL-21xxAT Series Smart General-Purpose Displacement Meter is widely used in engineering fields such as construction, railways, hydropower, and dams for precise measurement of relative structural displacement changes and expansion joint displacement.
Characteristics:
1 Designed based on the inductive frequency modulation principle, it offers high sensitivity, precision, stability, and minimal temperature sensitivity, making it ideal for long-term monitoring.
2 The displacement meter has a built-in memory chip, with intelligent memory function, and the sensor model, number, calibration coefficient and other parameters have been permanently stored in the sensor when leaving the factory, and can save 800 times the measurement results you need, such as measurement time, measurement point temperature (temperature type), absolute displacement value, relative displacement value, zero point value, etc.
3 Using all-digital detection, the signal is transmitted over a long distance without distortion, and the anti-interference ability is strong.
4 Good insulation performance, waterproof and durable.
5. Equipped with a integrated tester, the displacement value can be directly displayed, and the measurement is intuitive, simple and fast.
6. Equipped with an automatic acquisition system, it can realize unmanned measurement or remote monitoring.

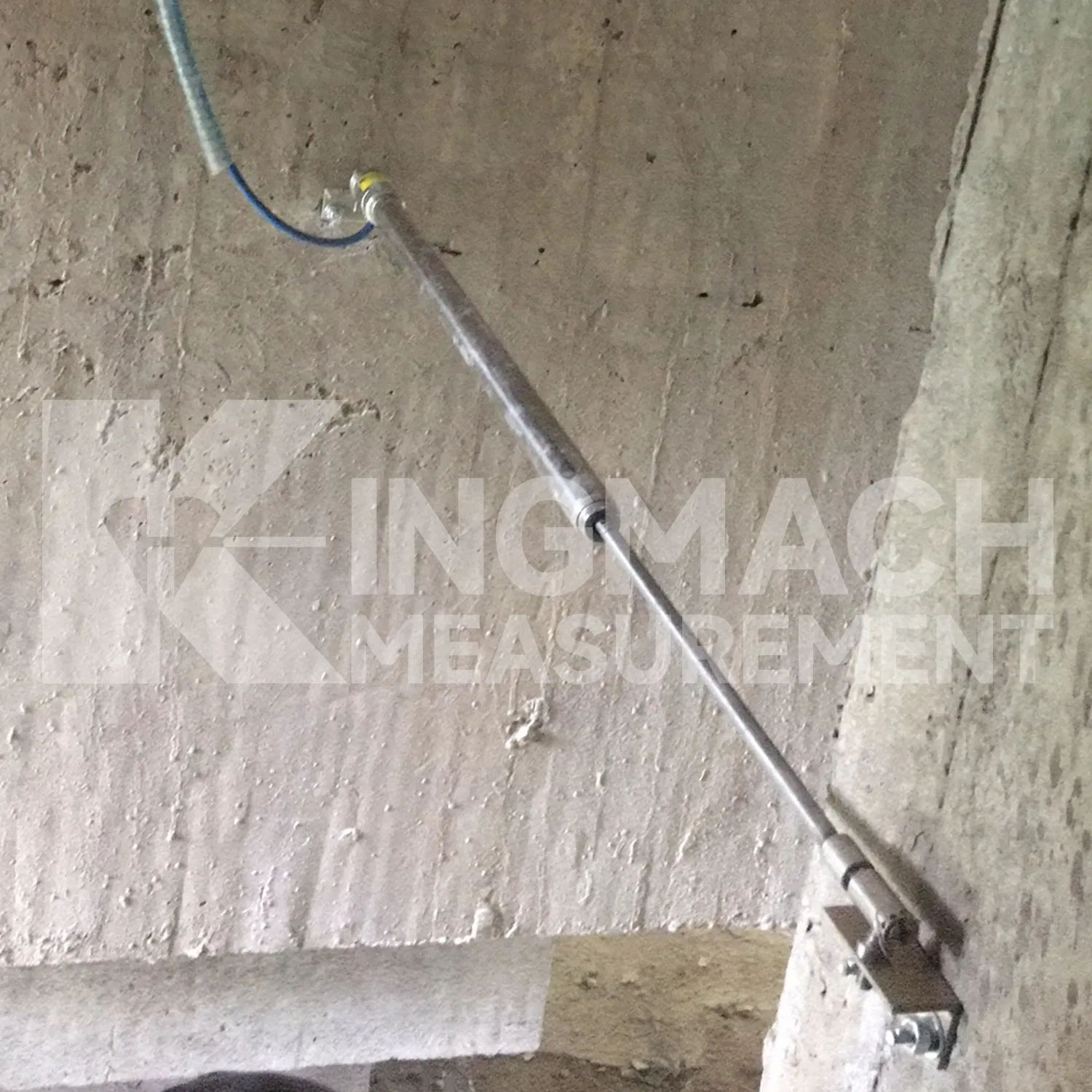

This product is widely used in engineering fields such as construction, railways, hydropower, and dams for precise measurement of relative structural displacement changes and expansion joint displacement.
|
Range |
50mm 100mm（The "xx" in the model number corresponds to the product range） |
|
Resolution |
0.01mm |
|
Accuracy |
0.5% F.S |
