The JMDL32xxAT smart single-point displacement meter is an embedded inductive frequency-modulated intelligent displacement meter designed for displacement testing in engineering projects such as tunnel rock mass deformation, dam bedrock deformation, slope or foundation pit face slippage, etc.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMDL-32XXAT |
|
Certification: |
GBT 37367-2019、SL 361-2006 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
The JMDL32xxAT smart single-point displacement meter is an embedded inductive frequency-modulated intelligent displacement meter designed for displacement testing in engineering projects such as tunnel rock mass deformation, dam bedrock deformation, slope or foundation pit face slippage, etc.

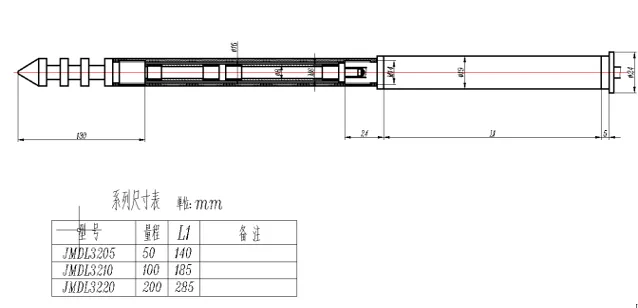

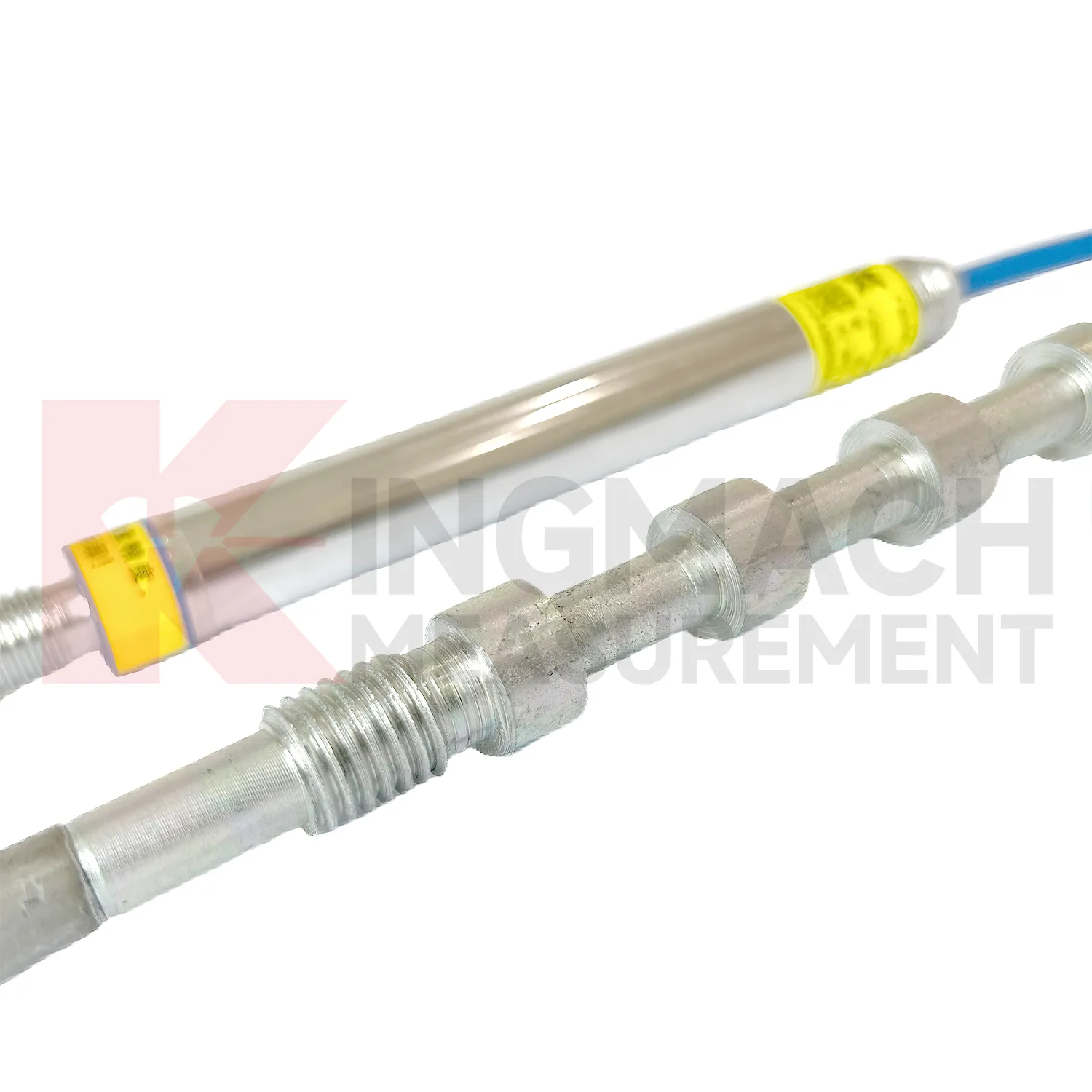

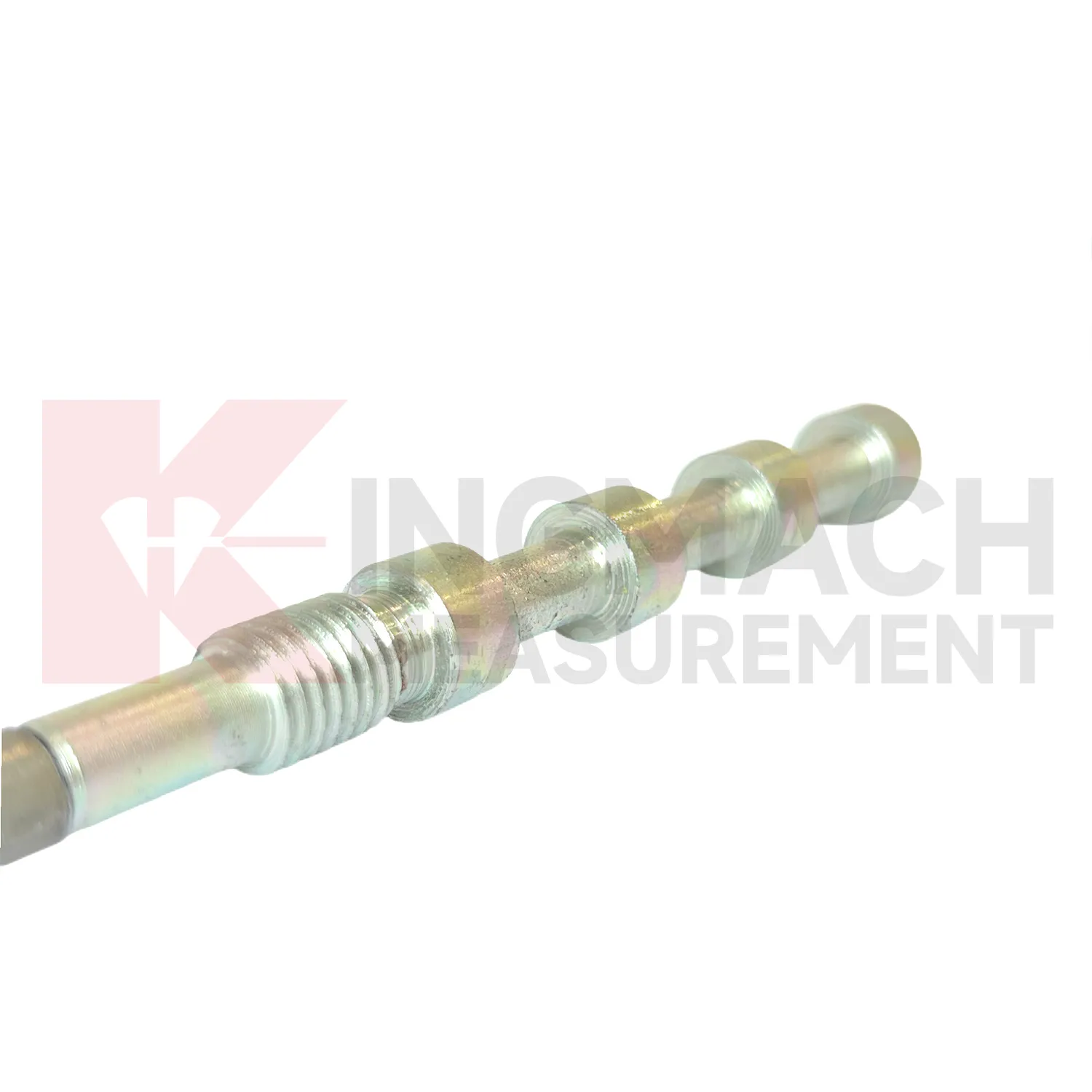

It consists of a flange, an electrical displacement sensor, a tie rod, an anchor head, and a PVC pipe integrated as a whole. As shown in the figure below, the electrical displacement sensor is connected to the flange plate at the top and the tie rod at the bottom, with the PVC pipe and anchor head sleeved over it.
The JMDL32xxAT smart single-point displacement meter is an embedded inductive frequency-modulated intelligent displacement meter designed for displacement testing in engineering projects such as tunnel rock mass deformation, dam bedrock deformation, slope or foundation pit face slippage, etc.
|
Product Name |
Model |
Range |
Resolution |
|
Single-Point Displacement Meter |
JMDL-3205（A、AT） |
50mm |
0.01mm |
|
JMDL-3210（A、AT） |
100mm |
0.01mm |
|
|
JMDL-3220（A、AT） |
200mm |
0.01mm |
1.Accuracy: Displacement 0.5%FS, Temperature ±0.5°C
2.Operating Temperature: -30°C to +80°C
