The Cable Force Measuring Instrument is a portable device. It measures steel cable/prestressed bar/wire tension and analyzes low-frequency vibration, works 24h, and applies to transportation, construction, railway industries.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMM-268L-1、2 |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:

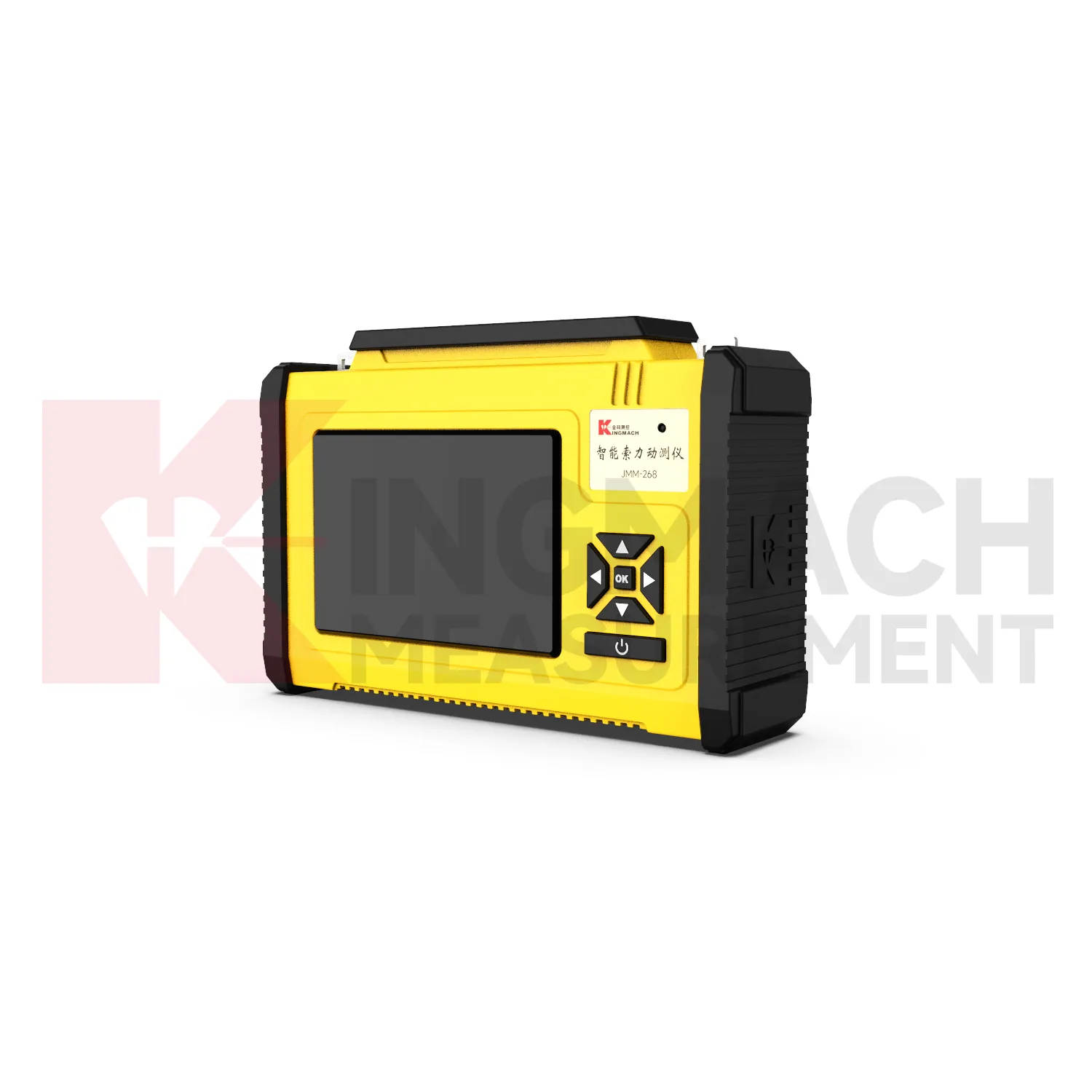

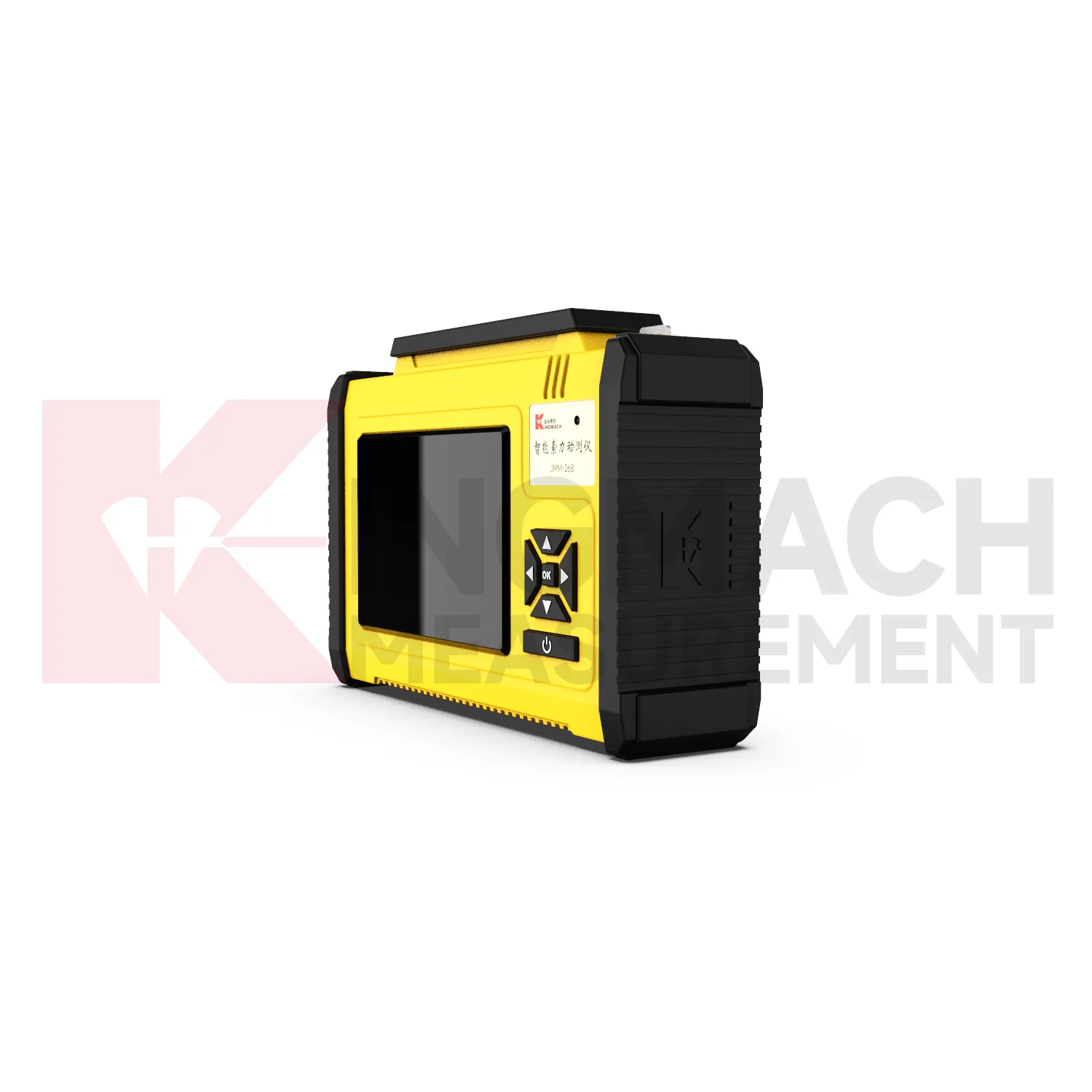

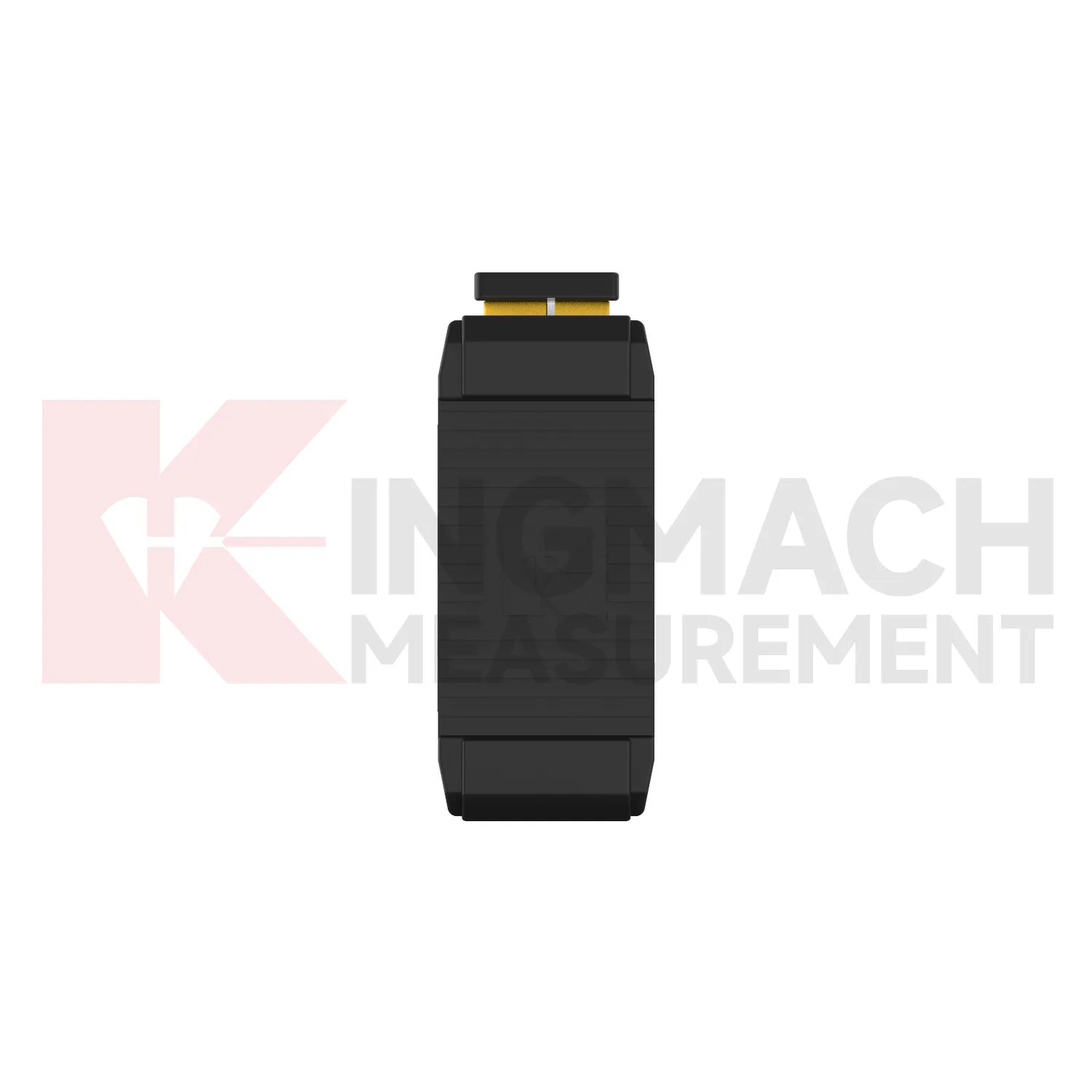

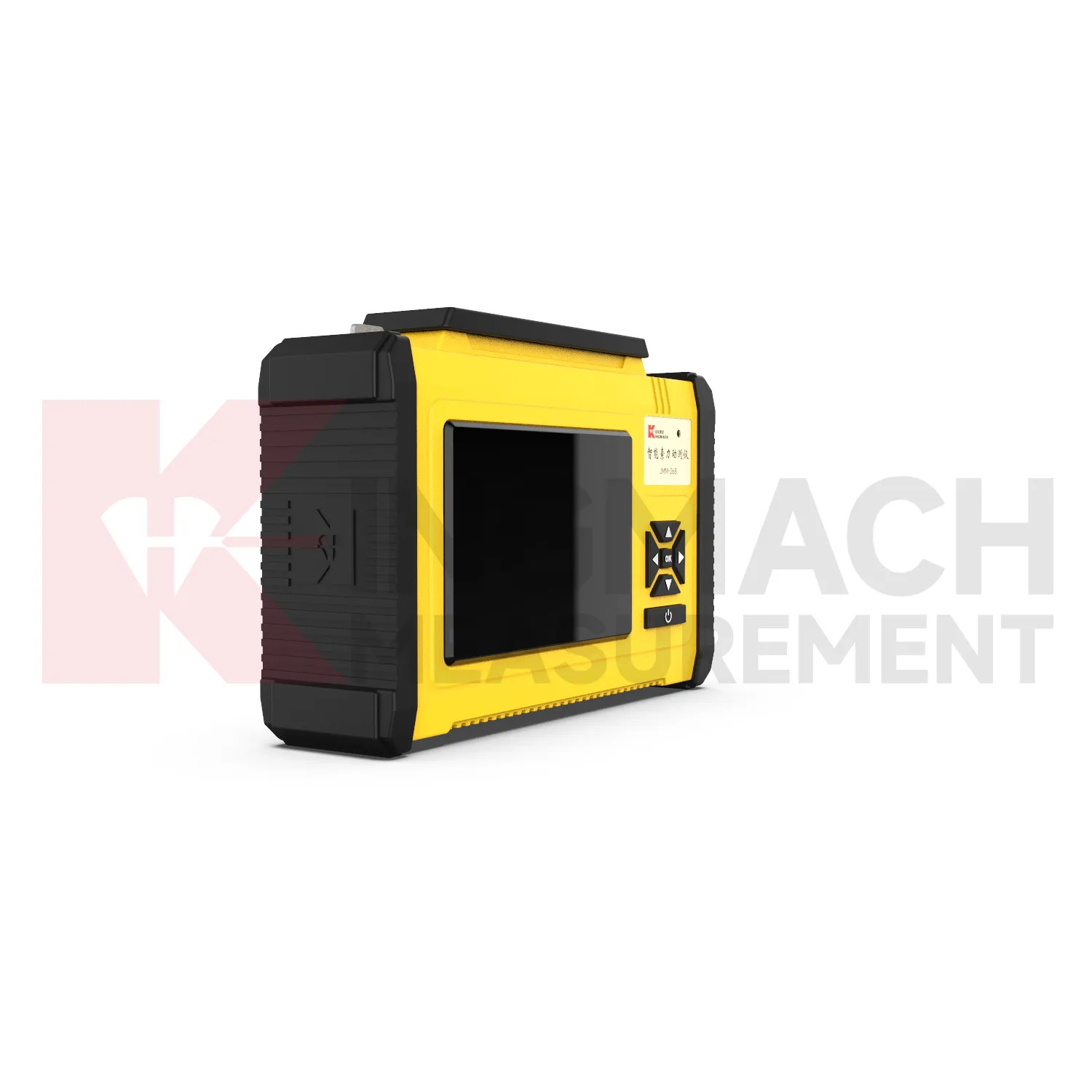

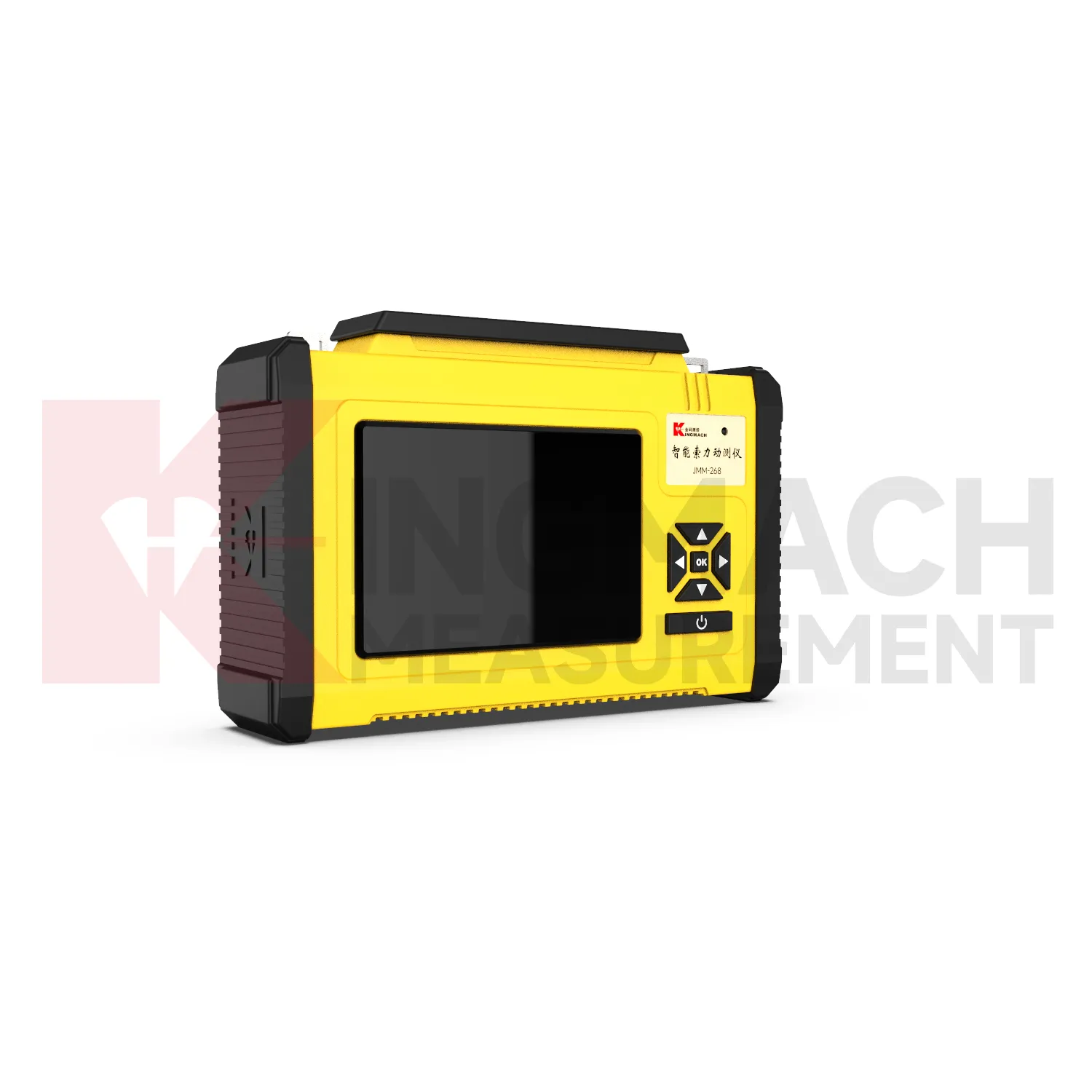

Cable force measuring instrument is a portable intelligent instrument for detecting and analyzing micro vibration signals. It is used for measuring tension of steel cables, prestressed steel bars and steel wires, and also for testing and analyzing low-frequency vibration signals. It can be widely used in transportation, construction, railway, metallurgy, transportation and other industries.
Product feature:
1.It has the advantages of fast detection speed, high precision, small size and light weight.
2.Large capacity lithium battery, intelligent charge and discharge control system design, continuous working time up to 24 hours.
3.With a calendar clock, can automatically save the test time.
4.The instrument adopts large screen dot matrix graphic LCD display, Chinese character prompt, with backlight, easy to operate and learn.
5.The vibration signal curve, spectrum curve, natural vibration frequency and cable force are displayed directly after measurement. According to the needs of the tester, the instrument can continuously and automatically save the measurement data and vibration curve of 6000 cables, and these data are still saved in the instrument after shutdown. When you need, these test data can be adjusted for display and analysis or transmitted to the microcomputer for further analysis through serial oral transmission.
It is used for measuring tension of steel cables, prestressed steel bars and steel wires, and also for testing and analyzing low-frequency vibration signals. It can be widely used in transportation, construction, railway, metallurgy, transportation and other industries.
|
Project |
JMM-268L |
|
measuring range |
1、Self-vibration frequency: 0.3～200Hz (Or customized to your needs）2、Tension: 10~10000kN 3、Cable length: 2~500m Diameter6~150mm |
|
measurement Accuracy |
1、Frequency Accuracy: 0.5%±0.001Hz 2、Tension Accuracy: Tension Accuracy is determined by the precision of the coefficient K. If the accuracy of the coefficient K reaches 1%, the force measurement accuracy is 2%. |
|
Data storage |
About 6000 sets of data |
|
operating current |
110mA~200mA |
|
Lithium battery |
11.1V/5200mAH DC15V Power adapter charging |
|
Endurance time |
26H—30H |
|
operating temperature |
-25℃---70℃ Humidity is lower than 90% and no condensation |
|
Machine size |
210mm*130mm*55mm |
|
Weight |
1KG |
|
Dustproof and Waterproof class |
IP62 |
