Introduction:

The Portable Vibrating Wire Dynamic Strain Acquisition Readout JMYD-6008BX (Model: JMZX-6008L) is an 8-channel automatic synchronous acquisition instrument that can collect signals from vibrating wire sensors such as vibrating wire strain gauges, earth pressure cells, cable force meters, osmometers, and rebar gauges.

The Portable Vibrating Wire Dynamic Strain Acquisition Readout is powered by a 5200mAh lithium battery and can work for more than 12 hours under continuous acquisition. There is also a backup battery in the instrument, and an external interface can be used to supply power to the instrument, enhancing its battery life. The instrument is equipped with RS232 and Ethernet data interfaces, enabling convenient and fast data transmission. This instrument can be used for short-term real-time acquisition of vibrating wire sensor signals in safety monitoring projects of various geotechnical engineering and structures (water conservancy dams, bridges, tunnels, dilapidated houses, mines, nuclear power plants, etc.).

Its measurement and communication functions are integrated internally. With a portable design, it is compact in size, easy to use, and requires no installation.

Product Features:

l  Adopts a highly intelligent and modular integrated design.

l  Supports remote maintenance, truly achieving unattended operation.

l  Industrial portable design with mold-based production, featuring a compact and lightweight structure.

l  The instrument has a built-in 5200mAh lithium battery, and a 5200mAh backup battery is also included in the instrument case.

l  The instrument uses pluggable terminal blocks for convenient, stable, and reliable connections.

l  Equipped with a high-power charger, it can be fully charged in 2.5 hours.

l  Supports 8-channel synchronous acquisition with a sampling frequency of ≤100Hz.

l  Uses a 32-bit high-speed microprocessor, with powerful computing and processing capabilities that greatly improve system efficiency.

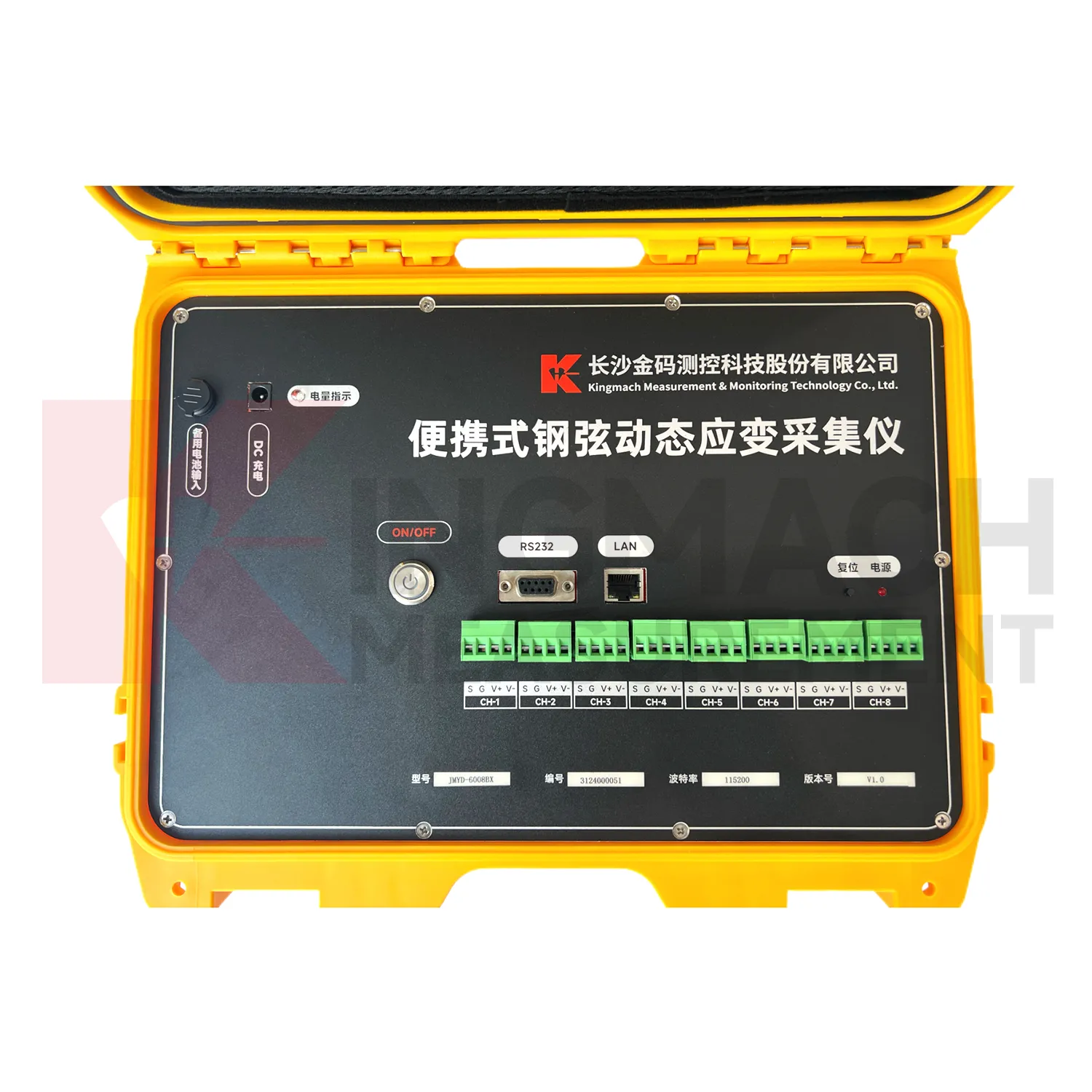

l  Multiple communication methods with computers are available, including direct connection via RS232, wireless DTU, or Ethernet port.

Applications

This product is suitable for multi-channel and multi-module automatic measurement and is used with bus-type sensors and acquisition system software. It is designed for real-time automatic data acquisition of vibrating wire sensor signals in safety monitoring projects of various geotechnical engineering and structures (reservoir dams, bridges, tunnels, slopes, dilapidated houses, mines, nuclear power plants, and civil buildings, etc.), providing data support and judgment basis related to the current situation and safety of the project for engineering construction and operation managers.
