The Sliding Inclinometer is widely used for measuring horizontal displacement changes inside soil masses in scenarios such as dams, building foundations, embankment slopes, underground construction projects, geotechnical slopes, and port engineering, it is an essential precision testing instrument.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMZX-7100L |
|
Certification: |
GB/T 38204-2019、SL 362-2006、DL/T 2163-2022 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:

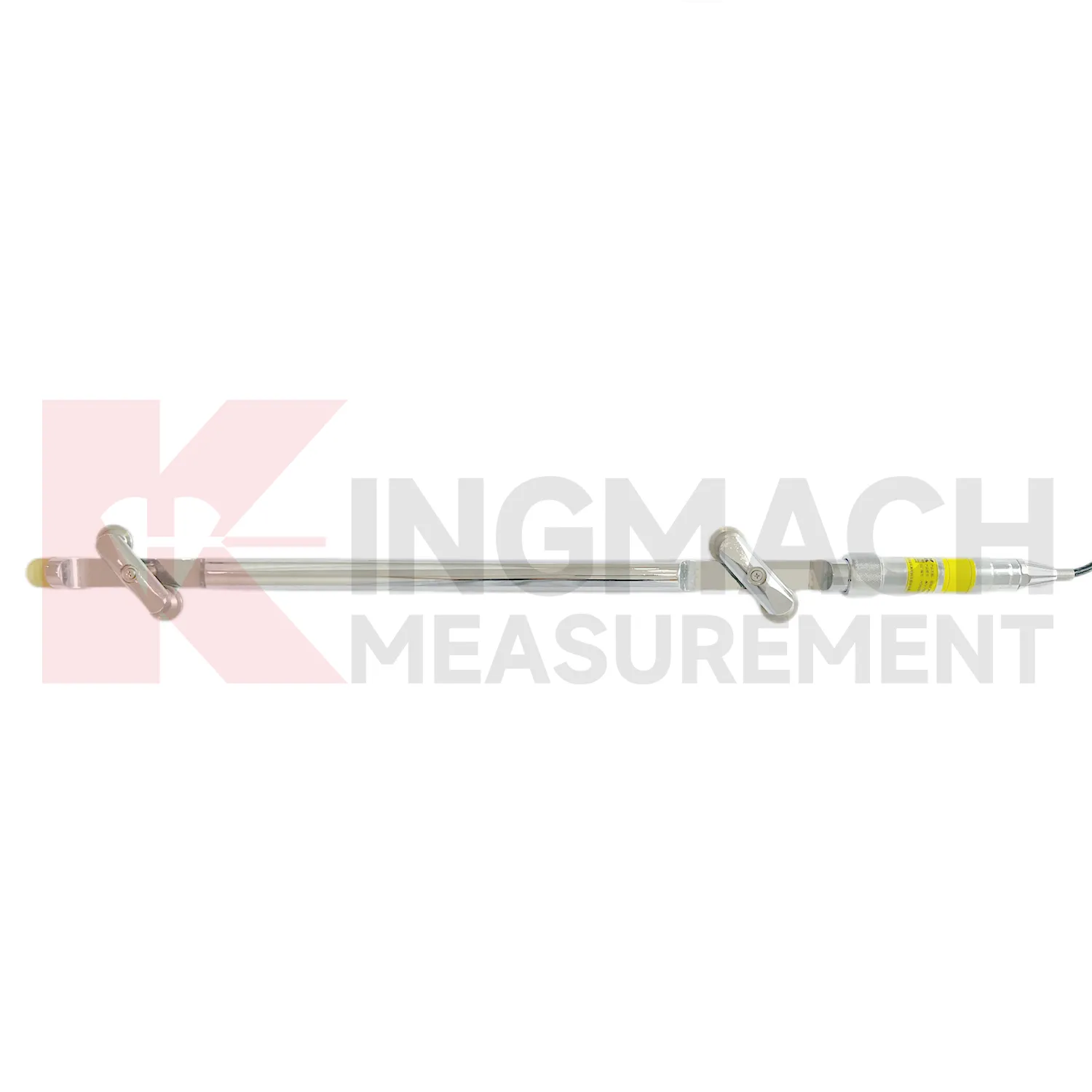

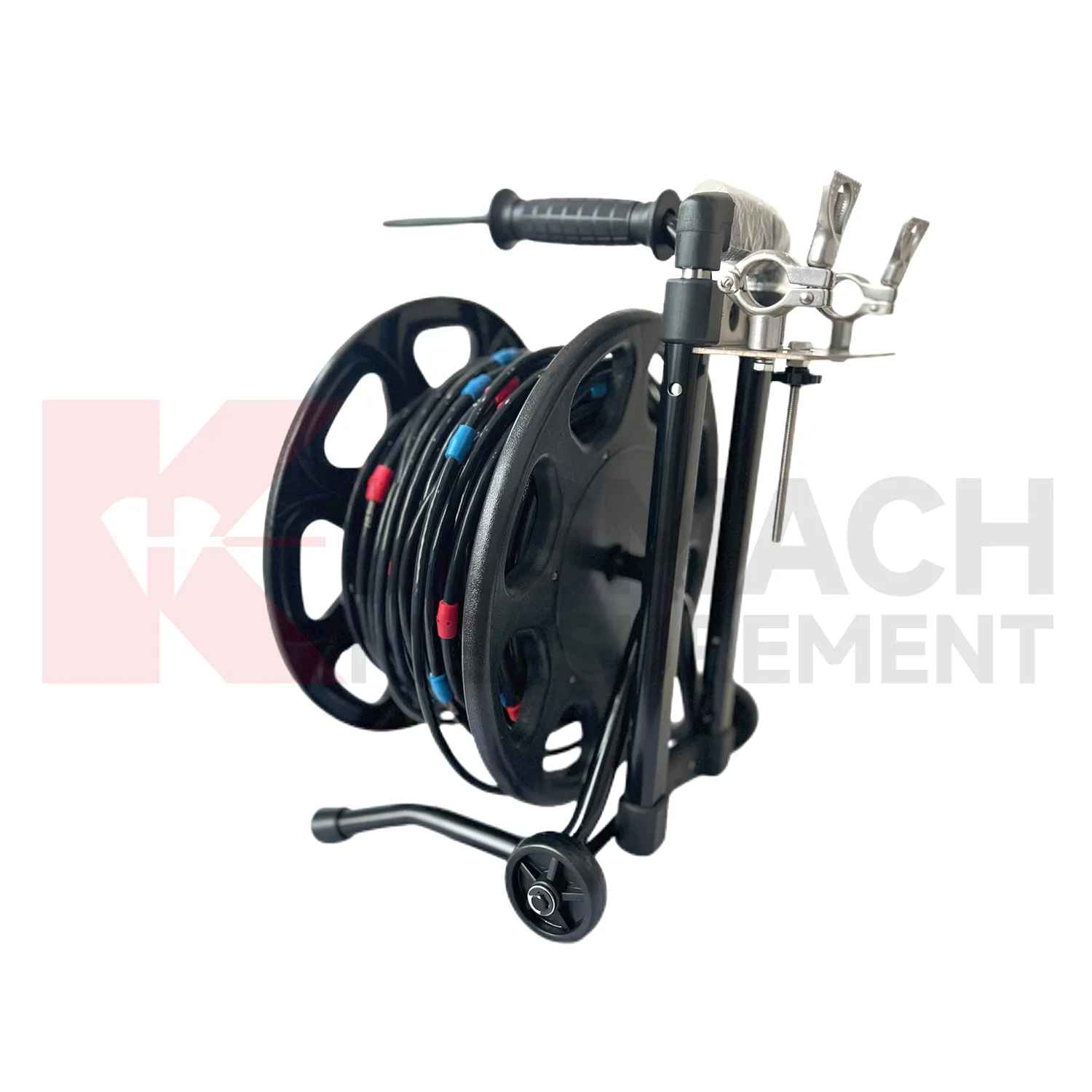

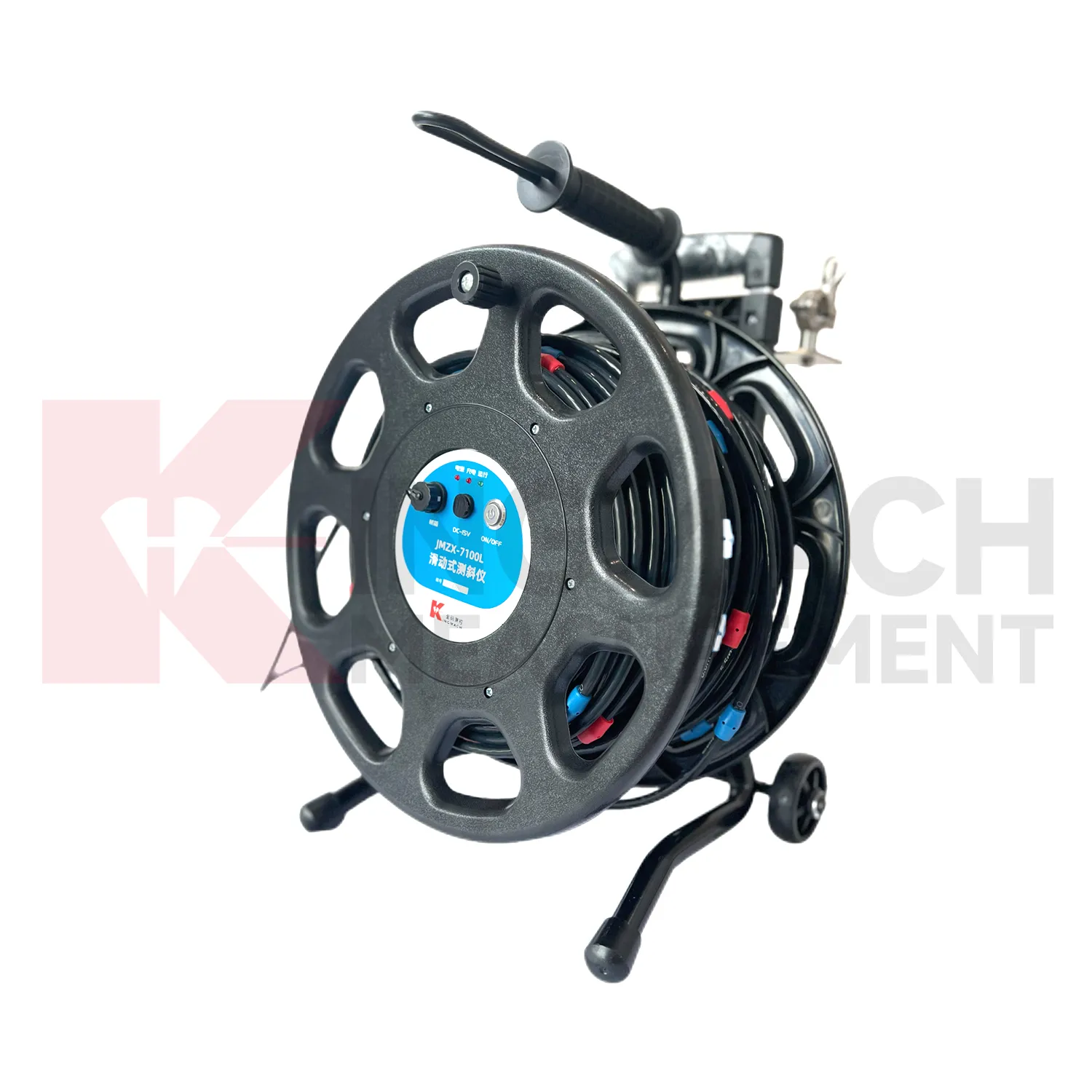

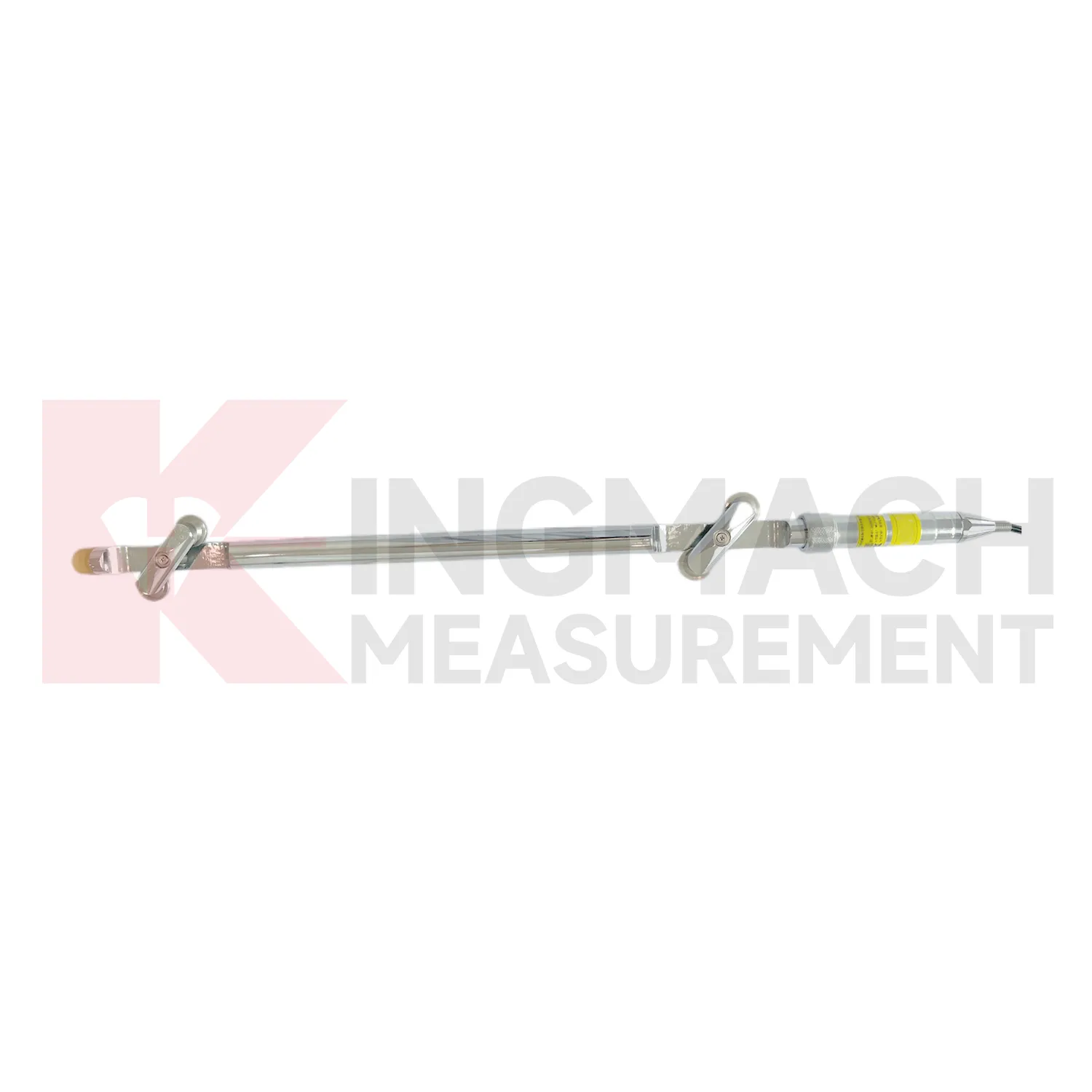

The Sliding Inclinometer JMZX-7100L is a sliding-type smart digital-display inclinometer composed of a sliding inclinometer probe (with a 3D-MEMS silicon capacitor biaxial inclinometer sensor as the sensitive element) and integrated testing instrument. It features fewer accessories, easy installation, automatic collection of high-precision observation data, and high reliability in underground permanent fixed burial. Its design is more suitable for the requirements of long-term, continuous, stable, and accurate monitoring work.
Features：

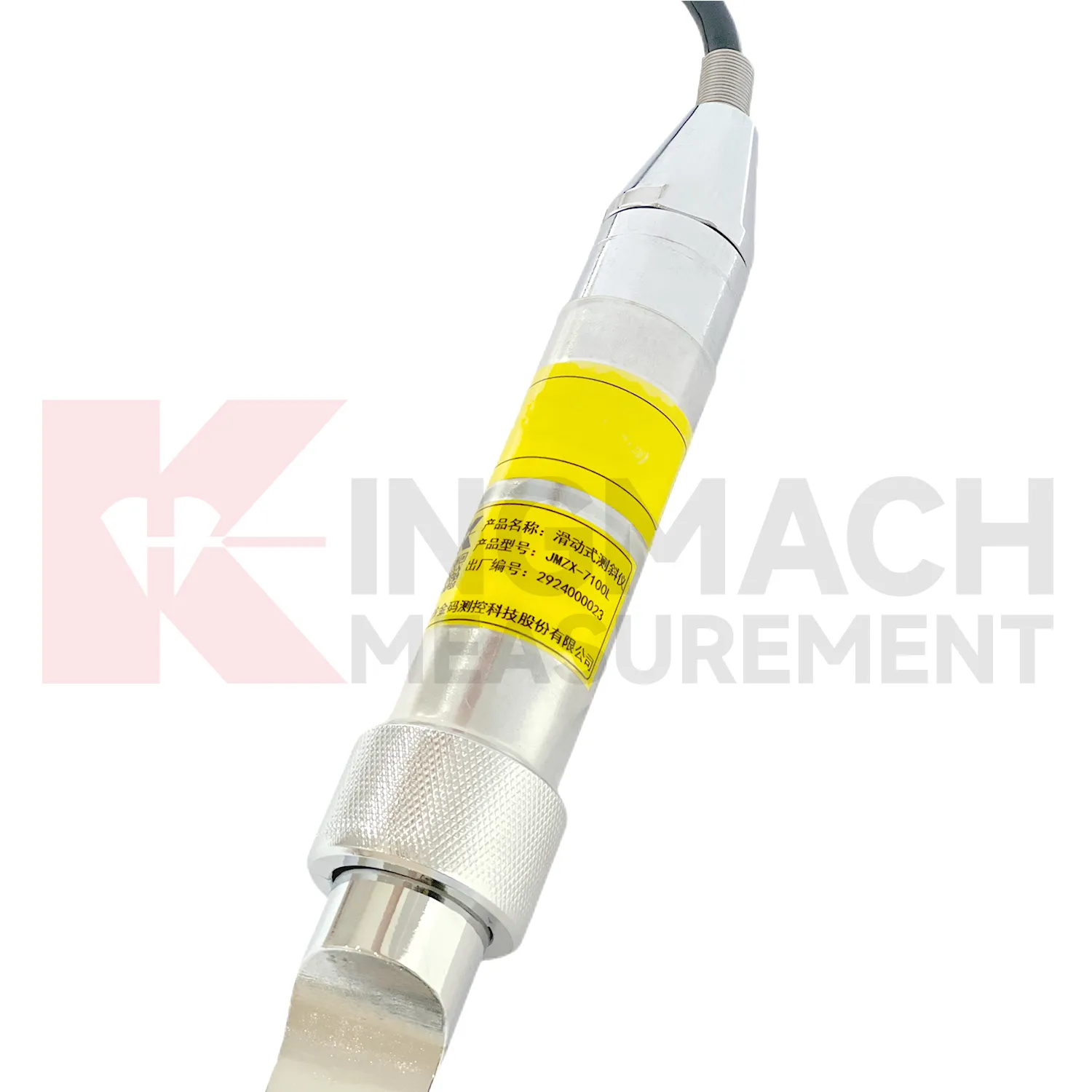

1. Advanced, lightweight, and anti-vibration MEMS (Micro-Electro-Mechanical Systems) digital biaxial inclinometer probe.
2. Supports the use of a mobile phone APP as a reading device.
3. Wireless Bluetooth transmission, eliminating the need for the reading device to be connected to a cable.
4. Large storage capacity, capable of storing millions of readings.
5. Stored inclinometer data can be downloaded for numerical and graphical analysis.
6. Data can be sent in real time via a wireless network.
7. Chinese and English operation menus, enabling extremely simple operation.
8. Equipped with exclusive dedicated post-processing data software, which greatly saves the time for staff to process data.
Widely used for measuring horizontal displacement changes inside soil masses in scenarios such as dams, building foundations, embankment slopes, underground construction projects, geotechnical slopes, and port engineering, it is an essential precision testing instrument.
|
Item |
Specification |
|
Measurement Range |
Sensor: ±90° |
|
Guide Wheel Spacing Reference |
500mm |
|
Probe Size |
φ26×776mm |
| Total Weight | 8.5kg |
|
Probe Weight |
2kg |
|
Communication Mode |
Bluetooth |
|
Operating Environment |
Temperature: -20℃~60℃ Impermeability: 180m depth water pressure, Vibration Resistance: 100g |
