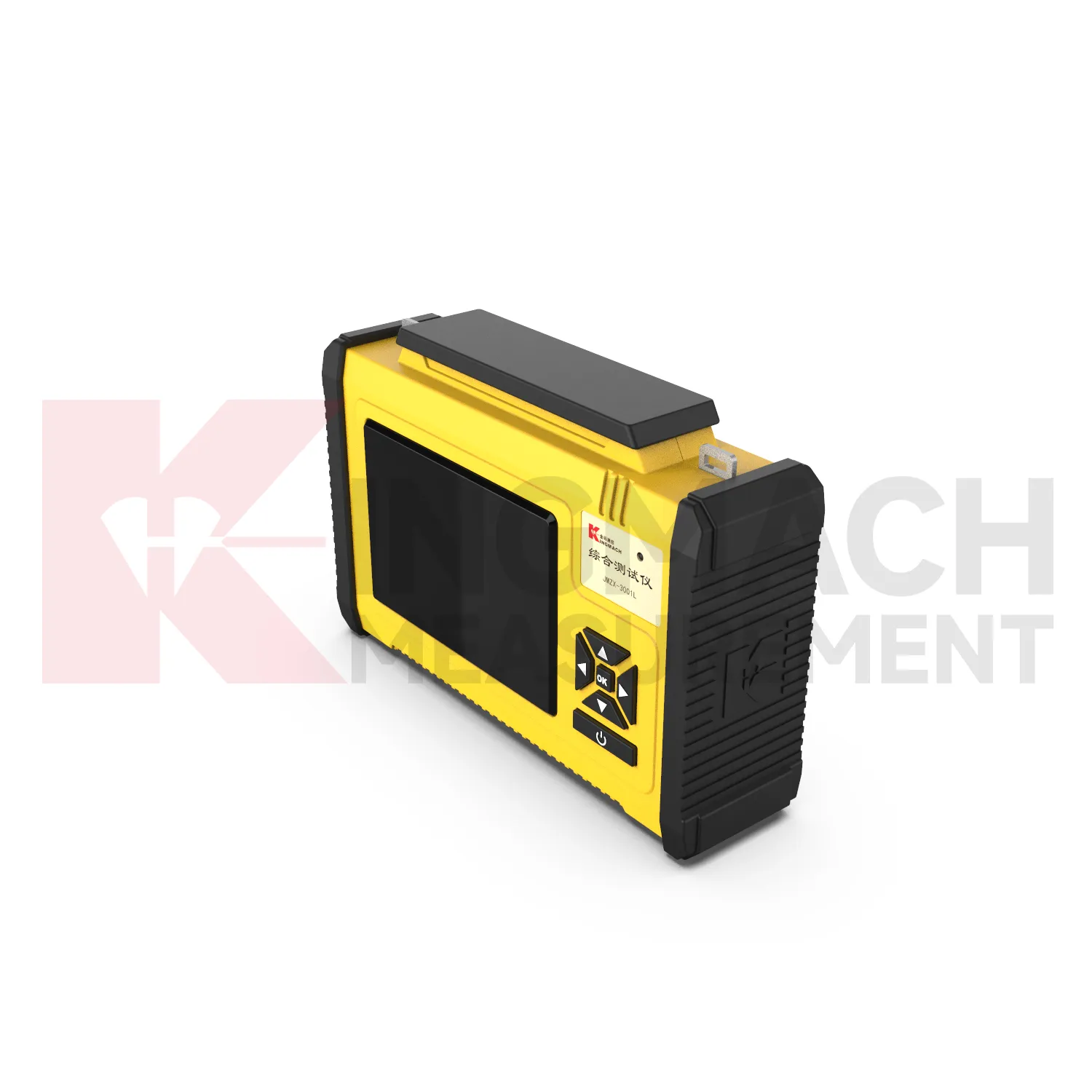

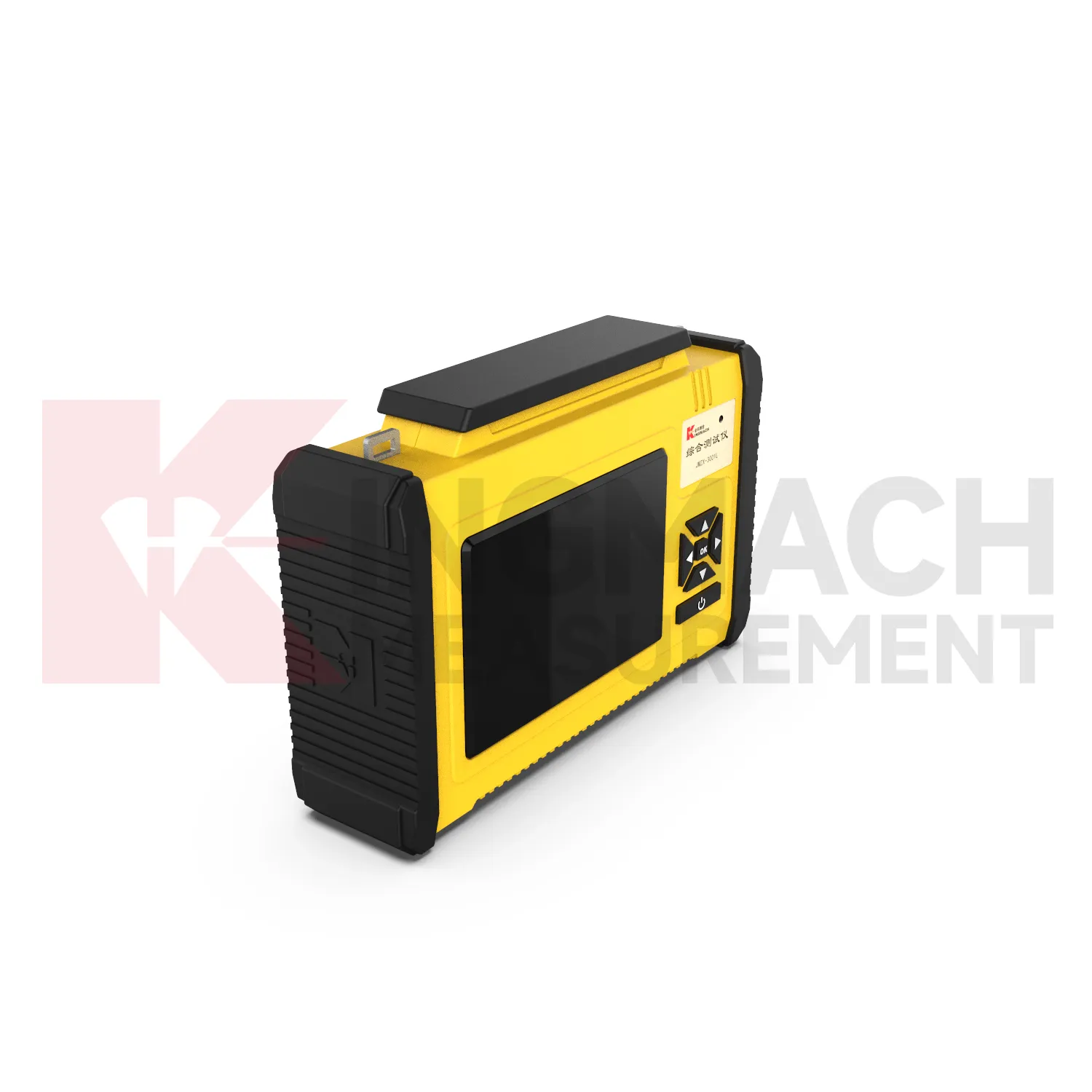

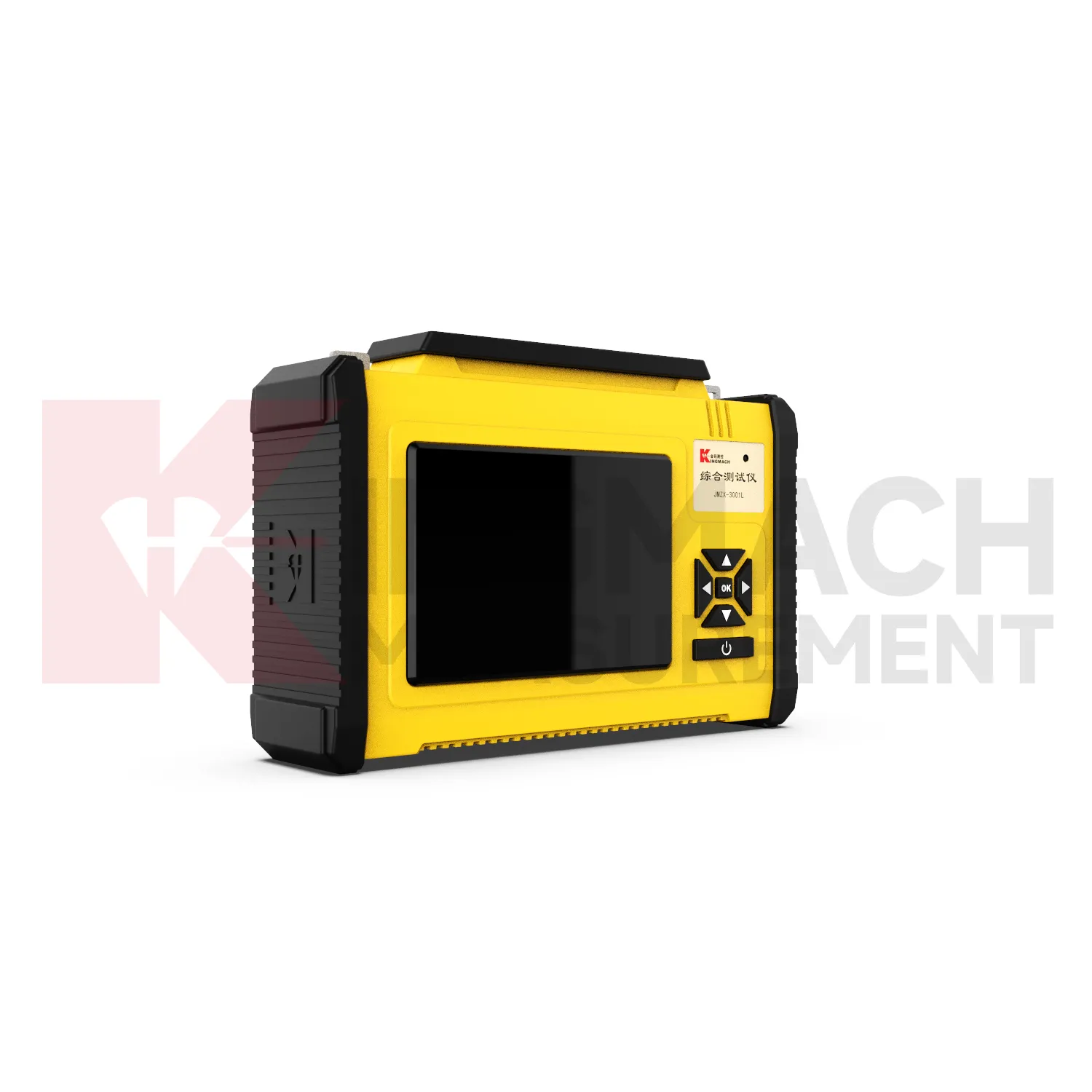

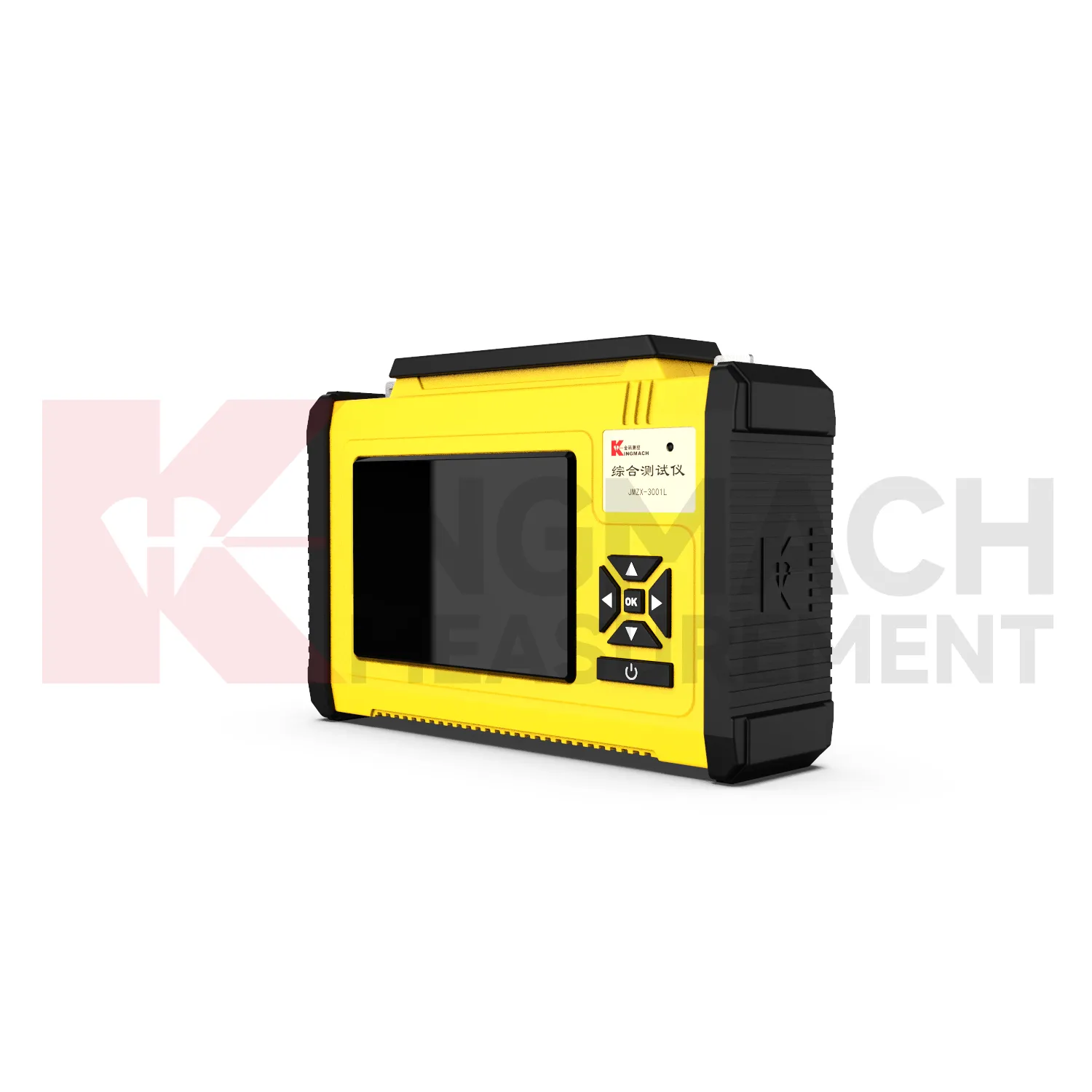

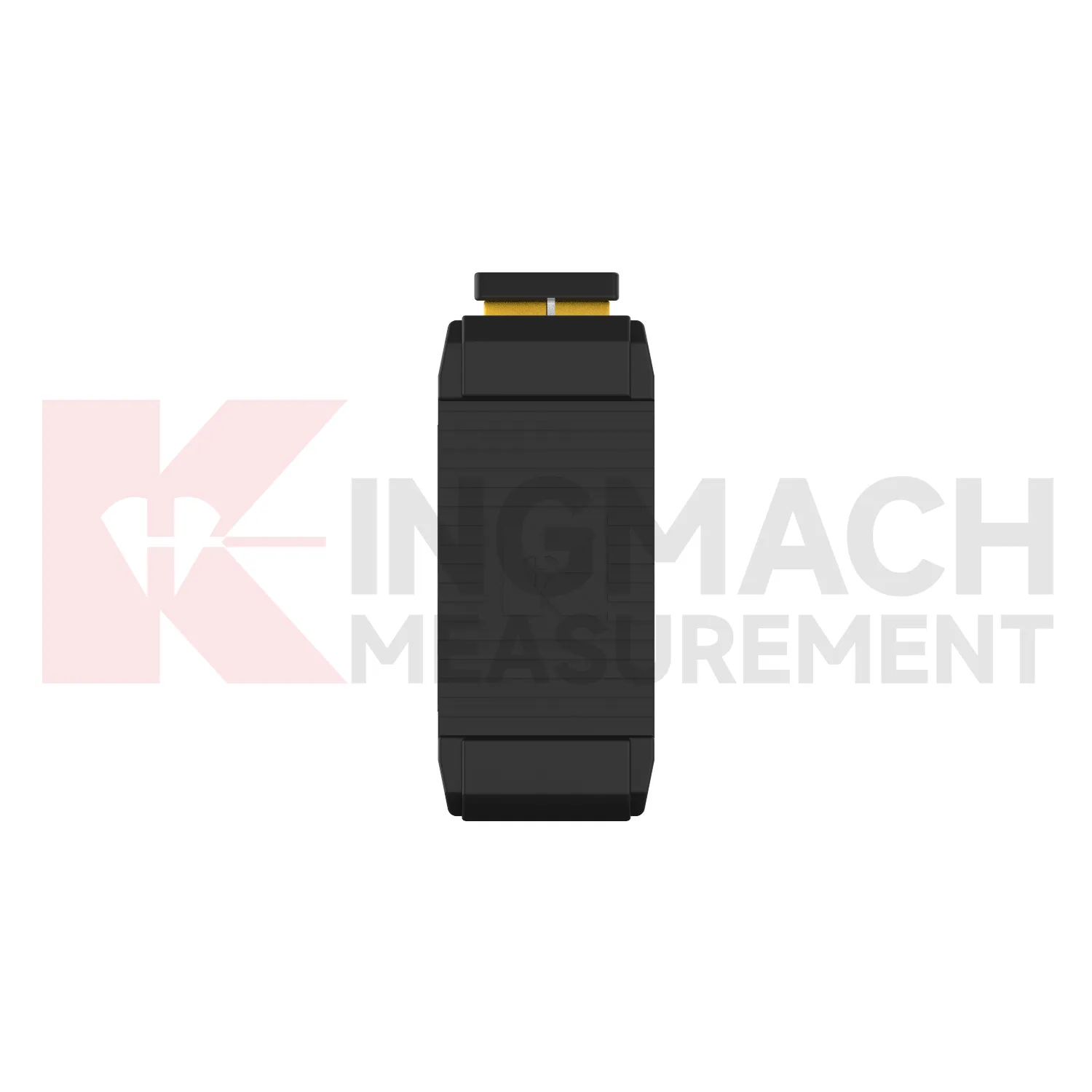

The Comprehensive Readout （Unit） is an improved and upgraded version of the company's original comprehensive tester series. The product is designed based on a portable concept. Its appearance and structure are developed and manufactured by professional industrial product design companies and mold design & production manufacturers, featuring an attractive appearance, compactness & convenience, and durability. Meanwhile, the circuit design has been improved to further enhance the device's battery life, optimize operating procedures and interface display, and boost the performance of functional circuits.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMZX-300X、300XL |
|
Certification: |
GBT 3412.1-2009 、DL/T 1133—2023 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Synopsis:
Comprehensive Readout is an intelligent measurement true color digital display instrument launched by our company. The appearance and structure of the product are designed and manufactured by professional industrial product design companies and mold design manufacturers. The portable design concept is adopted, and it has the characteristics of beautiful appearance, compact and lightweight, graphical operation and intelligent recognition.
Product feature:
Industrial portable design, mold production, compact and lightweight
PLarge size true color LCD screen, graphical display and operation
Automatically recognize the number and model of the company's intelligent inductance FM class and VW class sensors, intelligent calculation and direct display of physical quantities. Support the measurement of domestic and foreign vibrating string sensors (vibrating string +3K thermistor), display frequency and temperature
Large capacity lithium battery, intelligent charge and discharge control system design, continuous working time up to 24 hours
Dual storage of measurement data, the measurement data of the sensor is stored in both the internal storage of the sensor and the internal storage of the instrument.
The JMZX-300X series of Comprehensive Readout is a portable, multifunctional, and intelligent numerical recording instrument. These instruments are capable of conducting measurements on the vibrating string sensor, inductance frequency adjustment sensor, semiconductor temperature sensor, and can be combined with our company's JMLB-20 hand-operated collection line box to form a multi-point testing system. This series includes three models: JMZX-3001 Comprehensive Readout (single string testing); JMZX-3003 Comprehensive Readout (3-string testing); JMZX-3006 Comprehensive Readout (6-string testing). The 3-string and 6-string testing instruments are multichannel comprehensive readouts that can measure multiple string sensors (such as pressure sensors).
The comprehensive readout has the characteristic of detecting quickly, accurately, and easy to use. Instrument is small and light, it adopts charging battery for power supply, so it is very convenient for you to carry and use.
The instrument is usually to be used by matching our company's smart sensors. The sensor serial number and coefficient are recorded in the sensor automatically, it also calculate strain, detecting temperature automatically and correcting results according to temperature, then test results are stored, the results can be delivered to computer analysis or future reference.
A Manual channel switcher can connect several channel switchers, connect figure is as follows:
|
project |
Frequency |
strain |
displacement |
Temperature |
other |
|
Standard Range |
400HZ—4000HZ |
|
|
|
|
|
resolution ratio |
0.01HZ |
0.1 μ ε |
0.01mm |
0.1 C |
Depends on the sensor range |
|
Precision |
0.01% |
|
|
|
|
|
operating current |
200mA～350mA |
||||
|
Lithium battery |
11.1V/5200mAH DC15VPower adapter charging |
||||
|
Endurance time |
18H-----24H |
||||
|
Data storage |
instrument: 4000groups ，sensor: 200groups cyclic covering |
||||
|
Data download |
Symbol transmission rate 9600bps |
|
|||
|
Temperature Range of thermometer |
-25 C ----50 C |
||||
|

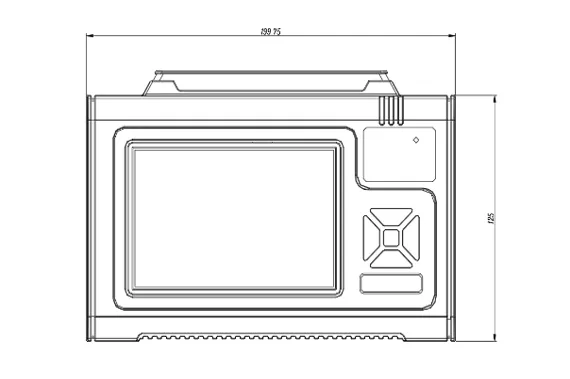

Size |
210mm*130mm*55mm |
||||
|
weight |
1KG |
||||
|
level of dustproof and waterproof |
IP64 |
||||
