The Dynamic signal acquisition module is a terminal device designed for acquiring and processing standard voltage signals. It has a built-in programmable gain amplifier circuit, intelligent power management module, high-speed AD conversion circuit, and core acquisition control circuit. The high-performance microcontroller it is equipped with enables high-speed and efficient data processing and transmission.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMYD-1008XC |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Introduction:

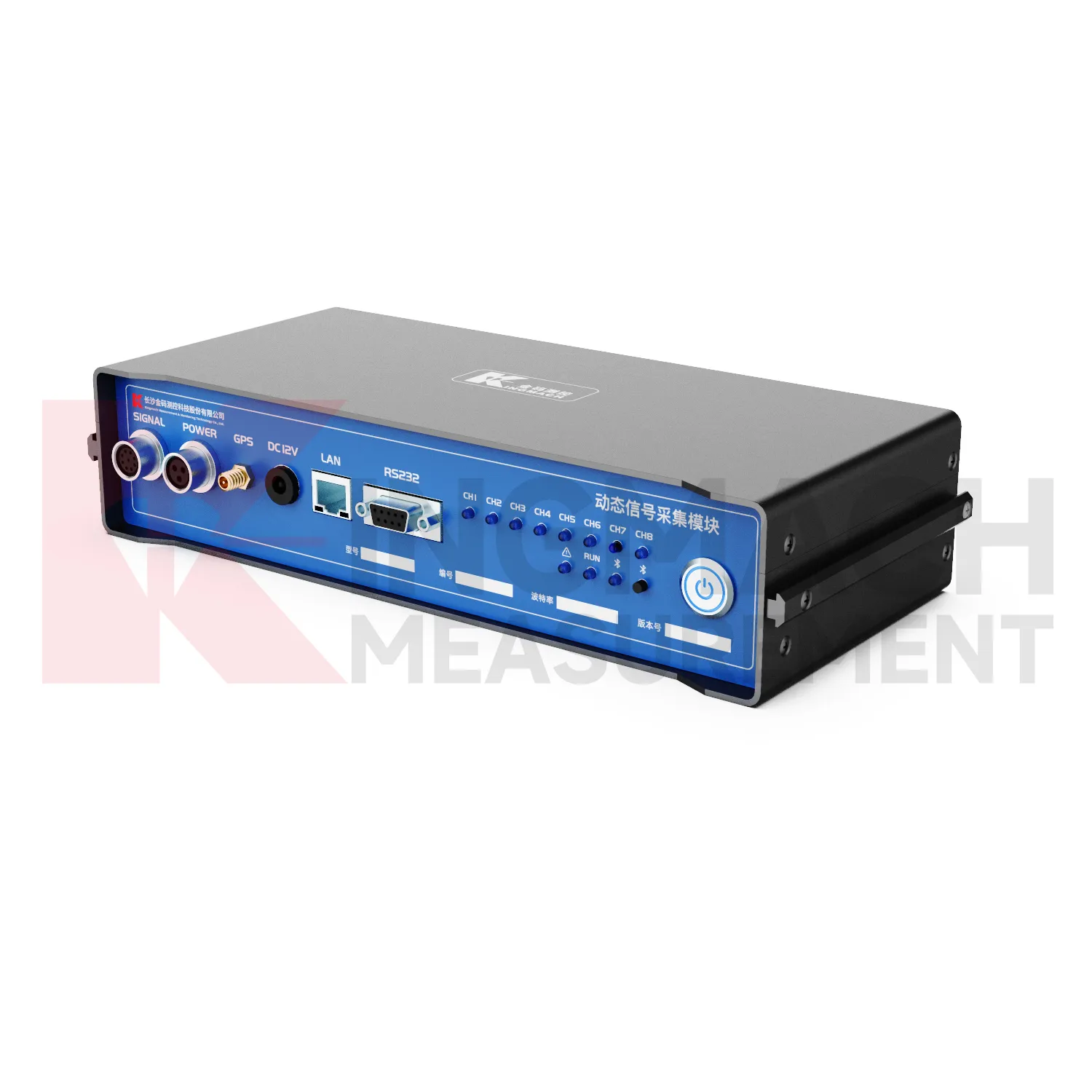

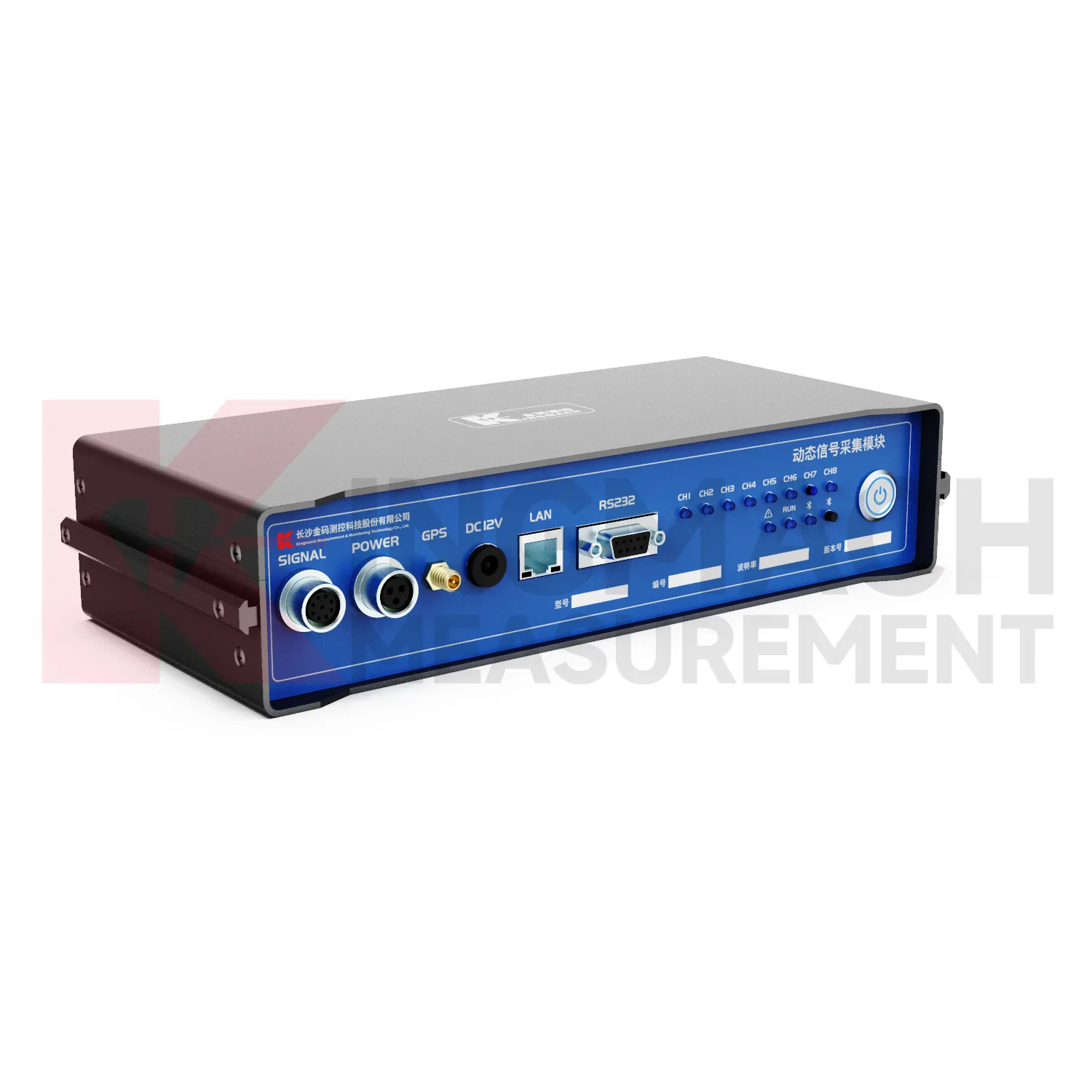

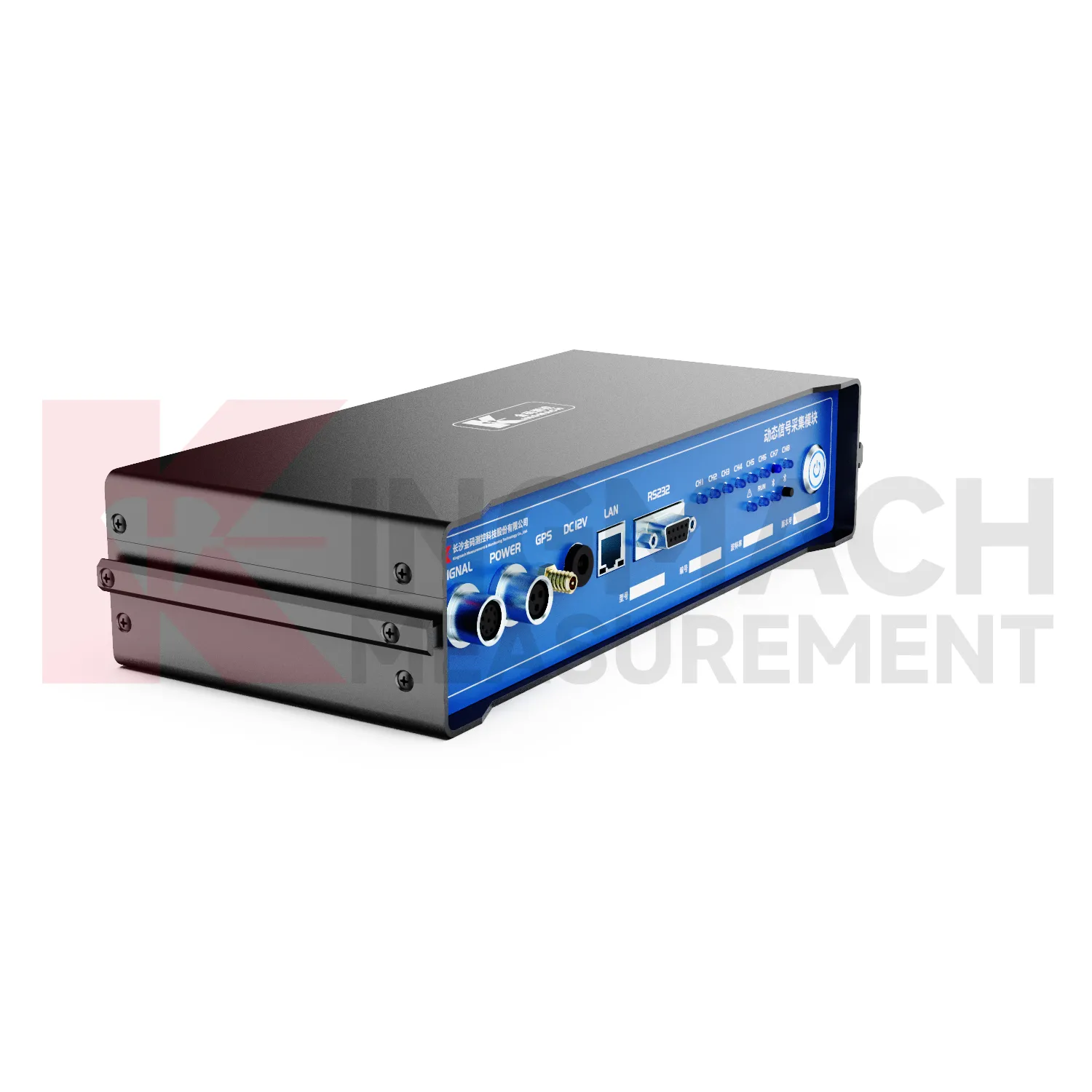

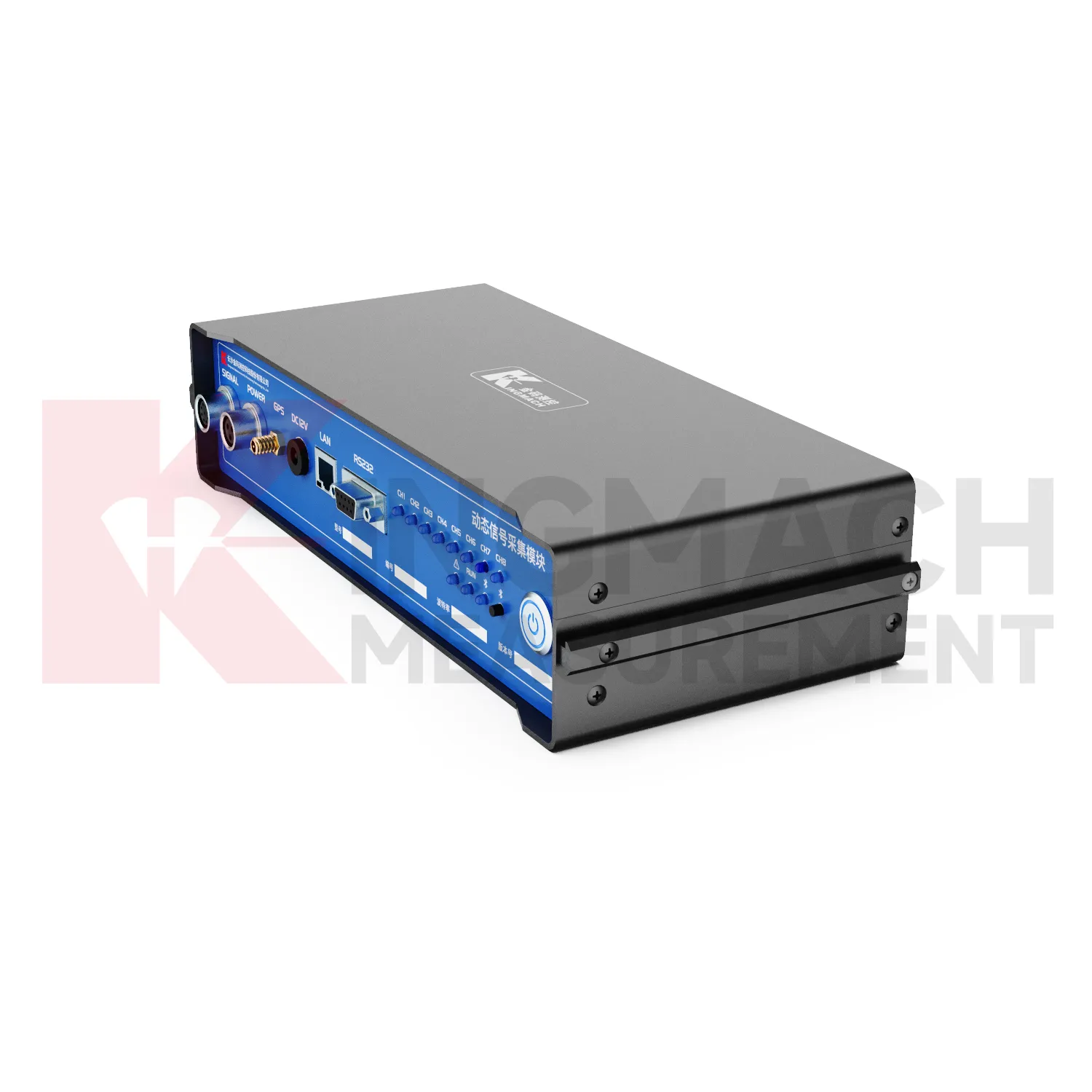

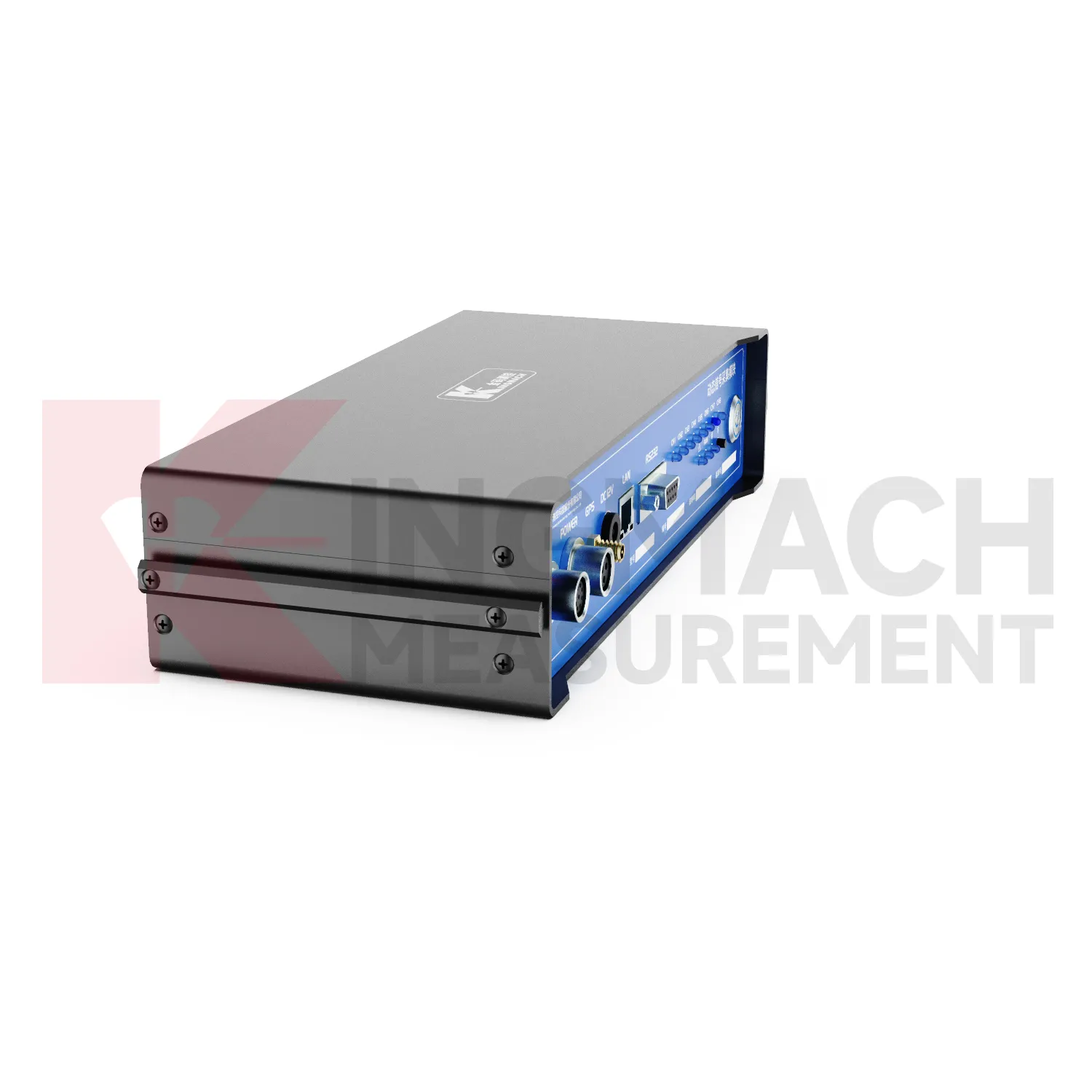

The Dynamic signal acquisition module (Model: JMYD-1008XC) is a terminal device for collecting and processing standardized voltage signals. Equipped with programmable amplification circuits, intelligent power management modules, high-speed AD conversion circuits, and core acquisition control circuits, its high-performance microcontroller ensures rapid data processing and transmission. This acquisition system enables effective and accurate collection and processing of structural vibration data, featuring compact dimensions, user-friendly operation, and straightforward installation.
System features:
l Ultra-wide voltage input, supporting 9V-36V DC power supply.
l Dynamic Range:≥130dB。
l 8-channel synchronous sampling at a rate up to 52kSPS ensures signal integrity.
l Each channel features an independent signal processing system and a 24-bit AD converter.
l Multiple selectable communication interfaces with the computer, including RS232 or Ethernet.
l With Ethernet communication, the system supports cascading for unlimited channel expansion and parallel sampling, enabling prolonged real-time, uninterrupted multi-channel signal recording with the computer.
This product is engineered for real-time automatic data acquisition, storage, transmission, reporting, and early warning of sensor signals in safety monitoring projects for geotechnical engineering and structures (e.g., reservoir dams, bridges, tunnels, slopes, dilapidated buildings and mines, nuclear power plants, and civil structures), providing construction and operational managers with data support and decision-making basis related to current project status and safety.
|
Power Supply Voltage |
DC 9V～24V |
|
Voltage Range |
±2.5V |
|
Voltage Indication Error |
±0.5%F.S |
|
Indication Stability |
±0.1%/Day (measured after 1-hour warm-up at 20 C ±1 C) |
|
Bandwidth |
70kHz |
|
Common Mode Rejection |
>120dB (G=10) |
|
Signal-to-Noise Ratio |
110dB (52kSPS) |
|
Noise |
≤3 μVrms(input shorted, converted to input at maximum gain) |
|
Communication methods |
Communication Interfaces Ethernet, with RS232 and Bluetooth support |
|
Sampling Frequency |
Up to10kHz |
|
Dimensions |
276mm×120mmm×60mm |
|
Operating Temperature |
-30 C～+70 C |
