The Dynamic signal conditioning module is a device used for measuring physical quantities such as strain, acceleration, velocity, displacement, tilt, and differential pressure. It incorporates a built-in signal amplification circuit, signal filtering circuit, and 50Hz power frequency interference removal circuit. It performs effective conditioning on the measured signals, converting them into standard voltage signals.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMYD-2008XTA |
|
Certification: |
ISO9001、ISO14001、ISO45001 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |
Product Overview:

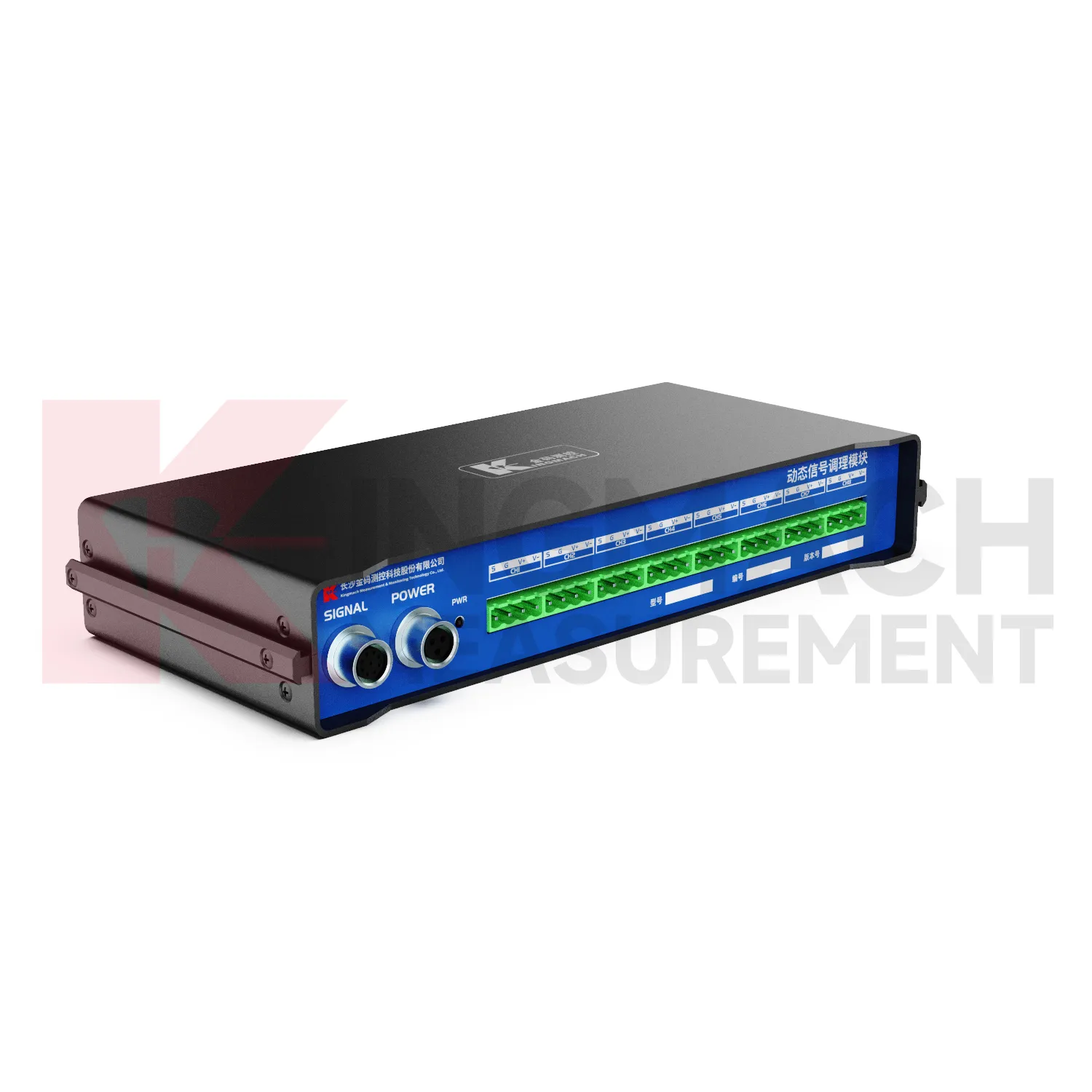

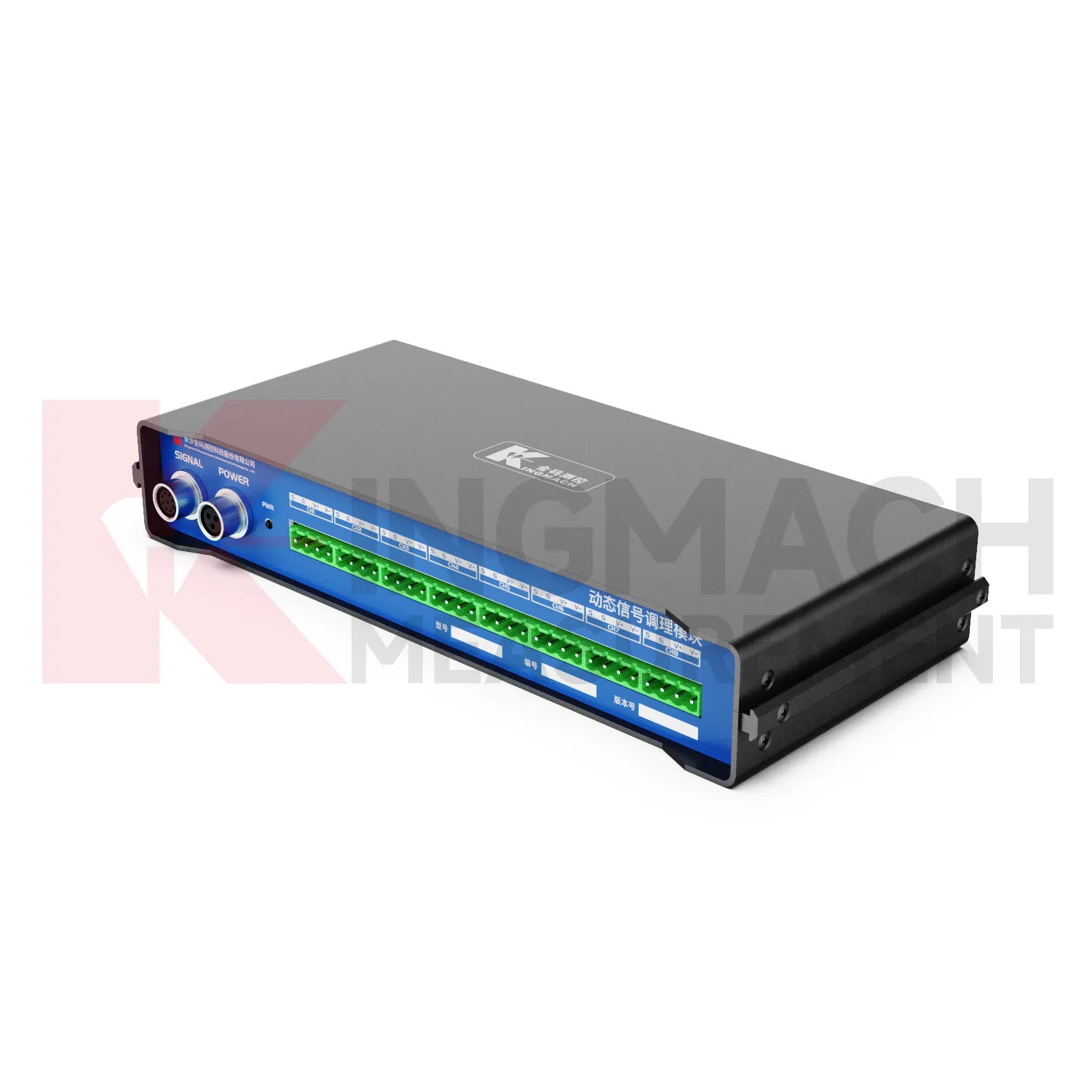

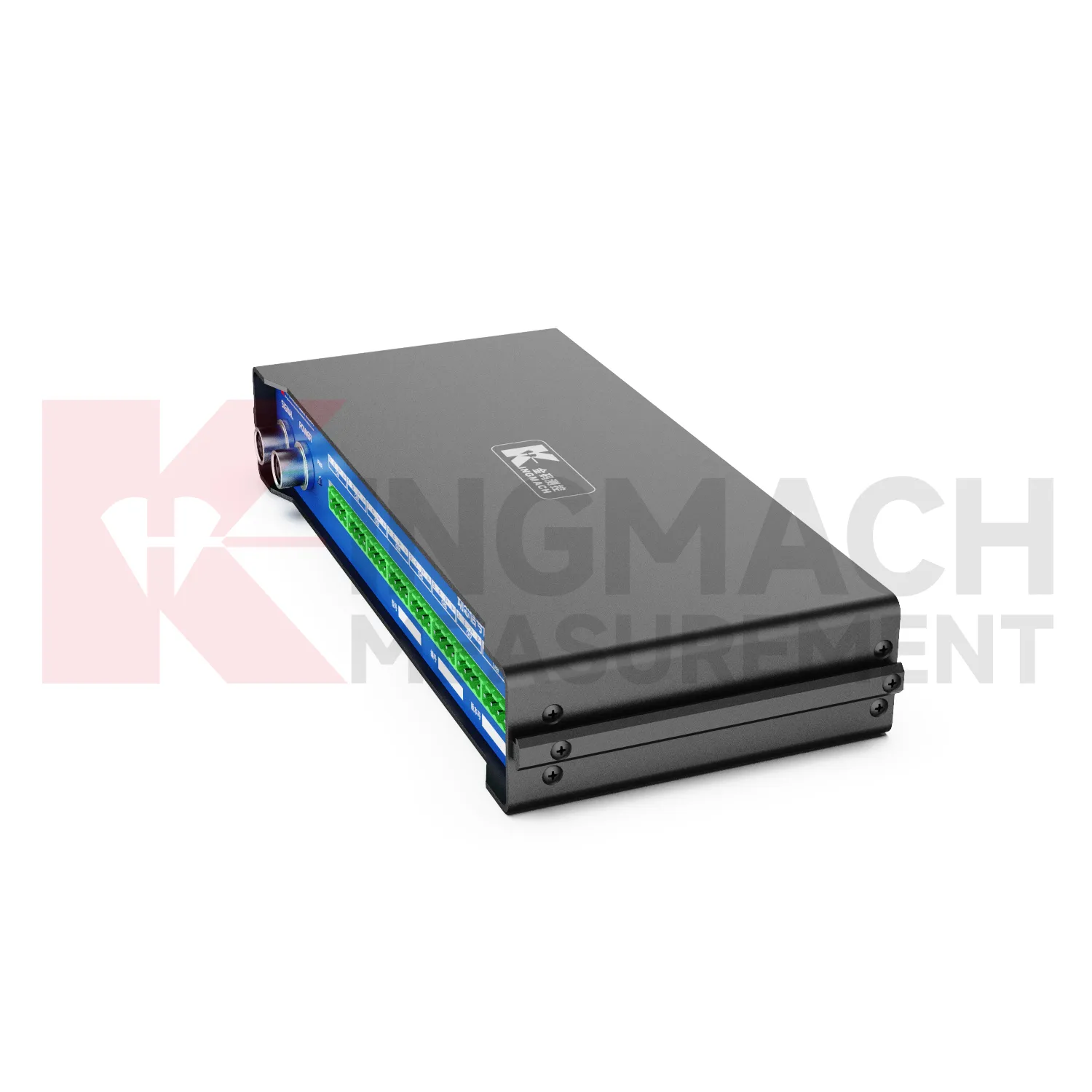

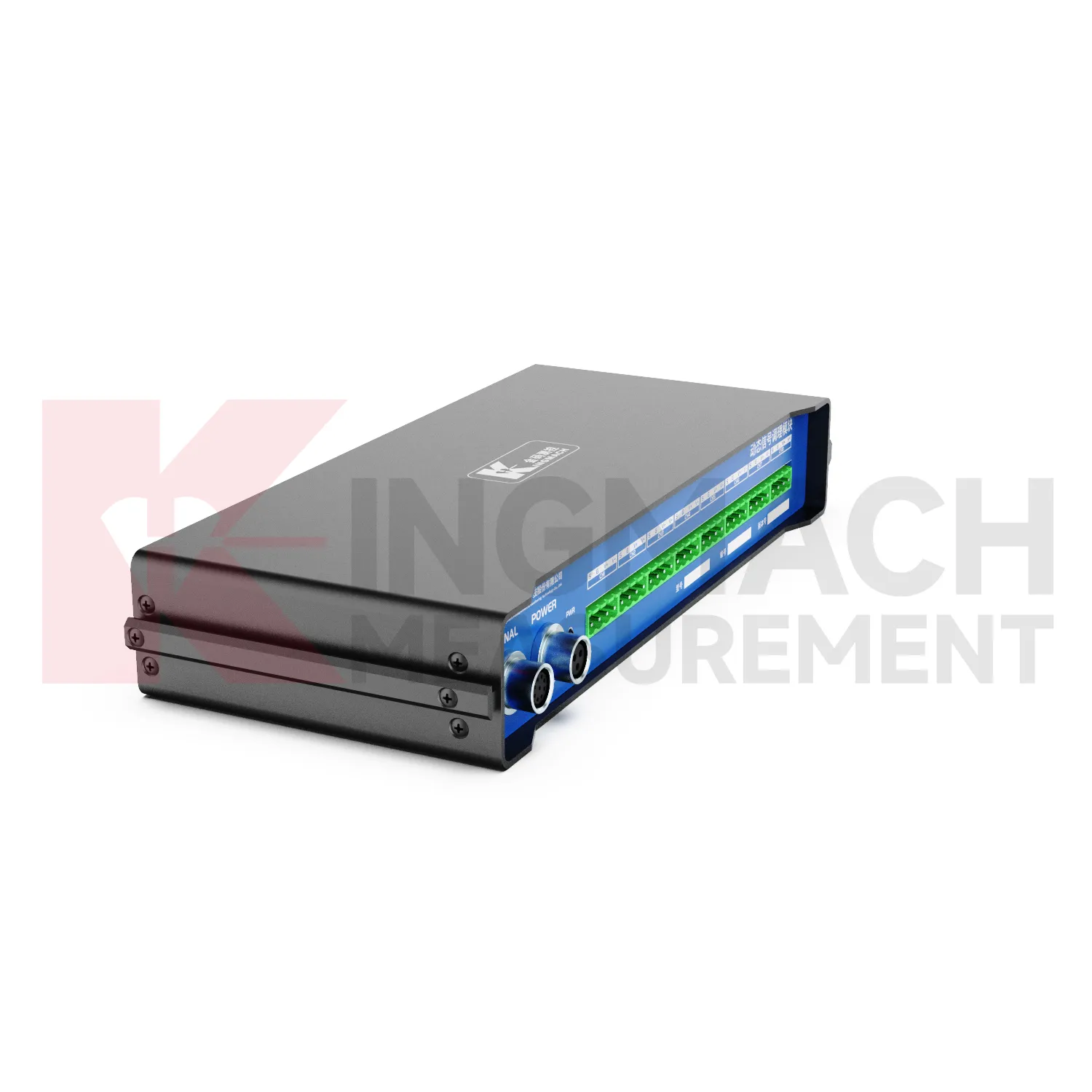

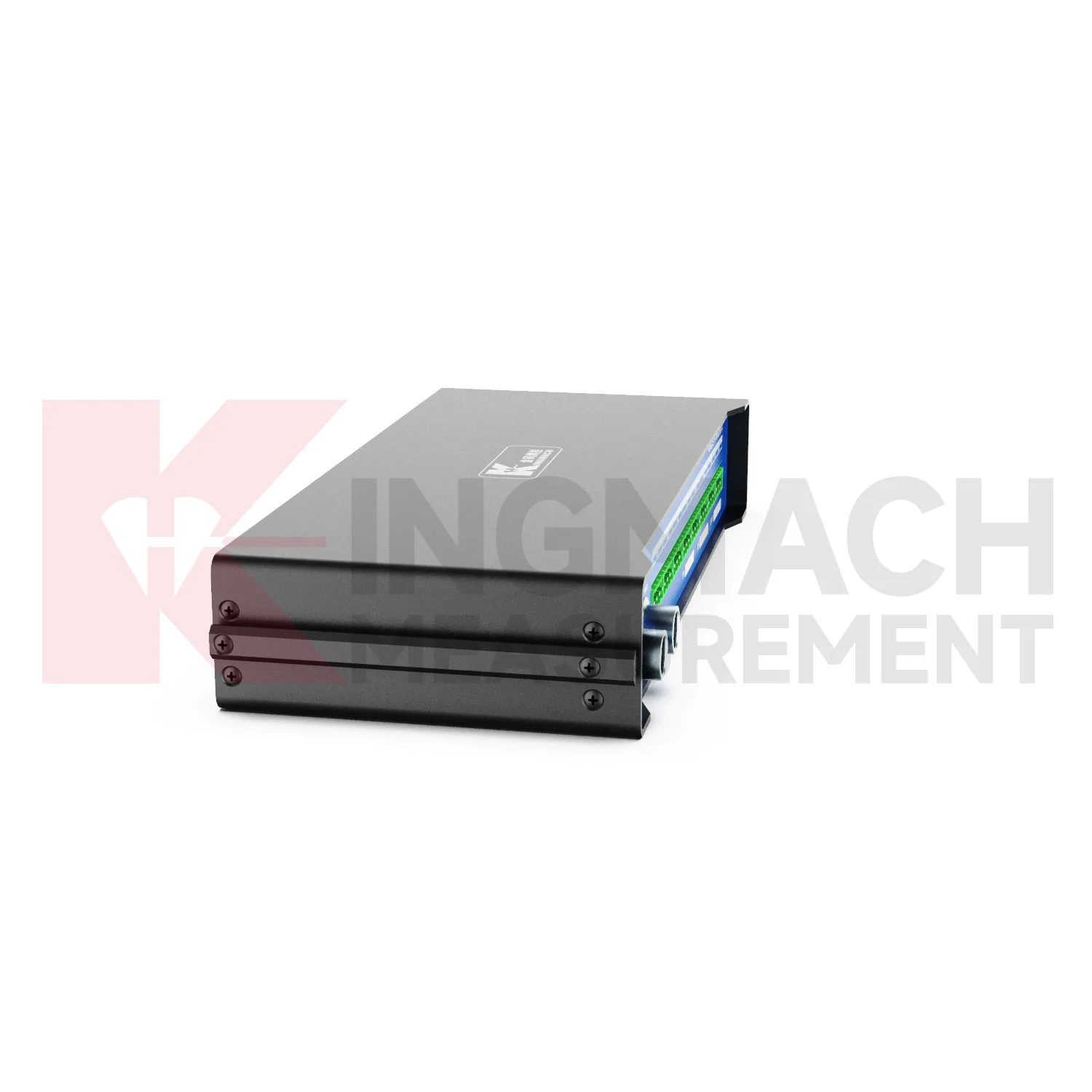

The Dynamic signal conditioning module (Model: JMYD-2008XTA) is a device for measuring physical quantities such as strain, acceleration, velocity, displacement, inclination, and pressure difference. It integrates internal signal amplification circuits, filtering circuits, and 50Hz industrial frequency interference suppression circuits to effectively condition input signals into standardized voltage signals.
System Features:
· Ultra-wide voltage input, supporting 9V-36V DC power supply.
· Dynamic Range:≥130dB。
· 8-channel synchronous sampling at a rate up to 52kSPS ensures signal integrity.
· Each channel features an independent signal processing system and a 24-bit AD converter.
· Multiple selectable communication interfaces with the computer, including RS232 or Ethernet.
· With Ethernet communication, the system supports cascading for unlimited channel expansion and parallel sampling, enabling prolonged real-time, uninterrupted multi-channel signal recording with the computer.
· Supports Bluetooth communication.
· Each data acquisition channel is equipped with an LED status indicator for intuitive monitoring of sensor status.
· The product incorporates intelligent power management, enabling automatic transition to low-power mode when the system is idle (no active data acquisition or processing tasks).
· Utilizes electrical and digital filtering to effectively suppress interference.
· GPS positioning enables convenient access to device location, facilitating enhanced management.
· Advanced isolation technologies and rational grounding ensure robust anti-interference performance, making the system applicable for monitoring in diverse engineering environments.
This product is engineered for real-time automatic data acquisition, storage, transmission, reporting, and early warning of sensor signals in safety monitoring projects for geotechnical engineering and structures (e.g., reservoir dams, bridges, tunnels, slopes, dilapidated buildings and mines, nuclear power plants, and civil structures), providing construction and operational managers with data support and decision-making basis related to current project status and safety.
|
Power Supply Voltage |
DC 9V～24V |
|
Voltage Range |
±2.5V |
|
Voltage Indication Error |
±0.5%F.S |
|
Indication Stability |
±0.1%/Day (measured after 1-hour warm-up at 20 C ±1 C) |
|
Bandwidth |
70kHz |
|
Common Mode Rejection |
>120dB (G=10) |
|
Signal-to-Noise Ratio |
110dB (52kSPS) |
|
Noise |
≤3 μVrms(input shorted, converted to input at maximum gain) |
|
Communication methods |
Communication Interfaces Ethernet, with RS232 and Bluetooth support |
|
Sampling Frequency |
Up to10kHz |
|

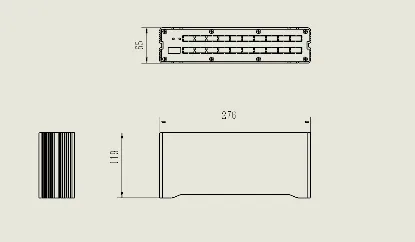

Dimensions |
276mm×120mmm×45mm |
|
Operating Temperature |
-30 C～+70 C |
