Description

Introduction:

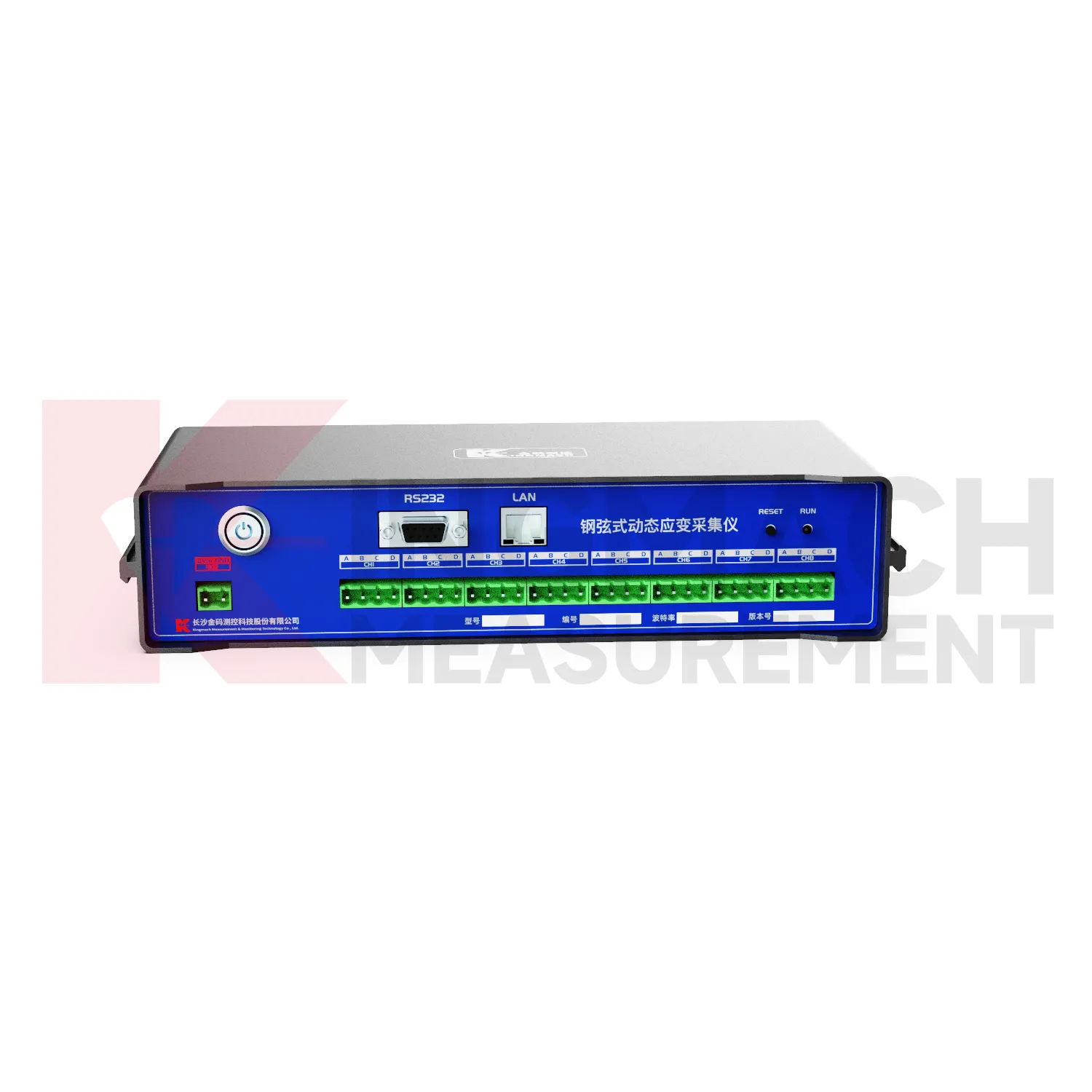

The JMZX-6008 Dynamic Strain Data logger (VW) is an 8-channel auto-synchronous acquisition device designed for collecting data from vibrating wire sensors such as VW Strain Gauges, Earth Pressure Cells, Soil Load Cell (Smart and VW), Piezometer, and Rebar Strainmeter. It integrates hardware amplification, filtering, and a high-speed MCU, combined with one software program for precise acquisition of vibration frequencies. The instrument ensures stable data collection, high reliability, rapid response (synchronous 8-channel operation up to 100Hz), and strong anti-interference capability. It features built-in RS232 and 10M/100M Ethernet interfaces for fast and convenient data transfer.

The Dynamic Strain Data logger (VW) enables real-time automated data acquisition of vibrating wire sensor signals in geotechnical and structural safety monitoring projects (e.g., dams, bridges, tunnels, slopes, hazardous buildings, mines, nuclear plants, and civil structures). It provides essential data support and decision-making references for construction and operation management. It features integrated measurement and communication functions, a compact and portable design, and is easy to use and install.

Product Feature：

1.Designed with highly intelligent and modular integrated architecture.

2.Supports remote maintenance for truly unattended operation.

3.Industrial-grade portable design with molded casing, compact and lightweight.

4.Wide power supply range (9VDC-18VDC), operating current <200mA.

5.Equipped with a 32-bit high-speed microprocessor, offering powerful computing capability and greatly improved system efficiency.

Applications

The Dynamic Strain Data logger (VW) enables real-time automated data acquisition of vibrating wire sensor signals in geotechnical and structural safety monitoring projects (e.g., dams, bridges, tunnels, slopes, hazardous buildings, mines, nuclear plants, and civil structures).

specifications
