Introduction:

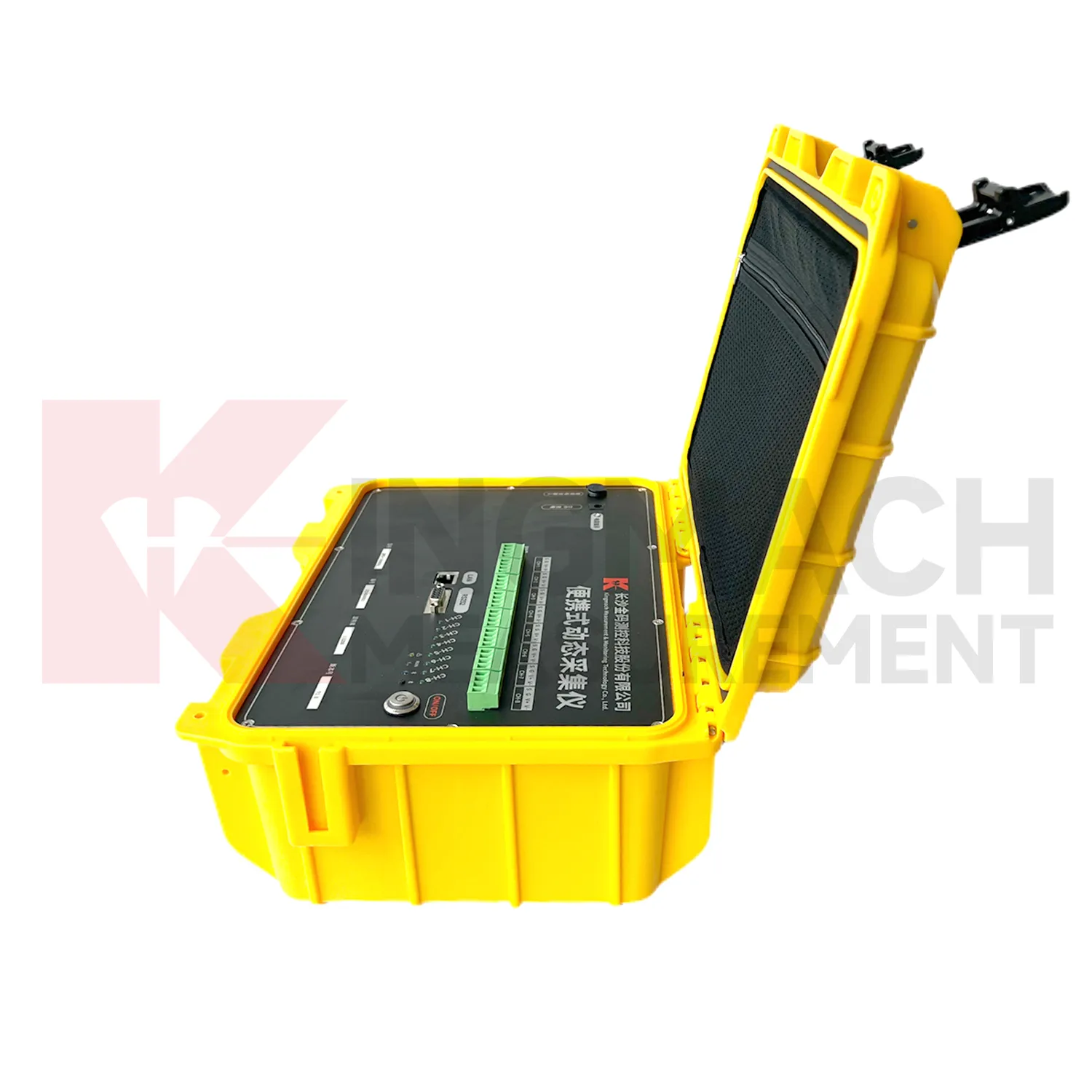

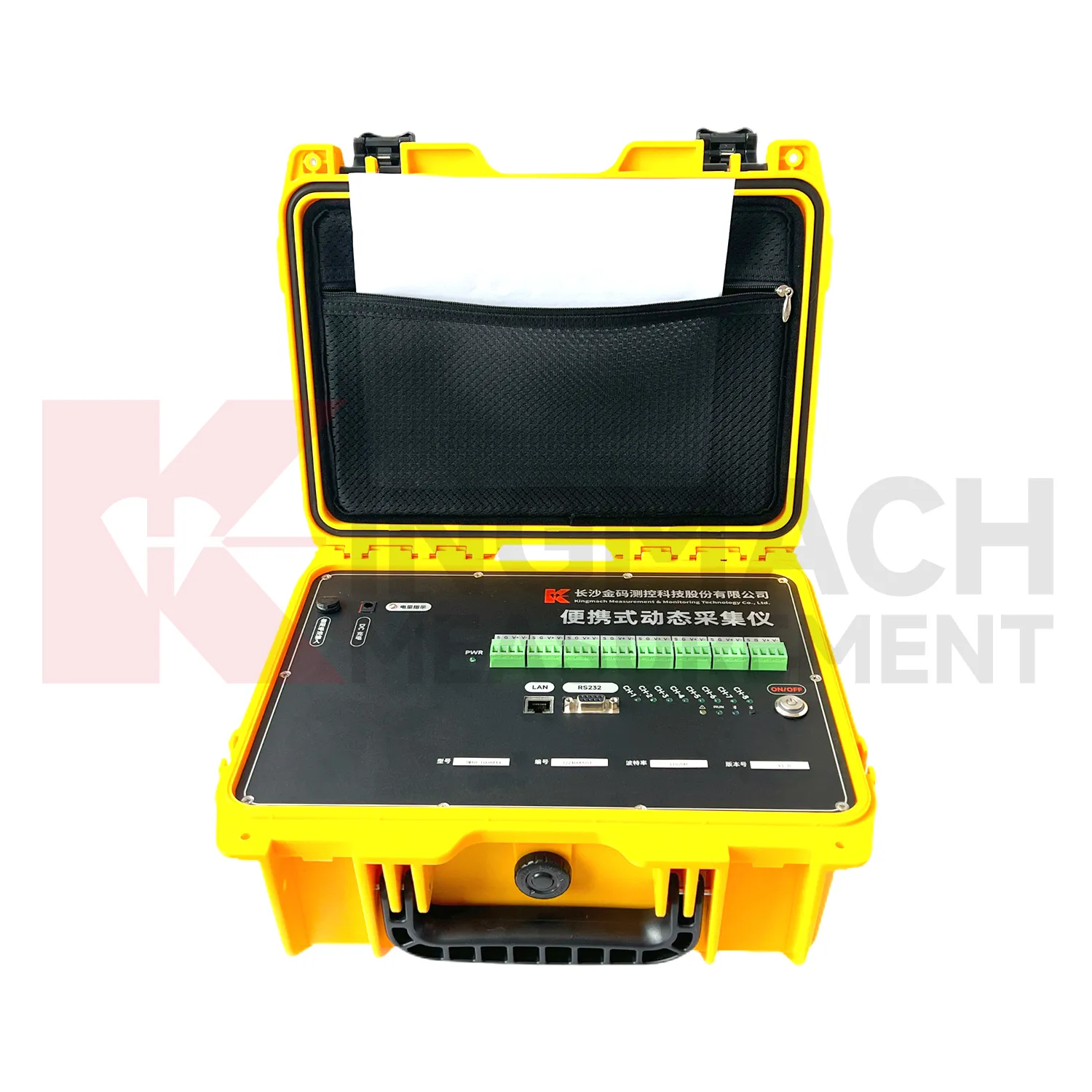

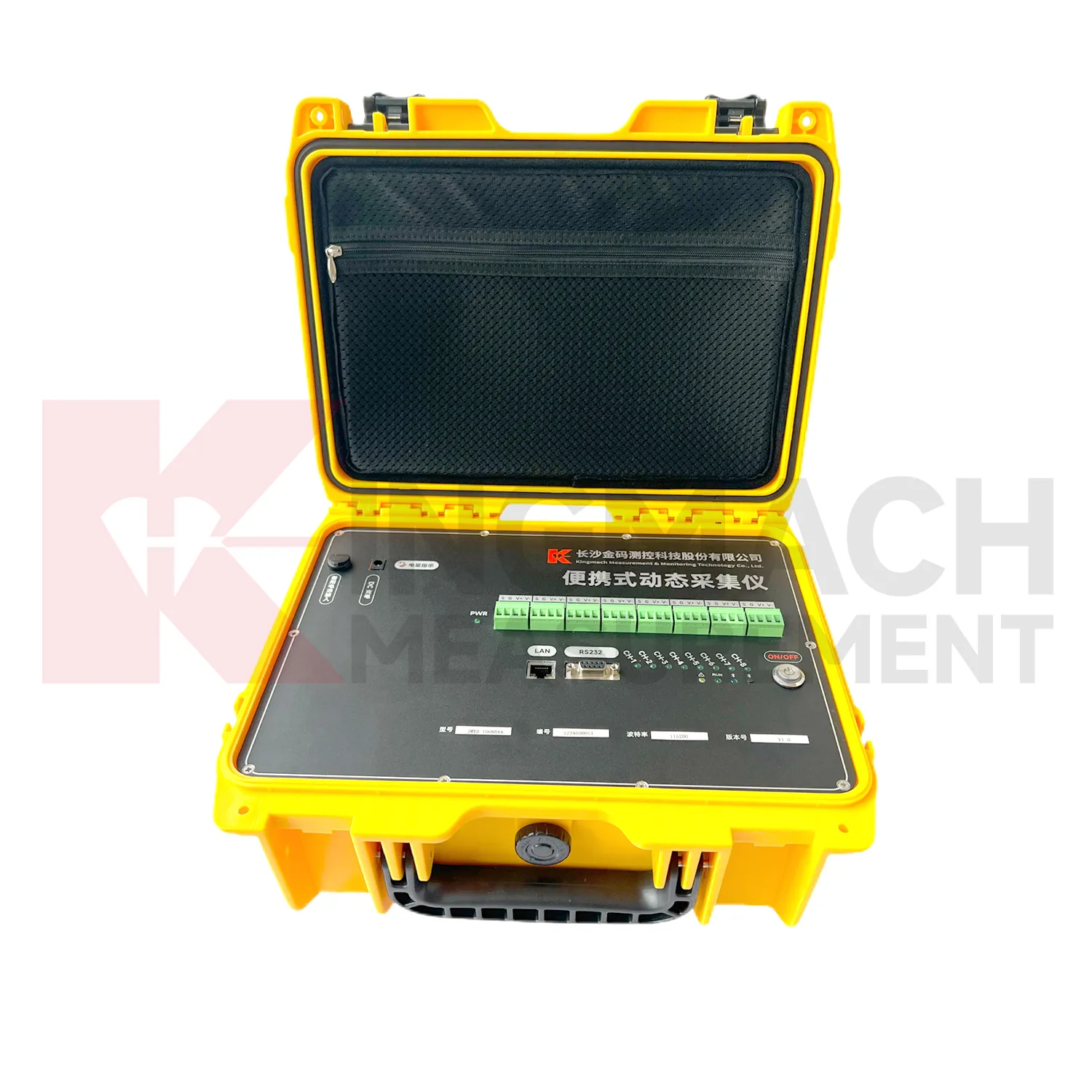

The Portable Dynamic Signal Acquisition Readout (Model: JMYD-1008BX) is a device used to measure physical quantities such as strain, acceleration, velocity, displacement, inclination, and differential pressure. It is powered by a 5200mAh lithium battery and can work for more than 12 hours under continuous acquisition. There is also a backup battery inside the instrument that can supply power to the instrument through an external interface, improving battery life.

The Portable Dynamic Signal Acquisition Readout has a built-in programmable amplification circuit, intelligent power management circuit, high-speed AD conversion circuit, and core acquisition control circuit. Its high-performance microcontroller can process and transmit data efficiently at high speed. Its signal amplification circuit, signal filtering circuit, and circuit for removing 50Hz power frequency interference can effectively condition the measured signals. This acquisition readout can effectively and accurately collect and process structural vibration data, and its portable design makes it easy to use.

Product Features：

1. Ultra-wide voltage input, supporting 9V~36V DC power supply.

2. Wide dynamic range: ≥130dB.

3. 8-channel synchronous sampling with a sampling rate of up to 10kSPS, ensuring signal integrity.

4. Each channel includes an independent signal processing system and a 24-bit AD converter.

5. Multiple communication methods with computers are available, including RS232 or Ethernet communication.

6. When using Ethernet communication, it supports system cascading, enabling unlimited channel expansion and parallel sampling. Communication with computers allows for long-term real-time and uninterrupted recording of multi-channel signals.

7. Supports Bluetooth communication.

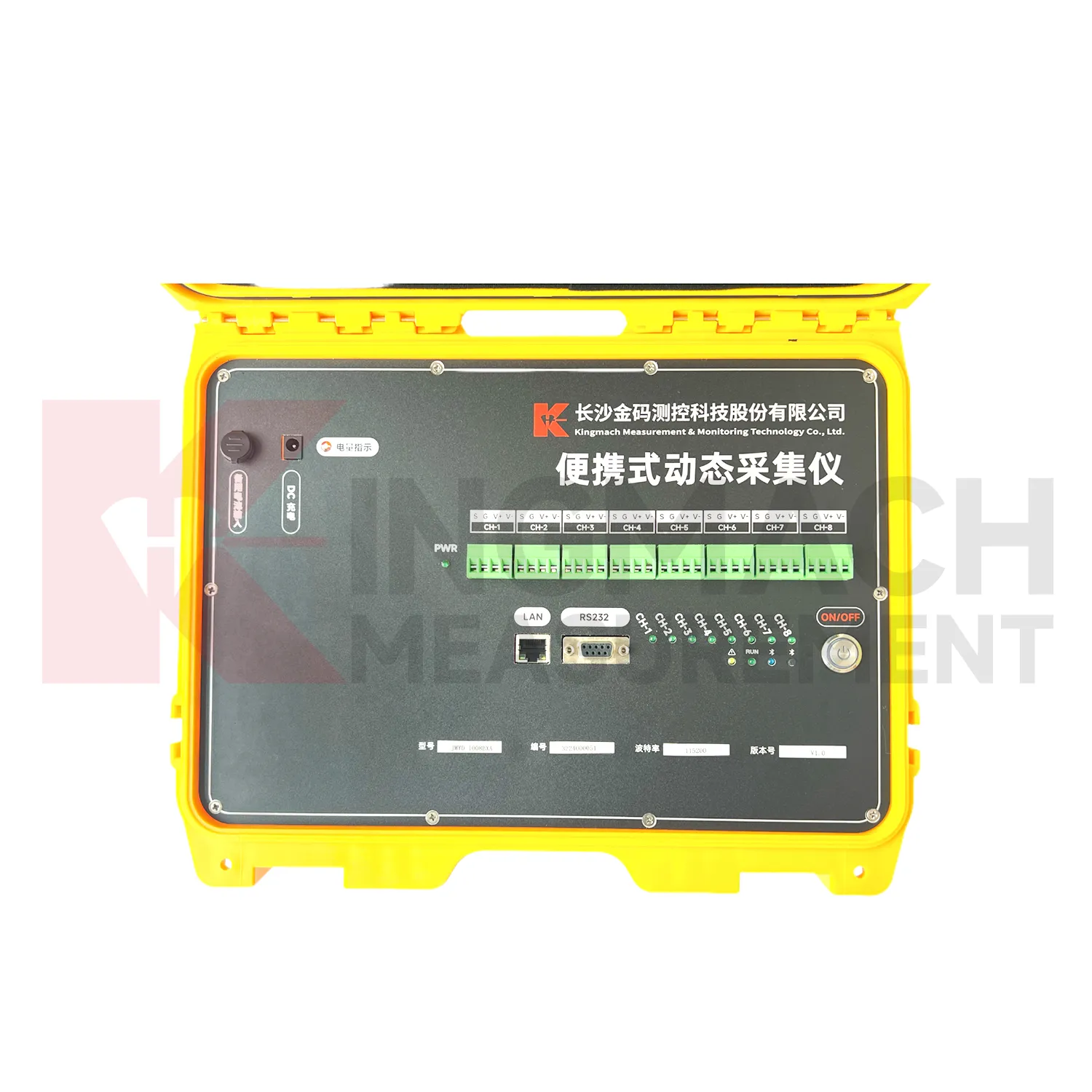

8. Each data acquisition channel is equipped with an LED status indicator, facilitating intuitive checking of the sensor status.

9. Intelligent power management, which can enter low-power mode when the system has no data acquisition and processing tasks.

10. The Portable Dynamic Signal Acquisition Readout has a built-in 5200mAh lithium battery, and a 5200mAh backup battery is also included in the instrument case, improving battery life.

11. Effectively suppress interference using electrical filtering and digital filtering.

12. Advanced isolation technology and reasonable grounding make the system have extremely strong anti-interference ability, suitable for detection in various engineering sites.

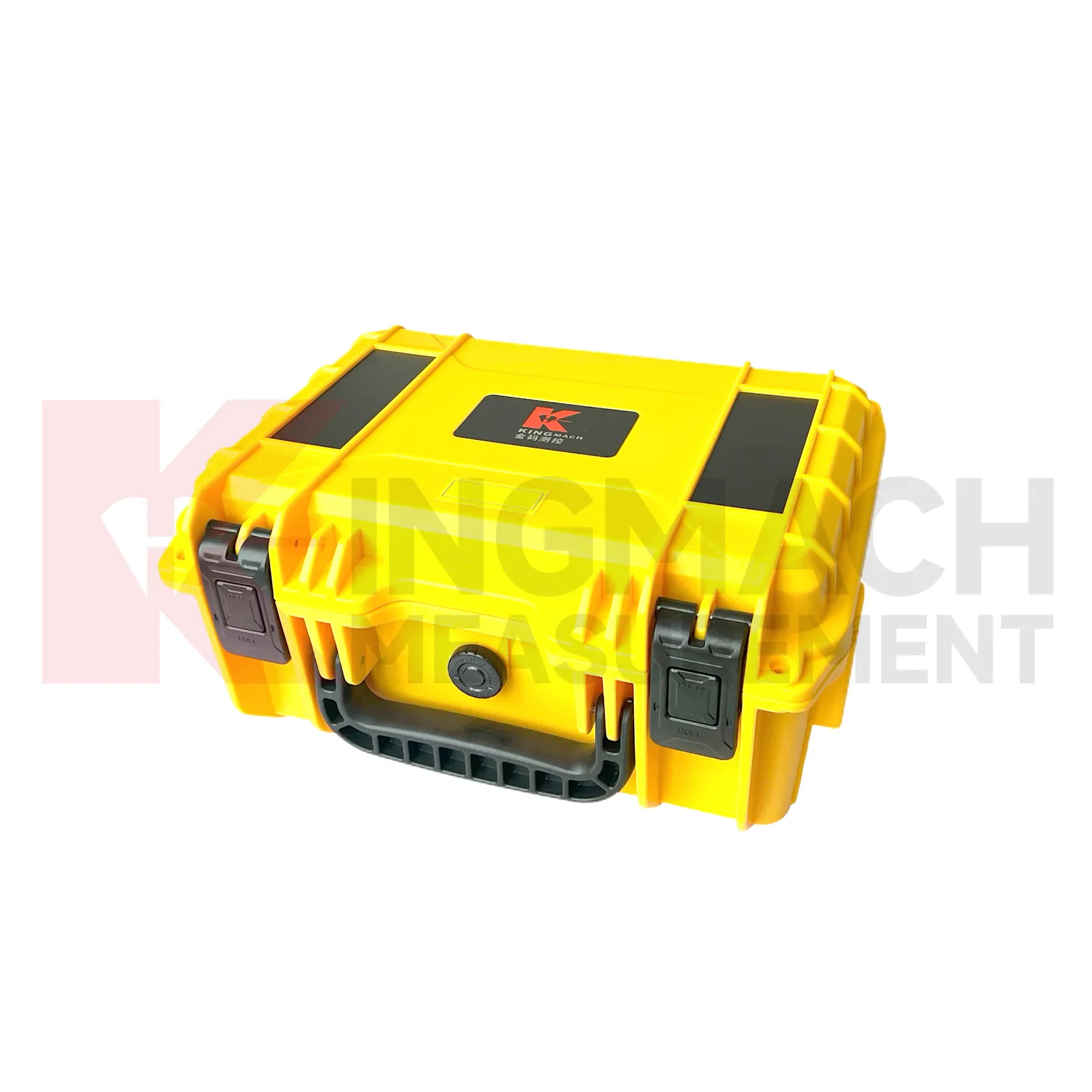

13. Portable design with mold-based production, easy to use.
