Description

Introduction:

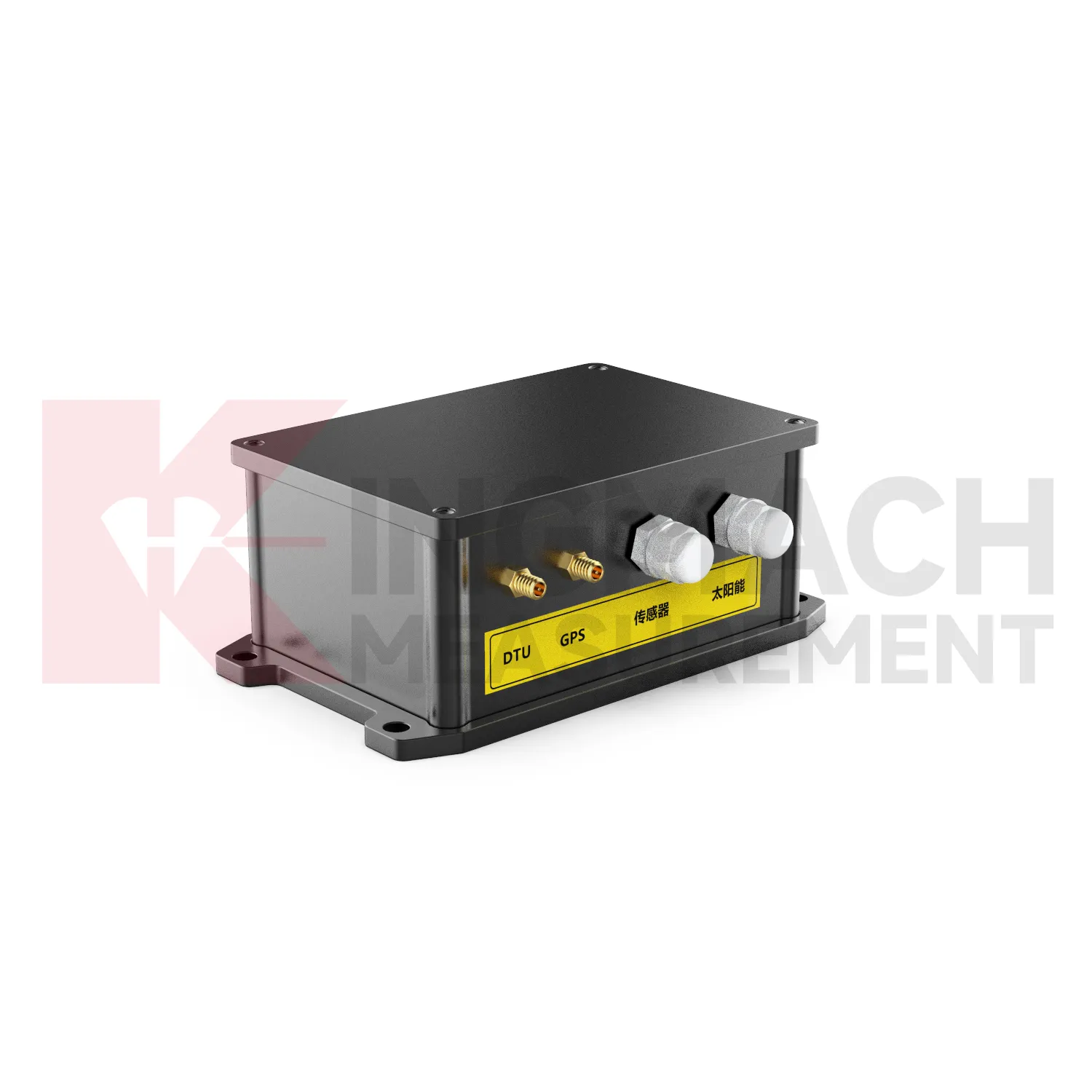

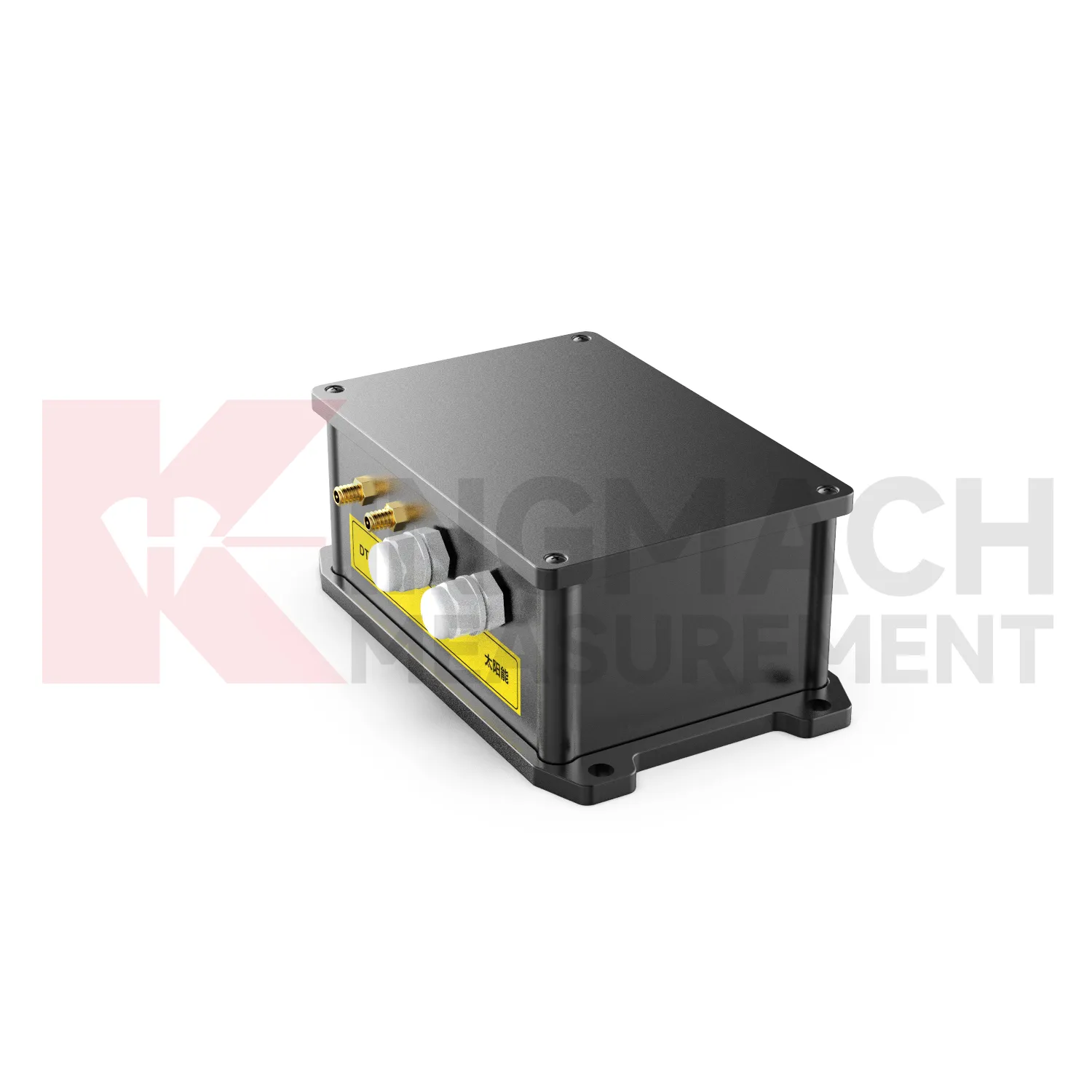

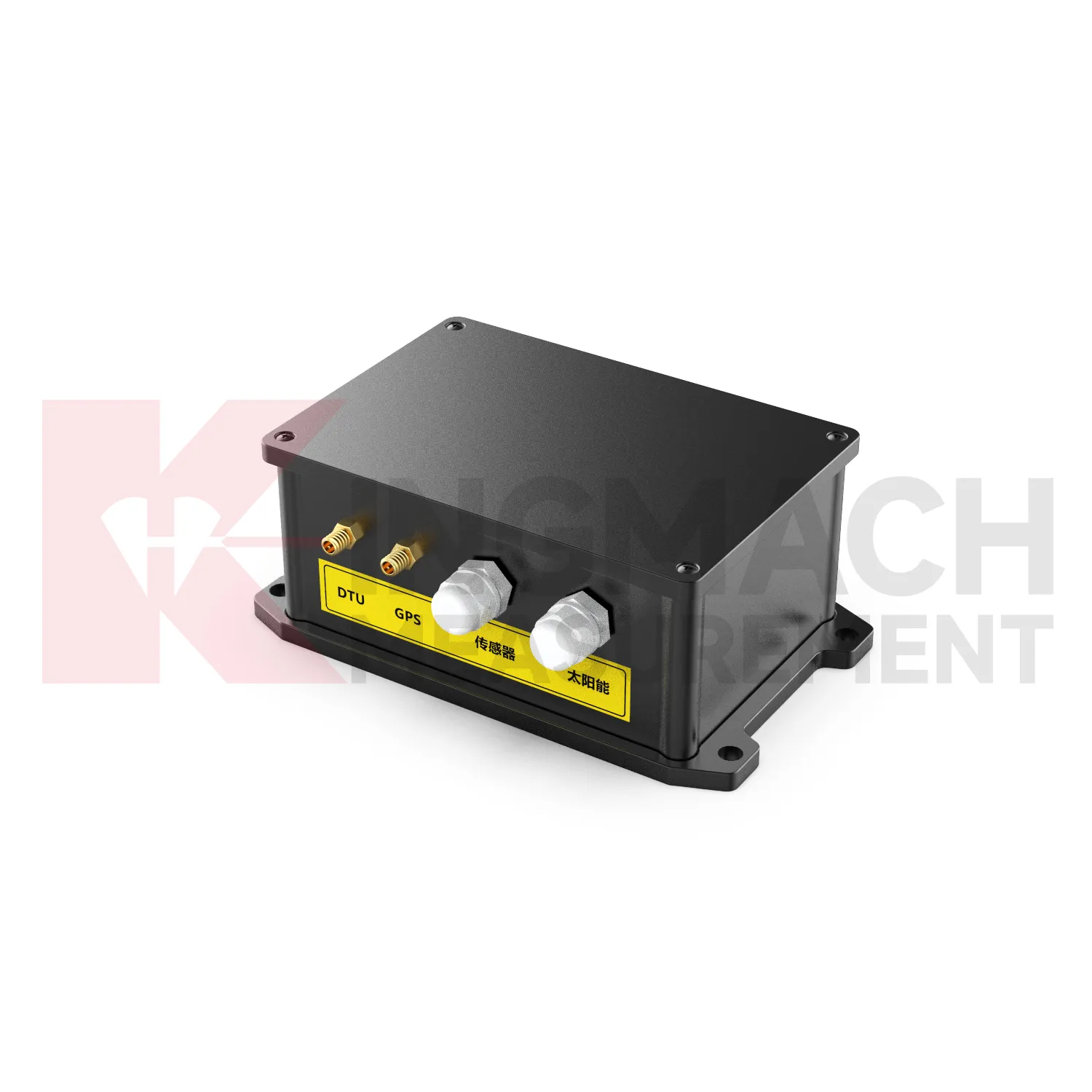

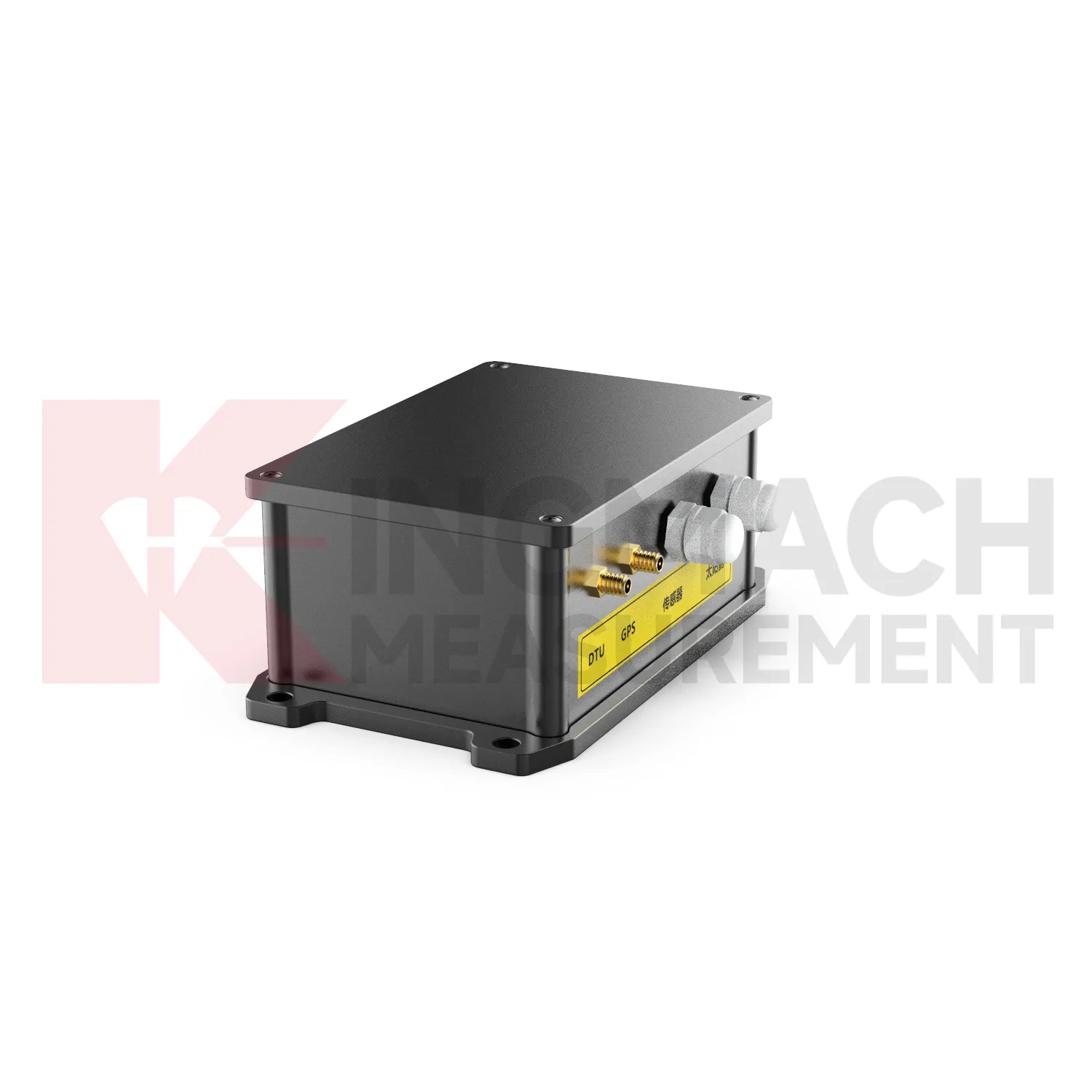

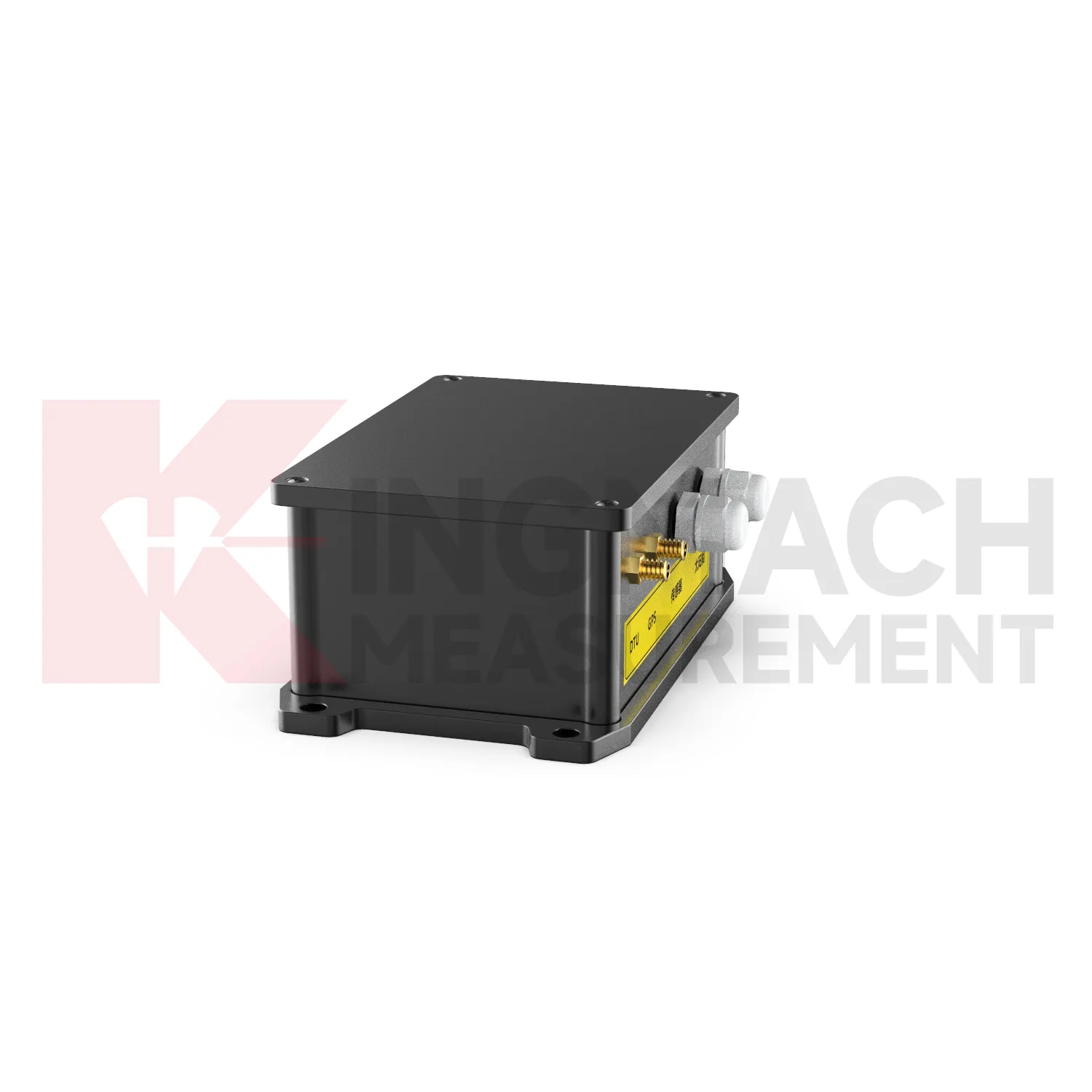

Wireless Data Logger (low power consumption design) (Model number: JMWX-5RTU) is a kind of Digital Signal (RS485) sensor Data acquisition、instrumentation, is used for automatic acquisition and real-time measurement of Digital sensors. The device can be set normal acquisition mode and low power mode. In low power mode, the standby current is lower than 1mA. The built-in 5200mAH Lithium Cell can continuously collect data more than half month in low-power mode without charging. It is used with the self-developed Deep horizontal displacement instrument、Bus type sensor and platform acquisition system software together. Products can be used in all kinds of Geotechnical Engineering and Structure (Dam, Bridge, Tunnel, Side slope, Dilapidated Data acquisition, active upload and transmission of sensor signals in safety monitoring projects of building, mine, nuclear power plant and civil building, etc.) The sensor signals in the Security monitoring project are conduct Data acquisition and actively uploaded and transmitted to provide data support and judgment basis related to the project status and safety for engineering construction and operation managers. Its measurement and communication functions are integrated in the interior, portable design, and small size.

Product Features:

• Adopt highly intelligent and modular integrated design.
• Support remote upgrade and maintenance, truly unattended.
• Automatic interval measurement, real-time measurement, single measurement, timing measurement, active upload of measurement data and other functions.
• Using 32-bit high-speed microprocessor, powerful computing and processing power, greatly improve the efficiency of the system.
• Built-in 5200mAh Lithium Cell, low-power measurement mode can run for more than 15 days without charging.
• Rich interface types, can connect RS485 bus sensor, built-in 4G module wireless upload data.
• The low-power design can control the power supply of the active transmission module and the sensor.
• The product can freely set the starting point of measurement timing, and can realize the reservation measurement function.
• Built-in clock, each Data record will record the time of Data acquisition.
• Power supply voltage detection can monitor the power supply voltage in real time.
• Built-in solar charging control circuit, with 10w solar panels to achieve long-term Data acquisition.

Applications

Products can be used in all kinds of Geotechnical Engineering and Structure (Dam, Bridge, Tunnel, Side slope, Dilapidated Data acquisition, active upload and transmission of sensor signals in safety monitoring projects of building, mine, nuclear power plant and civil building, etc.) The sensor signals in the Security monitoring project are conduct Data acquisition and actively uploaded and transmitted to provide data support and judgment basis related to the project status and safety for engineering construction and operation managers.
