By deploying various sensors, data acquisition devices, and transmission equipment on bridge structures, long-term automatic measurement is conducted on the bridge's load effects, environmental effects, and structural responses. The measured data is transmitted to the cloud platform via wired or wireless communication technologies, providing customers with services such as remote bridge structure monitoring, online early warning, condition assessment, and decision support.
1、One Bridge, One File: Establish a bridge file that includes both static and dynamic data of the bridge. Customizable outputs are available, such as bridge information cards, inspection reports, maintenance reports, and evaluation analysis reports.
2、Abnormal Event/Sudden Damage Alarm: Early warning values are set in accordance with industry standards or design values. When bridge components are damaged or bridge performance degrades beyond the set early warning values, the system automatically sends alarm messages to realize real-time alarm functionality.
3、Bridge Data Evaluation and Analysis: In accordance with the Standards for Technical Condition Evaluation of Highway Bridges (JTG/TH21 - 2011), each component of the bridge is evaluated. The comprehensive evaluation method involves first evaluating components, then evaluating parts, and conducting a comprehensive evaluation of the entire bridge using hierarchical weighting. For different types of bridges, respective evaluations are carried out on the components of the deck system, superstructure, and substructure.
4、Integration with BIM Models: The 3D model reflects the bridge structure's shape, mechanical characteristics, disease distribution, etc., enabling a more intuitive display of the bridge's health status.

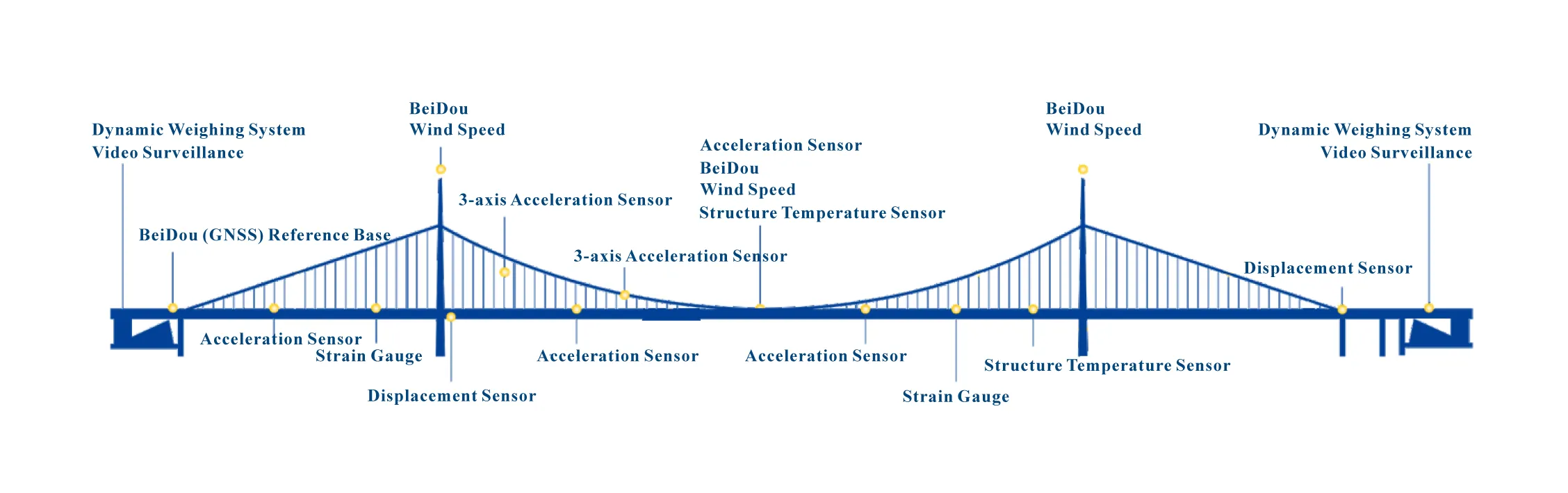

Settlement monitoring, steel truss strain monitoring, hanging basket stress monitoring, cable force monitoring, temperature monitoring, deflection monitoring, crack monitoring, environmental monitoring, etc.
